Agrowtek Product Documents
Hx8 SpecsheetSimplify Your Grow Set Up & Cable Management While Taking Advantage of AgrowTek's Immense Customization Capabilities

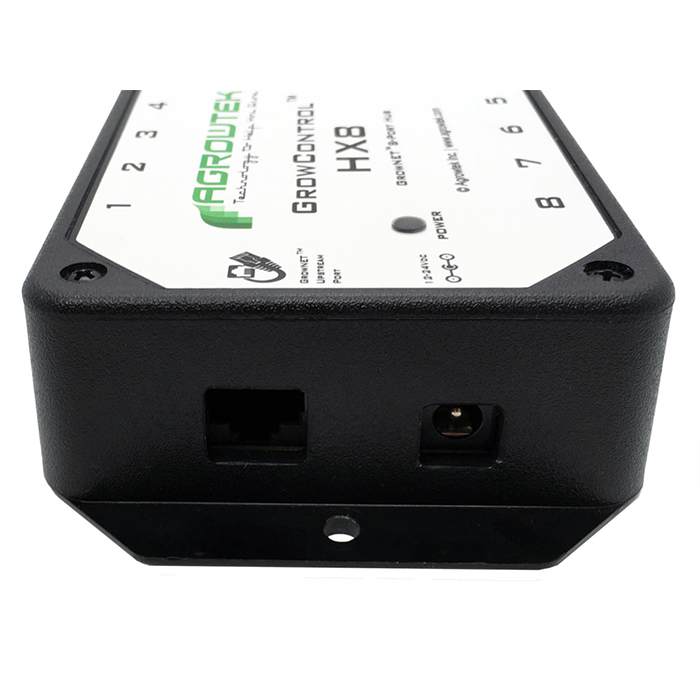

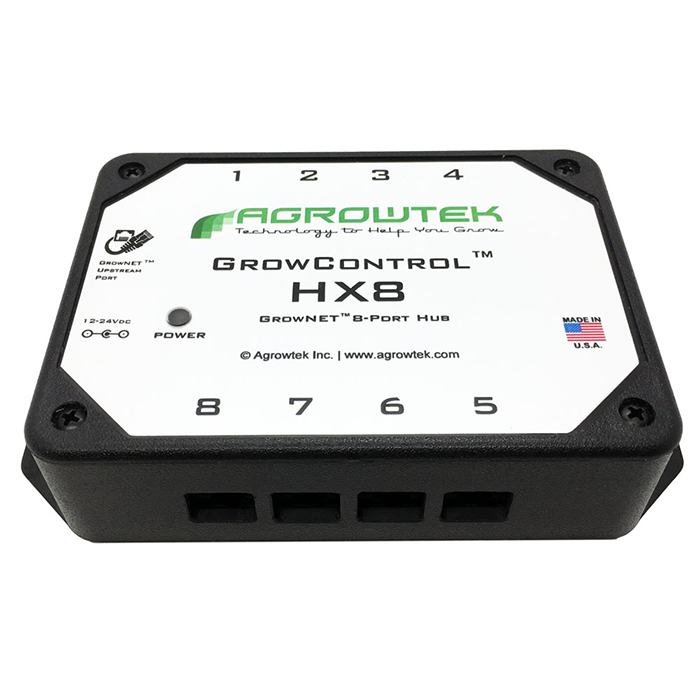

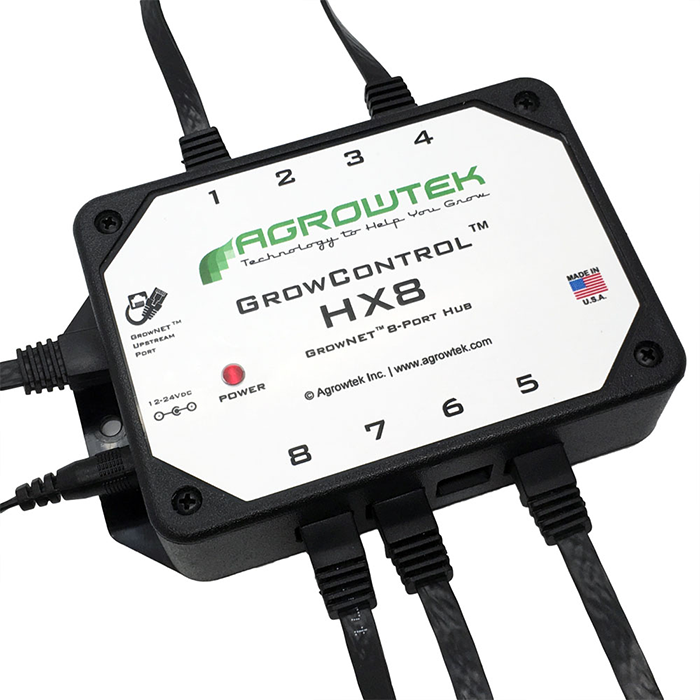

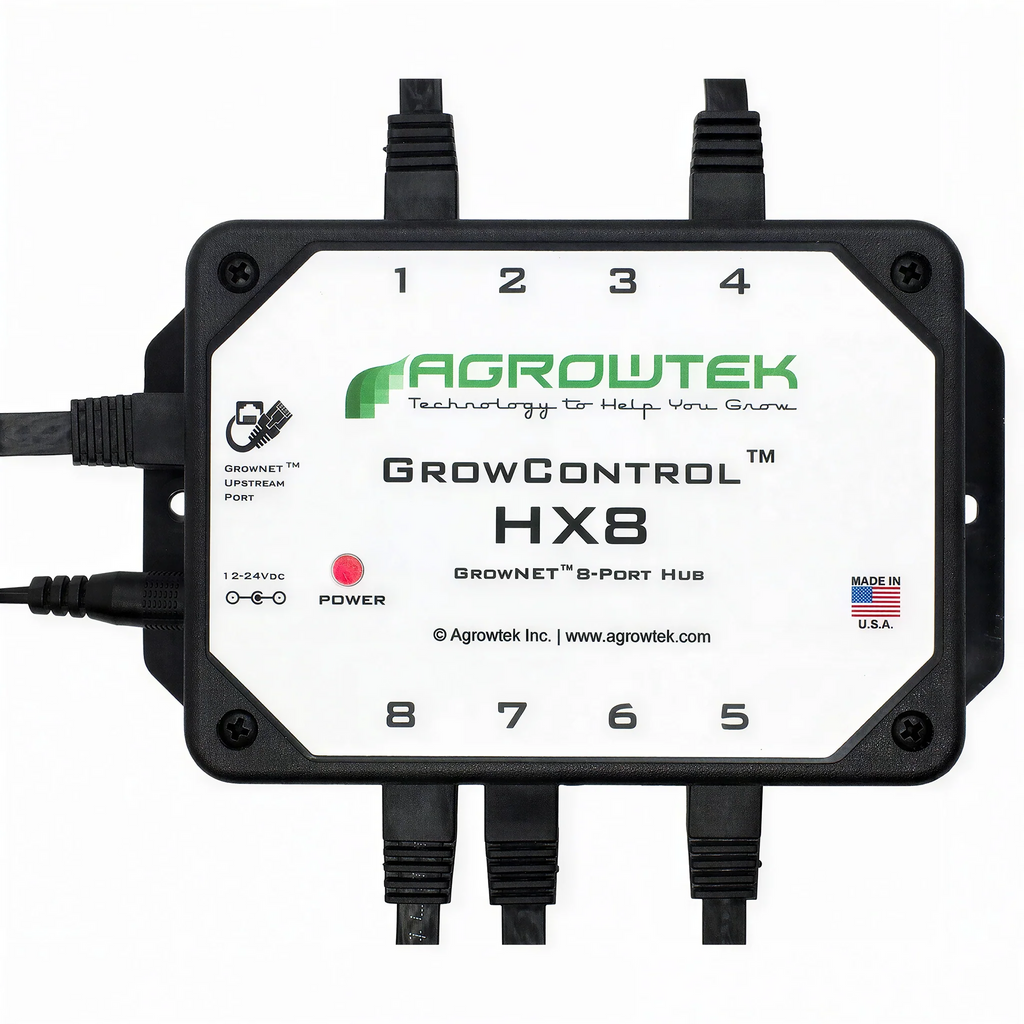

The HX8 GrowNET hub expands any GrowNET master port into 8 more ports! Fully buffered hub provides power to all 8 ports using the DC power jack for Power-Over-GrowNET to sensors and relays for easy, single-cable connections to the devices.
Agrowtek’s sensors and relays can be powered directly over the RJ45 connection from a hub. A terminal block power input is also available for panel mounted applications.
A ‘master’ upstream port is connected to a device such as the LX1 USB Link or LX2 ModLINK™ interface, or even a downstream port on another HX8 hub. Downstream ports then connect to various Agrowtek GrowNET™ devices including sensors, I/O modules and dosing pumps.
Hubs may be daisy-chained as required up to the maximum number of ports on a bus (247 MODBUS / 250 GrowNET™.) Transceivers on every port provide full signal strength and noise immunity to every device resulting in highly robust communications across large networks of devices.
Ideal for installation in each room of a facility to connect multiple devices to a single cat5 cable. Hubs can be daisy chained as required by connecting the upstream port into another HX8 downstream port.
Important: Pumps require their own power supply.
| Brand | Agrowtek |
|---|---|
| SKU | HX8 |
| Weight (lb.) | 1.0000 |
| Lead Time | This product ships in 2 Weeks |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Power Cord(s) Included | Yes |
| Power Cord Length | 6ft |
| Amps | .5 Amps |
| Voltage |
