Monitor & Log Indoor Atmospheric Conditions To Help Ensure The Perfect Growing Environment
For Use With the GC-PRO & GCX System ONLY
GrowControl SXC Climate Sensor & Data Logger is a precision digital indoor sensor designed for hanging in growing environments featuring temperature, relative humidity, ambient light sensors and an optional CO2 ppm sensor rated for 0-2000ppm. The SXC sensor can be hung up with the included hanging bracket above your canopy, or you can take advantage of the wall mounting slots cut out on the SXC unit, giving you total control on how you monitor your set up.

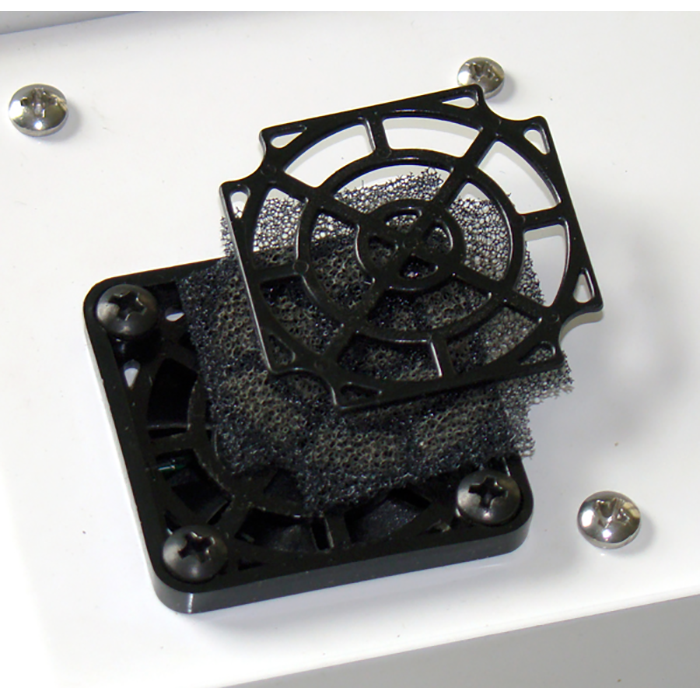

Internal memory logs 21,600 data points for months or years of storage, helping you stay on top of changes and patterns that may affect your operation. Fan aspirated for continuous accuracy with removable air filter to ensure the upmost accuracy.
For users with an onsite PC, Agrowtek offers the LX1 AgrowLINK, which allows it's user to utilize their free PC software for datalog download, graphing, calibration, configuration, firmware updates, etc. Learn more here!
If you're operation is set up to use MODBUS protocols, Agrowtek offers the LX2 ModLINK which connects GrowNET™ devices to RS-422/485 for MODBUS RTU protocol communication. Learn more here!
Finally, if you have a bigger operation on your hands, or just don't have an onsite PC, Agrowtek offers the ultimate in cultivation control with the GCX or GCX-Plus Cultivation Master Controller. The GCX can connect, control, and monitor up to 100 devices, and the GCX-Plus allows you to monitor up to 200 devices, both in real time with extreme accuracy! GrowControl systems are loaded with intelligent control functions optimized for today’s complex growing environments. Learn more here.
Features
- GrowNet Digital Communication Port
- MODBUS RTU via LX2 ModLINK
- Durable power-coated steel enclosure
- Real Time Clock
- Fan Aspirated With Air Filter For High Accuracy
- Made in USA
- 1-Year Warranty
- FOR USE WITH THE GC-PRO & GCX MONITOR ONLY
SXW Specifications
| Specification | Measurement |
|---|---|
| Power | 24Vdc, ~5W |
| Max Cable Distance | 1000ft |
| Aspirator | 6cfm Fan with Foam Filter |
| Temperature Range | -20 - 60°C |
| Temperature Accuracy | ±0.2°C typical | ±0.4°C maximum |
| Humidity Range | 0-100% RH (non condensing) |
| Humidity Accuracy | ±2% 0-80% typical | ±4% maximum |
| Light Irradiance Range | 0 - 1000W/m2 |
| Light Accuracy | ±10% |
| 4-20mA DAC Resolution | 12 bit, 0.005mA |
| Interface | GrowNET, MODBUS |
| Brand | Agrowtek |
|---|---|
| SKU | SXC-P |
| Weight (lb.) | 2.0000 |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| Prop 65 | false |
| Controller Functions | Integrated CO2 Sensor |
| CO2 Sensor Type | Integrated CO2 Sensor |
| Humidity Setting Range | 0-100% RH (non condensing) |
| Temp Setting Range | -20 - 60°C |
| Has Photocell | Yes |
| ETL Listed | No |
| UL Listed | No |
What growing conditions does the Agrowtek GrowControl SXC monitor and log?
The Agrowtek GrowControl SXC monitors temperature, relative humidity, ambient light, and optional CO2 levels. The integrated data logger stores 21,600 data points for long-term review of growing-environment changes and patterns.
Which GrowControl systems are compatible with the Agrowtek GrowControl SXC?
The Agrowtek GrowControl SXC is compatible with GC-PRO and GCX systems only.
Where can the Agrowtek GrowControl SXC be installed in a growing environment?
The Agrowtek GrowControl SXC can hang above the plant canopy using the included hanging bracket or mount to a wall using wall mounting slots.
How does the Agrowtek GrowControl SXC support accurate climate monitoring?
The Agrowtek GrowControl SXC uses a fan-aspirated 6 CFM airflow system with a removable foam air filter. Temperature accuracy is typically ±0.2°C, and humidity accuracy is typically ±2% from 0% to 80% RH.
Can the Agrowtek GrowControl SXC connect to PC software or MODBUS systems?
The Agrowtek GrowControl SXC supports GrowNET and MODBUS communication. The LX1 AgrowLINK enables PC software access for data downloads, graphing, calibration, configuration, and firmware updates, while the LX2 ModLINK enables MODBUS RTU communication through RS-422/485.
What CO2 monitoring capability does the Agrowtek GrowControl SXC provide?
The Agrowtek GrowControl SXC includes an integrated CO2 sensor with a 0-2000 ppm rating.
