Built On A Decade Of Proven Technology & Components With New, Enhanced Capabilities To Meet The Growing Demand For Highly Reliable Autonomous Dosing Applications
The MDX dosing system is designed to automatically dose nutrients, pH and ORP (optional) buffers into recirculating systems and stock tanks to maintain target levels. The MDX system operates independently of other systems and doses on demand automatically according to target set-points and sensor readings. Each pump can be configured independently to any sensor with unique dose ratios/amounts
GrowControl MDX Mini Dosing System includes pH, EC and temperature sensors with 1, 2, 4, 5, or 6 pump heads. ORP and DO sensors are available as well for even more visibility and control. System maintains a single recipe that can be changed on the fly. The LCD display provides simple configuration of the pumps and dosing parameters, manual pump priming, sensor calibration, as well as graphing, alarms, data logging and more.
The SXHM hydro sensor continuously monitors the sensor probes and compares the readings to “target” set points for pH, conductivity (EC) and ORP (optional.) If the readings are outside of the allowed range, the pumps will sequentially dose according to the configured recipe, repeating until the targets are achieved.
Precision sensors and rugged pumps offer reliable and accurate control. Built with FDA compliant tubing, the pumps inject chemicals quickly into water lines up to 25psi. Long-life pump heads are easily replaced in seconds without tools. The controller's built-in color display provides an easy to use interface for monitoring the sensor readings and configuring the dosing settings.
Each pump has a programmable delay time to separate parts and/or add a delay between the cycles.
Included With The Mini Dosing System:
- GrowControl SXHM Controller
- pH, EC, and temperature sensors
- Available in a single, double, quad, or penta pump set up
- OPTIONAL: ORP or DO Sensors
- OPTIONAL: Mounting Panel Kit (ships constructed with mounting panel, sensor manifold, and selected sensors & pumps)
The MDX can be paired with the GrowControl GCX Cultivation Control System for ultimate control of your growing operation. When paired with the GrowControl GCX Controller, you not only gain the ability to control all aspects of your facility's climate and hydroponics systems, you gain the option to run your MDX dosing system from the comfort of your home with remote access capacities. Potential problems and issues are sent to you at an instant via text or email too, so you never have to worry!
Add Agrowtek’s SXL electronic optical liquid level sensor and water valve kits to the stock tank to automate the water level control and replenish the tank with water. This set up is perfect for those looking to automate their system entirely. Learn more here.
If you're looking to use an onsite PC, Agrowtek also offers an easy solution for configuration, firmware updates and data logging, and more using the Agrowtek LX1 AgrowLink. When using the LX1, you can connect the MDX to the HX8 8-port hub, which allows the control of multiple dosers, sensors, & relays directly via your onsite PC. Learn more here.
To make sure you set your system up how you truly like and not just how you can get it, Agrowtek systems use standard MODBUS protocols and can be controlled by MODBUS devises using Agrowtek's LX2 ModLink. Learn more here.

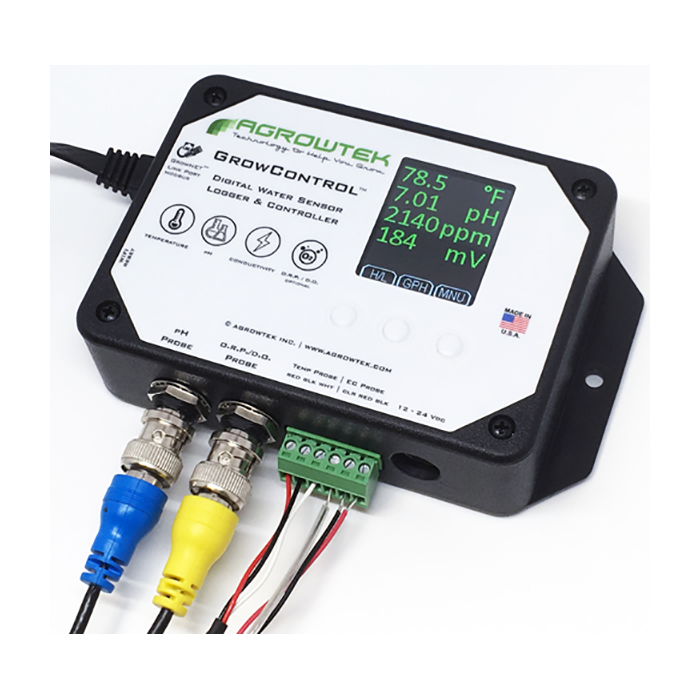

The GrowControl SXHM Controller
- 3-button/LCD display interface allows easy monitoring of sensor values.

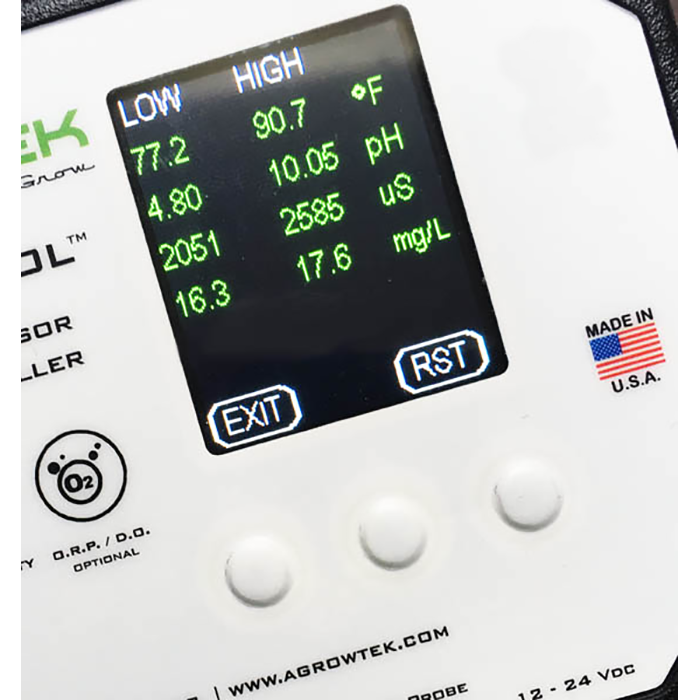

- High / Low History
- Graphing
- Main Menu
- Alarm set points with Buzzer
- Manual pump priming
- Back-light shut-off timer
- Simple menu driven setup for configuring pump recipes, system settings, sensor calibration and more.
- The main screen displays the real-time sensor readings from the attached sensors.

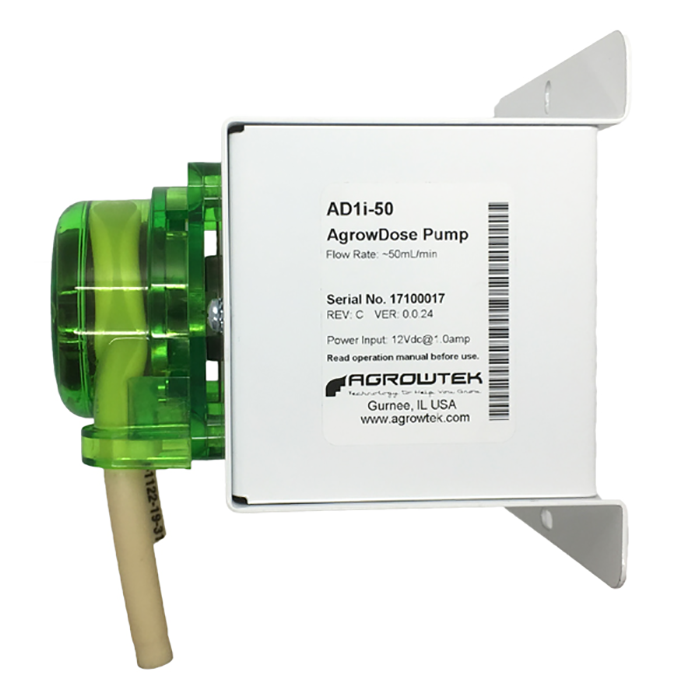

AgrowDose ADi Digital Peristaltic Dosing Pumps
- Accurate & Repeatable
- Acid & Base Chemical Compatible
- Rugged Pump & Motor Works on Thick Fluids
- Easy-Change Pump Heads
- FDA Food Safe Tubing
- Industrial MODBUS Control
AgrowDose ADi series "intelligent" peristaltic dosing pumps are digitally controlled, variable speed capable next-generation pumps for use with Agrowtek's SXH hydroponics sensors as an autonomous pH & EC dosing system.
Easy Set Up
Connecting The SXHM Controller & Peristaltic Pumps
A direct-link connection between a SXHM sensor and ADi pump requires Agrowtek’s cross-over adapter, included with the MDX System.
IMPORTANT: Only use Agrowtek's cross-over adapters. Incorrect cross-over adapters or cables can cause damage to the equipment.
Setting Up Your Pumps For Dosing
Normal pump rotation is CW. The left tube is inlet (suction) and the right tube is outlet (pressure.)
Connect tubing with barbed fittings as shown. Tubing lengths may be as long as 50ft. Check for proper flow with the prime function.
Use the LCD menus to configure each pump and the the system parameters and then put the pumps into RUN mode to begin auto dosing.
Haven't decided on nutrients yet? Check out Hydrobuilder's nutrients here!
Agrowtek Sensors & Probes
Temperature Probe
- -20 to 60°C
- 3 ft
- Tinned Lead Connection
- Included with MDX System
Stainless steel probe, 1/4" diameter x 3" with 3ft lead. Made in USA
pH Probe
- 0-14 pH
- 3 ft
- BNC Connection
- Included with MDX System
High quality pH sensor probe. Made in USA.
Conductivity (EC) Probe
- 0- 5000 uS
- 3 ft
- Tinned Lead Connection
- Included with MDX System
High quality electrical conductivity sensor probe. Made in USA.
Oxidation Reduction Potential (ORP) Probe
- -1000 to +1000 mV
- 3 ft
- BNC Connection
- Optional Upgrade for MDX System (can't be used with DO Probe on MDX system)
High quality ORP (Redox) sensor probe. Made in USA
Dissolved Oxygen (DO) Probe
- 0 - 20 mg/L
- 3 ft
- BNC Connection
- Optional Upgrade for MDX System (can't be used with ORP Probe on MDX system)
High quality galvanic DO sensor probe. Made in USA.
Sensor Set Up & Usage

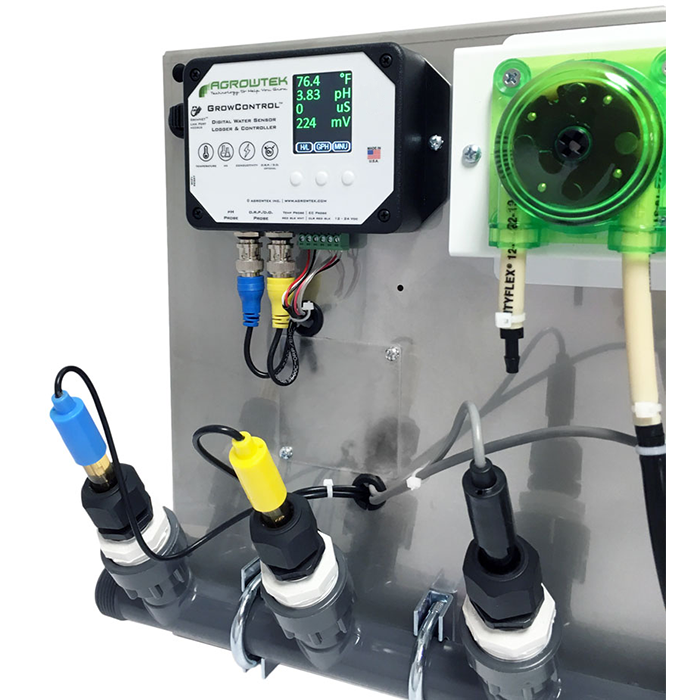

Connecting Your Sensor Probes To The SXHM Controller
pH and ORP or DO sensors are equipped with “BNC” style connectors; push on and then turn to lock in place.
Temperature and EC probes have a screw terminal block. Make the connections according to the label on the transmitter. The terminal block may be removed for easier wire installation or for service.
Sensors Require Continuous Contact
MDX systems require the sensors to be continuously in contact with the water in order to properly manage the dosing pumps. Probe can be located in the reservoir tank, or may be installed inline with a continuously recirculating water flow.
pH & ORP probes must remain wet to avoid damage. Do not allow probe tips to dry!
** Manifold shown sold separately. **
Typical Fertigation Layouts

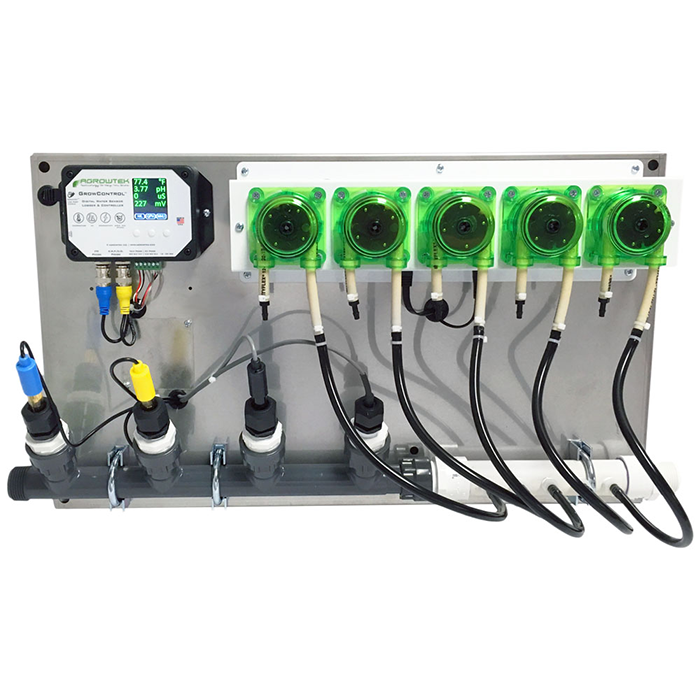

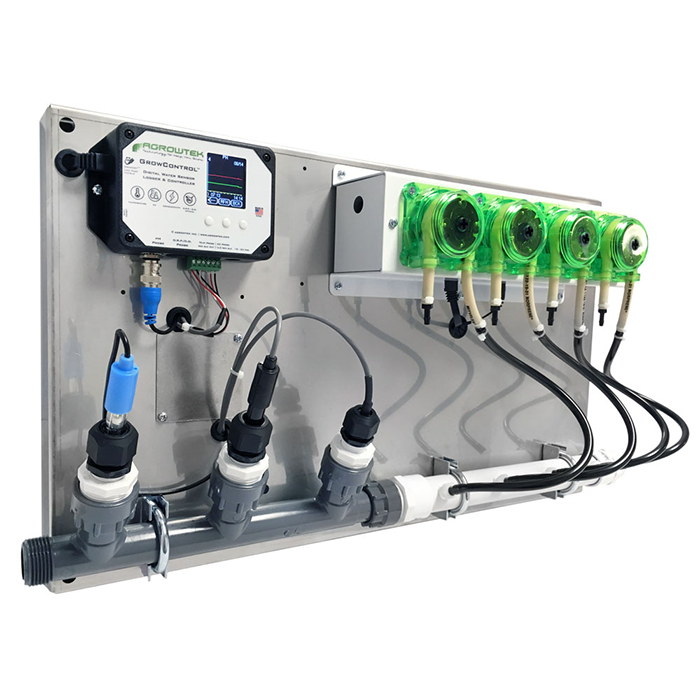

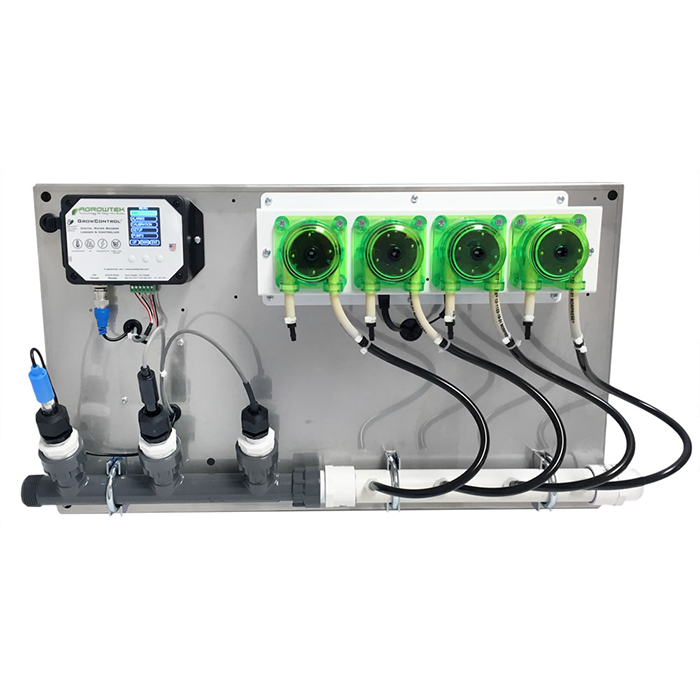

Your MDX System can be mounted on a wall, on a rail via Agrowtek's DIN Rail Bracket Mounting Kit, or as shown with a panel and sample manifolds included. Agrowtek's panel configuration makes setting up that much easier! These pre-assembled panels come ready to dose! Just connect the water manifold to your system and plug in power! Controller, dosing pumps and water manifold are all conveniently mounted on a stainless steel back panel simplifying installation and providing a clean appearance.
**Please Note:** Panel and Sample Manifold Sold Separately
Sensor Specifications
| Specification | Measurement |
|---|---|
| Power | 12-24Vdc, ~2W (5W w/LCD) |
| Max Cable Distance | 1000ft |
| Optional Interface | LCD w/3 Buttons |
| Temperature Range | -20 - 60°C |
| Temperature Accuracy | ±2°C, 0.01° resolution |
| pH Range | 0-14pH |
| pH Accuracy | ±0.02pH, 0.01pH resolution |
| Conductivity Range | 0 - 5000 uS (0-2500ppm) |
| Conductivity Accuracy | ±20uS, 2uS resolution |
| ORP (DO) Range | -1000 - +1000mV (0-20mg/L) |
| ORP (DO) Accuracy | ±10mV, 1mV resolution |
| 4-20mA Output Resolution | 12 bit , 0.005mA |
Pump Specifications
| Specification | Measurement |
|---|---|
| Power | 12Vdc, 1Amp |
| Pump Heads | Single/Dual/Quad |
| Flow Rate | Variable, 15-50mL/min |
| Tubing Material | FDA Approved Neoprene |
| Tubing Size | 1/4” O.D. x 3/16” I.D. |
| Max Outlet Pressure | 20psi |
| Minimum Dose Size | 1mL |
| Brand | Agrowtek |
|---|---|
| SKU | MDX5P-ORP2 |
| Weight (lb.) | 16.0000 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | This product ships in 2 Weeks |
| Length (in.) | |
| Width (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
