Built On A Decade Of Proven Technology & Components With New, Enhanced Capabilities To Meet The Growing Demand For Highly Reliable Autonomous Dosing Applications
The MDX dosing system is designed to automatically dose nutrients, pH, and ORP (optional) buffers into recirculating systems and stock tanks to maintain target levels. The MDX system operates independently of other systems and doses on demand automatically according to target set-points and sensor readings. Each pump can be configured independently to any sensor with unique dose ratios/amounts.

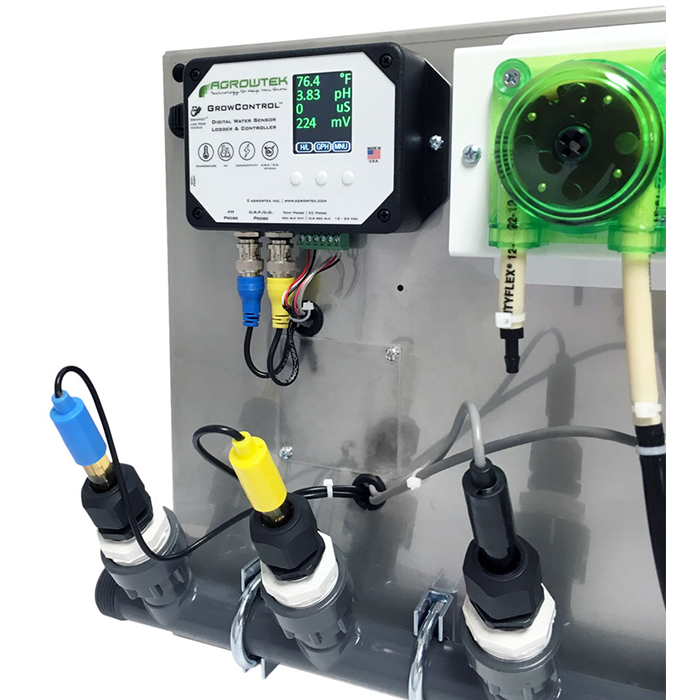

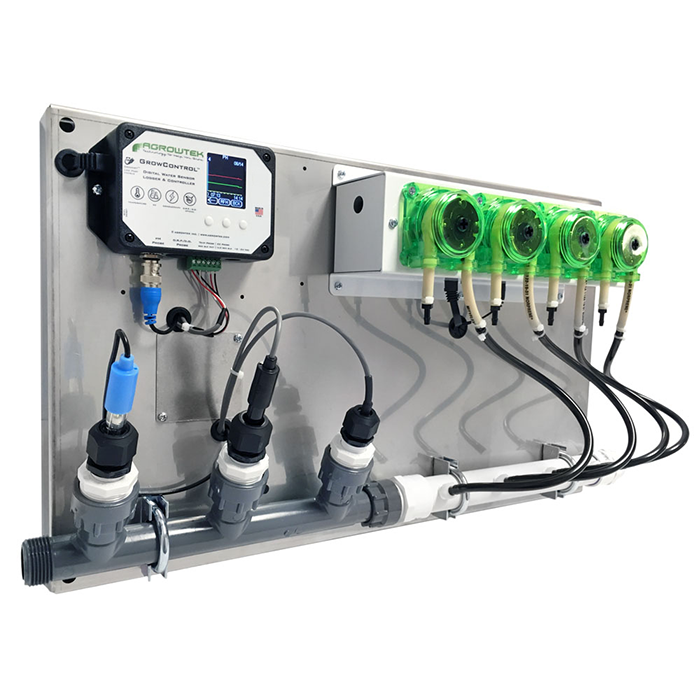

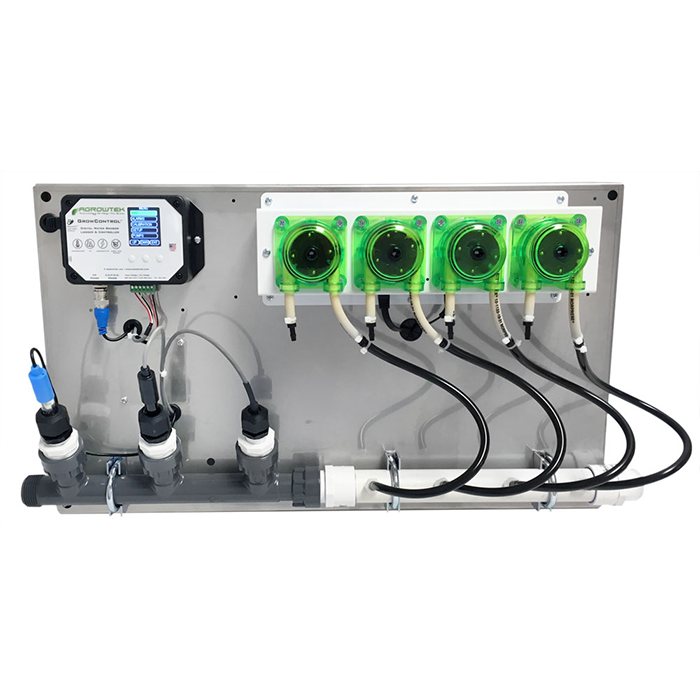

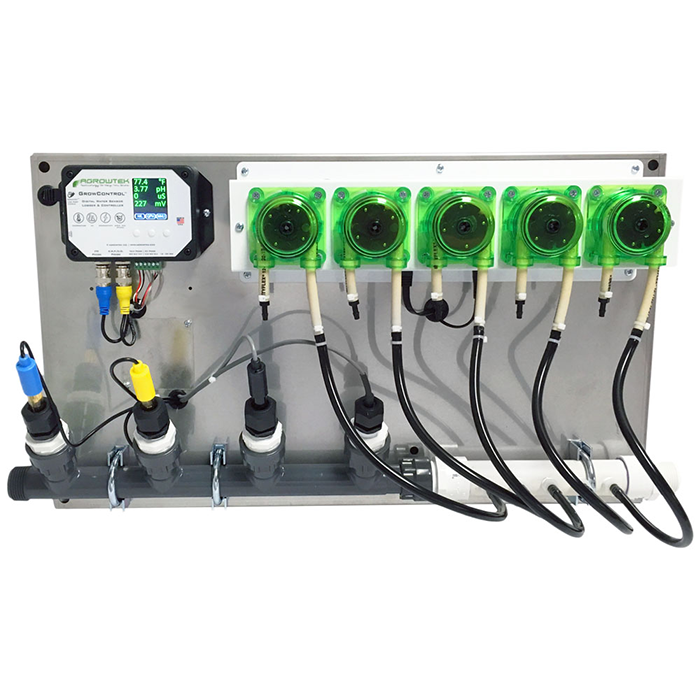

GrowControl MDX Mini Dosing System includes pH, EC, and temperature sensors with 1, 2, 4, 5, or 6 pump heads. ORP and DO sensors are available as well for even more visibility and control. The system maintains a single recipe that can be changed on the fly. The LCD provides simple configuration of the pumps and dosing parameters, manual pump priming, sensor calibration, as well as graphing, alarms, data logging, and more.

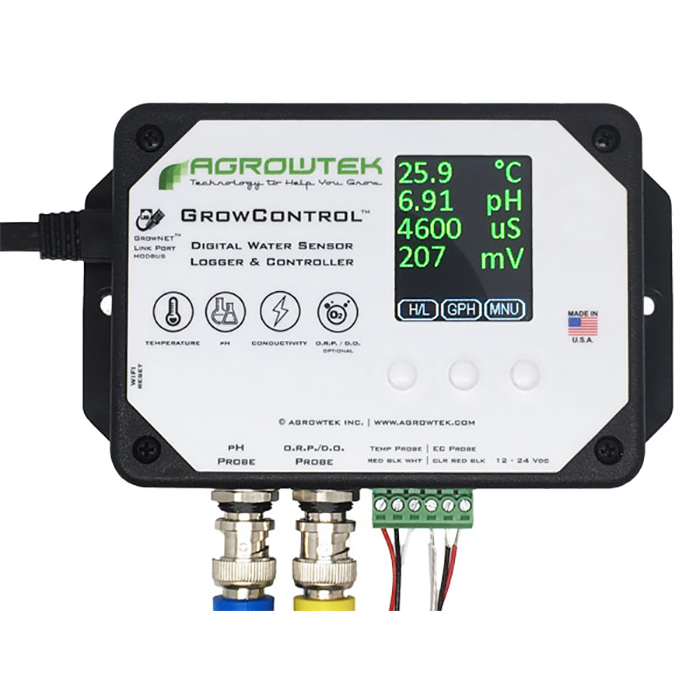

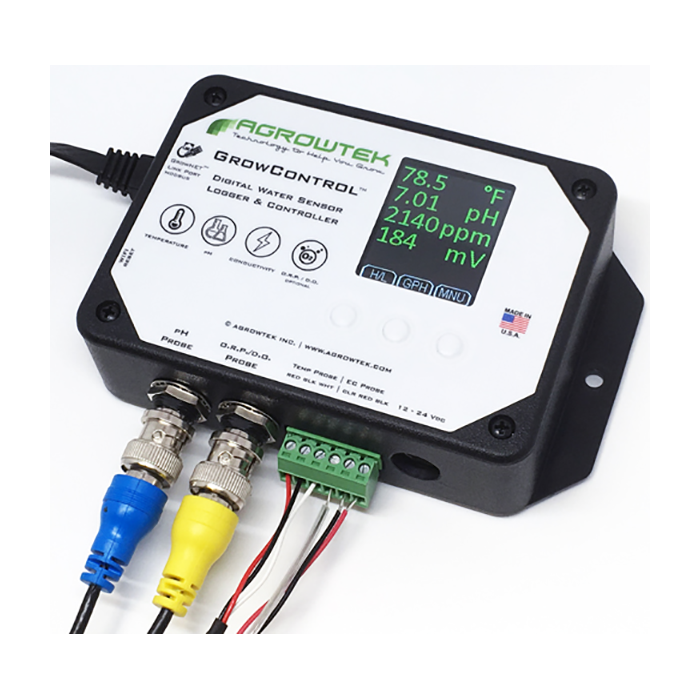

The SXHM hydro sensor continuously monitors the sensor probes and compares the readings to "target" set points for pH, conductivity (EC), and ORP (optional). If the readings are outside of the allowed range, the pumps will sequentially dose according to the configured recipe, repeating until the targets are achieved.

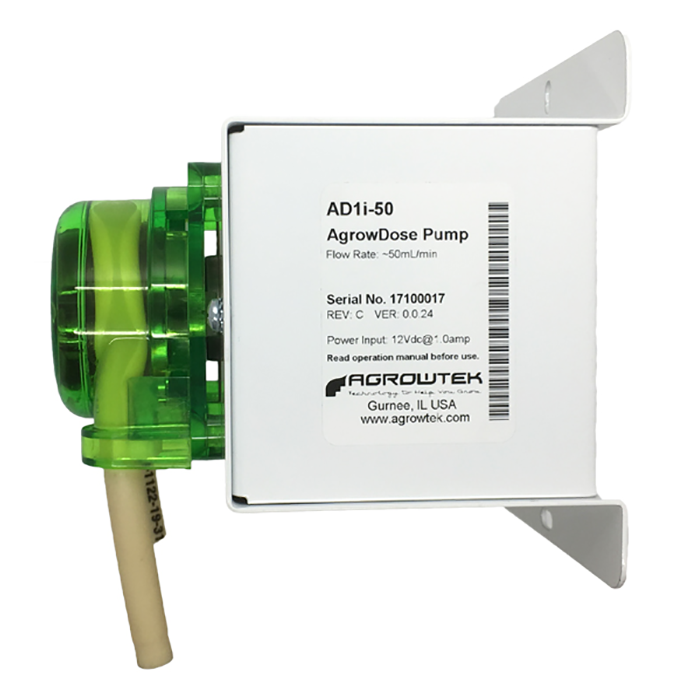

Precision sensors and rugged pumps offer reliable and accurate control. Built with FDA-compliant tubing, the pumps inject chemicals quickly into water lines up to 25psi. Long-life pump heads are easily replaced in seconds without tools. The controller's built-in color display provides an easy-to-use interface for monitoring the sensor readings and configuring the dosing settings.
Each pump has a programmable delay time to separate parts and/or add a delay between the cycles.
Included With The Mini Dosing System:
- GrowControl SXHM Controller
- pH, EC, and temperature sensors
- Available in a single, double, quad, or penta pump setup
- OPTIONAL: ORP or DO Sensors
-
OPTIONAL: Mounting Panel Kit (ships constructed with mounting panel, sensor manifold, and selected sensors & pumps)
The MDX can be paired with the GrowControl GCX Cultivation Control System for ultimate control of your growing operation. When paired with the GrowControl GCX Controller, you not only gain the ability to control all aspects of your facility's climate and hydroponics systems, but you also gain the option to run your MDX dosing system from the comfort of your home with remote access capacities. Potential problems and issues are sent to you instantly via text or email, too, so you never have to worry!
Add Agrowtek's SXL electronic optical liquid level sensor and water valve kits to the stock tank to automate the water level control and replenish the tank with water. This setup is perfect for those looking to automate their system entirely. Learn more here.
If you're looking to use an on-site PC, Agrowtek also offers an easy solution for configuration, firmware updates, data logging, and more using the Agrowtek LX1 AgrowLink. When using the LX1, you can connect the MDX to the HX8 8-port hub, which allows the control of multiple dosers, sensors, & relays directly via your onsite PC. Learn more here.
To make sure you set your system up how you truly like and not just how you can get it, Agrowtek systems use standard MODBUS protocols and can be controlled by MODBUS devices using Agrowtek's LX2 ModLink. Learn more here.
