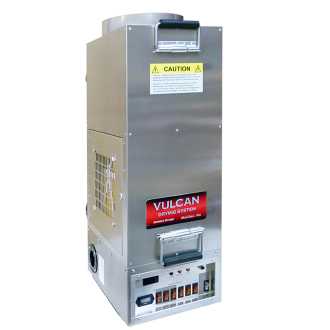

The Vulcan is an electric heat drying system for structural drying that is compact powerful. Loaded with 37,000 BTU’s of heat power, the Vulcan offers a wide range of air flow options and precise controls for safely and efficiently.
POWER CORD NOT INCLUDED
In an industry wide move towards using heat and airflow to increase the evaporation rate of moisture in materials, Omnitec Design Inc. leads the way. The Vulcan is the smallest and yet most powerful electric drying unit on the market today. Our electric heat drying system is a compact and powerful tool for structural drying, sanitizing with heat and space heating. Two versions of the Vulcan are available with 11 KW heaters and integral variable speed blowers, specifically designed to work well with modern LGR dehumidifiers, and other specialty drying equipment.
Features
Heater can deliver 180⁰F hot air with a temperature rise of 95⁰F at 350 CFM airflow.
It produces 37,000 BTU output with 6 individually controlled heating elements.
A high static pressure blower with adjustable airflow from 100 to 475 CFM.
Panel mounted programmable temperature controller.
Thermocouple probe with 25 ft extension, can measure air or material temperature for efficient and safe heat control.
Highly portable with a compact, 30” long, 11” wide, 18” high housing, 63 lbs. weight and 3” locking casters.
* Vulcan heaters are built to perform in tough construction environments and are easy to maintain. This products meets UL, CSA and OSHA safety standards.
Specifications
Airflow: variable, 100-475 cfm
Weight: 63 lbs.
Dimensions: 11 1/4" wide 17 3/4" high 29 30" long
Filtration: Primary/Secondary Filter - 12" x 12" x 2" MERV 11 pleated filter, Optional - 12" x 12" x 2" Carbon Filter for odor control
Cabinet: Aircraft grade aluminum, closed end rivet construction., Hospital grade non-marking 3" casters for ease of movement., 2 rubber coated handles

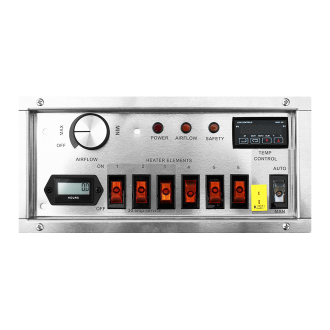

Controls: Variable Speed Controller, Digital Hour Meter, Digital Temperature Controller w/ 25' thermocouple sensor, Auto/Manual temperature control, Individual switches for each of the 6 heating elements
Power Requirement: 200-240VAC/50-60 Hz/50 Amp max
Outlet Ring Size: 10" diameter
Inlet Connection: 10" diameter
Outlet Air Temperature: 180F max
Ambient operating temp: 104F
* Airflows are based on blower manufacturer curves. Different HEPA filters may cause the flow to vary.
I have about 200 of these in our building. They are solid in all kinds of conditions, including the high-humidity environments that most of them live in. In fact, I just learned that most of the employees just wash them with the power washer (they do unplug them first)! I've never had a problem with any of them, except that the departments tend to steal them from each other for their own purposes.
I'll probably come back to Hydrobuilder for more as long as the price is right! At least until I have enough that they stop stealing from each other.
This sett up is great relatively easy compared to all the other methods I've use over the last 40 years at my age simple and easy with great results is where it's at
