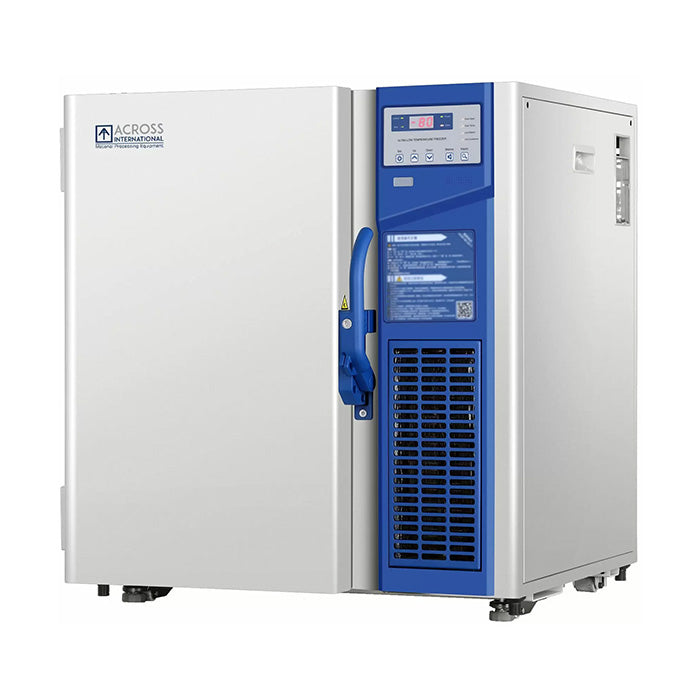

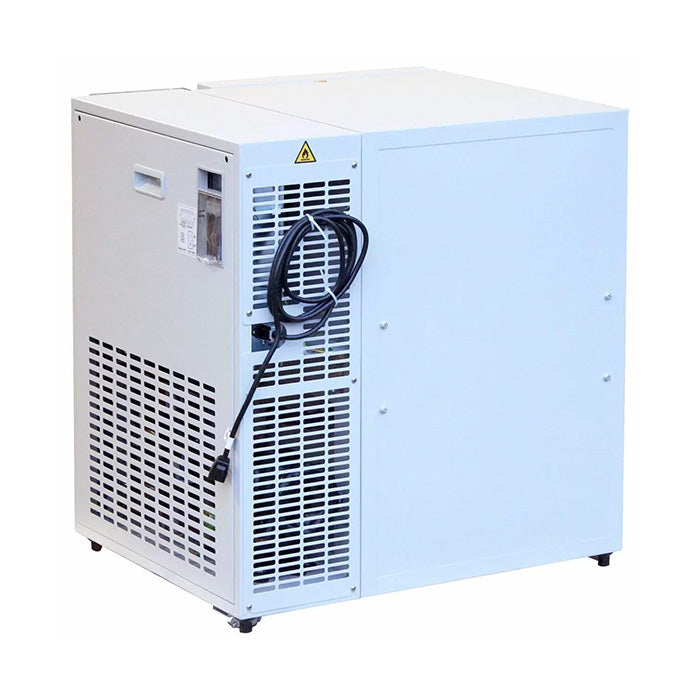

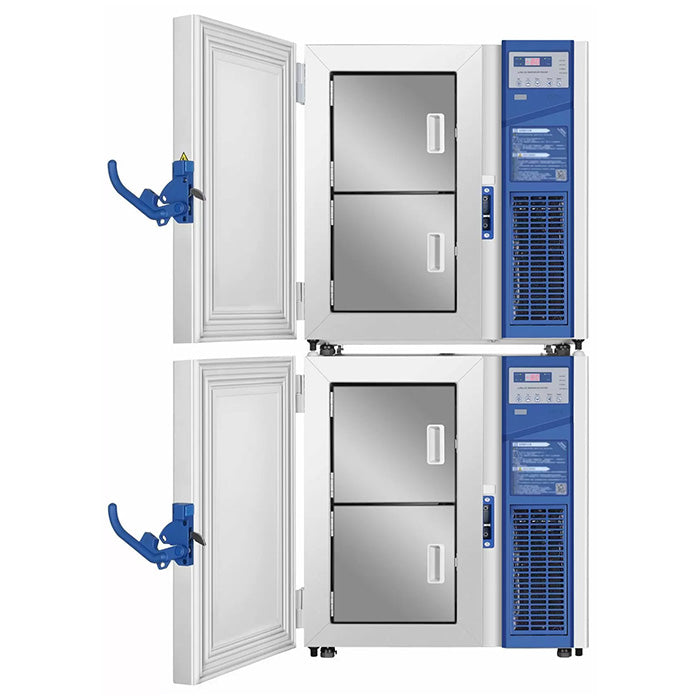

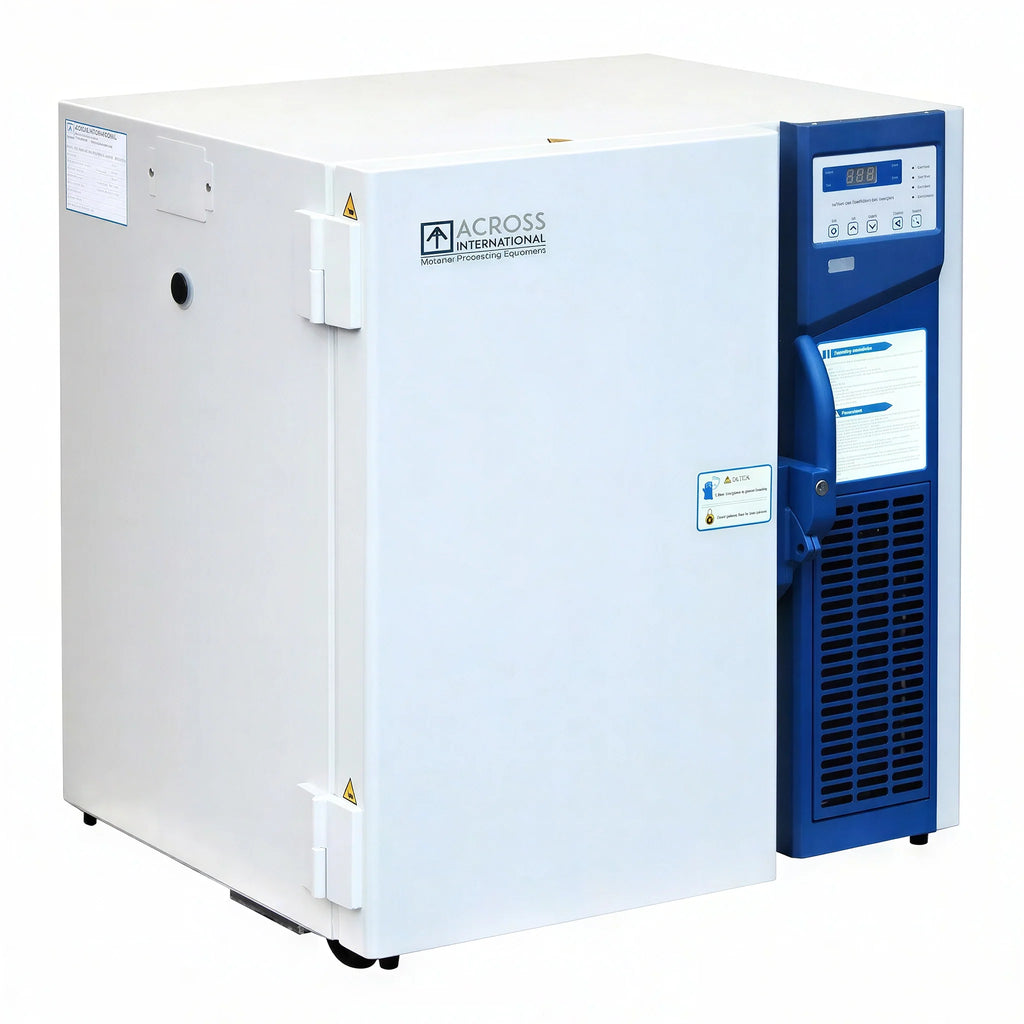

Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt
Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt
Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt
Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt
Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt
Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt
Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt
Roll over image to zoom in Click on image to zoom
Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 VoltAcross International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 VoltAcross International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 VoltAcross International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 VoltAcross International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 VoltAcross International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 VoltAcross International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt

Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt

SKU: G04H
No reviews
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This Product Ships in 2-3 Business Days

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI

Price:
$7,852.42

Across International Product Documents

The Ai RapidChill series -86°C ultra-low upright ULT freezers are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL-certified.

Features & Benefits

  • CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
  • State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
  • Safe, environmentally friendly, energy-efficient, and easy-to-acquire HC refrigeration system
  • Remote alarm, RS-485, and optional 4-20mA transmitter
  • Door lock, high or low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
  • Digital temperature display with microprocessor-based temperature controller
  • Dual silicon sealing gaskets for ultra airtight operation
  • 48-hour battery backup for controller and alarm
  • Extremely quiet and reliable
  • Compliant to UL 61010-1, CSA C22.2 and Energy Star standards
  • Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
  • This unit is NOT designed to be used on a mobile platform.

Specifications

Model G04h
Electrical requirements 110V (±10%) 60Hz 1-Phase 680W 6A
Power Consumption 5.5 kW/day
Performance
  • Temperature range: -40°C to -86°lC
  • Time from ambient to -86°C: 4 hours
  • Uniformity: ±4 °C
  • Time from -86°C to -50°C with the door closed (ambient 25°C): 2 hours
Controller
  • Style: microcomputer controlled with analog display
  • Range -40°C to -86°C
  • Step: 1°C
  • Thermo sensor: PT100
  • Displays: internal temperature, ambient temperature, input voltage, error code
  • Indicators: Locked, running, power, alarm, door open, over temperature, battery low, condenser clean
Compressor
  • Make: SECOP (formerly known as Danfoss), Germany
  • Style: direct cooling
  • Power: 115V 60Hz 1-PHASE, 0.54HP
  • Number of compressors: two
  • HC refrigerants: R600A, R1150 and R50
Chamber

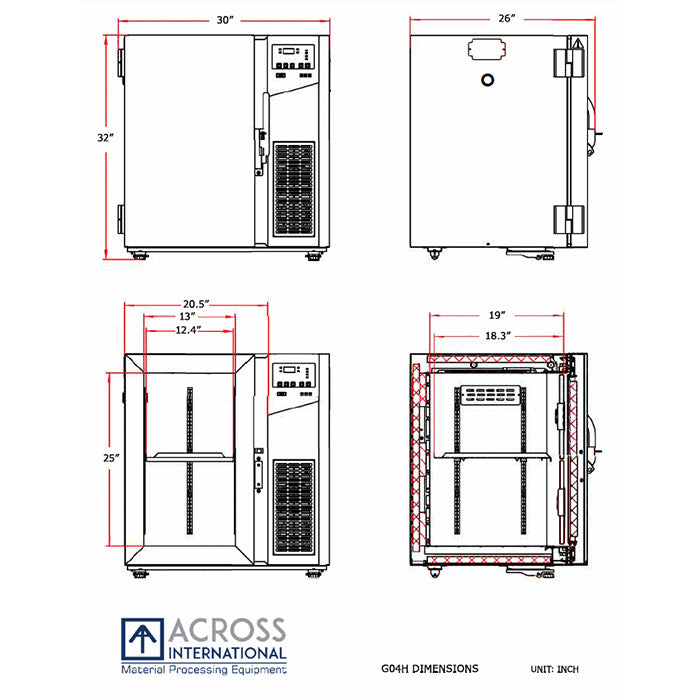

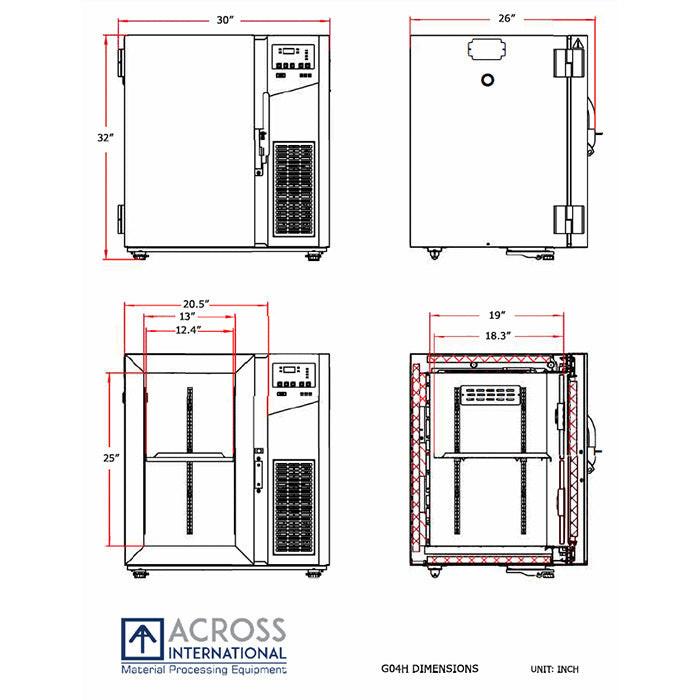

  • Dimensions: 13 x 19.5 x 24.5" (WxDxH)
  • Material: powder coated stee
  • Capacity: 3.5 Cu Ft
  • Insulation: VIP (Vacuum Insulated Panel)
  • 5x5x2" cryo box capacity: 60
Shelf
  • Come with unit: one adjustable shelf (2 compartments)
  • Material: 304 stainless steel
Door and gasket
  • Inner door: two, stainless steel
  • External door: one, with four layers of silicone sealing gaskets, lock-able
Communications
  • Standard: RS-485, USB (stores 15 years of data for compliance purpose)
  • Optional: 4-20mA transmitter
Access Port One
Noise Level 46 dBA
Working environment
  • Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
  • Humidity: <80% Rh
  • Altitude: < 2000 m / 6561 Ft
  • Stable, well-ventilated platform with no excessive dust
  • Keep freezer at least 12 inches from any walls or ceiling
  • Use dedicated power, do not share outlet
  • Extension power cable should be less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spill and do NOT use freezer outdoor
  • Clean condenser fins and remove frost inside chamber at least once a month
  • Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system 48 hours (for controller display and alarms only)
Unit/shipping weight & dimensions
  • 240 Lbs / 30 x 26 x 32"
  • 300 Lbs / 33 x 29 x 35"
Safety
  • Compressor over-temp protection
  • Ambient over-temp protection
  • Compressor power surge delay protection
  • Password protection
  • Sensor failure protection
  • Over-temperature and low-temperature protection
  • Power failure protection
  • Low battery, door open, condenser clogging, system failure alarms
  • External door with lock
  • Ground protection
Compliance
  • UL 61010-1
  • CSA C22.2
Warranty 2-year full service, 3-year parts, 5-year compressor
Brand Across International
SKU G04H
Weight (lb.) 300.0000
Prop 65 false
Length (in.)
Width (in.)
Height (in.)
Warranty 2-year full service, 3-year parts, 5-year compressor
Lead Time This Product Ships in 2-3 Business Days
Hazardous Material false
Shipping Restrictions AK, HI
Temperature Range -40°C to -86°C
Max. Decibals 46 dBA
Exact Watts 680 Watts
Amps 6 Amps
Voltage 110 Volts
UL Listed Yes
ETL Listed No
