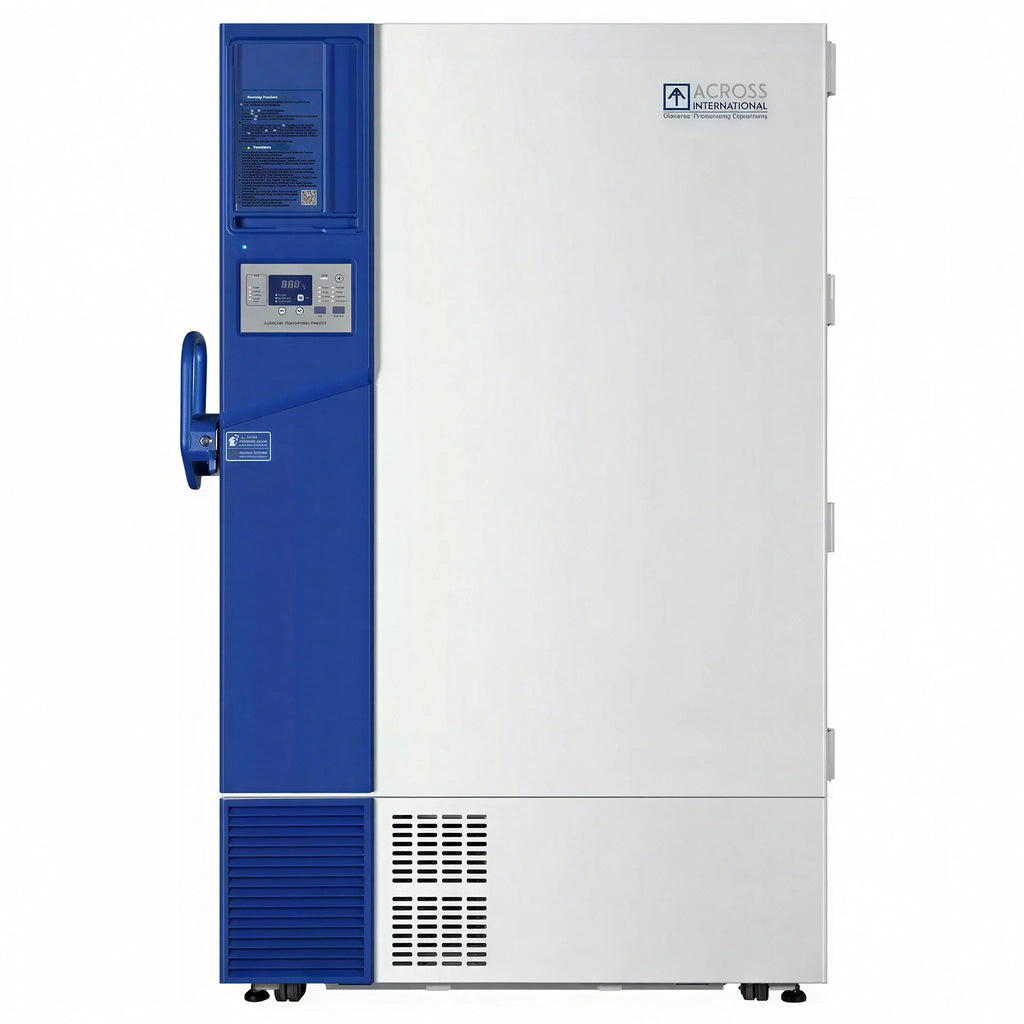

The new Ai 34 Cu Ft series RapidChill series -86C ultra-low freezers are now 50/60Hz compatible, meaning they can be used in US, as well as Asia, Europe and South America. These Ultra Lows are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL-certified.
Features & Benefits
- 50/60Hz compatible
- CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
- State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
- Safe, environmentally friendly, energy-efficient, and easy-to-acquire HC refrigeration
- Remote alarm, RS-485, and optional 4-20mA transmitter
- Door lock, high or low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
- Digital temperature display with microprocessor-based temperature controller
- Dual silicon sealing gaskets for ultra airtight operation
- 48-hour battery backup for controller and alarms
- Extremely quiet and reliable
- Compliant to UL 61010-1, CSA C22.2 and Energy Star standards
Specifications
| Model |
G34he |
| Electrical requirements |
230V 50/60Hz. 1300 watts, 7 amps |
| Performance |
- Temperature range: -40°C to -86°lC
- Time from ambient to -86°C: 6 hours
- Uniformity: ±3 °C
- Time from -86°C to -50°C with the door closed (ambient 25°C): 5 hours
- 1 min door open recovery time (ambient 25°C, running temp -75°C): 40 mins
|
| Chamber |
- Chamber dimensions: 40 x 28 x 51.5 inches
- Shelf max. weight capacity: 126kg (278lbs)
- Max. weight capacity of unit: 504kg (1111 lbs)
- 5x5x2" boxes capacity: 700 boxes
|
| Volume |
34 cu ft |
| Certificate |
UL, Energy Star, CE |
| Information |
- Eco-friendly HC refrigerant
- Low noise 47 dBA
- USB interface, RS485 port
- Mobile casters
- Optimized insulation with VIP technology
|
| Usage |
Inverter technology for 0.33kWh/day/cu-ft ultra-low power consumption, compared to Thermo TSX70086A's 0.36 kWh/day/cu-ft
|
| Working environment |
- Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
- Humidity: <80% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
|
Unit/shipping weight & dimensions
|
Unit: 990 Lbs, 51 x 39.5 x 78 inches - Shipping: 1070 Lbs, 54 x 43.5 x 84.5 inches
|
| Safety |
- High/low-temperature alarms
- Hot condenser alarm
- Power failure
- High/low voltage
- Sensor error
- Low battery
- High ambient temperature
- Door ajar
|
| Warranty |
2-year full service, 3-year parts, 5-year compressor
|
