Across International RapidChill 20 CF -86°C Ultra-Low Upright Freezer, 110 Volt

SKU: G20H
No reviews
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: Ships in 1-2 business days

This item ships free!

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI


Price:
Sale price$11,590.00

Across International Product Documents

The Ai RapidChill series -86°C ultra-low temperature freezers are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL-certified.

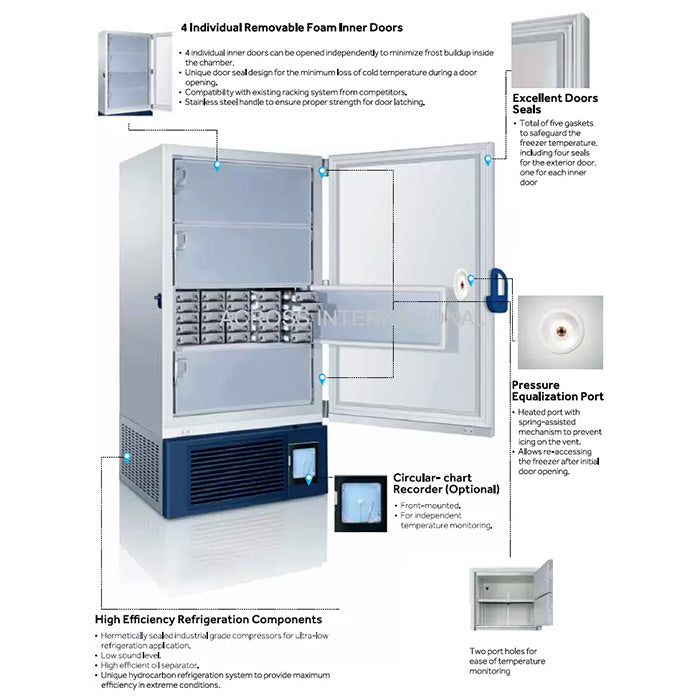

Features & Benefits

  • CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
  • State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
  • Safe, environmentally friendly, energy-efficient, and easy-to-acquire HC refrigeration system
  • Remote alarm, RS-485, and optional 4-20mA transmitter
  • Door lock, high or low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
  • Digital temperature display with microprocessor-based temperature controller
  • Dual silicon sealing gaskets for ultra airtight operation
  • 48-hour battery backup for controller and alarm
  • Extremely quiet and reliable
  • Compliant to UL 61010-1, CSA C22.2 and Energy Star standards
  • Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
  • This unit is NOT designed to be used on a mobile platform.

Specifications

Model G20h
Electrical requirements 110V (±10%) 60Hz 1-Phase 1000 watts
Power Consumption 8.5 kW/day, Energy Star certified
Performance
  • Temperature range: -40°C to -86°lC
  • Time from ambient to -86°C: 5.5 hours
  • Uniformity: ±4 °C
  • Time from -86°C to -50°C with the door closed (ambient 25°C): 4.5 hours
  • 1 min door open recovery time (ambient 25°C, running temp -75°C): 40 mins

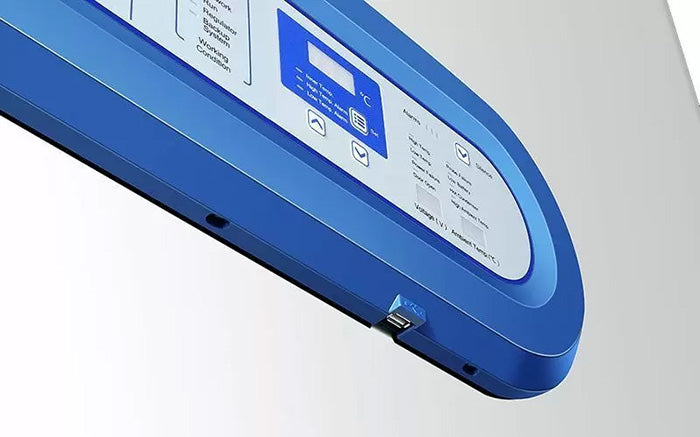

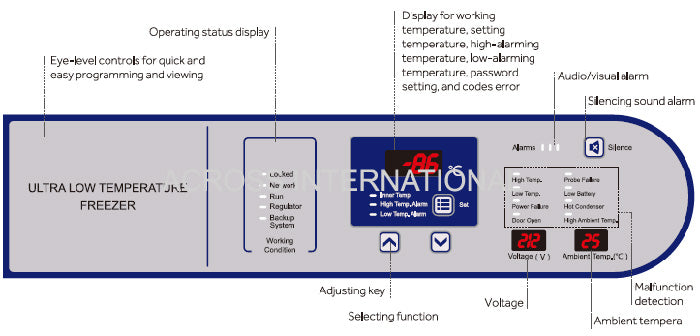

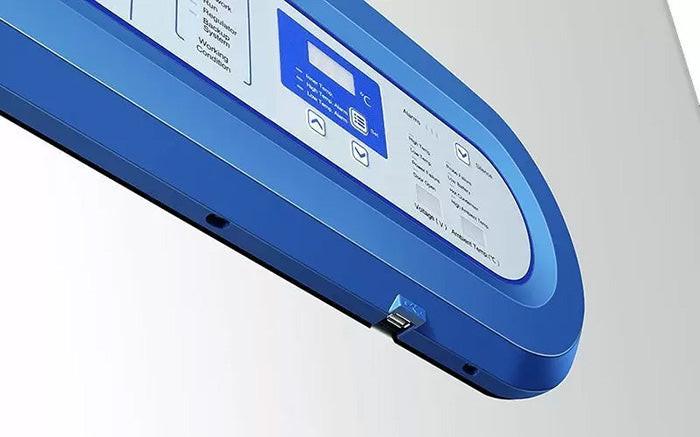

Controller
  • Style: microcomputer controlled with analog display
  • Range -40°C to -86°C
  • Step: 1°C
  • Thermo sensor: PT100
  • Displays: internal temperature, ambient temperature, input voltage, error code
  • Indicators: high/low temperature/battery alarms, sensor failure, power failure, condenser failure, door open, high ambient temperature, working condition
Compressor
  • Make: SECOP (formerly known as Danfoss), Germany
  • Style: direct cooling
  • Power: 115V 60Hz 1-PHASE, 0.54HP x 2
  • Number of compressors: two
  • HC refrigerants: R290 (stage 1), R170 (stage 2)

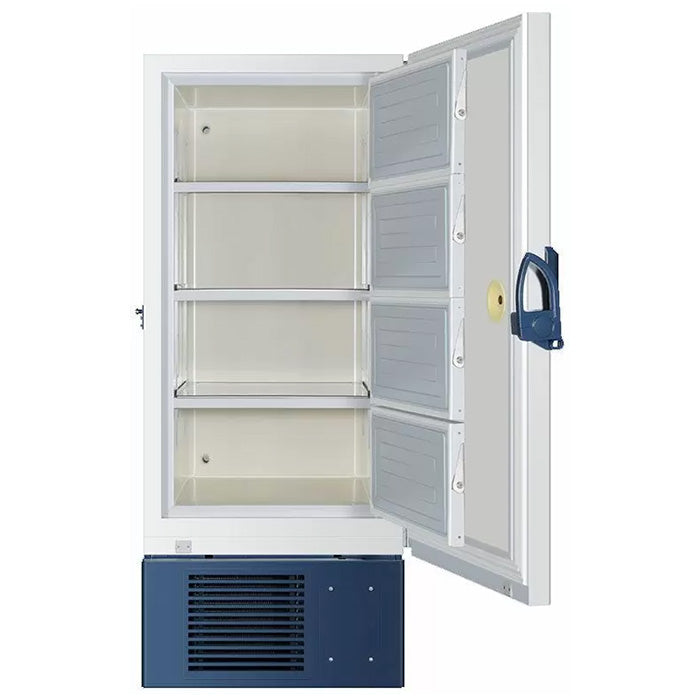

Chamber
  • Dimensions: 24.4 x 28.2 x 51.6" (WxDxH)
  • Material: powder coated stee
  • Capacity: 20.4 Cu Ft
  • Insulation: VIP (Vacuum Insulated Panel)
  • 5x5x2" cryo box capacity: 400

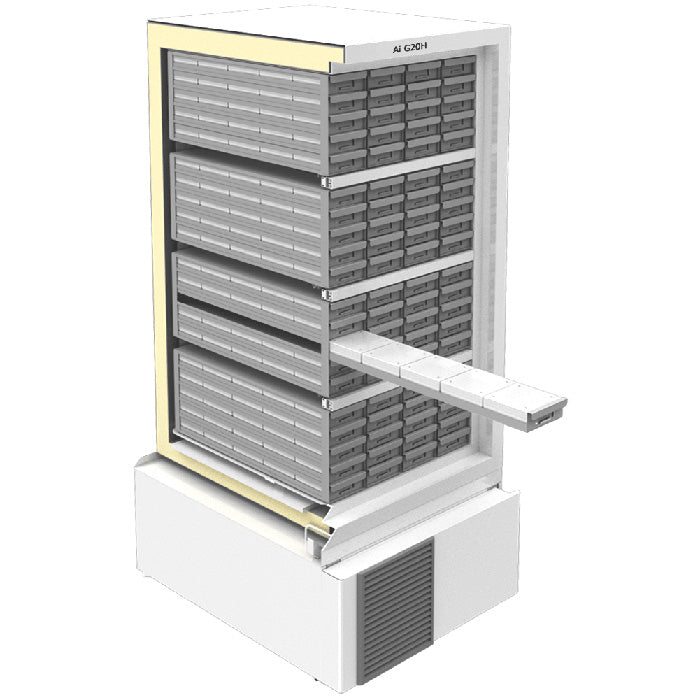

Shelf
  • Come with unit: 3 (4 compartments), fully adjustable
  • Dimensions: 23.8 x 26.7" (WxD)
  • Max. capacity: 175 Lbs
  • Material: 304 stainless steel

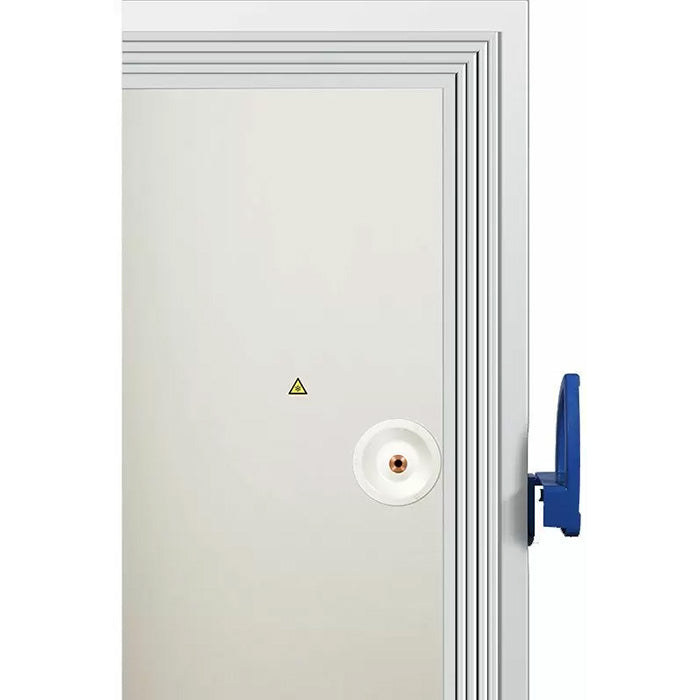

Door and gasket
  • Inner door: four, each with one sealing gasket
  • External door: one, with four sealing gaskets, lock-able

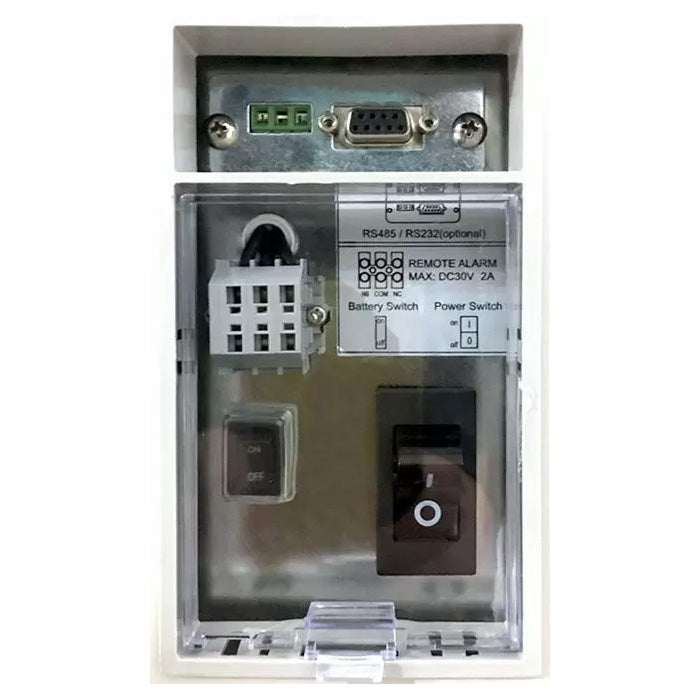

Communications
  • Standard: RS-485, USB (stores 15 years of data for compliance purpose)
  • Optional: 4-20mA transmitter
Access Port Two
Noise Level 50 dBA
Working environment
  • Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
  • Humidity: <80% Rh
  • Altitude: < 2000 m / 6561 Ft
  • Stable, well-ventilated platform with no excessive dust
  • Keep freezer at least 12 inches from any walls or ceiling
  • Use dedicated power, do not share outlet
  • Extension power cable should be less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spill and do NOT use freezer outdoor
  • Clean condenser fins and remove frost inside chamber at least once a month
  • Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system 48 hours (for controller display and alarms only)
Unit/shipping weight & dimensions
  • 660 Lbs / 36 x 38.5 x 77"
  • 730 Lbs / 40 x 42 x 82"
Safety
  • Compressor over-temp protection
  • Ambient over-temp protection
  • Compressor power surge delay protection
  • Password protection
  • Sensor failure protection
  • Over-temperature and low-temperature protection
  • Power failure protection
  • Low battery, door open, condenser clogging, system failure alarms
  • External door with lock
  • Ground protection
Compliance
  • UL 61010-1
  • CSA C22.2
  • Energy Star
Warranty 2-year full service, 3-year parts, 5-year compressor
Brand Across International
SKU G20H
Weight (lb.) 770.0000
Prop 65 false
Length (in.)
Width (in.)
Height (in.)
Warranty 2-year full service, 3-year parts, 5-year compressor
Lead Time Ships in 1-2 business days
Hazardous Material false
Shipping Restrictions AK, HI
Temperature Range -40°C to -86°C
Max. Decibals 50 dBA
Exact Watts 1000 watts
Voltage 110 Volts
UL Listed Yes
ETL Listed No
