Across International RapidChill 12 CF -86°C Ultra-Low Upright Freezer, 120 Volt

SKU: G12H
No reviews
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: Ships in 1-2 business days

This item ships free!

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI

Price:
$9,990.00

Across International Product Documents

The Ai RapidChill series -86C ultra-low ULT freezers are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.

Whats Included:

  • Ai G12h -86°C ultra-low upright freezer
  • x3 Shelf (17.8 x 23.5") WxD
  • Ice scraper
  • x2 Door key
  • x2 Bracket
  • User's manual

Features & Benefits

  • CDC and VFC compliant, great for storage of medical vaccines, DNA, RNA, virus samples, organs, and serum
  • State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
  • Safe, environmentally friendly, energy-efficient, and easy to acquire HC refrigeration system

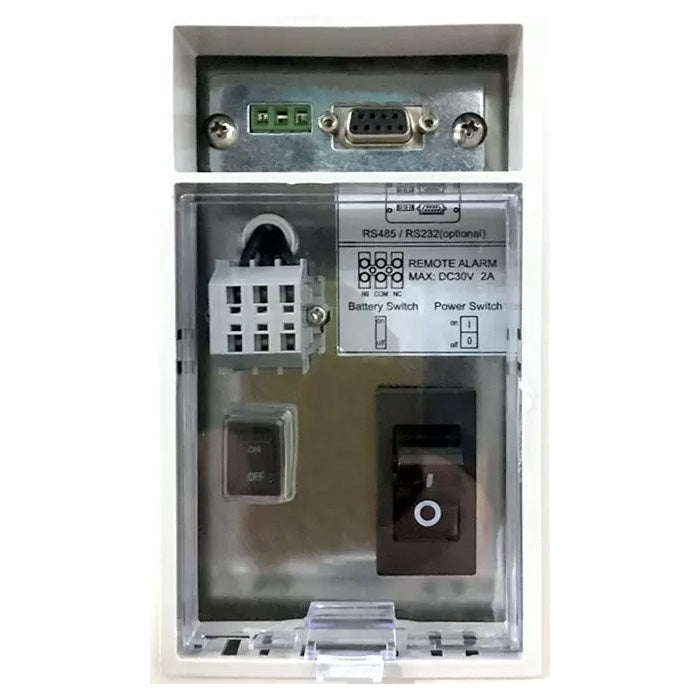

  • Remote alarm, RS-485, and optional 4-20 mA transmitter
  • Door lock, high or low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit

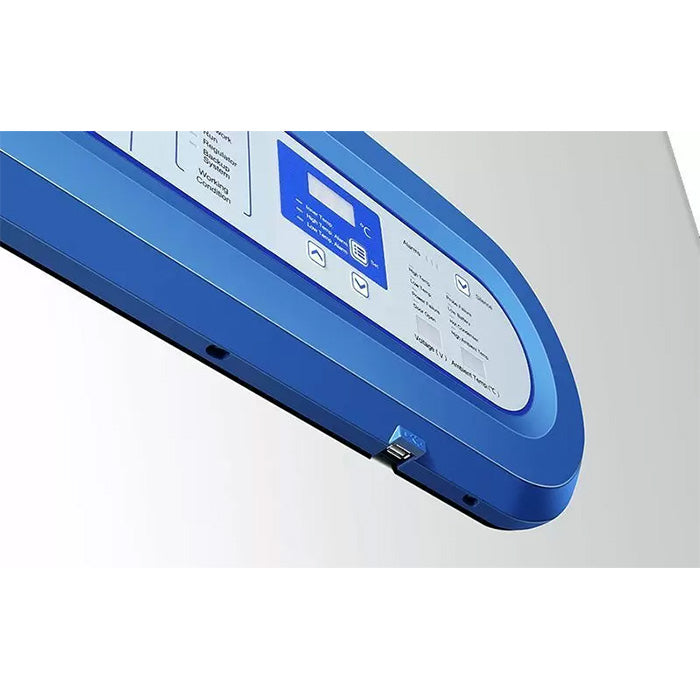

  • Digital temperature display with microprocessor-based temperature controller
  • Dual silicon sealing gaskets for ultra airtight operation
  • 48-hour battery backup for controller and alarm
  • Extremely quiet and reliable
  • Compliant to Energy Star, UL 61010-1 and CSA C22.2 standards
  • Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
  • This unit is NOT designed to be used on a mobile platform.

Specifications

Model G12h
Electrical requirements 120V (±10%) 60Hz 1-Phase 12A
Power consumption 7.5 kW/day
Performance
  • Temperature range: -40°C to -86°C
  • Time from ambient to -86°C: 4 hours
  • Uniformity: ±4°C
  • Time from -86°C to -50°C with door close (ambient 25°C): 3.5 hours
Controller
  • Style: microcomputer controlled with analog display
  • Range -40°C to -86°C
  • Step: 1°C
  • Thermo sensor: PT100

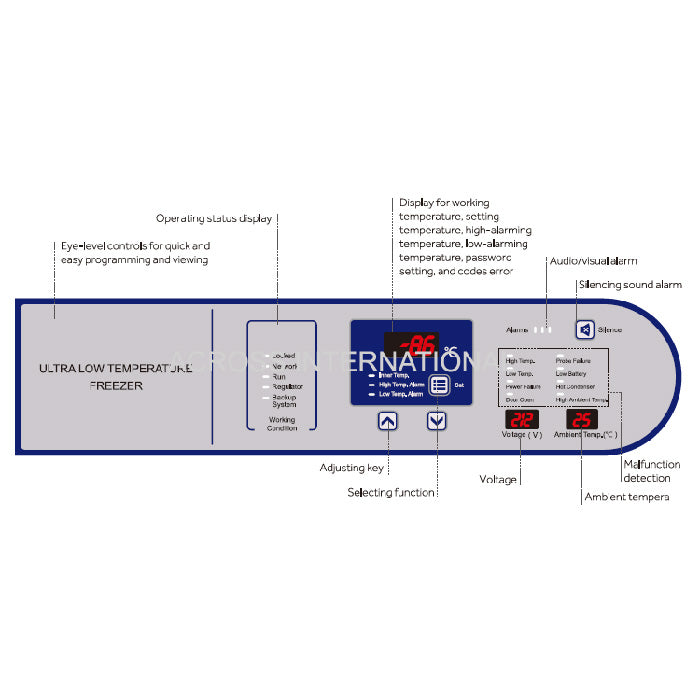

  • Displays: internal temperature, ambient temperature, input voltage, error code
  • Indicators: high/low temperature/battery alarms, sensor failure, power failure, condenser failure, door open, high ambient temperature, working condition
Compressor
  • Make: SECOP (formerly known as Danfoss), Germany
  • Style: direct cooling
  • Power: 115V 60Hz 1-PHASE, 0.54HP x 2
  • Number of compressors: two
  • HC refrigerants: R290 (stage 1), R170 (stage 2)
Chamber
  • Dimensions: 18.3 x 24.8 x 45.9" (WxDxH)
  • Material: powder coated steel
  • Capacity: 12 Cu Ft
  • Insulation: VIP (Vacuum Insulated Panel)

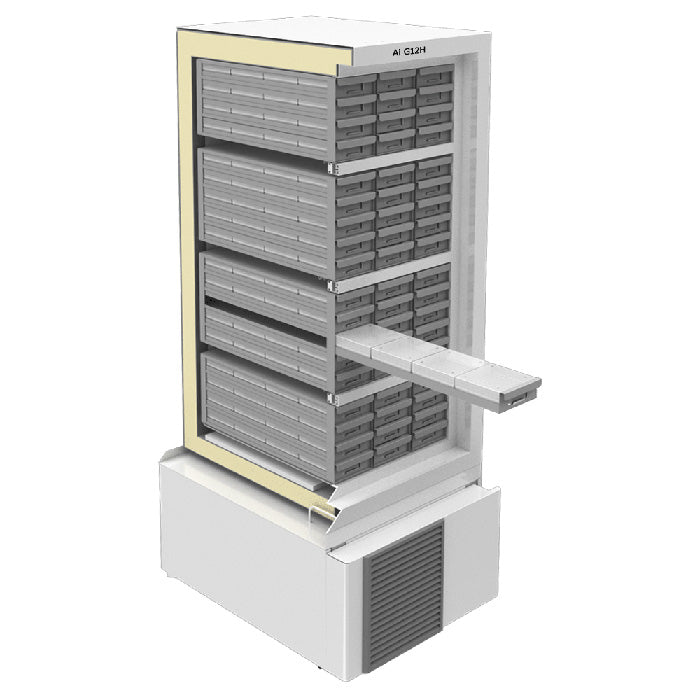

  • 5x5x2" cryo box capacity: 220
Shelf
  • Come with unit: 3, fully adjustable
  • Dimensions: 17.8 x 23.5" (WxD)
  • Max. capacity: 110 Lbs
  • Material: 304 stainless steel

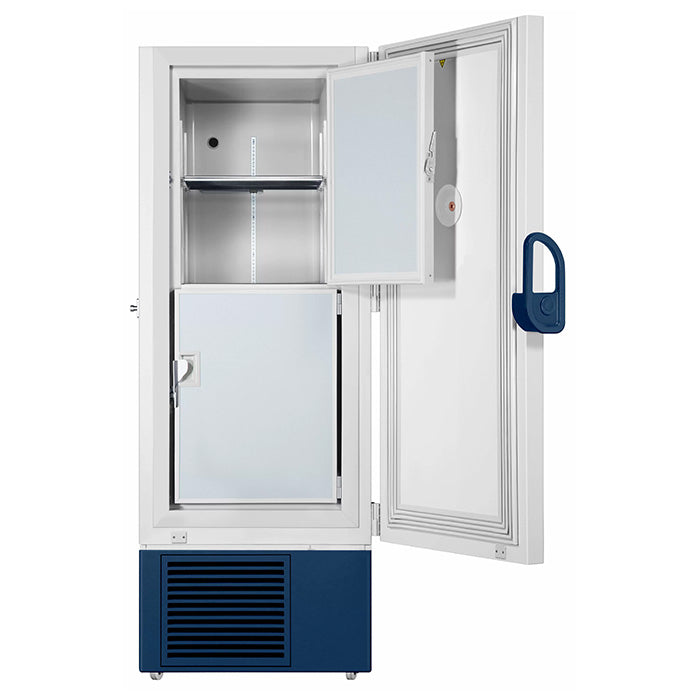

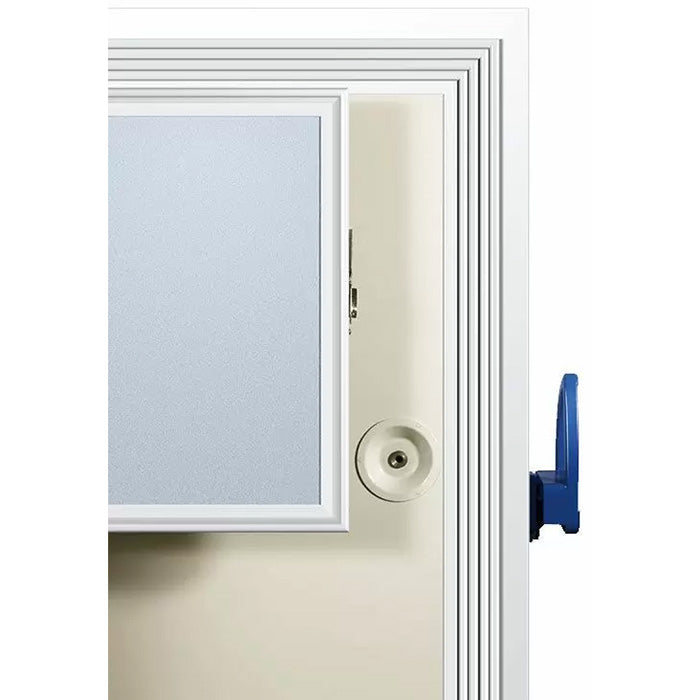

Door and gasket
  • Inner door: two, each with one sealing gasket
  • External door: one with four sealing gaskets, lock-able
Access Port Two
Noise Level 50 dBA
Communications
  • Standard: RS-485, USB (stores 15 years of data for compliance purposes)
  • Optional: 4-20mA transmitter
Working environment
  • Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
  • Humidity: <80% Rh
  • Altitude: < 2000 m / 6561 Ft
  • Stable, well-ventilated platform with no excessive dust
  • Keep freezer at least 12 inches from any walls or ceiling
  • Use dedicated power, do not share outlet
  • Extension power cable should be less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spill and do NOT use freezer outdoor
  • Clean condenser fins and remove frost inside chamber at least once a month
  • Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system 48 hours (for controller display and alarms only)
Unit/shipping weight & dimensions
  • 525 Lbs / 615 Lbs
  • 32.7 x 35.2 x 72.7" / 38 x 40 x 76" (WxDxH)
Safety
  • Compressor over-temp protection
  • Ambient over-temp protection
  • Compressor power surge delay protection
  • Password protection
  • Sensor failure protection
  • Over-temperature and low-temperature protection
  • Power failure protection
  • Low battery, door open, condenser clogging, system failure alarms
  • External door with lock
Compliance
  • UL 61010-1
  • CSA C22.2
  • Energy Star
Warranty 2-year full service, 3-year parts, 5-year compressor
Brand Across International
SKU G12H
Weight (lb.) 615.0000
Prop 65 false
Length (in.)
Width (in.)
Height (in.)
Warranty 2-year full service, 3-year parts, 5-year compressor
Lead Time Ships in 1-2 business days
Hazardous Material false
Shipping Restrictions AK, HI
UL Listed Yes
ETL Listed No
