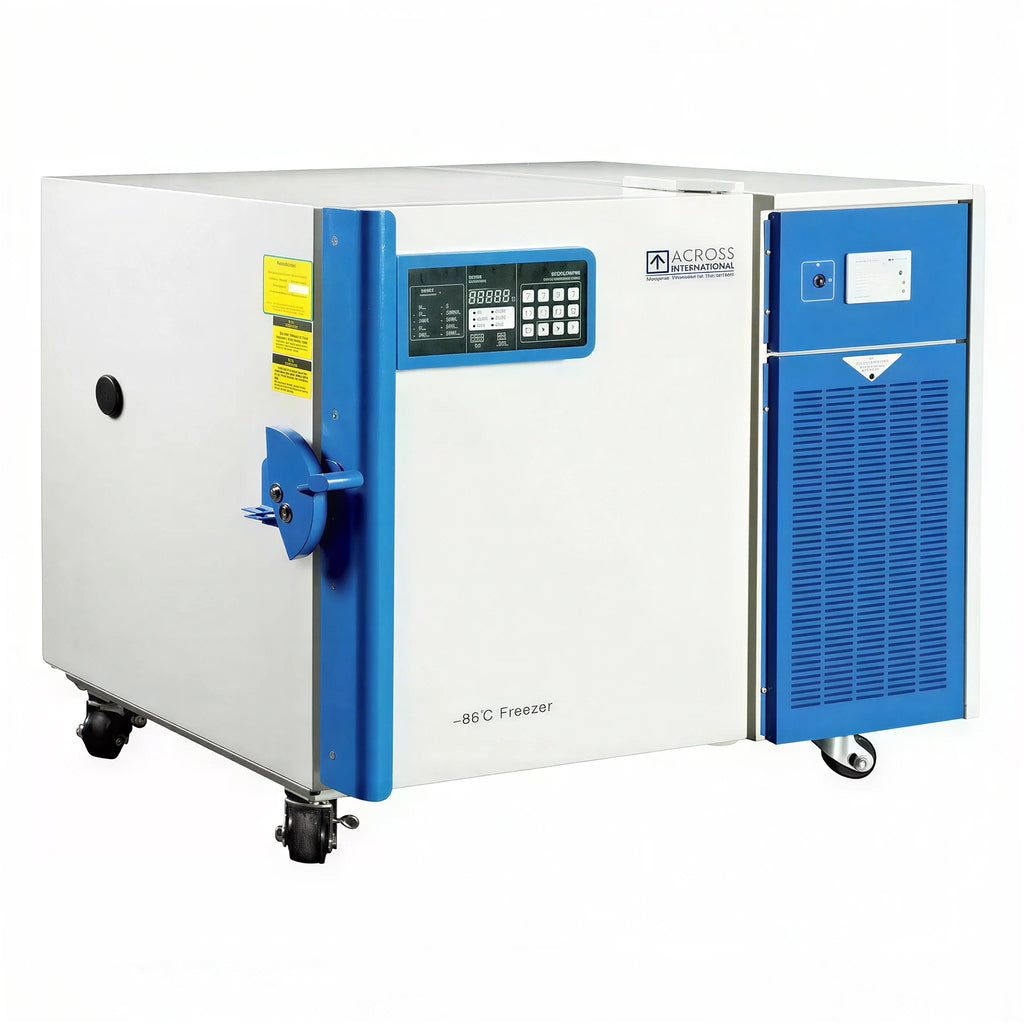

The Ai Glacier 4 Cu Ft -86°C ultra-low upright ULT freezer is designed for small labs that need a small amount of products or sample storage. Our unique single-compressor design offers ultra-low power consumption, very low noise, and ease of maintenance.
Whats Included:
- Ai G04 -86°C ultra-low upright freezer
- Remove-able shelf (17.5 x 17.5)”
- Ice scraper
- Printer paper for built-in printer
- x2 Door key
- User's manual
Features & Benefits
- CDC and VFC compliant
- Great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
- ETL tested to UL 61010-1 and CSA C22.2 standards
- ETL tested to UL 471, Commercial Refrigerators and Freezers standards (optional)
- Remote alarm, RS232, 4-20mA transmitter (optional)
- Door lock, high or low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
- Digital temperature display with microprocessor-based temperature controller
- All stainless steel interior for clean operation, durability, and ease of maintenance
- Built-in printer tells you exactly how long it takes to go down to all temperatures
- Stainless steel interior for clean operation, durability, and ease of maintenance
- Dual silicon sealing gaskets for ultra airtight operation
- 48-hour battery backup for controller, alarm and printer
- Extremely quiet and reliable
- Built-in swivel casters with locks
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
Specifications
| Model |
G04 |
| Electrical requirements |
110V (±10%) 60Hz 1-Phase 950 watts 8.6A |
| Performance |
- Temperature range: -40°C to -86°C
- Time to reach -86°C: 4 hours
|
| Compressor |
- Make: SECOP (formerly known as Danfoss), Germany
- Model: SC18MLX (104L2105)
- Power: 115V 60Hz 1-PHASE, 1HP
- Number of compressors: one
- Refrigerant: Ai proprietary mixture gases, CFC-free
|
| Chamber |
- Dimensions: 17.75 x 19 x 20" (WxDxH)
- Material: stainless steel
- Effective capacity: 3.5 Cu Ft
|
| Date printer |
Built-in, records 7 days of data |
| Shelf |
- Come with unit: one adjustable shelf (2 compartments)
- Material: 304 stainless steel
- Capacity: 65 Lbs, evenly distributed
- Dimensions: 17.5 x 17.5 inches
|
| Door and gasket |
- Inner door: two, each with one sealing gasket
- External door: one with dual sealing gaskets, lock-able
|
| Access Port |
One, 30mm diameter |
| Built-in swivel casters |
Four |
| Noise Level |
48 dBA |
| Communications |
Remote alarm, RS232, 4-20 mA transmitter (optional) |
| Working environment |
- Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
- Humidity: <80% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
|
| Battery backup system |
48 hours (for controller display and alarms only)
|
Unit/shipping weight & dimensions
|
- 380 Lbs / 494 Lbs

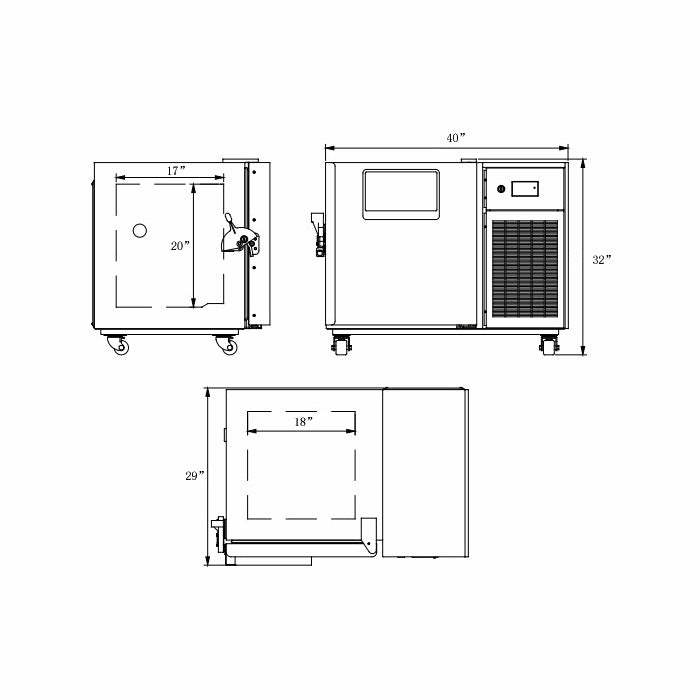

- 35 x 28 x 32" / 35 x 47 x 51" (WxDxH)
|
| Safety |
- Compressor over-temp protection
- Compressor power surge delay protection
- Short circuit and ground protection
- Over-current protection
- Over-temperature and low-temperature protection
- Power failure protection
- Low battery, door open, filter clogging, system failure alarms
- External door with lock
|

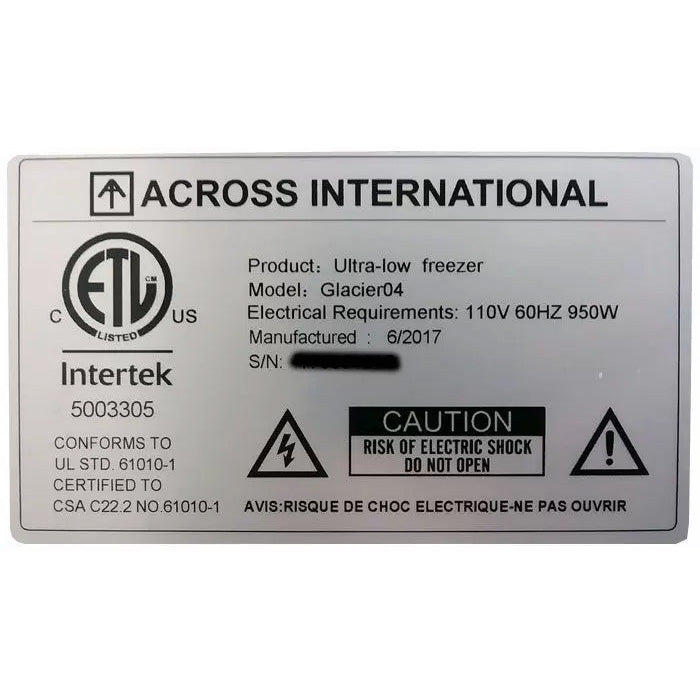

| Compliance |
- UL STD 61010-1 (standard)
- CSA C22.2 NO. 61010-1 (standard)
- UL STD 471 (optional)
|
| Warranty |
One Year |
