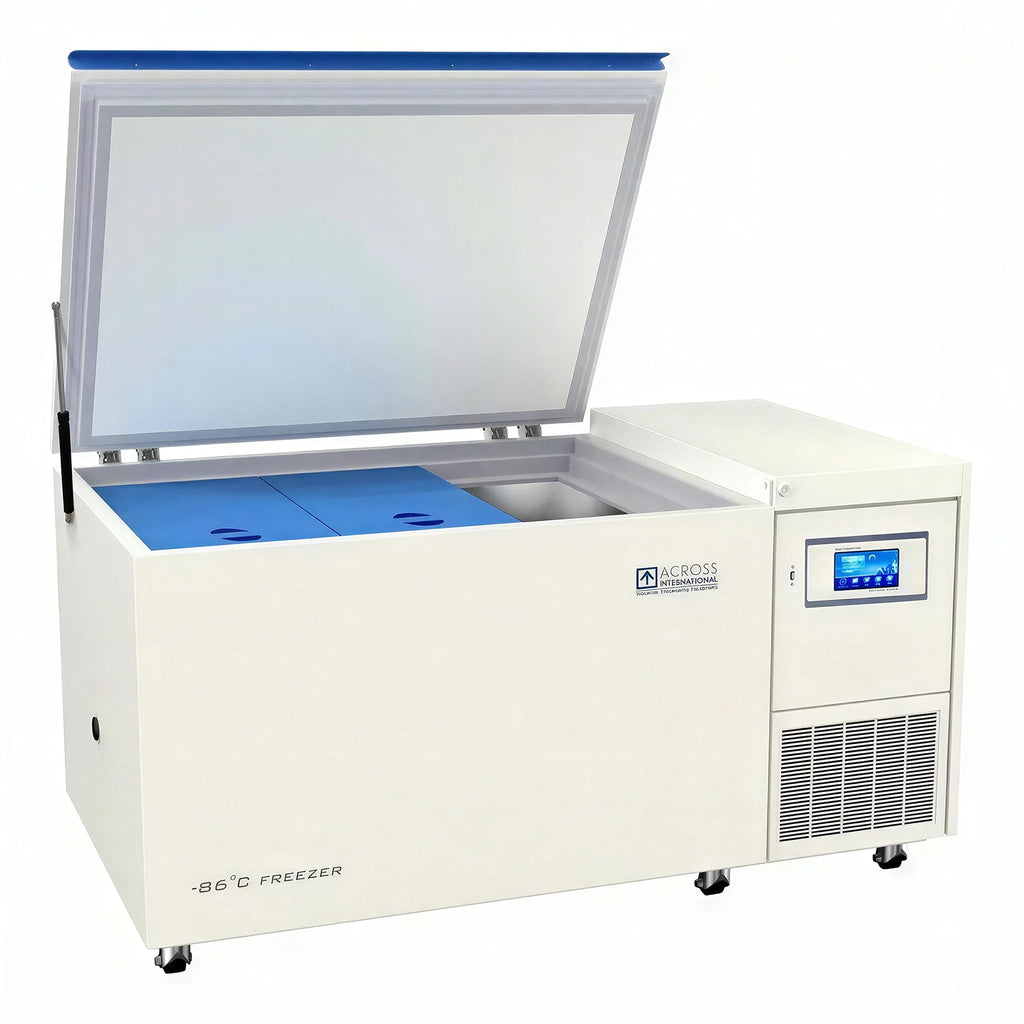

The all new Ai Glacier 21 Cu Ft -86°C Ultra-Low Temperature chest freezer is perfect for extra-large storage of samples and products. Our unique dual parallel compressor design offers you speedy cooling and great temperature uniformity inside the chamber.

Features & Benefits

  • CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
  • Remote alarm, R485, 4-20mA transmitter (optional)
  • ETL tested to UL and CSA standards
  • ETL tested to UL 471, Commercial Refrigerators and Freezers standards (optional)
  • All stainless steel interior for clean operation, durability, and ease of maintenance
  • External door with hydraulic support for super ease of operationPowerful dual parallel compressor design for speedy cooling and great temperature uniformity

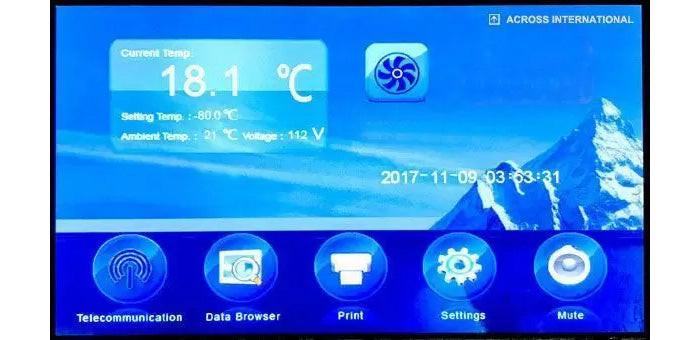

  • Central control with large 7" touch screen LCD display provides you a graph of temperature vs time curve.
  • Lock-able door, high or low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
  • Dual silicon sealing gaskets for ultra airtight operation
  • 24-hour battery backup for controller
  • USB interface for data export and storage
  • Extremely quiet and reliable
  • Environmental friendly refrigerant
  • Use only RoSH compliant non-toxic components and materials
  • Tons of safety functions

Specifications

Model G21c
Electrical requirements 220V (±10%) 60Hz 1-Phase, 2057 watts 10.5A
(NOT compatible with 220V 50Hz power)
Performance
  • Temperature range: -40°C to -86°lC
  • Time from ambient to -86°C: 6 hours
Compressor
  • Make: SECOP
  • Model: SC18MLX (104L2138)
  • Power: 220V 60Hz 1-PHASE 1HP
  • Number of compressors: two, parallel
  • Refrigerant: Ai proprietary mixture gases, CFC-free
Chamber
  • Dimensions: 47 x 32 x 24" (WxDxH)
  • Material: 304 stainless steel
  • Capacity: 21 Cu Ft
  • Maximum load capacity: 550 Lbs on the base of the chamber, evenly distributed
Cover and gasket
  • External door: dual-level sealing gasket, lock-able, with hydraulic support
  • Interior covers: three pieces removable foam
Access Port Two, one on the side and one in the back, one-inch diameter
Built-in swivel casters Six
Noise Level 48 dBA
Communications
  • Remote alarm, RS232, 4-20mA transmitter (optional)
Working environment
  • Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
  • Humidity: <80% Rh
  • Altitude: < 2000 m / 6561 Ft
  • Stable, well-ventilated platform with no excessive dust
  • Keep freezer at least 12 inches from any walls or ceiling
  • Use dedicated power, do not share outlet
  • Extension power cable should be less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spill and do NOT use freezer outdoor
  • Clean condenser fins and remove frost inside chamber at least once a month
  • Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system 24 hours (for controller display and alarms only)

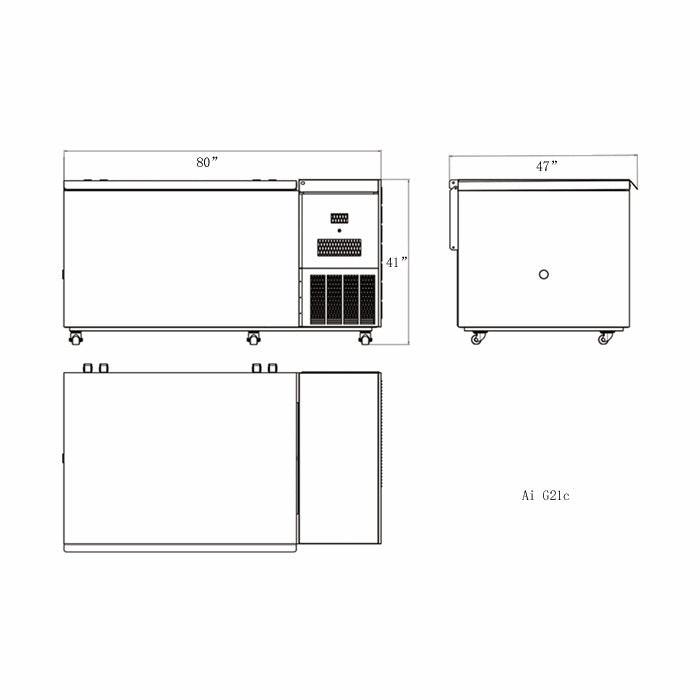

Unit/shipping weight & dimensions
  • 900 Lbs / 80 x 47 x 41"
  • 1100 Lbs / 84 x 51 x 48"
Safety
  • Compressor over-temp protection
  • Compressor power surge delay protection
  • Short circuit and ground protection
  • Over-current protection
  • Over-temperature and low-temperature protection
  • Power failure protection
  • Low battery, door open, filter clogging, system failure alarms
  • External door with lock
Compliance
  • UL STD 61010-1 (standard)
  • UL STD 471 (optional)
  • CSA C22.2 NO. 61010-1 (standard)
Warranty One year
Brand Across International
SKU G21C
Weight (lb.) 1100.0000
Prop 65 false
Length (in.)
Width (in.)
Height (in.)
Warranty 1 Year
Lead Time Ships in 1-2 business days
Hazardous Material false
Shipping Restrictions AK, HI
Temperature Range -40°C to -86°C
Max. Decibals 48 dBA
Exact Watts 2057 Watts
Amps 10.5 Amps
Voltage 220 Volts
Horsepower (HP) 1 HP
UL Listed Yes
ETL Listed No
