With Ai internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
What's Included
- Ai AT32e 3.2 cu ft vacuum ove
- x2 KF25 quick clamp and centering ring
- x3 Heated shelves
- Led Light Cable
- Users manual
Features & Benefits
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- Three alumimum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
- Dual layer observation window with 5/8" tempered safety glass.
- 3rd gen low proportional gain temperature controllers keep your oven temperature accurate.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in swivel casters with leveling feet.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
- Manufactured in accordance with
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
Specifications
| Electrical requirements |
- 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
- 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
| Chamber |
- Size: 18 x 18 x 18"
-
- Material: Stainless steel
-
- Capacity: 3.2 cubic feet
-
|
| Heater |
500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient and uniform heating. |
| Temperature control |
- Controller: 3rd gen low proportional gain, microcomputer PID controlled
- Range: ambient to 150°C (302°F)
- Display units: Fahrenheit or Celsius
- Uniformity: +/- 5% of setpoint
- Dwelling timer range: 1 to 9999 minutes
- Warm-up time to 100°F: 35 minutes
|

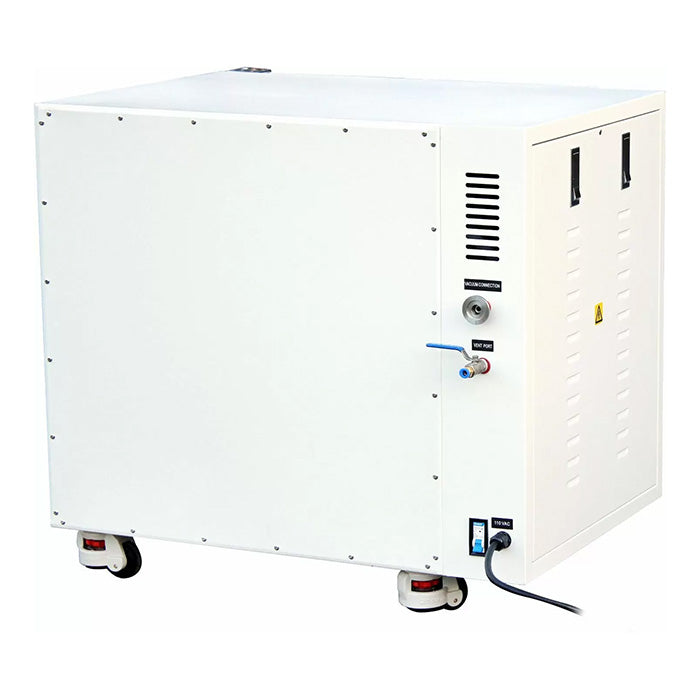

| Vacuum |
- Ultimate vacuum level: better than 500 microns/millitorrs
- Mechanical gauge range: 0 to 30 inch mercury
- Vacuum port: KF25 flange x 1
- Vent port: 1/4" ball valve
- Vacuum pump: Sold separately
|
| Weight |
Unit: 240 Lbs, shipping: 380 Lbs
|
| Dimensions (WxDxH) |
- Unit: 30.5 x 24 x 29"
- Shipping: 36 x 33 x 35"
|
| Shelves |
- Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each
- Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH)
- Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2
- Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2
- Distance between shelves (without stackable shelves): 4.75 inches
- Distance between shelves (with 3 stackable shelves): 2.25 inches
- Max. load capacity per shelf: 20 Lbs
|
| Door gasket material |
Silicone or Viton |
| Observation window |
1/2" tempered safety glass |
| Safety |
- Built-in circuit breaker
- Overheat shutoff protection
|
| In-door lights |
White LED |
| Warranty |
1 year |

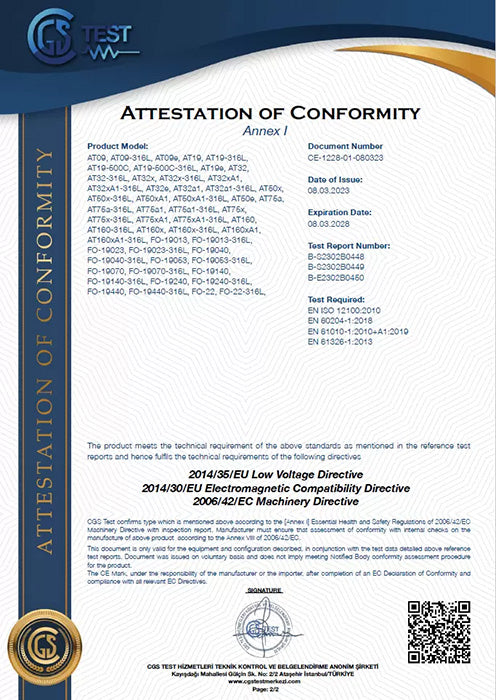

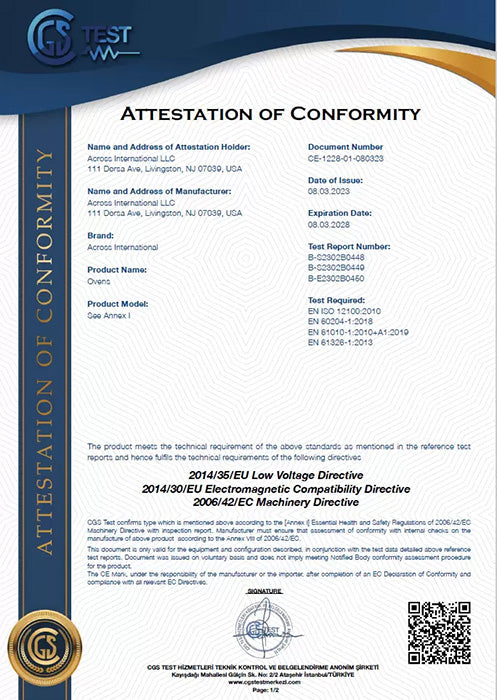

| Certification |
CE |
