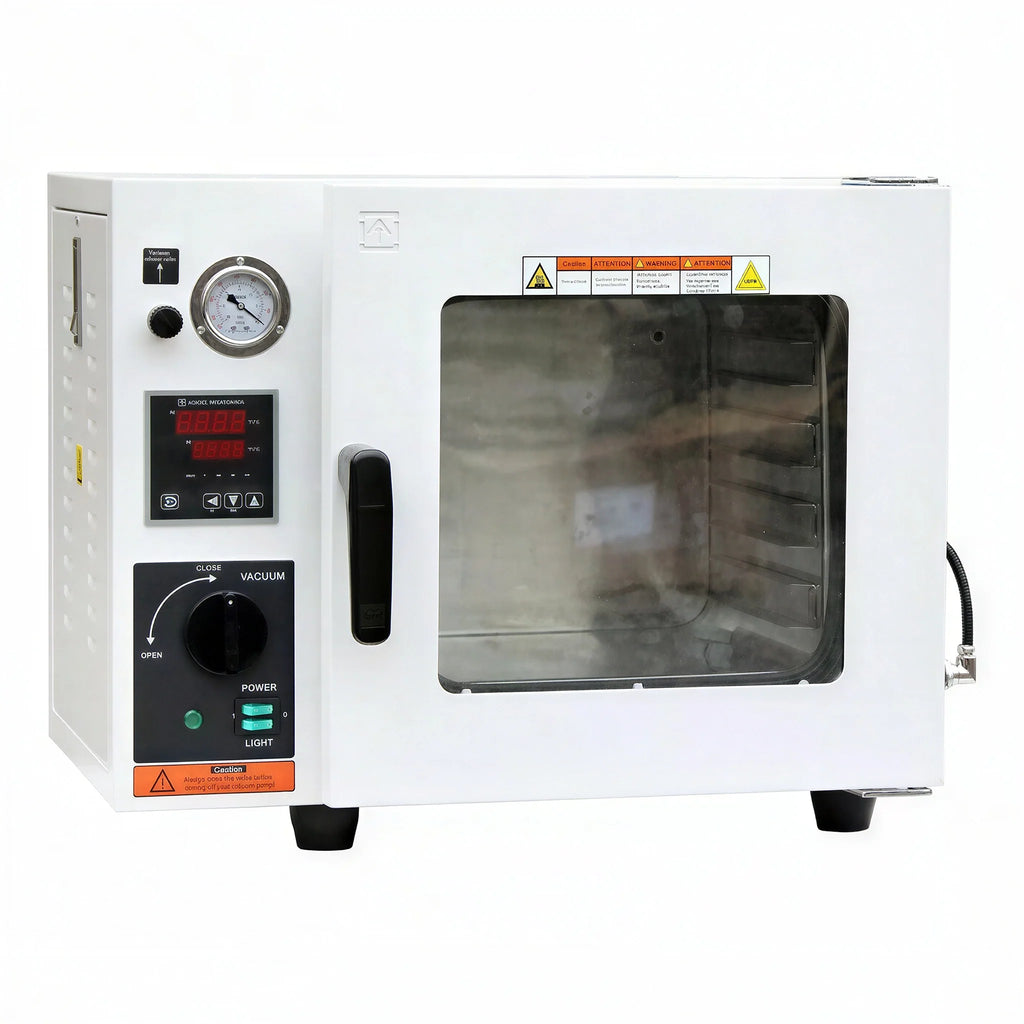

AT09e series digital desktop vacuum ovens feature a 0.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

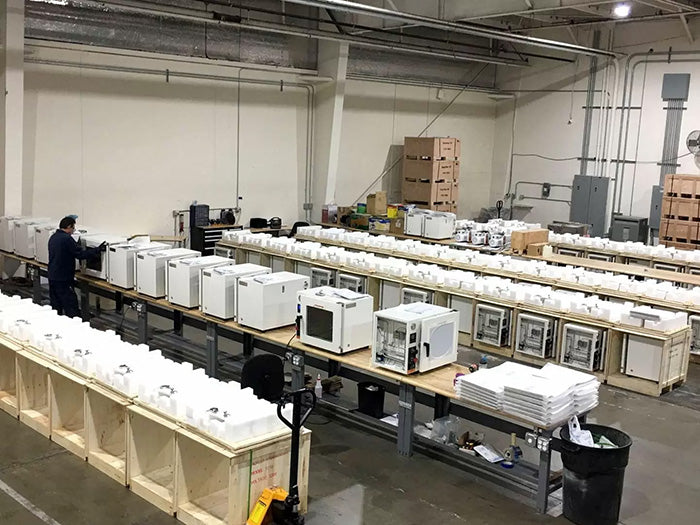

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.
What's Included
- Ai 0.9 cu ft vacuum oven
- x4 Aluminum shelf
- KF25 quick clamp and centering ring
- Quick disconnect fitting (pre-installed at vent port)
- Led Light Cable
- Users manual
Features & Benefits
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- 3rd gen LCD low proportional gain temperature controllers keep your oven temperature accurate.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.

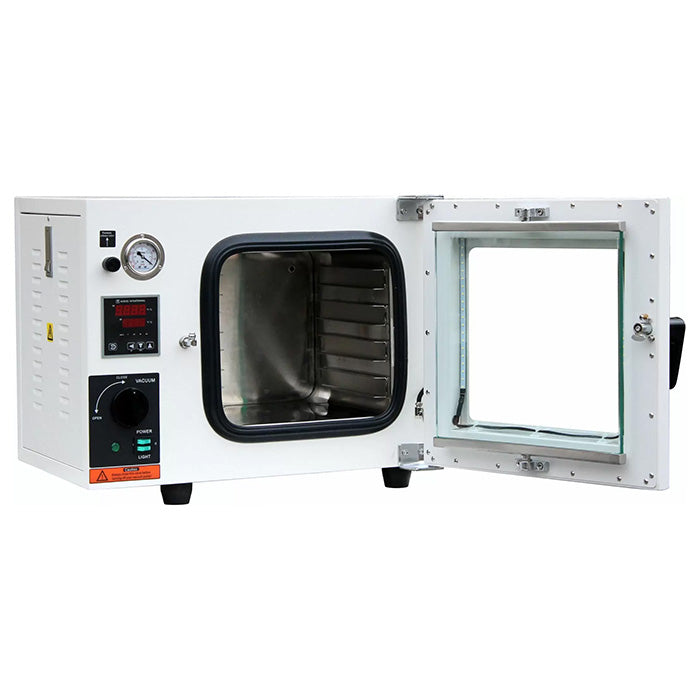

- Dual layer observation window with 1/2" tempered safety glass.
- 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
- Manufactured in accordance with
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006

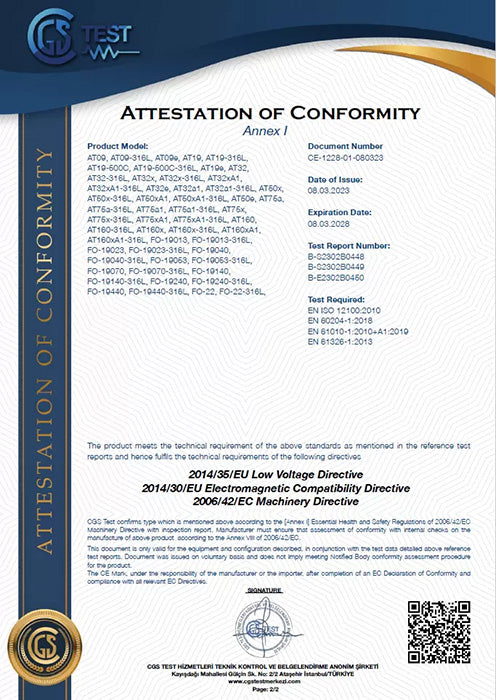

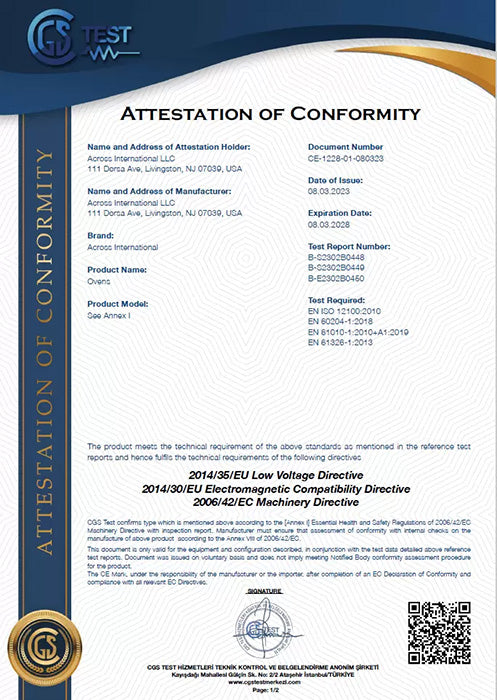

- CE
Specifications
| Electrical requirements |
110V or 220V ±10%, 60Hz, 1-PH, 1,500 watts |
| Chamber |
- Size: 12 x 12 x 11"
- Material: Stainless steel
- Capacity: 0.9 cubic foot
|
| Heater |
3-sided heating (left 400W, right 400W, bottom 700W) |
| Temperature control |
- Controller: 3rd gen low proportional gain, microcomputer PID controlled
- Range: ambient to 150°C
- Display units: Fahrenheit or Celsius
- Uniformity: +/- 5% of setpoint
- Dwelling timer range: 1 to 9999 minutes
- Warm-up time to 480°F: 80 minutes (Approx.)
|
| Vacuum |
- Ultimate vacuum level: better than 500 microns/millitorrs
- Mechanical gauge range: 0 to 30 inch mercury

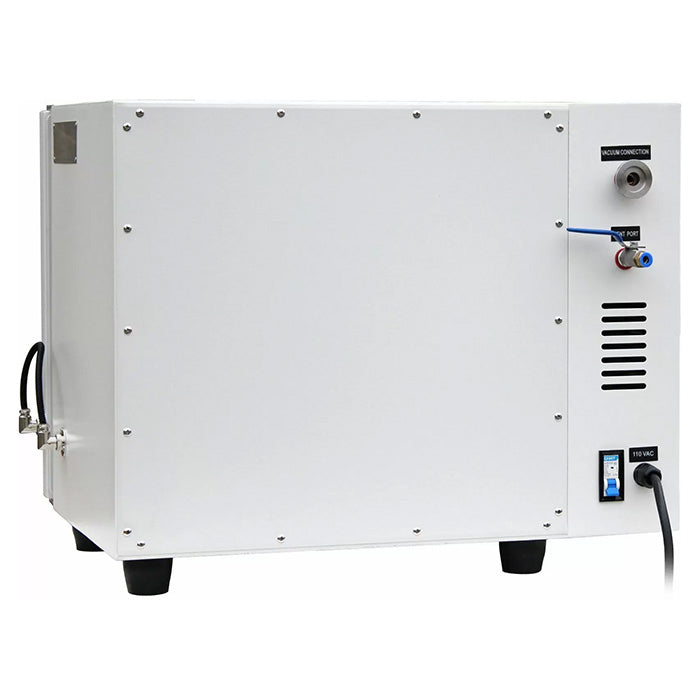

- Vacuum port: KF25 flange x 1
- Vent port: 1/4" ball valve
- Vacuum pump: Sold separately
|
| Weight |
Unit: 85 Lbs, shipping: 170 Lbs
|
| Unit/shipping weight & dimensions |
- Unit: 23.4 x 17.25 x 19" With handle and vacuum port: 23.4 x 20 x 19"
- Shipping: 29 x 29 x 29"
|
| Shelves |
- Included with oven purchase: 4 aluminum slide-in shelves
- Capacity: 8 shelves max.
- Style: pan-shape
- Size: 11.5 x 11.25"
- Maximum area: 129.4 x 8 = 7 sq ft or 1035 inch2
- Distance between shelves: one inch
|
| Door gasket material |
Silicone or Viton |
| Observation window |
1/2" tempered safety glass |
| Safety |
- Built-in circuit breaker
- Overheat shutoff protection
|
| In-door lights |
White LED |
| Warranty |
1 year |
| Warranty |
CE |
