Across International Product Documents
The Ai DeepFreeze series -40°C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.
Features & Benefits
- Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum
- High/low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
- Dual silicon sealing gaskets for ultra airtight operation
- 48-hour battery backup for controller
- Built-in remote alarm and RS-485 port
- USB interface for data export and storage
- Environmentally friendly refrigerant
- Use only RoSH compliant non-toxic components and materials - Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
Specifications
| Model |
D16 |
| Electrical requirements |
110V (±10%) 60Hz 1-Phase 8.89A |
| Performance |
Temperature range: -20°C to -40°C |
| Compressor |
- Number of compressors: two
- Cooling method: direct cooling
- Defrost mode: manual
- Style: parallel
- Refrigerant: R290
|

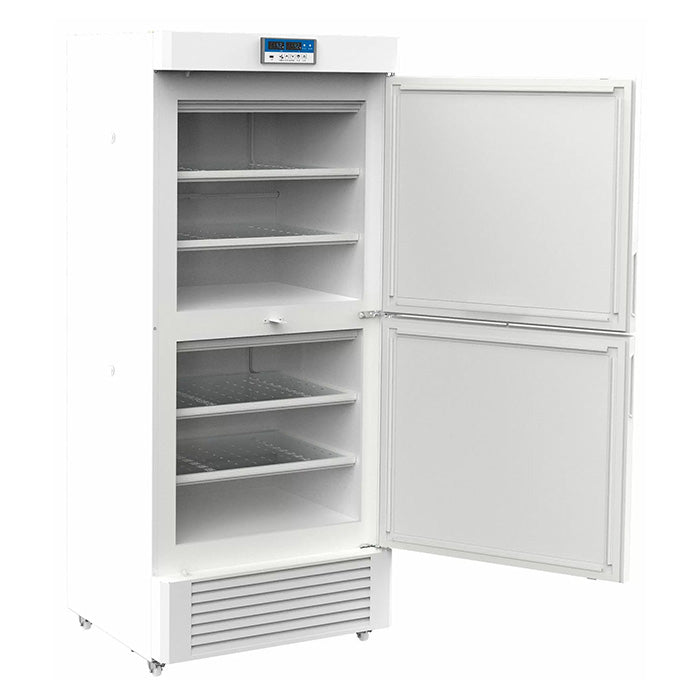

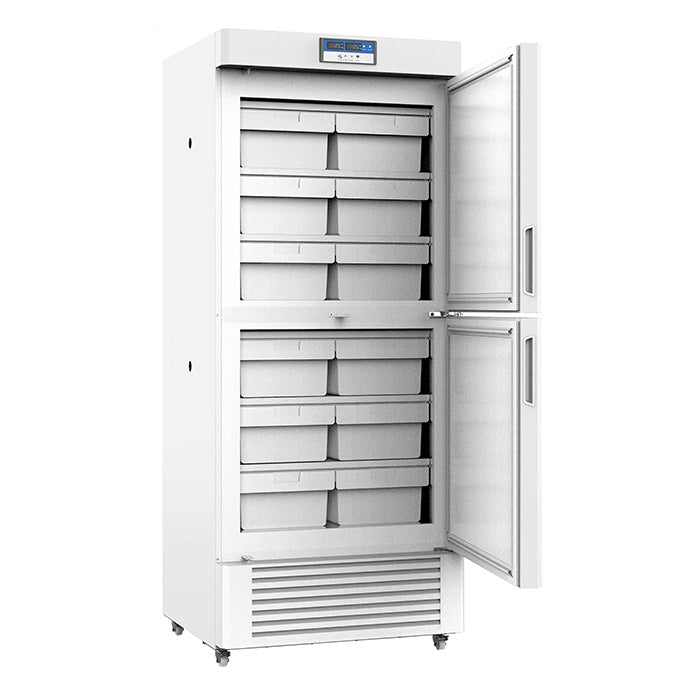

| Chamber |
- Dimensions: 25.5 x 22.5 x 24.5" (WxDxH)
- Number of chambers: two
- Material: stainless steel
- Volume: 15.9 Cu Ft
|

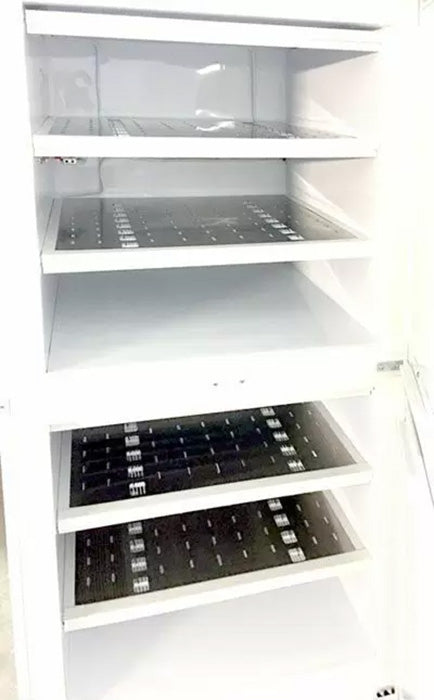

| Shelf |
- Quantity: two in each chamber, four in total
- Style: fixed
- Material: stainless steel
|
| Door |
2 |
| Working environment |
- Temperature: 16°C to 32°C
- Humidity: <80% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
|
| Access Port |
Two |
| Built-in swivel casters |
Four, two with brakes |
| Noise Level |
52 dBA |
| Communications |
- Remote alarm 4-20mA transmitter, USB, RS-485
|

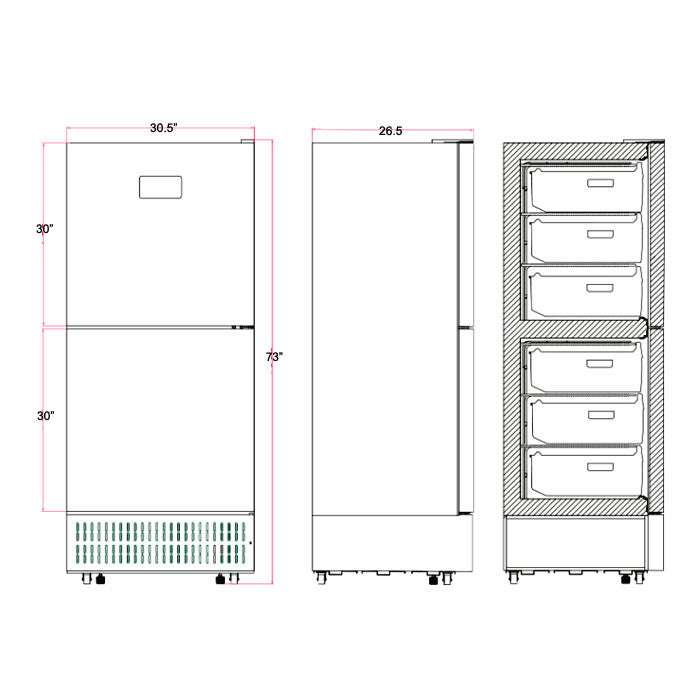

Unit/shipping weight & dimensions
|
- 320 Lbs / 30.5 x 26.5 x 73"
- 345 Lbs / 37.5 x 34.5 x 80"
|
| Safety |
- Compressor over-temp protection
- Compressor power surge delay protection
- Power failure protection
- Low battery, door open, filter clogging, system failure, sensor error, condenser overheat alarms
- External door with lock
|
| Warranty |
One year |
