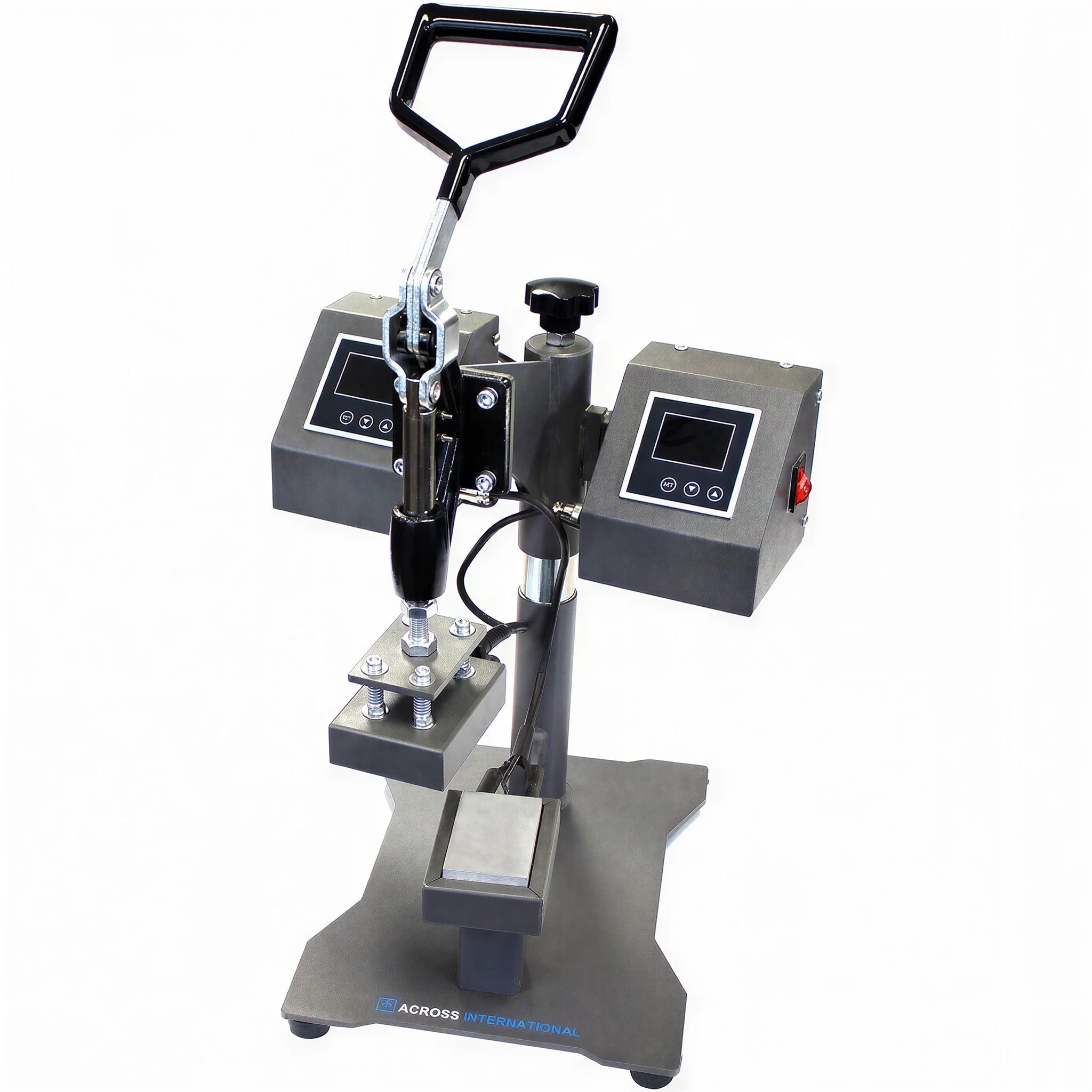

The Across International HandPress 3" x 2" swing-away heated press has a top heat platen that can easily be moved away from the lower platen. It features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut and provides an audible alarm once the predetermined amount of time has elapsed. The HandPress is easy to operate, with a padded open and close handle and a built-in adjustable pressure knob.
Features & Benefits
- Solid aluminum heating platens for easy maintenance and even heating
- Swivel top for easy loading and unloading
- Digital timer and alarm
- Locking press arm to maintain consistent pressure
- Dual heating platens for increased temperature stability
- Dual LCD temperature controllers display in Fahrenheit or Celsius
- Adjustable pressure
- Excellent for creating solventless botanical extractions
Specifications
| Electrical requirements | 220V 50/60Hz, single phase, 1100 watts |
| Heated platen |
|
| Maximum downward pressure | 1,000 lbs or 167 psi (measured with an IEEE 1451.4 compliant, 20,000 lb pressure sensor, made and calibrated in the USA) |
| Temperature controller |
|
| Body material | Powder coated steel |
| Safety | Press arm lock, timer alarm |
| Unit weight/shipping weight | 30 Lb / 50 Lbs |
| Unit dimensions (WxDxH) | 14.5 x 13.5 x 19 inches |
| Shipping dimensions (WxDxH) | 19 x 18 x 22 inches |
| Recommended heat settings for botanical extractions |
|
| Unit weight/shipping weight | 30 Lb / 50 Lbs |
| Brand | Across International |
|---|---|
| SKU | HANDPRESS-0302-220V |
| Weight (lb.) | 50.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 90 Days |
| Lead Time | Ships in 1-2 business days |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
| Rosin Press Type | Manual |
| Plate Size | 3" x 2" |
| Plate Material Type | Solid Aluminum |
| Temperature Range | Ambient to 480 F (250 C) |

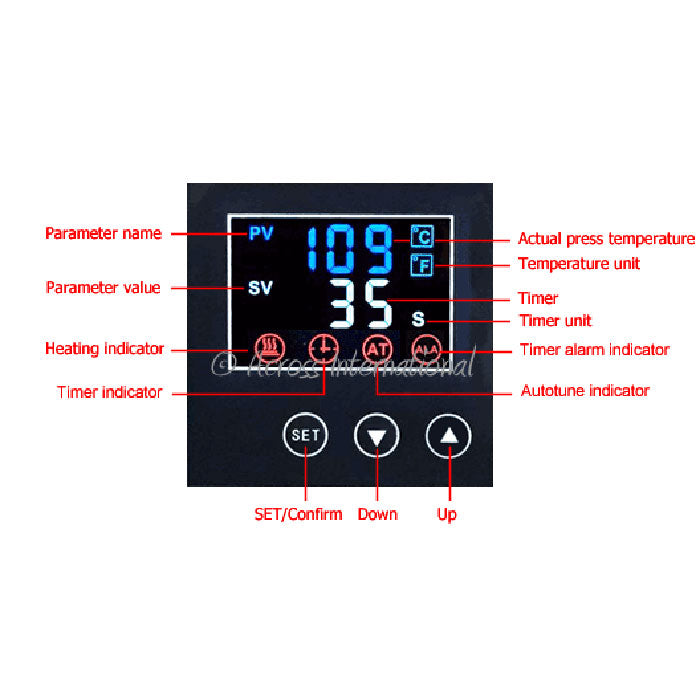

| Temperature Control | PID controlled digital controller with LCD panel |
| Max. Pressure | 1,000 lbs or 167 psi |
| Pressure Control | Adjustable pressure |
| Press Time Range | 1 to 999 seconds |
| Adjustable Tilt Position | No |
| Needs Air Compressor | Not Required |
| Amps | 5 Amps |
| Voltage | 220 Volts |
| Exact Watts | 1100 Watts |
| Power Cord(s) Included | Yes - 240 Volt |
| Power Cord Length | 8 ft. |
