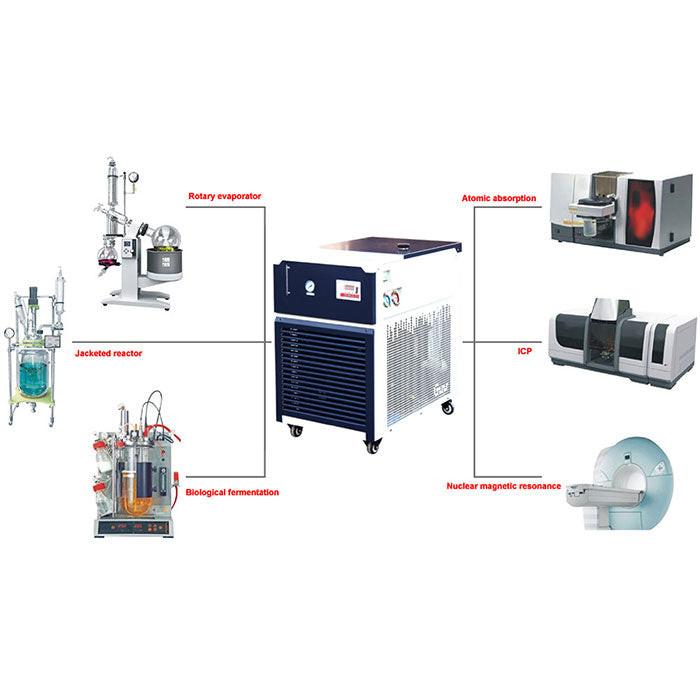

AI Recirculating Chiller SpecificationsAi C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -20°C ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
Features
- UL 61010-1 and CSA C22.2 certified (optional)
- No dry ice or liquid nitrogen needed
- Advanced PID digital temp controller
- Built-in chilling fluid filter protects the recirculating pump and prevent blockage
- All steel construction for durability
- Eco-friendly R410A refrigerant
- Cost saving as the water consumption is completely eliminated
- Built-in casters for mobility
- Insulated tubing included
- Recommended for 10L rotary evaporators
What's Included
- Ai -30°C/-22°F recirculating chiller
- 3/8" insulated chilling fluid tubing, 11 ft
- (3x) 3/8" stainless steel chilling fluid connector with on/off valve
- PTFE sealing tape
- User's manual
Specs
| Model | C30-17-10L |
| Temperature range | Ambient to -30°C (No load) |
|
Electrical requirements
|
220V 60Hz 1-PH, 1200 watts (Not compatible with 50Hz power)
|
|

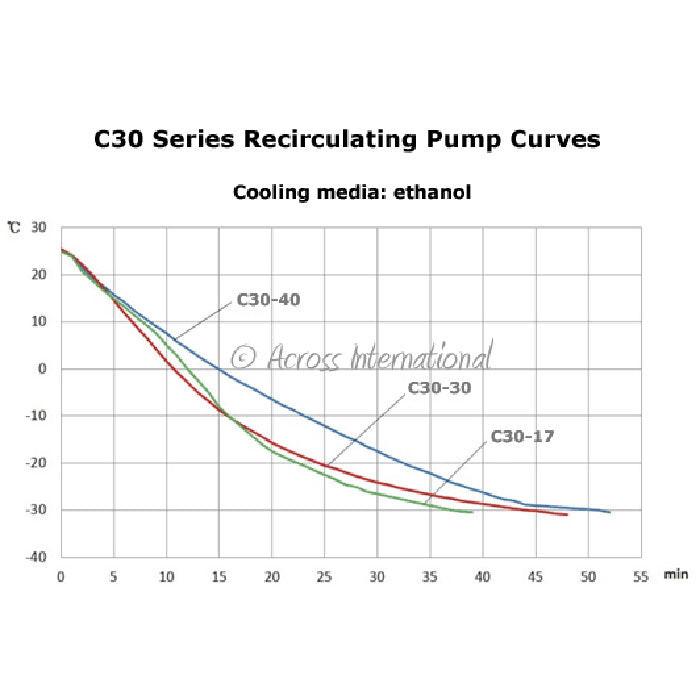

Cooling capacity
(Assuming working environment 25°C/77°F) |
@ 32°F/0°C: 1,750W
@ 14°F/-10°C: 1,100W @-4°F/-20°C: 700W @-22°F/-30°C: 300W |
| Compressor |
Make: Panasonic
Power: 208-230V 60Hz 1-PH Number of compressor: one Refrigerant: R410A |

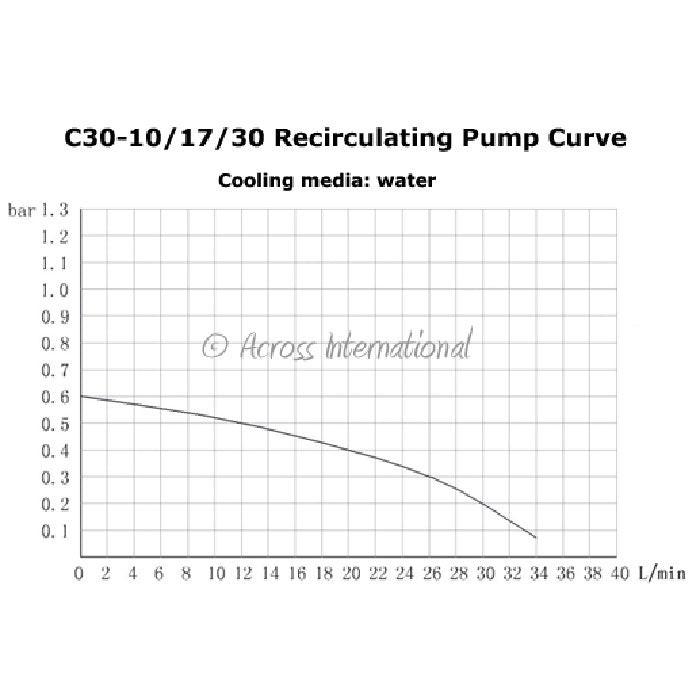

| Recirculating pump |
Type: Centrifugal
Output: 100 watts Pumping speed: 20 L/min or 5.3 gallon/min Maximum head: 20 feet or 6 meter Maximum pressure: 5.8 psi |
| Coolant outlet pressure | Displayed on the built-in mechanical pressure gauge |
|
Reservoir
|
Material: Type 304 stainless steel,
polished
Chilling fluid connection: 3/8" hose barb x 2 Capacity: 17 liters or 4.5 gallons |
| Temperature controller |
Type: Digital microprocessor PID controlled
|
| Temperature sensor type |
Pt100 |
| Housing |
Powder coated type 42 stainless steel
|
|
Recommended coolant
|
For 50°F/10°C or higher:
distilled water Between 50°F/10°C and -22°F/-30°C: 50% ethylene glycol + 50% distilled water |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters |
Four
|
|
Unit/shipping dimensions
|
26.5 x 18 x 30.5" / 32 x 23 x 40" (WxDxH)
|
| Unit/shipping weight |
175 Lbs / 235 Lbs
|
| Safety |
Compressor over-temp protection
Compressor delay start protection Short circuit and ground protection Over-current protection |
| Recommended for rotary evaporators |
Ai 10L SolventVap rotary evaporators
|
| Warranty | One year |
| Compliance |
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3 |
| Brand | Across International |
|---|---|
| SKU | C30-17-10L |
| Weight (lb.) | 270.0000 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Hazardous Material | false |
| Prop 65 | false |
| Shipping Restrictions | AK, HI |
| ETL Listed | No |
| UL Listed | No |
| Extraction Chiller & Heater Type | Recirculating Chillers |
| Chiller Reservoir Capacity | 4.5 Gallon / 17 Liter |
| Chiller Pump Speed Per Minute | 5.3 Gallon / 20 Liter |
| Temperature Range | Ambient to -30°C |
| Temperature Accuracy | +/- 2°C |
