Across International 200°C Stainless Steel Desktop Heated Recirculator, 7 Liter Capacity, 220 Volt

SKU: H200-7SST.220
No reviews
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: Ships in 1-2 business days


Price:
Sale price$2,590.00

Across International Product Documents

The new Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

What's Included

  • Ai H200-7 200°C 7L heated recirculator

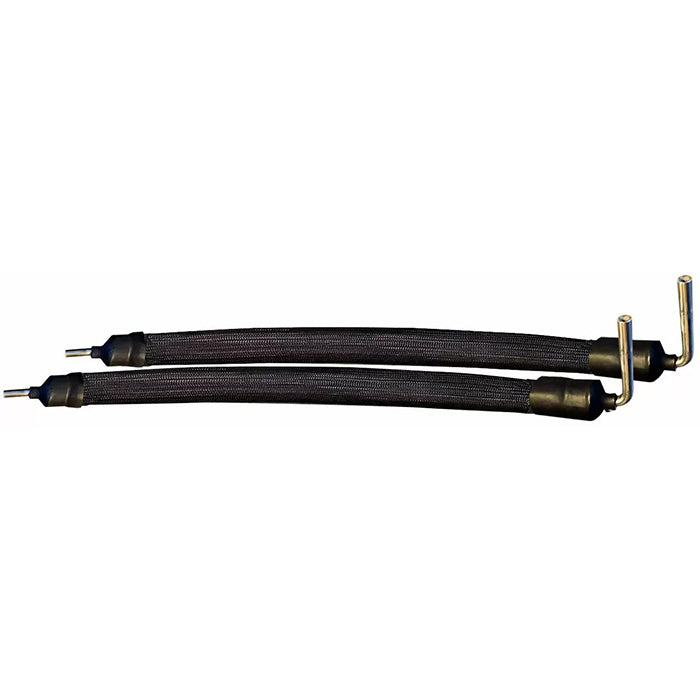

  • x2 250°C rated flexible insulated stainless steel tubing (40" L), pipe connection with M16 connection fitting
  • 1/2" NPT to 3/8" hose barb drain port adapter
  • x4 Set - M16 Nuts, Ferrules and Sleeves
  • User's manual

Features & Benefits

  • ETL tested to UL and CSA standards
  • Powerful 2,800 watts heater
  • Adjustable pumping speed up to 20 liters per minute
  • 2nd generation 7" TFT touch screen controller
  • Front placed controller keeps all electronics away from the heat and expends lifespan of the controller
  • ANSI standard all stainless steel reservoir
  • All steel construction for durability
  • mall footprint saves valuable lab space
  • Comes with 250°C rated, heavy-duty, flexible stainless tubing with insulation

Optional M16 male to 3/4" NPT adapters for Ai glass reactors:

  • M16x1.0 male to 1/2" NPT female x 2
  • 1/2" NPT male to 3/4" NPT male x 2

Specifications

Model H200-7SST
Temperature range Ambient to 200°C (No load)
Electrical requirements 220V 60Hz 1-Phase 2,900 watts
Heating capacitys 2,800 watts
Recirculating pump
  • Pumping speed: 21 liters per minute, adjustable
  • Maximum head: 16 feet or 5 meters
  • Power: 100 watts

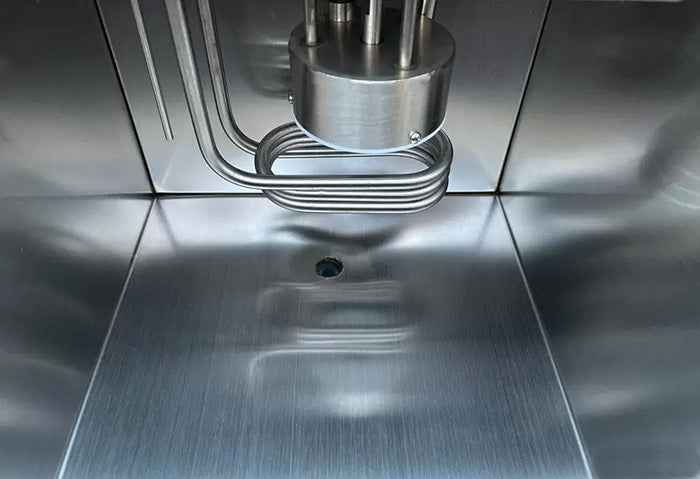

Reservoir
  • Material: Type 304 stainless steel
  • Capacity: 7 liters or 1.8 gallons

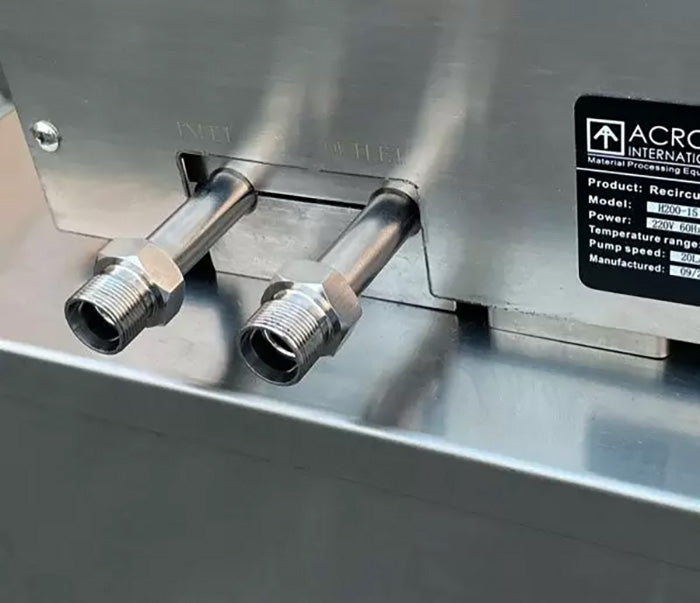

  • Thermo fluid connection: M16 x 2
  • Fluid drain port: 3/8" hose barb with on/off valve
Temperature controller
  • Type: Digital microprocessor PID controlled
  • Display: 7" touch screen
  • Display unit: Celsius °C
  • Temperature step: 0.1°C
  • Temperature accuracy: +/- 2°C
  • Temperature range: Ambient to 200°C
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Unit/shipping dimensions 11.5 x 19 x 19" / 16 x 24 x 22" (WxDxH)
Unit/shipping weight 35 Lbs / 50 Lbs
Safety
  • Short circuit and ground protection
  • Over-current protection
  • Over-temperature protection
  • Upper/lower temperature alarm protection
Warranty 1 year
Compliance
  • UL 61010-1 :2012 Ed.3+R:29Apr2016
  • CSA C22.2#61010-1 :2012 Ed.3
Brand Across International
SKU H200-7SST.220
Weight (lb.) 50.0000
Length (in.)
Width (in.)
Height (in.)
Warranty 1 Year
Lead Time Ships in 1-2 business days
Hazardous Material false
Prop 65 false
ETL Listed No
UL Listed No
Extraction Chiller & Heater Type Heated Circulators
Temperature Range Ambient to 200°C
Temperature Accuracy +/- 2°C
Heating Capacity 7 liters or 1.8 gallons
