Across International 200°C Stainless Steel Desktop Heated Recirculator, 15 Liter Capacity, 220 Volt
Roll over image to zoom in Click on image to zoom
Across International 200°C Stainless Steel Desktop Heated Recirculator, 15 Liter Capacity, 220 VoltAcross International 200°C Stainless Steel Desktop Heated Recirculator, 15 Liter Capacity, 220 VoltAcross International 200°C Stainless Steel Desktop Heated Recirculator, 15 Liter Capacity, 220 VoltAcross International 200°C Stainless Steel Desktop Heated Recirculator, 15 Liter Capacity, 220 VoltAcross International 200°C Stainless Steel Desktop Heated Recirculator, 15 Liter Capacity, 220 Volt

Across International 200°C Stainless Steel Desktop Heated Recirculator, 15 Liter Capacity, 220 Volt

SKU: H200-15SST.220
No reviews
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: Ships in 1-2 business days

Price:
$2,590.00
 More payment options

Across International Product Documents

The Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

What's Included

  • Ai H200-15 200°C 15L heated recirculator

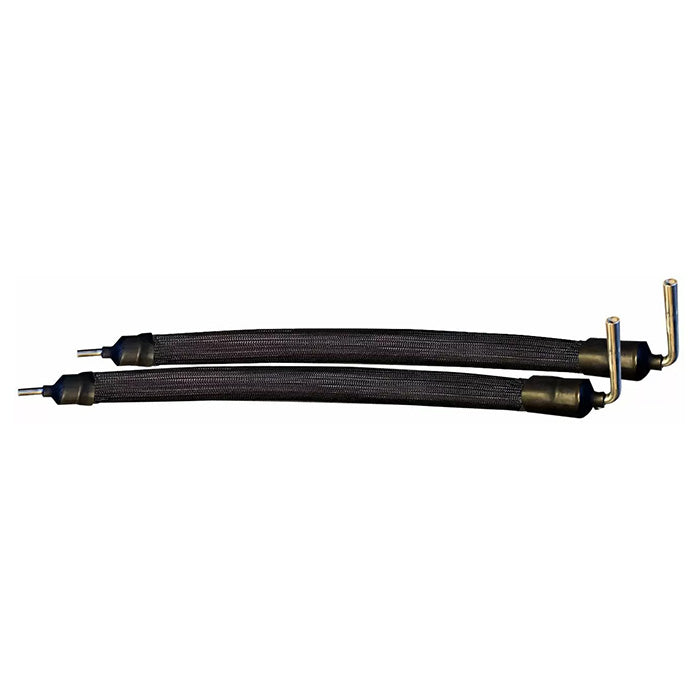

  • x2 250°C rated flexible insulated stainless steel tubing (40" L), pipe connection with M16 connection fitting
  • 1/2" NPT to 3/8" hose barb drain port adapter
  • x4 Set - M16 Nuts, Ferrules and Sleeves
  • User's manual

Features & Benefits

  • ETL tested to UL and CSA standards
  • Powerful 2,800 watts heater
  • Adjustable pumping speed up to 20 liters per minute
  • 2nd generation 7" TFT touch screen controller
  • Front placed controller keeps all electronics away from the heat and expends lifespan of the controller
  • ANSI standard all stainless steel reservoir
  • All steel construction for durability
  • mall footprint saves valuable lab space
  • Comes with 250°C rated, heavy duty, flexible stainless tubing with insulation

Optional M16 male to 3/4" NPT adapters for Ai glass reactors:

  • M16x1.0 male to 1/2" NPT female x 2
  • 1/2" NPT male to 3/4" NPT male x 2

Specifications

Model H200-15SST
Temperature range Ambient to 200°C (No load)
Electrical requirements 220V 60Hz 1-Phase 2,900 watts
Heating capacitys 2,800 watts
Recirculating pump
  • Pumping speed: 15 liters per minute, adjustable
  • Maximum head: 16 feet or 5 meters
  • Power: 100 watts

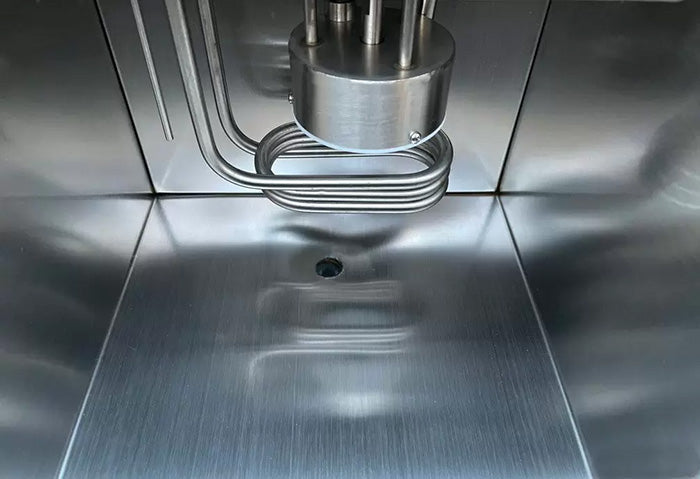

Reservoir
  • Material: Type 304 stainless steel
  • Capacity: 15 liters or 4 gallons

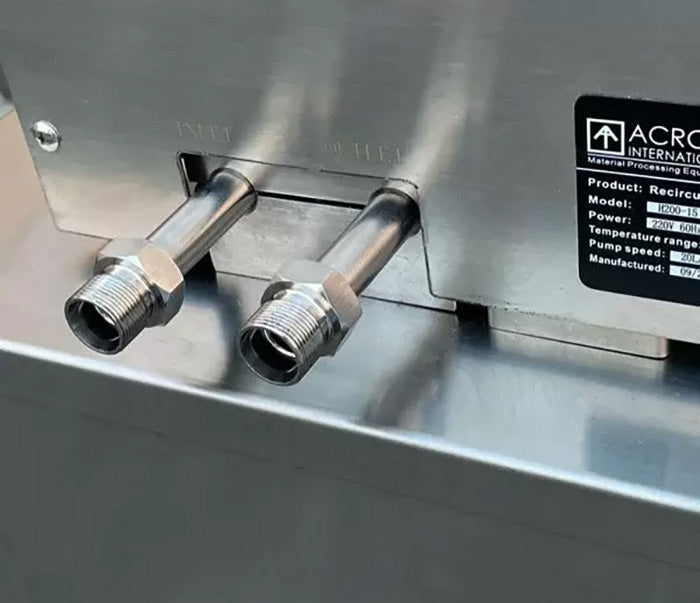

  • Thermo fluid connection: M16 x 2
  • Fluid drain port: 3/8" hose barb with on/off valve
Temperature controller
  • Type: Digital microprocessor PID controlled
  • Display: 7" touch screen
  • Display unit: Celsius °C
  • Temperature step: 0.1°C
  • Temperature accuracy: +/- 2°C
  • Temperature range: Ambient to 200°C
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Unit/shipping dimensions 14.75 x 19 x 18.25" / 17 x 22 x 22" (WxDxH)
Unit/shipping weight 40 Lbs / 55 Lbs
Safety
  • Short circuit and ground protection
  • Over-current protection
  • Over-temperature protection
  • Upper/lower temperature alarm protection
Warranty 1 year
Compliance
  • UL 61010-1 :2012 Ed.3+R:29Apr2016
  • CSA C22.2#61010-1 :2012 Ed.3
Brand Across International
SKU H200-15SST.220
Weight (lb.) 55.0000
Length (in.)
Width (in.)
Height (in.)
Warranty 1 Year
Lead Time Ships in 1-2 business days
Hazardous Material false
Prop 65 false
ETL Listed No
UL Listed No
Extraction Chiller & Heater Type Heated Circulators
Temperature Range Ambient to 200°C
Temperature Accuracy +/- 2°C
Heating Capacity 15 liters or 4 gallons
