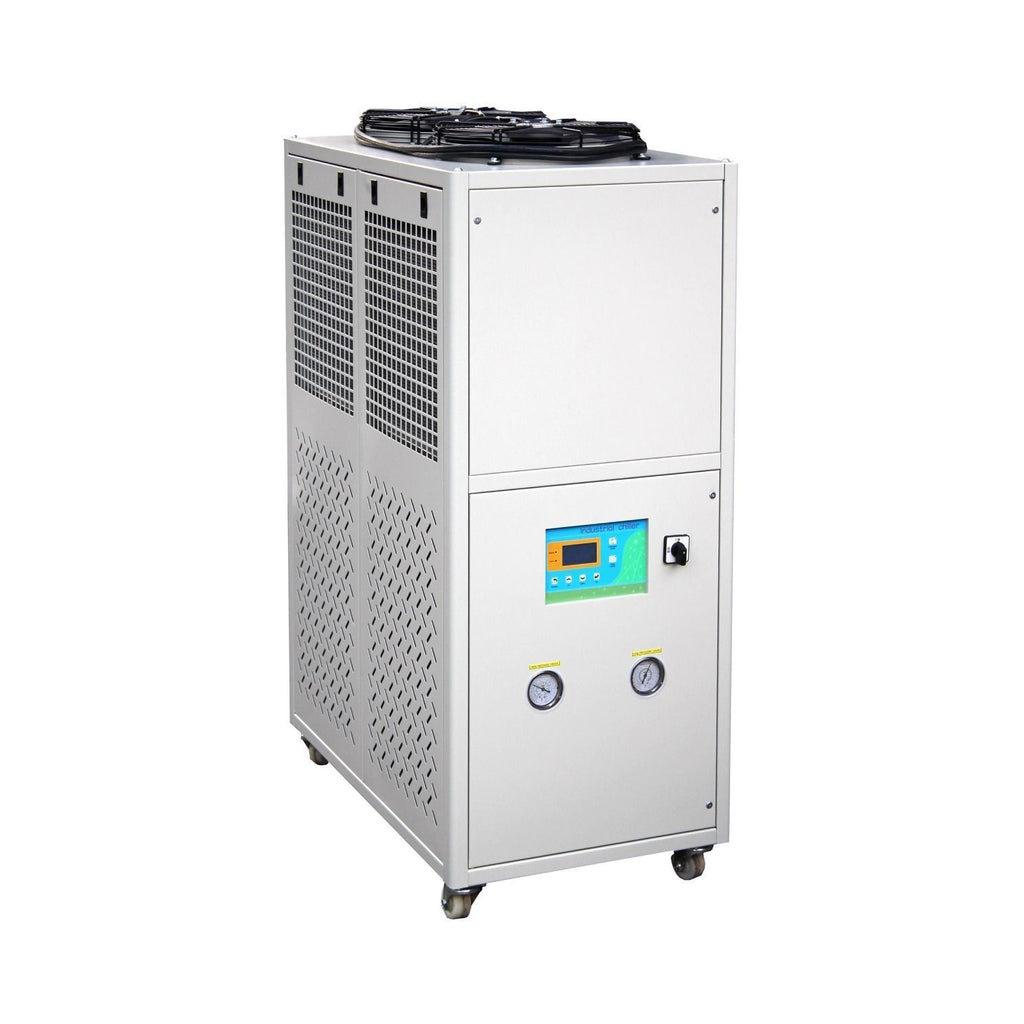

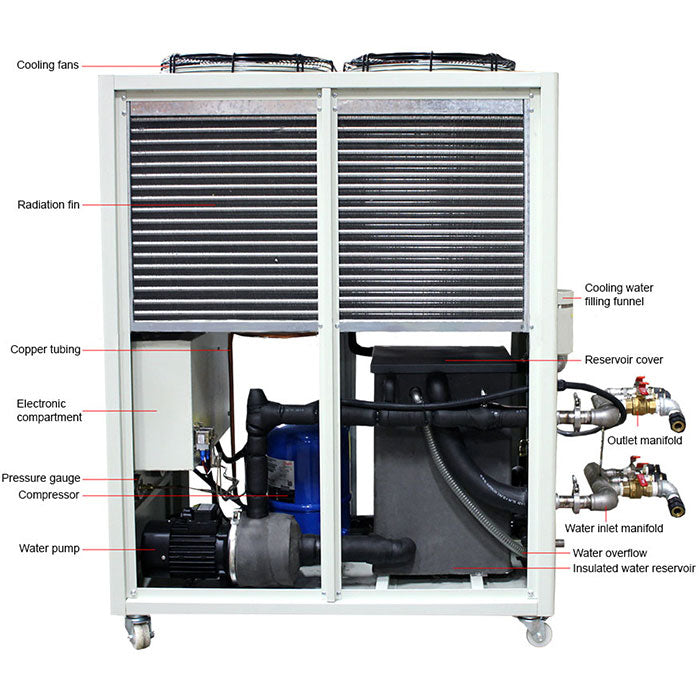

Digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.
What's Included
- WAC-4 recirculating chiller
- (2x) Water manifold
- (2x) KF40 flange
- User's manual
Specs
|
Model
|
WAC-4 |

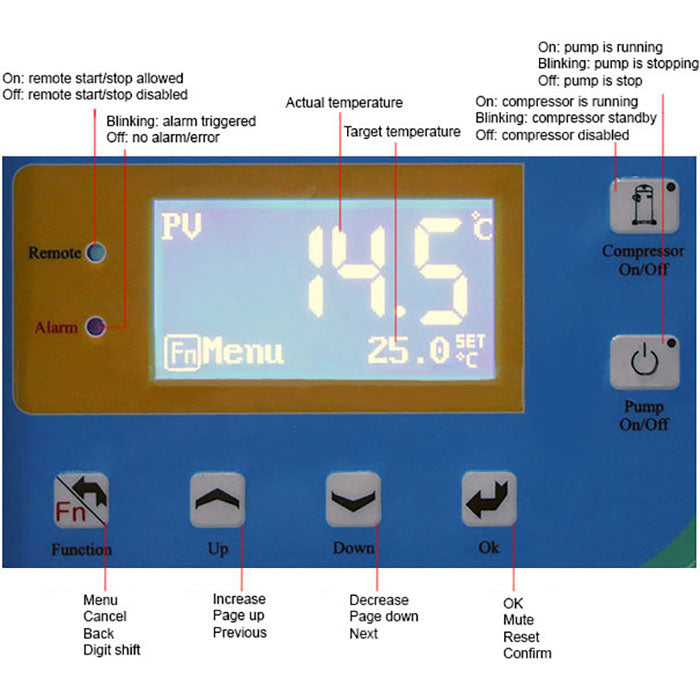

| Controller | Digital micro-chip controlled with LCD screen and fluid level display |
| Input power |
480VAC 60Hz three-phase (3PH) 3.75kW
|
| Nominal cooling capacity |
10366 kcal per hour
|
|
Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 12°C Outlet chilled fluid temperature: 7°C Inlet cooling air temperature: 30°C Outlet cooling air temperature: 35°C |
|
|
Compressor
|
Make:
Danfoss
(UL Listed)
Power: 460V 3-60Hz 8A 3750 watts, LR 25A, thermally protected Refrigerant: R407C (2,400g) PS: 22.6 bar, TS max: 50°C, TS min: -35°C Number of compressors installed: one |
|
Water pump
|
Make: LX (CMF2-50T-A-W-G-BABE)
Power: 480V 60Hz 3-PH 550 watts 2.5/Y1.4A 3450 rpm IP55 Max liquid temperature: 70°C Pumping speed: 33L per minute Max pressure: 10 bar. H(max): 64m, H(n): 51m |
| Reservoir capacity | 35L |
| Recommended coolant | Distilled water |
| Cooling fan |
Make: Weiguang (YWF4D-350S-102/34-G)
Power: 480V 60Hz 80/150 watts 0.27A 1640 rpm Number of fans installed: two Flow rate: 142,000 cu ft per hour |
| Temperature accuracy | +/- 2 °C |
|
Water inlet & outlet on chiller
|
KF40 flange
|
| Water manifold | Inlet: KF40 flange, outlet: 8mm quick connect with ball valve |
| Unit/shipping weight |
375 Lb / 485 Lb
|
| Unit/shipping dimensions |
41 x 22 x 54" / 50 x 25 x 61" (DxWxH)
|

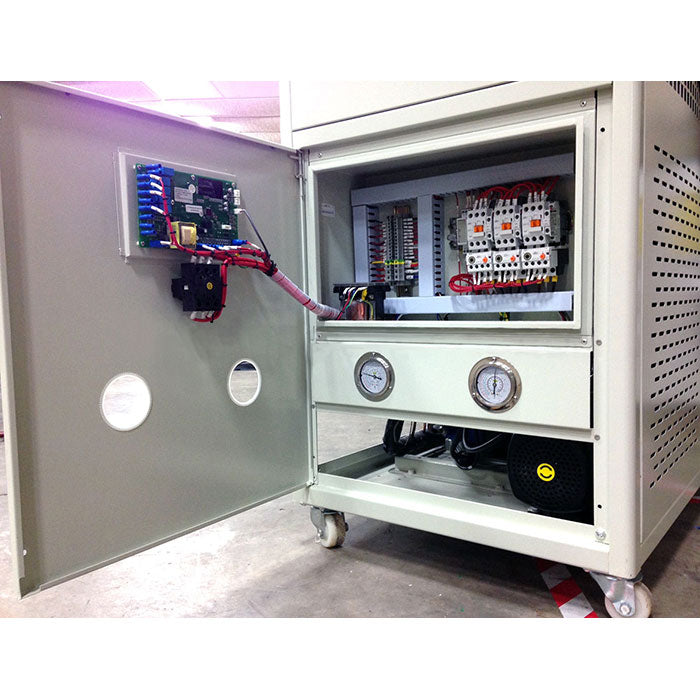

| Safety |
Over current, c
ompressor delay start, water pump
over load, built-in fuse, over-voltage and under- voltage, abnormal operations, phase protection and |
| Working environment |
Temperature range of chilled fluid: 5°C - 35°C.
Temperature
difference of chilled fluid between inlet and outlet: 3°C - 8°C . It is better to use the chiller while the ambient temperature is at or below 35°C |
|
Recommended to use with
these induction heaters (result may vary on different applications) |
High frequency 10kW, 20kW, 30kW
Mid frequency 25kW, 35kW Low frequency 25kW, 35kW |
| CE compliant | Yes |
| Brand | Across International |
|---|---|
| SKU | WAC-4 |
| Weight (lb.) | 500.0000 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Hazardous Material | false |
| Prop 65 | false |
| Shipping Restrictions | AK, HI |
| ETL Listed | No |
| UL Listed | No |
| Extraction Chiller & Heater Type | Recirculating Chillers |
| Chiller Reservoir Capacity | 9.2 Gallon / 35 Liter |
| Chiller Pump Speed Per Minute | 8.7 Gallon / 33 Liter |
| Temperature Range | 5°C - 35°C |
| Temperature Accuracy | +/- 2°C |
