Across International 100°C Compact Heated Recirculator, 7 Liter Capacity, 110 Volt

SKU: H100-7.110
No reviews
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This Product Ships in 2-3 Business Days

Price:
$1,247.59

Across International Product Documents

The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

What's Included

  • Ai H100-7 100°C 7L heated recirculator
  • 3/8" tubing (10 ft)
  • 1/2" NPT to 3/8" hose barb drain port adapter
  • User's manual

Features & Benefits

  • ETL tested to UL and CSA standards
  • Powerful 1,500 watts heater
  • Adjustable pumping speed up to 20 liters per minute
  • 2nd generation 7" TFT touch screen controller
  • ANSI standard all stainless steel reservoir
  • All steel construction for durability
  • Small footprint saves valuable lab space
  • Connection tubing included
  • Recommended for 2L to 10L distillation systems

Specifications

Model H100-7
Temperature range Ambient to 100°C (No load)
Electrical requirements 110V 60Hz 1-Phase 1,600 watts
Heating capacitys 1,500 watts
Recirculating pump
  • Pumping speed: 20 liters per minute, adjustable
  • Maximum head: 16 feet or 5 meters

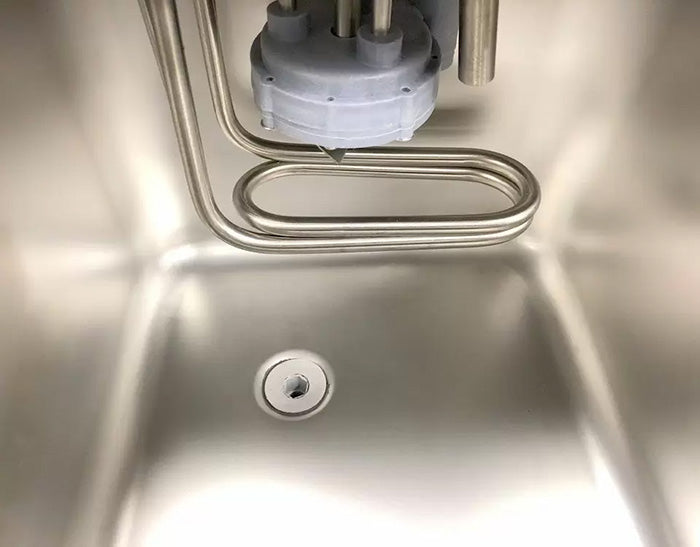

Reservoir
  • Dimensions: 9.5 x 12 x 7.5" (WxDxH)
  • Material: Type 304 stainless steel
  • Capacity: 7 liters or 1.9 gallons
  • Thermo fluid connection: 3/8" hose barb x 2
  • Thermo fluid drain port: 3/8" hose barb with on/off valve

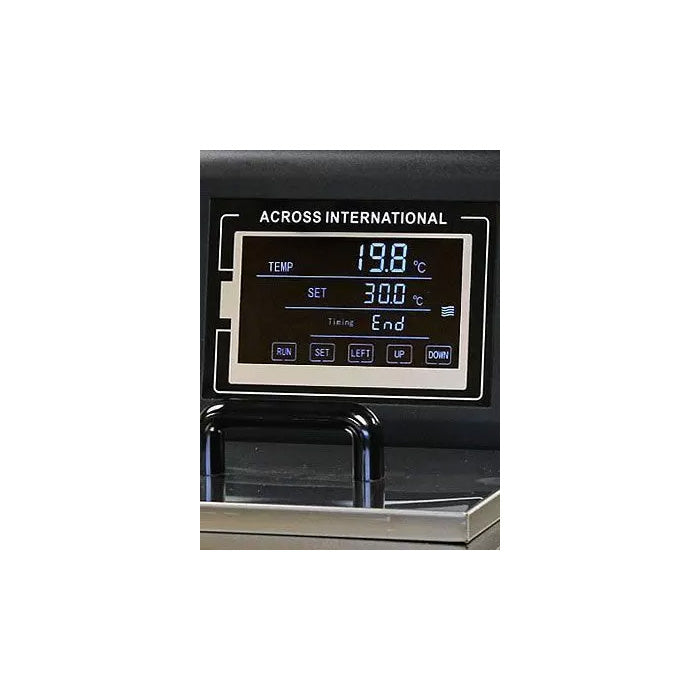

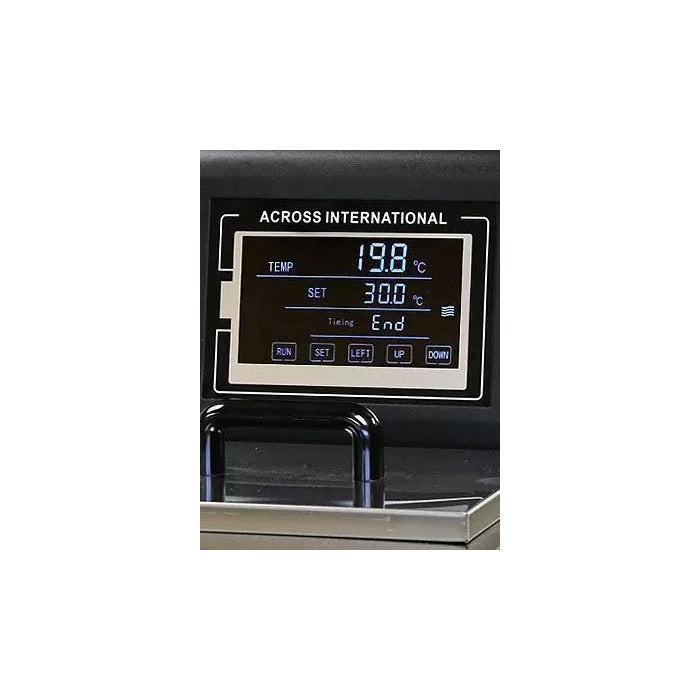

Temperature controller
  • Type: Digital microprocessor PID controlled
  • Display: 7" touch screen
  • Display unit: Celsius °C
  • Temperature step: 0.1°C
  • Temperature accuracy: +/- 2°C
  • Temperature range: Ambient to 100°C
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casterss No
Unit/shipping dimensions 10.5 x 17 x 17" / 17 x 20 x 22" (WxDxH)
Unit/shipping weight 30 Lbs / 36 Lbs
Safety
  • Short circuit and ground protection
  • Over-current protection
  • Over-temperature protection
  • Upper/lower temperature alarm protection
Warranty 1 year
Compliance
  • UL 61010-1 :2012 Ed.3+R:29Apr2016
  • CSA C22.2#61010-1 :2012 Ed.3
Brand Across International
SKU H100-7.110
Weight (lb.) 36.0000
Length (in.)
Width (in.)
Height (in.)
Warranty 1 Year
Lead Time This Product Ships in 2-3 Business Days
Hazardous Material false
Prop 65 false
ETL Listed Yes
UL Listed Yes
Extraction Chiller & Heater Type Heated Circulators
Temperature Range Ambient to 100°C
Temperature Accuracy +/- 2°C
Heating Capacity 7 liters or 1.9 gallons
