AC Infinity EVO IONFRAME User Manual AC Infinity EVO IONFRAME ETL CertificateThe IONFRAME Series features the latest Samsung EVO LEDs

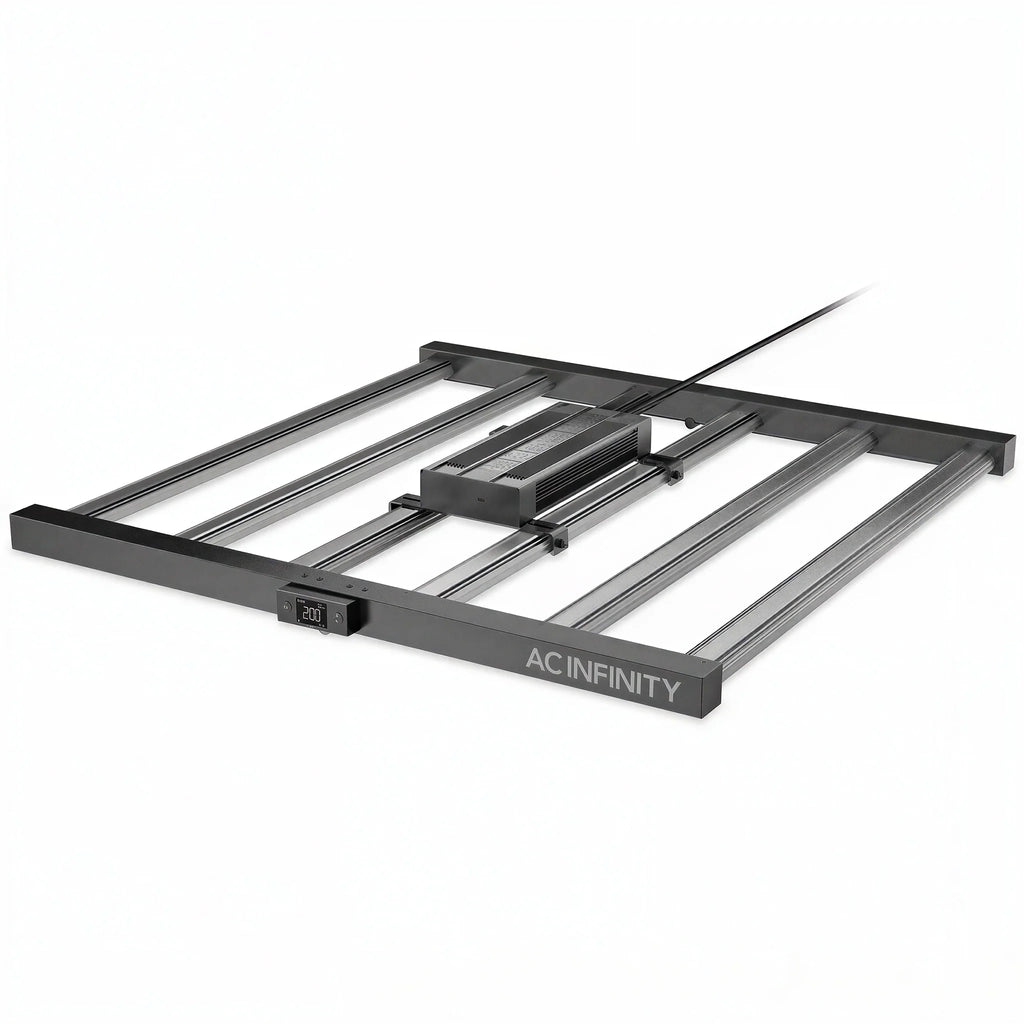

The IONFRAME EVO6 LED Grow Light is designed for grow tents and large grow spaces to improve your plant's growth rate and its yields. Utilizes Samsung LM301H EVO diodes that are algorithmically spaced on a bar-style form factor to evenly distribute lighting coverage while diminishing hotspots.
The included smart controller features schedule programming and daisy-chain support to connect more bar LED grow lights in a linear arrangement by using splitter dongles (sold separately). This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
Features & Benefits of the EVO6
Its modular design enables you to remove the driver to remotely mount it away from this fixture and balance heat dissipation. This heat dissipation is supported by its steel and aluminum build, which enables magnetic mounting and is IP-65-rated to withstand humid environments. This grow light meets ETL standards (certificate #5021417) for electrical appliance safety, ensuring secure use in lighting applications.
- Features Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE, the highest efficiency of LM301B, LM301H, and Bridgelux 3030 chips.
- Programmed with schedule controls, sunrise/sunset dimming, and 10 brightness levels; UIS™ platform-compatible for WiFi app control.
- Bar-style fixture with algorithmically spaced diodes optimized for even coverage, deep canopy penetration, and hotspot reduction.
- Passive cooling LED driver is removable to balance heat dissipation; also supports daisy-chaining with up to 80 grow lights.
- 5 x 5 ft. Veg. Coverage | 4 x 4 ft. Flower Coverage | Samsung LM301H EVO Chips | 1074 Diodes | 500W | 1991 PPFD | ETL Cert. 5021417
Industry-Leading LED Chips
Each IONFRAME light features genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs.
EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. The IONFRAME EVO is supported by an array of (6) 395 nm UV diodes, (54) 660 nm and (6) 730 nm OSRAM red diodes to complete its full spectrum light output.
Schedule & Brightness Controls
The included schedule controller can automatically adjust light based on the time of day. It features 10 light intensity levels and a scheduling mode that will cyclically activate this grow light.
Customize this daily cycling with an innovative sunrise and sunset setting that gradually brightens and dims the lighting to accurately replicate the sun's movement.
Optional Upgrade: Controller 69 PRO
Use this grow light with an advanced UIS controller like the AC Infinity CONTROLLER 69 PRO to fully automate it by integrating it into the UIS platform. This will enable further access to remote control over WiFi and advance programming like automation and grow recipes when connecting to the AC Infinity app.
Connect up to eight devices to provide each with shared or independent programming. Go beyond basic on/off triggering by setting dynamic programs that adjust fan speed and light intensity in response to changing temperature, humidity, and VPD. Set minimum baseline levels that your devices will constantly run at, only increasing when triggers are activated. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect with the AC Infinity app via Bluetooth or WiFi to remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.
Optional Product Pairing: CLOUDLAB Grow Tents
The CLOUDLAB Series features a durable frame that uses 50% thicker steel poles and carries 2x more weight than standard grow tents. Future ready design featuring controller mounting plate with passthrough for no light-leak cable management.
Technical Specifications for the EVO6 LED Grow Light
| Diodes | Samsung LM301H EVO |
|---|---|
| Coverage | 5 x 5 ft. Veg. | 4 x 4 ft. Flower |
| Efficiency | 3.14 µmol/J |
| PPFD | 1991 µmol/s |
| Wattage | 500 Watts |
| Voltage | 100-277V AC |
| Amps | 5.0 Amps |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
|---|---|
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP-65 |
| Life Expectancy | 50,000 Hours |
| Certification | ETL |
| Dimensions | 32.28 x 32.67 x 3.38 in. |
| Brand | AC Infinity |
|---|---|
| SKU | AC-IF6K |
| Weight (lb.) | 27.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 2 Year |
| Lead Time | This product ships in 1-2 business days |
| Hazardous Material | false |
| UPC | 819137024069 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $21.60 |
| Exact Watts | 500 Watts |
| LED Diode Type | Samsung LM301H EVO & OSRAM Diodes |
| LED Driver Type | SOSEN |
| PAR Efficiency | 3.14 µmol/J |
| Total PPF Output | 1991 µmol/s |
| Daisy Chain | Yes - up to 80 grow lights. |
| Voltage | 120 Volts |
| Amps | 5.0 Amps |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt (NEMA 1-15 Type-A) |
| Power Cord Length | 12 ft. |
| Coverage Area | Veg: 5' x 5'; Flower: 4' x 4' |
| Grow Light Certifications | IP65 Rated, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
