AC Infinity Product Documents
AC Infinity EVO IONFRAME User Manual AC Infinity EVO IONFRAME ETL CertificateThe IONFRAME Series features the latest Samsung EVO LEDs
The IONFRAME EVO3 LED Grow Light is designed for grow tents and large grow spaces to improve your plant's growth rate and its yields. Utilizes Samsung LM301H EVO diodes that are algorithmically spaced on a bar-style form factor to evenly distribute lighting coverage while diminishing hotspots.
The included smart controller features schedule programming and daisy-chain support to connect more bar LED grow lights in a linear arrangement by using splitter dongles (sold separately). This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
Features & Benefits of the EVO3
Its modular design enables you to remove the driver to remotely mount it away from this fixture and balance heat dissipation. This heat dissipation is supported by its steel and aluminum build, which enables magnetic mounting and is IP-65-rated to withstand humid environments. This grow light meets ETL standards (certificate #5021417) for electrical appliance safety, ensuring secure use in lighting applications.
- Features Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE, the highest efficiency of LM301B, LM301H, and Bridgelux 3030 chips.
- Programmed with schedule controls, sunrise/sunset dimming, and 10 brightness levels; UIS™ platform-compatible for WiFi app control.

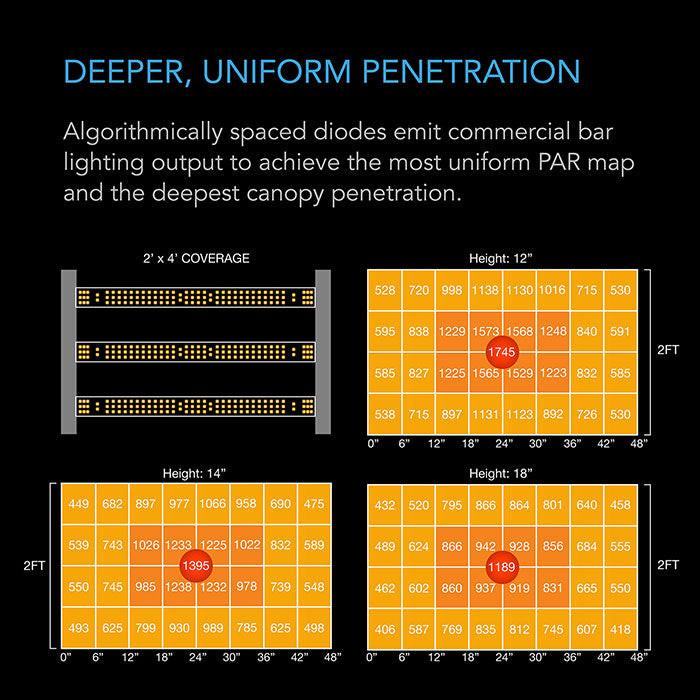

- Bar-style fixture with algorithmically spaced diodes optimized for even coverage, deep canopy penetration, and hotspot reduction.
- Passive cooling LED driver is removable to balance heat dissipation; also supports daisy-chaining with up to 80 grow lights.
- 3 x 5 ft. Veg. Coverage | 2 x 4 ft. Flower Coverage | Samsung LM301H EVO Chips | 840 Diodes | 280W | 1745 PPFD | ETL Cert. 5021417
Industry-Leading LED Chips

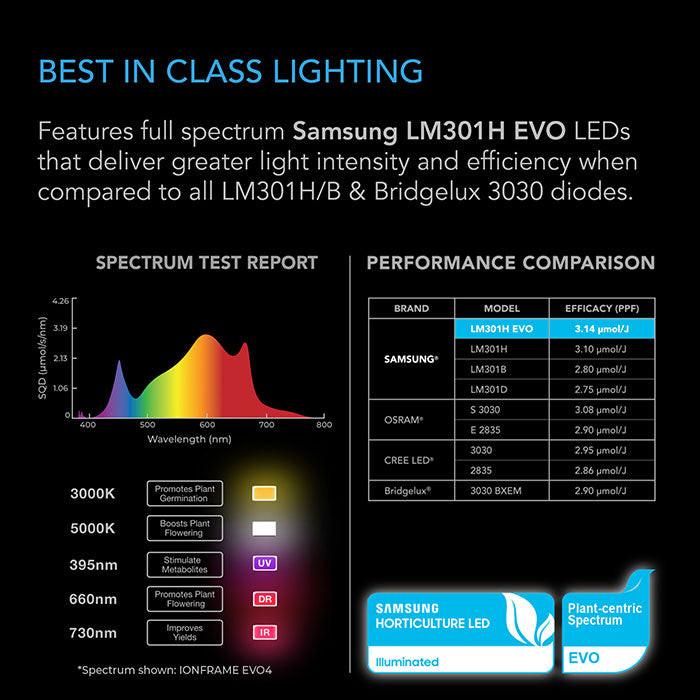

Each IONFRAME light features genuine Samsung LM301H EVO diodes, the latest in horticulture lighting technology that emits intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H and LM301B LEDs, as well as Bridgelux 3030, and other previous-generation LEDs.

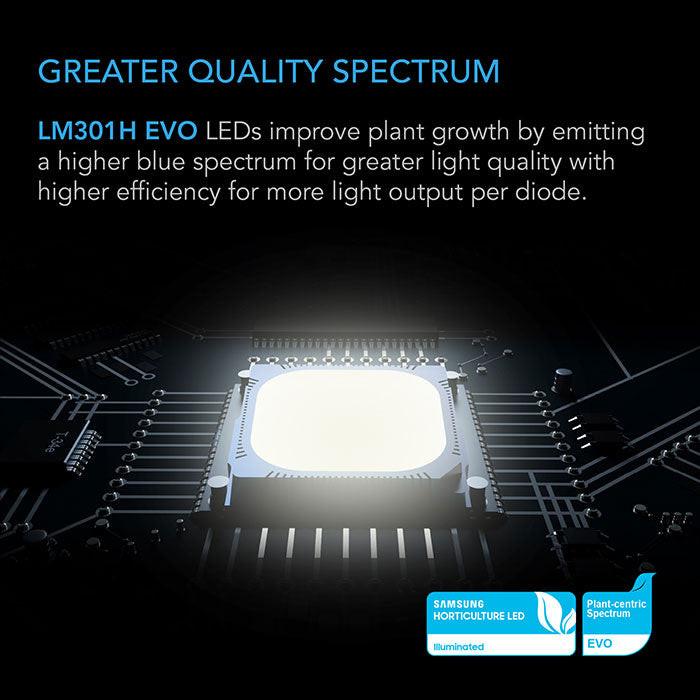

EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency when compared to non-EVO diodes. The IONFRAME EVO is supported by an array of (3) 395 nm UV diodes, (27) 660 nm and (3) 730 nm OSRAM red diodes to complete its full spectrum light output.
Schedule & Brightness Controls

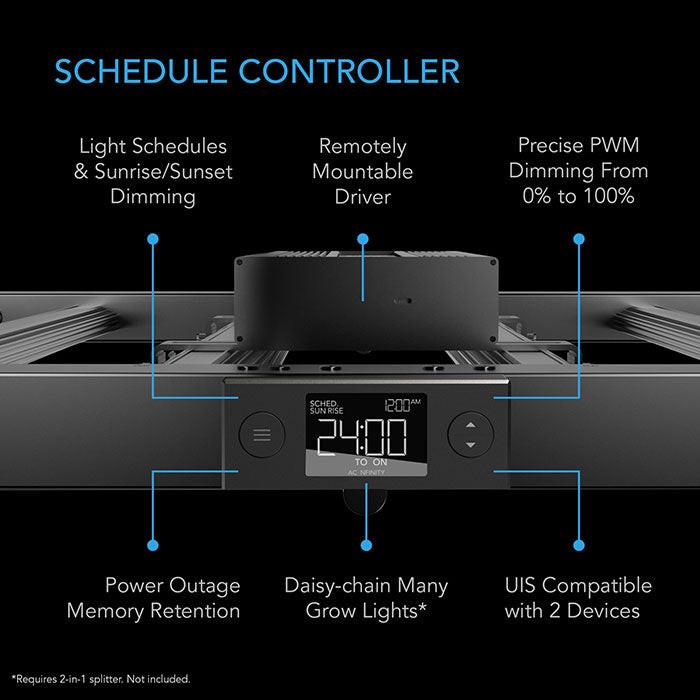

The included schedule controller can automatically adjust light based on the time of day. It features 10 light intensity levels and a scheduling mode that will cyclically activate this grow light.
Customize this daily cycling with an innovative sunrise and sunset setting that gradually brightens and dims the lighting to accurately replicate the sun's movement.
Optional Upgrade: Controller 69 PRO

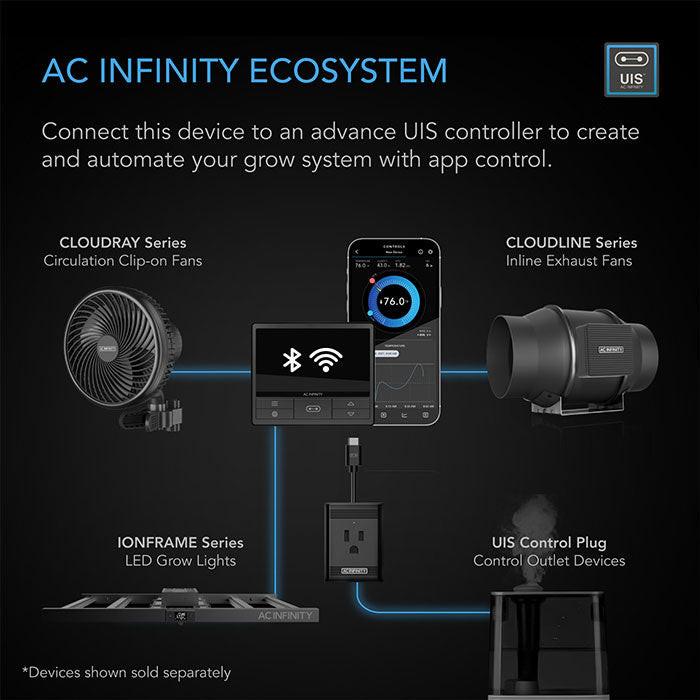

Use this grow light with an advanced UIS controller like the AC Infinity CONTROLLER 69 PRO to fully automate it by integrating it into the UIS platform. This will enable further access to remote control over WiFi and advance programming like automation and grow recipes when connecting to the AC Infinity app.
Connect up to eight devices to provide each with shared or independent programming. Go beyond basic on/off triggering by setting dynamic programs that adjust fan speed and light intensity in response to changing temperature, humidity, and VPD. Set minimum baseline levels that your devices will constantly run at, only increasing when triggers are activated. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect with the AC Infinity app via Bluetooth or WiFi to remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.
Optional Product Pairing: CLOUDLAB Grow Tents
The CLOUDLAB Series features a durable frame that uses 50% thicker steel poles and carries 2x more weight than standard grow tents. Future ready design featuring controller mounting plate with passthrough for no light-leak cable management.
Technical Specifications for the EVO3 LED Grow Light
| Diodes | Samsung LM301H EVO |
|---|---|
| Coverage | 3 x 5 ft. Veg. | 2 x 4 ft. Flower |
| Efficiency | 3.14 µmol/J |
| PPFD | 1745 µmol/s |
| Wattage | 280 Watts |
| Voltage | 100-277V AC |
| Amps | 2.8 Amps |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
|---|---|
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP-65 |
| Life Expectancy | 50,000 Hours |
| Certification | ETL |
| Dimensions | 16.14 x 32.67 x 3.03 in. |
| Brand | AC Infinity |
|---|---|
| SKU | AC-IF3K |
| Weight (lb.) | 18.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 2 Year |
| Lead Time | This Product Ships in 2-3 Business Days |
| Hazardous Material | false |
| UPC | 819137024045 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $12.09 |
| Exact Watts | 280 Watts |
| LED Diode Type | Samsung LM301H EVO & OSRAM Diodes |
| LED Driver Type | SOSEN |
| PAR Efficiency | 3.14 µmol/J |
| Total PPF Output | 1745 µmol/s |
| Daisy Chain | Yes - up to 80 grow lights. |
| Voltage | 120 Volts |
| Amps | 2.8 Amps |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt (NEMA 1-15 Type-A) |
| Power Cord Length | 12 ft. |
| Coverage Area | Veg: 3' x 5'; Flower: 2' x 4' |
| Grow Light Certifications | IP65 Rated, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
Which grow areas and plant phases suit the AC Infinity IONFRAME EVO3 LED Grow Light?
The AC Infinity IONFRAME EVO3 LED Grow Light covers 3 x 5 feet for vegetative growth and 2 x 4 feet for flowering. The bar-style fixture distributes light evenly across grow tents and large grow spaces.
How does the AC Infinity IONFRAME EVO3 LED Grow Light support plant growth and yields?
The AC Infinity IONFRAME EVO3 LED Grow Light uses Samsung LM301H EVO diodes with supplemental UV and red OSRAM diodes for full-spectrum light output. The 280-watt fixture produces 1745 µmol/s with 3.14 µmol/J efficiency.
What scheduling and brightness controls come with the AC Infinity IONFRAME EVO3 LED Grow Light?
The AC Infinity IONFRAME EVO3 LED Grow Light includes a smart controller with scheduling, sunrise and sunset dimming, and 10 brightness levels. The grow light also supports WiFi app control through the UIS platform.
Can the AC Infinity IONFRAME EVO3 LED Grow Light operate in humid grow environments?
The AC Infinity IONFRAME EVO3 LED Grow Light has an IP-65 rating for humid environments and supports operating humidity from 35 to 85% RH. The product is also ETL listed.
Can multiple AC Infinity IONFRAME EVO3 LED Grow Lights connect for larger grow spaces?
The AC Infinity IONFRAME EVO3 LED Grow Light supports daisy-chaining with up to 80 grow lights. Linear connections require splitter dongles, sold separately, and the UIS platform supports compatible smart-controller integration.
What control equipment is included with the AC Infinity IONFRAME EVO3 LED Grow Light?
The AC Infinity IONFRAME EVO3 LED Grow Light includes a smart schedule controller and a 120-volt NEMA 1-15 Type-A power cord. The power cord measures 12 feet long.
