AC Infinity IONBOARD S24 200 Watt LED Grow Light

SKU: AC-IBS24
No reviews
AC Infinity Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 1-2 business days


Price:
Sale price$249.00

AC Infinity Product Documents

AC Infinity IONBOARD User Manual

A Full-Spectrum LED Grow Light Designed With Samsung LM301B Diodes

Features a proprietary driver that enables light dimming and can connect with our smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately). Built on a fanless, unibody aluminum board to dissipate heat and extend the diodes’ lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity.

Includes a pair of metal bar hangers and rope hangers. This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.


Features & Benefits of the IOBOARD S24

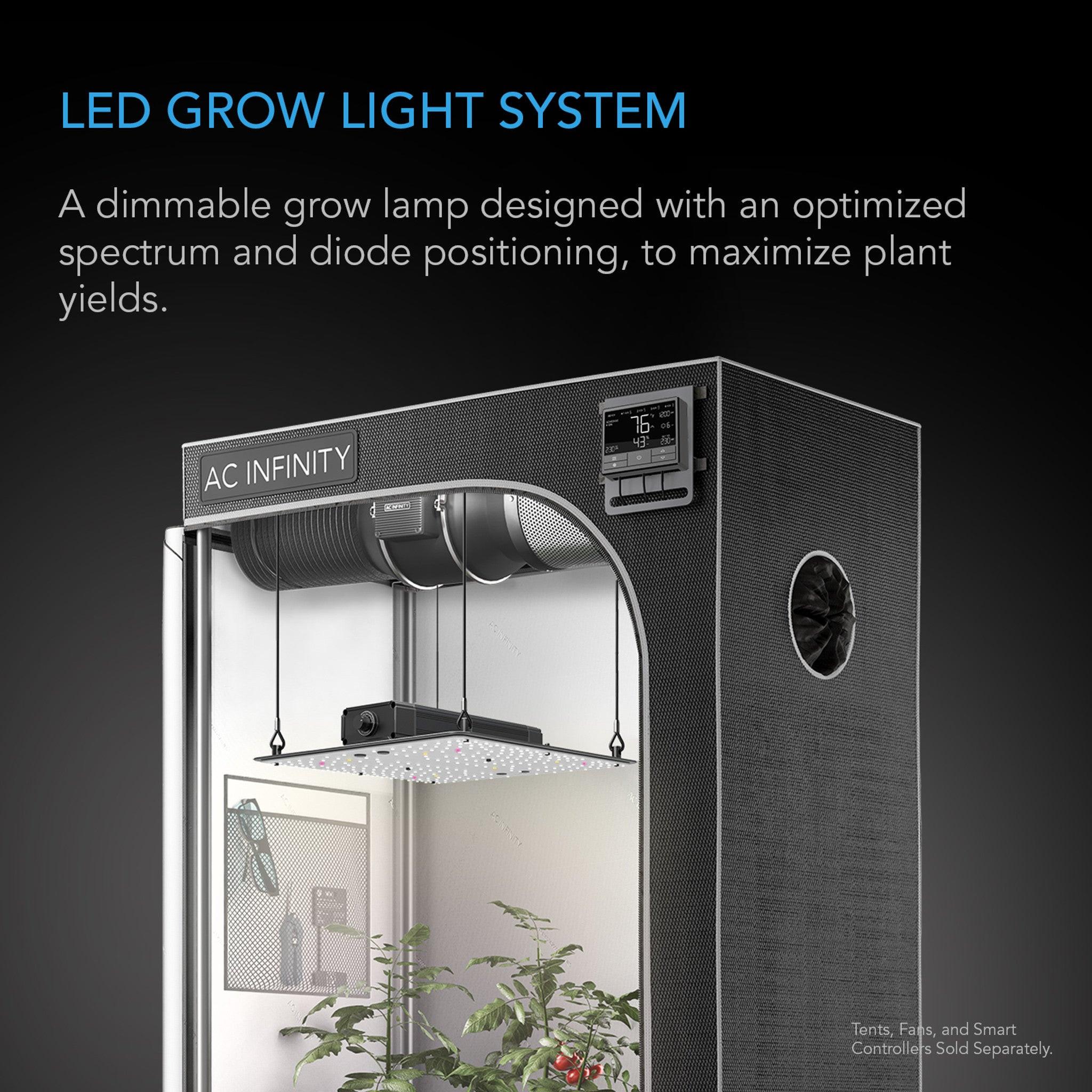

  • Dimmable LED grow light designed with an optimized spectrum and diode positioning, to maximize plant yields.
  • Specially formulated full-spectrum Samsung LM301B LEDs to achieve the highest growth rates in all plant stages.

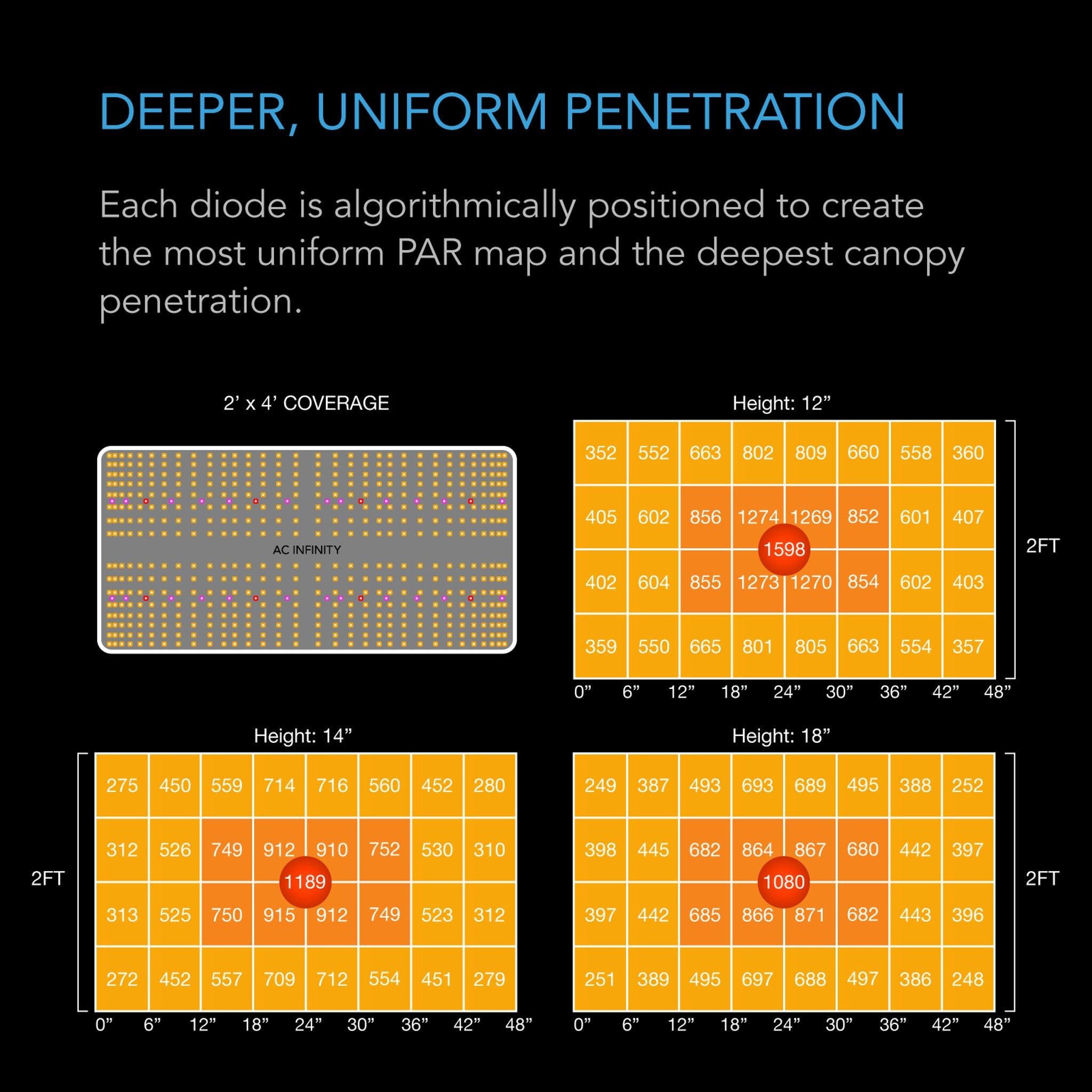

  • Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
  • Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.
  • Constructed on a unibody aluminum board and IP-65 rated for grow environments with higher humidity and heat.

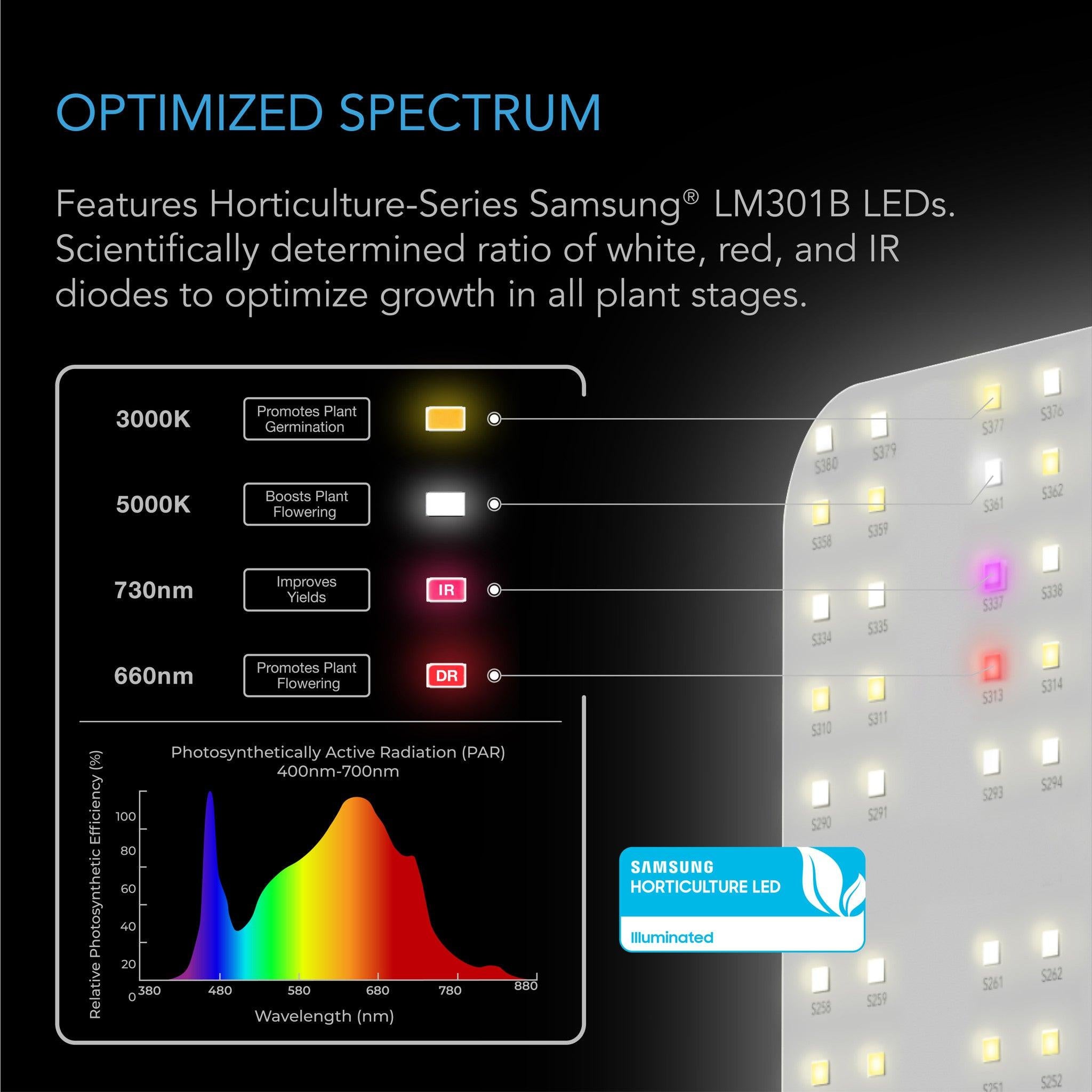

Optimized Spectrum

Each light contains an optimized ratio of Horticulture-Series Samsung LM301B white, red, and IR LEDs designed to maximize plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.

Future Ready Controls

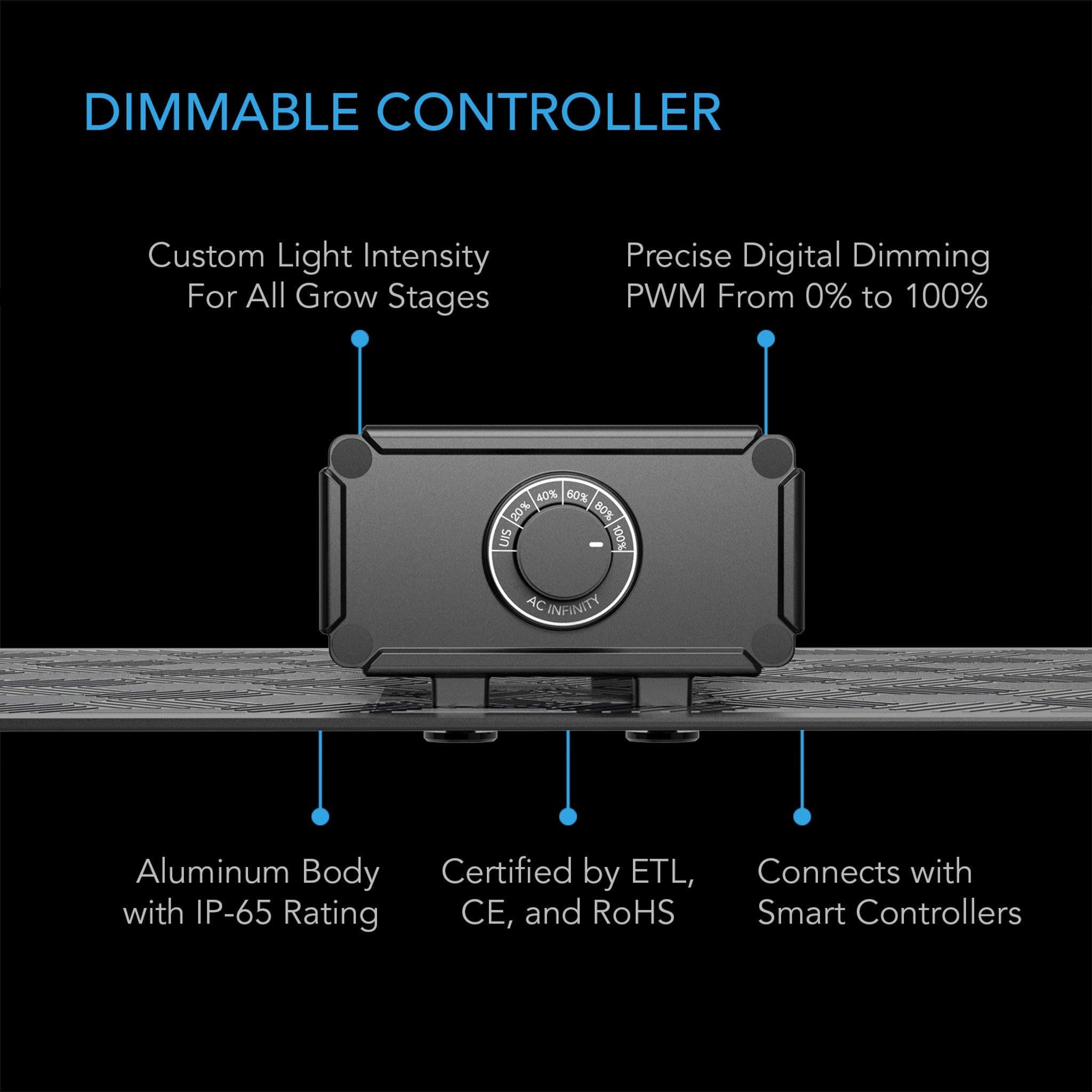

Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments.

The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more.

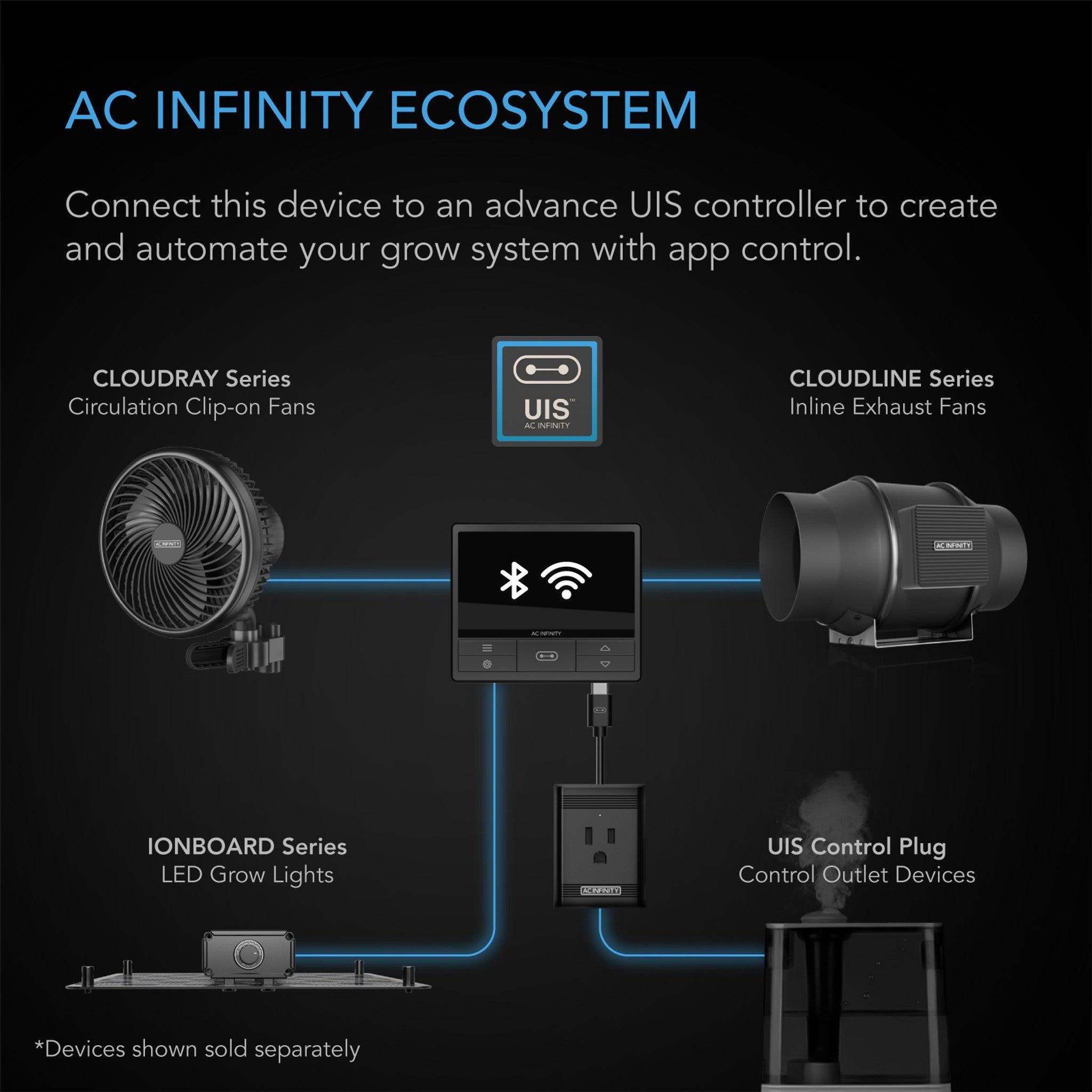

Join the ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.

On-Board Dimmer & Optional Controller

Optional Upgrade: Controller 69 PRO

Use this grow light with an advanced UIS controller like the AC Infinity CONTROLLER 69 PRO to fully automate it by integrating it into the UIS platform. This will enable further access to remote control over WiFi and advance programming like automation and grow recipes when connecting to the AC Infinity app.

Connect up to eight devices to provide each with shared or independent programming. Go beyond basic on/off triggering by setting dynamic programs that adjust fan speed and light intensity in response to changing temperature, humidity, and VPD. Set minimum baseline levels that your devices will constantly run at, only increasing when triggers are activated. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect with the AC Infinity app via Bluetooth or WiFi to remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.


Specifications for the IONBOARD S24

Coverage 2 x 4 ft. Veg. | 2 x 4 ft. Flower
Efficiency 2.65 µmol/J
PPFD 1598 µmol/s
Wattage 200 Watts
Voltage 100-277V AC
Amps 1.84 @ 120V, 0.92 @ 240V, 0.80 @ 277V
Diodes Samsung LM301H
Power Connector Type US Plug (NEMA 1-15 Type-A)
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
Life Expectancy 50,000 Hours
Dimensions 11.81 x 23.62 in. x 0.5 in.
Brand AC Infinity
SKU AC-IBS24
Weight (lb.) 11.4600
Prop 65 false
Length (in.)
Width (in.)
Height (in.)
Warranty 2 Year
Lead Time This product ships in 1-2 business days
Hazardous Material false
UPC 819137022522
Lighting Type LED
LED Light Spectrum Full Spectrum
LED Fixture Type Panel
LED Features Manual Dimming Knob, Dimmable *with Controller
Est. Electricity Cost /mo $8.64
Exact Watts 200 Watts
LED Diode Type Samsung LM301B
LED Driver Type AC Infinity Proprietary Driver, Model GTS-100
PAR Efficiency 2.65 µmol/J
Total PPF Output 1598 µmol/s
Voltage 120 Volts
Amps 1.84 A @ 120V | 0.92 A @ 240V | 0.80 A @ 277V
Frequency 50/60 Hz
Power Cord(s) Included Yes - 120 Volt (NEMA 1-15 Type-A)
Power Cord Length 5 ft.
Coverage Area Veg: 2' x 4'; Flower: 2' x 4'
Grow Light Certifications IP65 Rated, ETL Listed
ETL Listed Yes
UL Listed No
