AC Infinity Product Documents

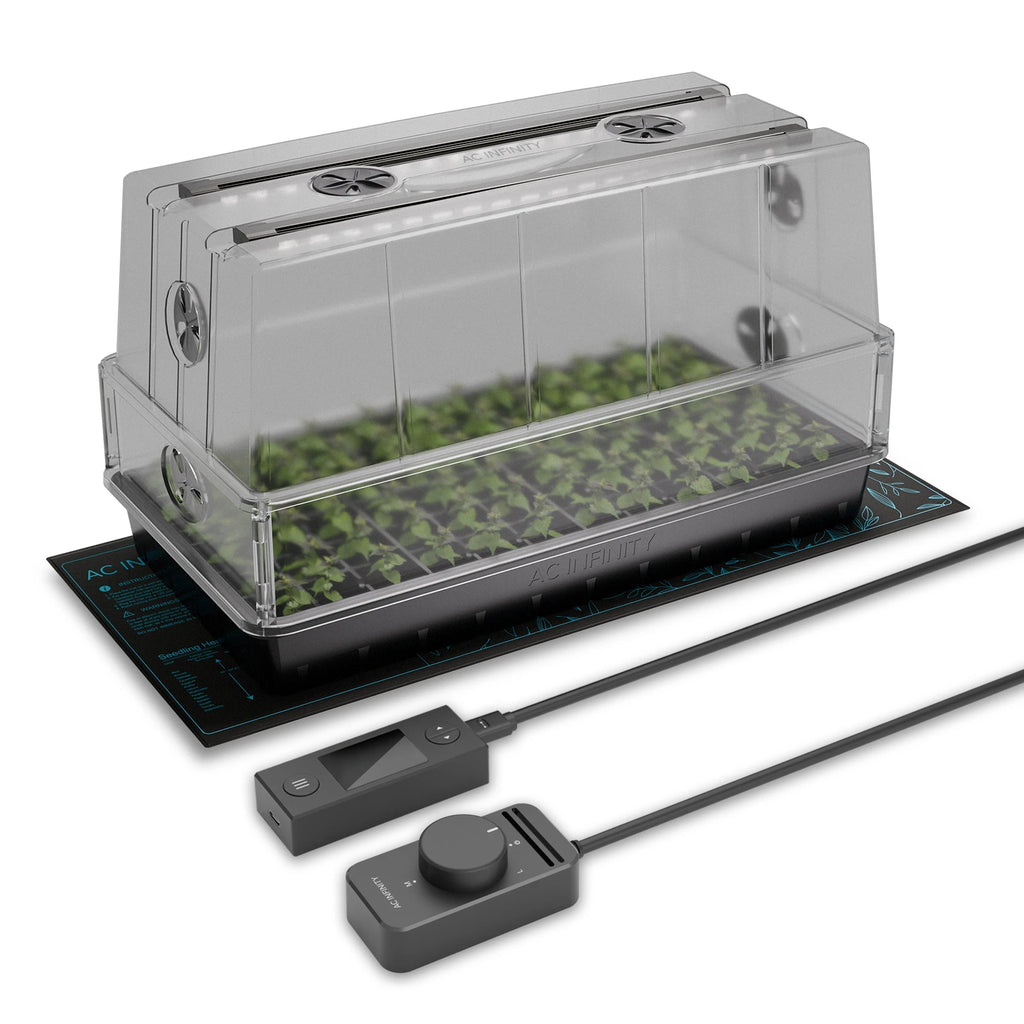

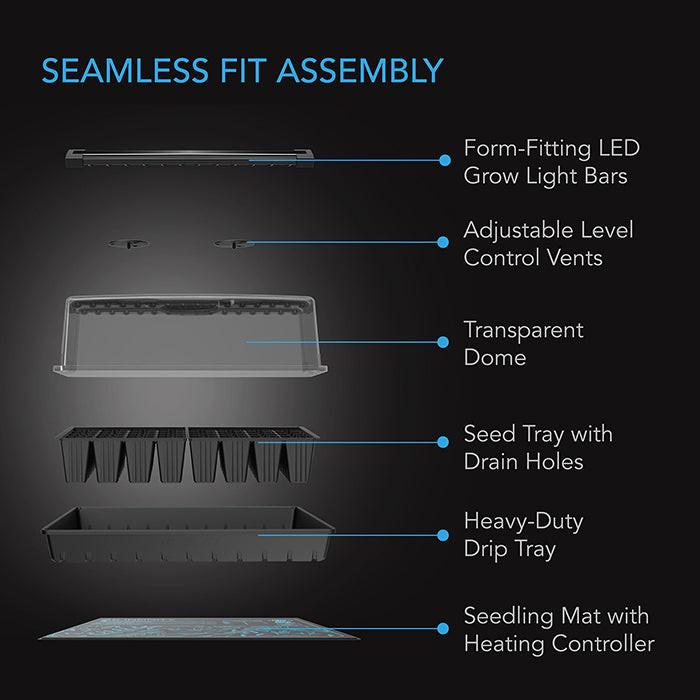

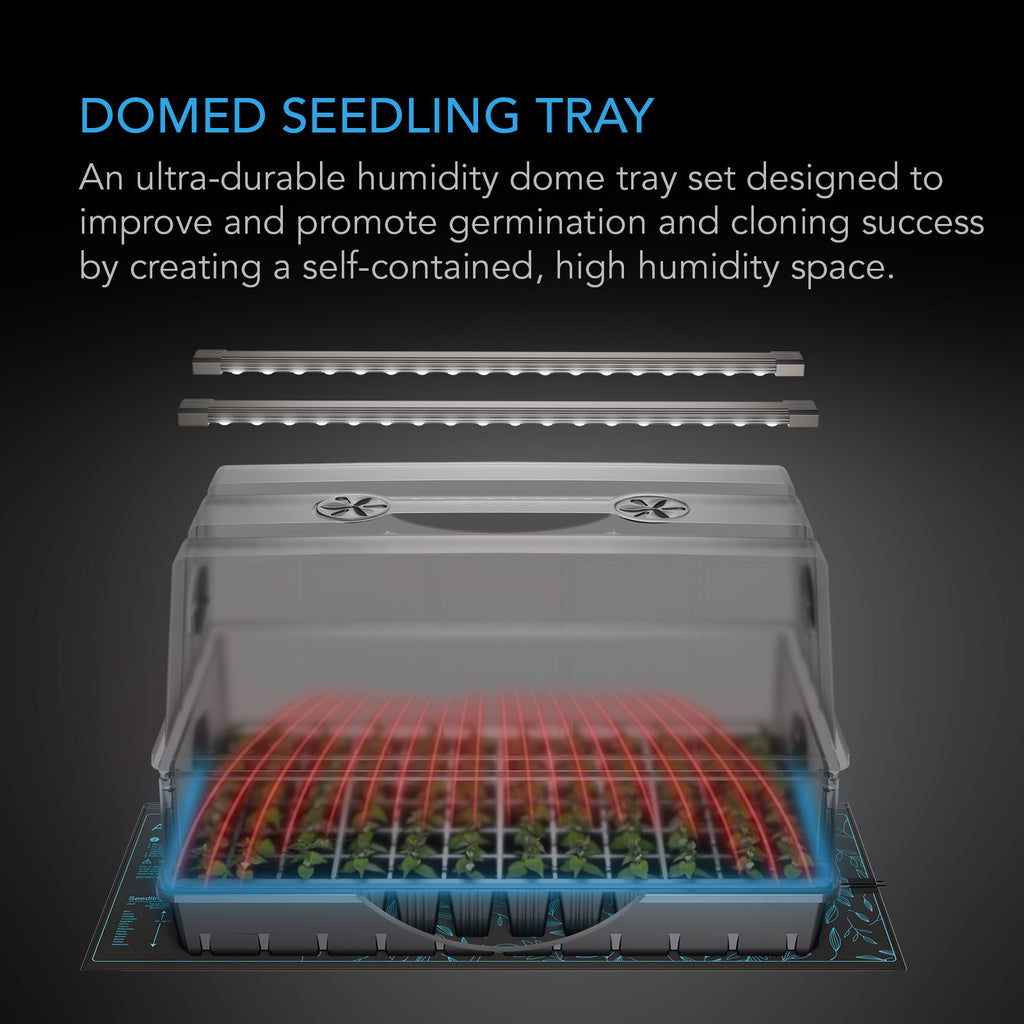

AC Infinity Propagation System User ManualA domed germination kit designed to promote successful plant growth and propagation by producing a high humidity environment. Included within the kit are the humidity dome, grow light bars, and the seedling mat. The transparent dome allows for optimal light saturation while offering easy observation of your plants’ progress. Adjustable vents on the dome offer complete humidity control through smooth and effortless rotating. This will allow you to precisely dial in the amount of atmospheric moisture inside the propagation dome, locking in lowering water vapor levels. The drip and seedling trays fit seamlessly to support up to 72 seedlings while catching excess water and preventing leaks in the process.
Features & Benefits
- Domed germination kit designed to improve seed starting and cloning inside a high humidity space.
- Clear, sturdy dome with glossy finish allows light penetration and provides precise humidity control.
- Heat mat with adjustable dial accelerates seedling growth by steadily emitting even warmth.
- LED grow light bars maximize plant growth through uniform coverage and adjustable brightness levels.
- Drip tray is durable, reusable, and ensures no water leakage while able to support heavier loads.
Grow Light Bars

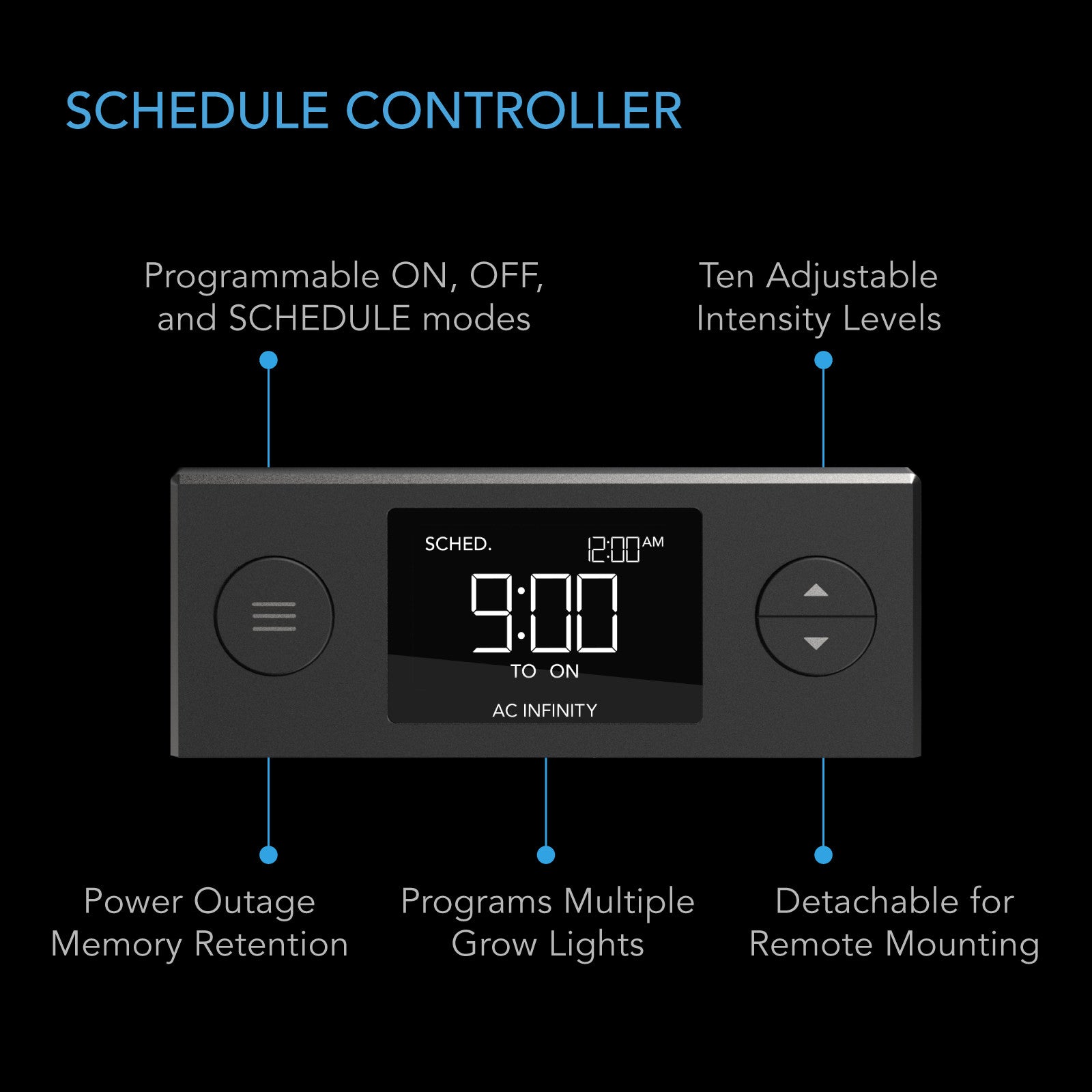

Includes two LED lighting bars that provide luminosity to help strengthen your seedlings’ stems and ensure their long-term health. The dome is specially shaped to fit these strip lighting to provide a platform to eliminate the need to purchase and mount external lighting. Features a timer controller with four dimming levels and timer settings that repeat daily to further maximize seedling growth.
Seedling Heat Mat

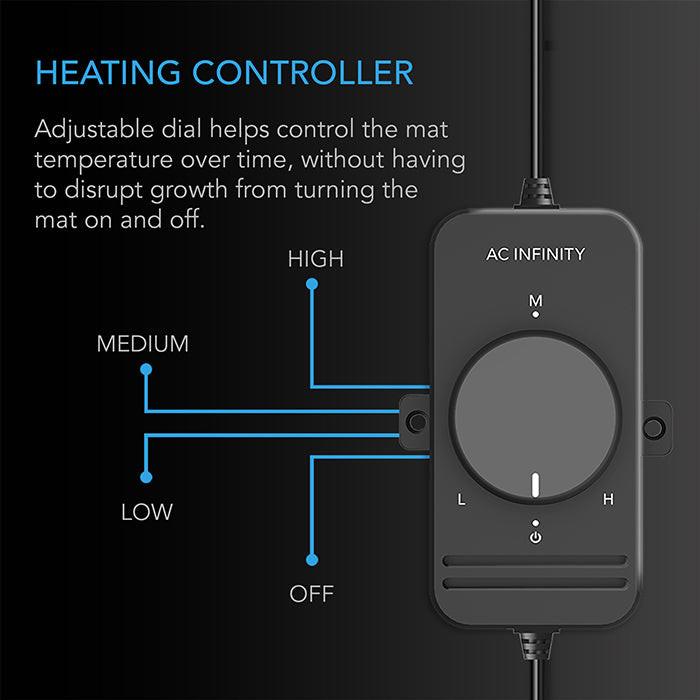

Also includes a seedling mat that supports the dome’s highly humidity environment by creating steady heat emission beneath the tray. Lined with far-infrared film that evenly distributes warmth to heat your seedlings from below and accelerate their germination rate. The heating pad’s adjustable dial offers even greater control without disrupting growth from turning the mat on and off.
Applications
This humidity dome serves as the ideal well-regulated environment for growing seedlings and cloning a wide variety of plants including spices and aromatics. Its compact and durable design can easily fit on balconies, window ledges, in your grow tent, or any room in your home. Quickly and easily transport the domed seedling tray as needed thanks to its practical size. When not starting seeds, you can use the seedling heat mat for other settings and applications like reptile terrariums and homebrewing beverages.

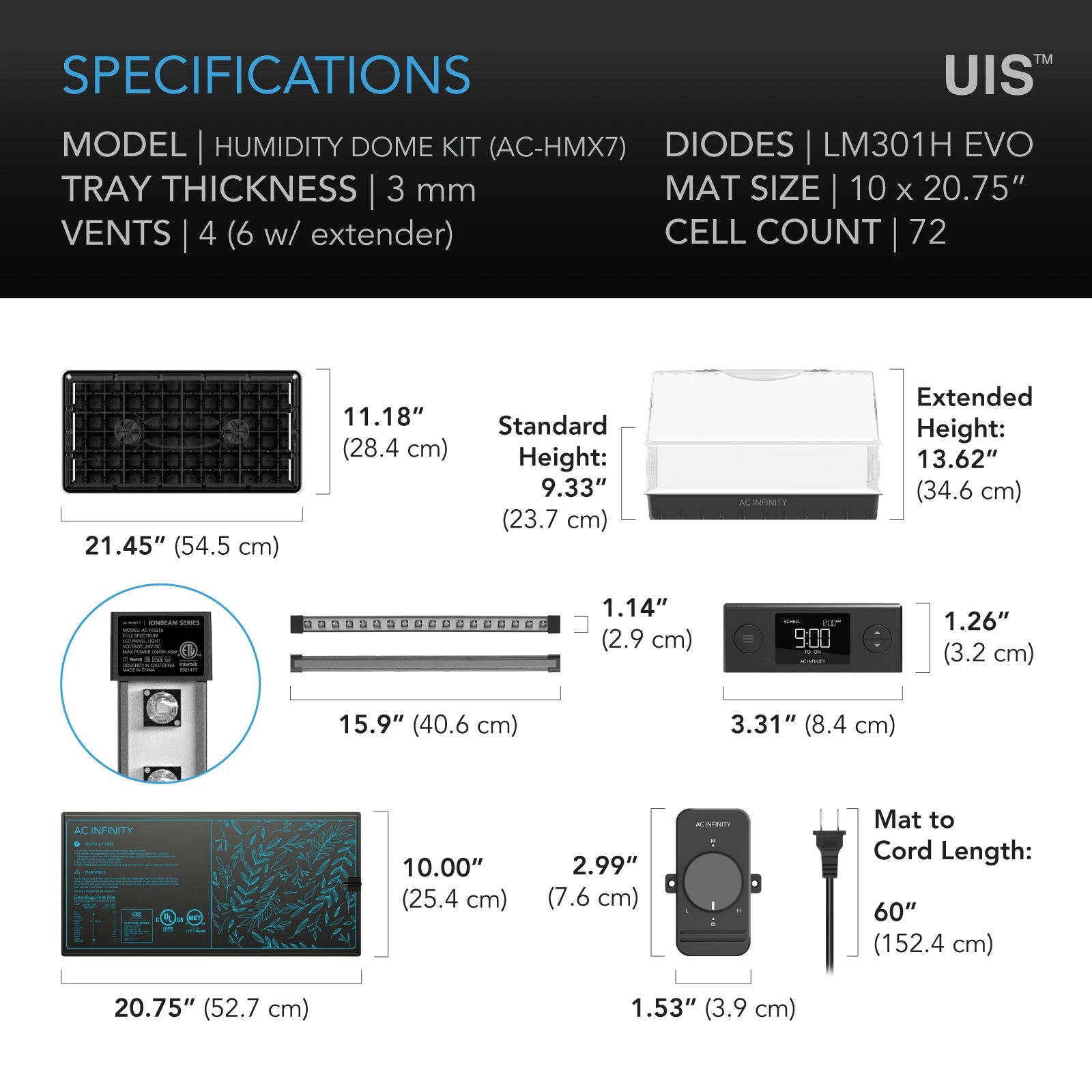

Specifications
Light Bar Specs
| Diodes | Samsung LM301H |
|---|---|
| LED Chip Count | 12 per bar |
| Spectrum | 3000K, 5000K |
| Wattage | 28 Watts |
| Voltage | 100-240V AC |
| Frequency | 50/60 Hz |
| Controller | Dimming Timer |
|---|---|
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Waterproof Rating | IP65 |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Life Expectancy | 50,000 Hours |
Humidity Dome Specs
| Material (Dome) | PS Plastic |
|---|---|
| Dome Finish | Gloss |
| Material (Base Tray) | PP Plastic |
| Tray Thickness | 1.5 mm |
| Material (Seed Tray | PET Plastic |
| Cell Count | 72 |
| Total Vents | 4 |
Seedling Mat Specs
| Outer Material | Multilayer PVC |
|---|---|
| Heating Material | Far Infrared Film |
| Temperature Range | 80-87°F |
| Waterproof Rating | IP-67 |
| Operating Voltage | 115V |
| Max Power Draw | 20W |
| Power Source | Wall Outlet |
| Brand | AC Infinity |
|---|---|
| SKU | AC-HMX7 |
| Weight (lb.) | 7.2000 |
| Width (in.) | |
| Height (in.) | |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 819137023888 |
| Lead Time | 2-3 |
| ETL Listed | No |
| UL Listed | No |
| Prop 65 | false |
| Seedling Tray Parts | Starter Kits |
What does the AC Infinity Germination Kit provide for seed starting and cloning?
The AC Infinity Germination Kit provides a high-humidity environment for seed starting and cloning. The clear dome supports light penetration, plant observation, and adjustable humidity control.
How does the AC Infinity Germination Kit control humidity during propagation?
The AC Infinity Germination Kit uses four adjustable dome vents for precise humidity control. Rotating vents adjust atmospheric moisture inside the propagation dome.
What lighting and heating features are included with the AC Infinity Germination Kit?
The AC Infinity Germination Kit includes two LED grow light bars with adjustable brightness and a daily repeating timer, plus a seedling heat mat with an adjustable dial. The heat mat provides steady, even warmth from below across a temperature range of 80 to 87°F.
How many seedlings can the AC Infinity Germination Kit support?
The AC Infinity Germination Kit supports up to 72 seedlings through a 6x12 cell tray. The drip tray catches excess water and helps prevent leaks.
Where can the AC Infinity Germination Kit be used?
The AC Infinity Germination Kit can be used on balconies, window ledges, inside grow tents, or in rooms throughout a home. The seedling heat mat can also support reptile terrariums and homebrewing beverages.
