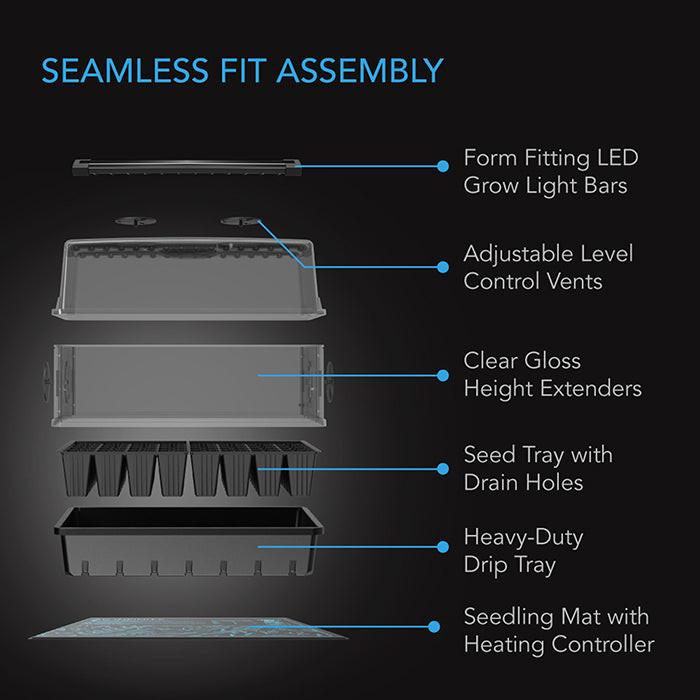

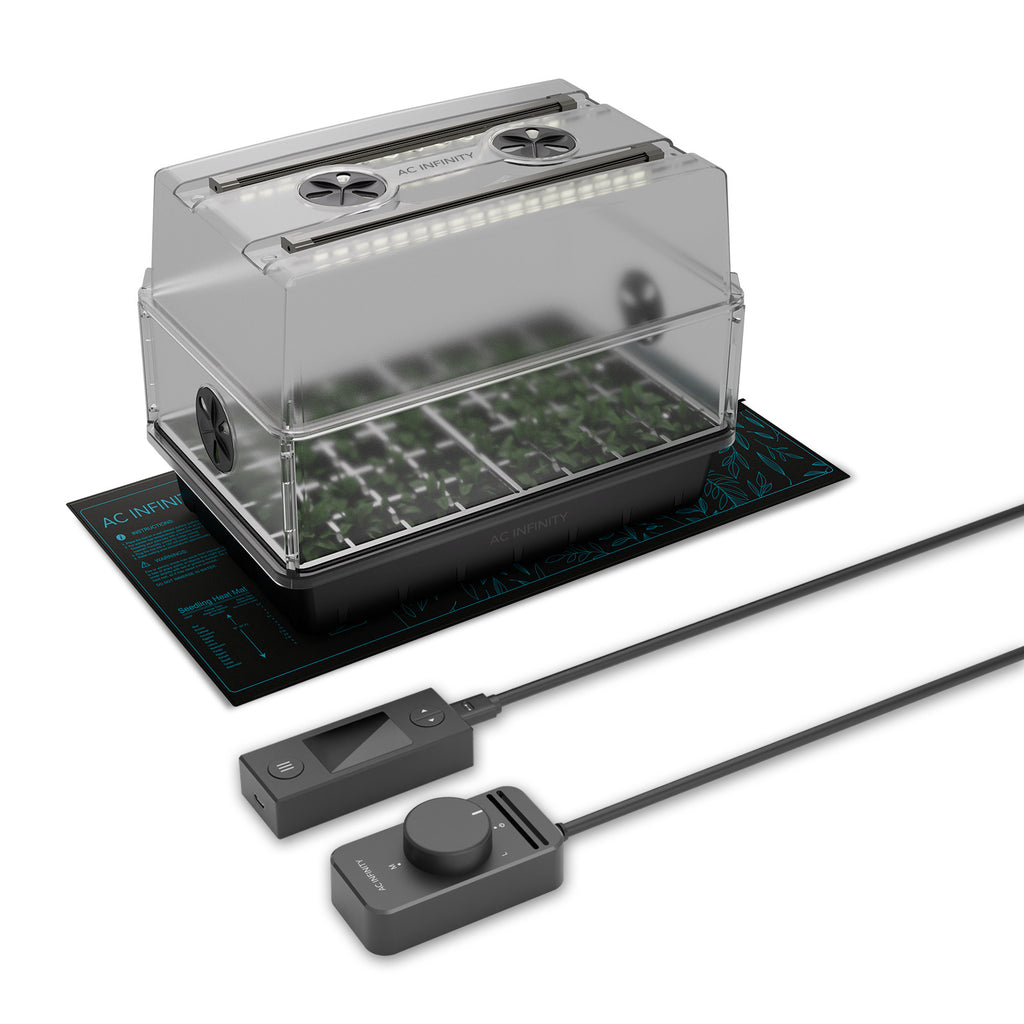

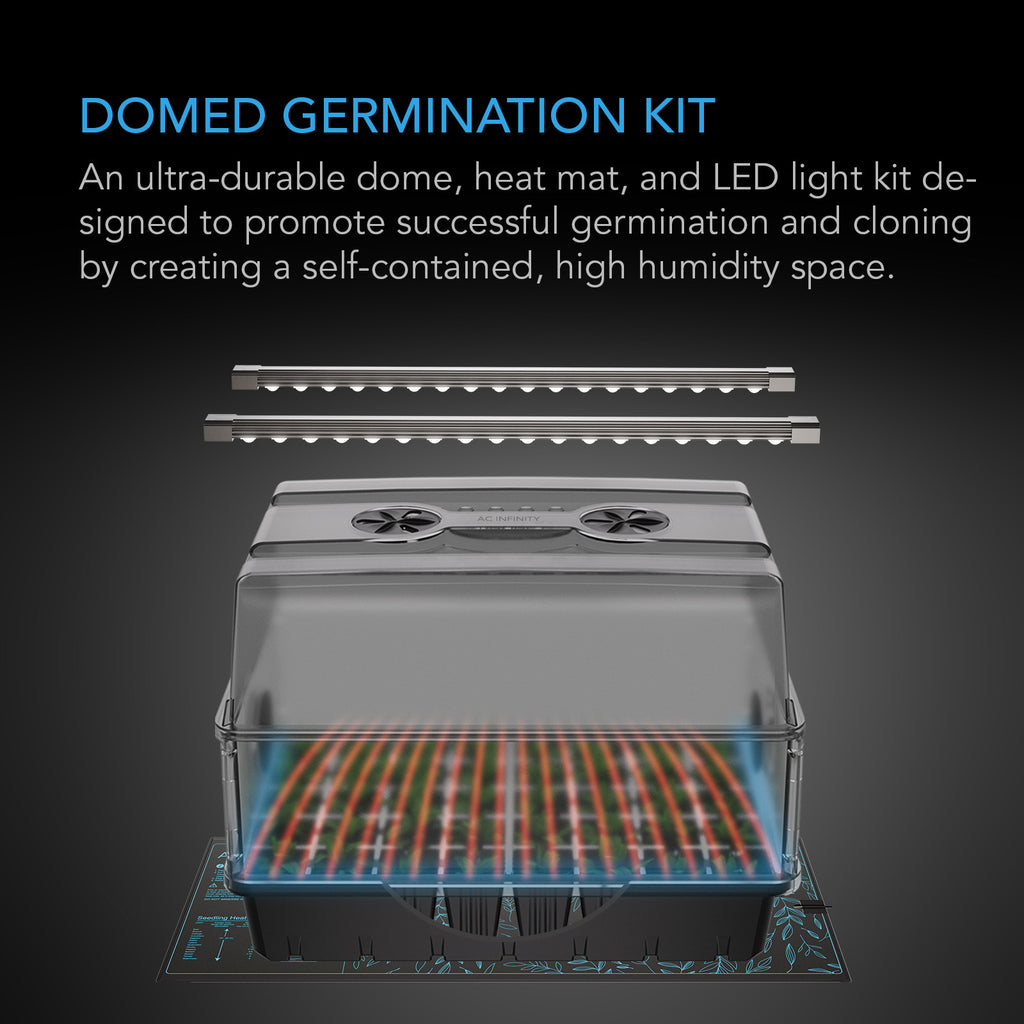

AC Infinity Propagation System User ManualA domed germination kit designed to promote successful plant growth and propagation by producing a high humidity environment. Included within the kit are the humidity dome, grow light bars, and the seedling mat. The transparent dome allows for optimal light saturation while offering easy observation of your plants’ progress. Adjustable vents on the dome offer complete humidity control through smooth and effortless rotating. Make further adjustments with the optional height extender, which can be applied to elevate the dome for cloning projects. The drip and seedling trays fit seamlessly to support up to 40 seedlings while catching excess water and preventing leaks in the process.
Features & Benefits
- Domed germination kit designed to improve seed starting and cloning inside a high humidity space.
- Clear, sturdy dome with glossy finish allows light penetration and provides precise humidity control.
- Heat mat with adjustable dial accelerates seedling growth by steadily emitting even warmth.
- LED grow light bars maximize plant growth through uniform coverage and adjustable brightness levels.
- Durable drip and plant trays with height extension panels to support up to 40 seedlings and clones.
Grow Light Bars

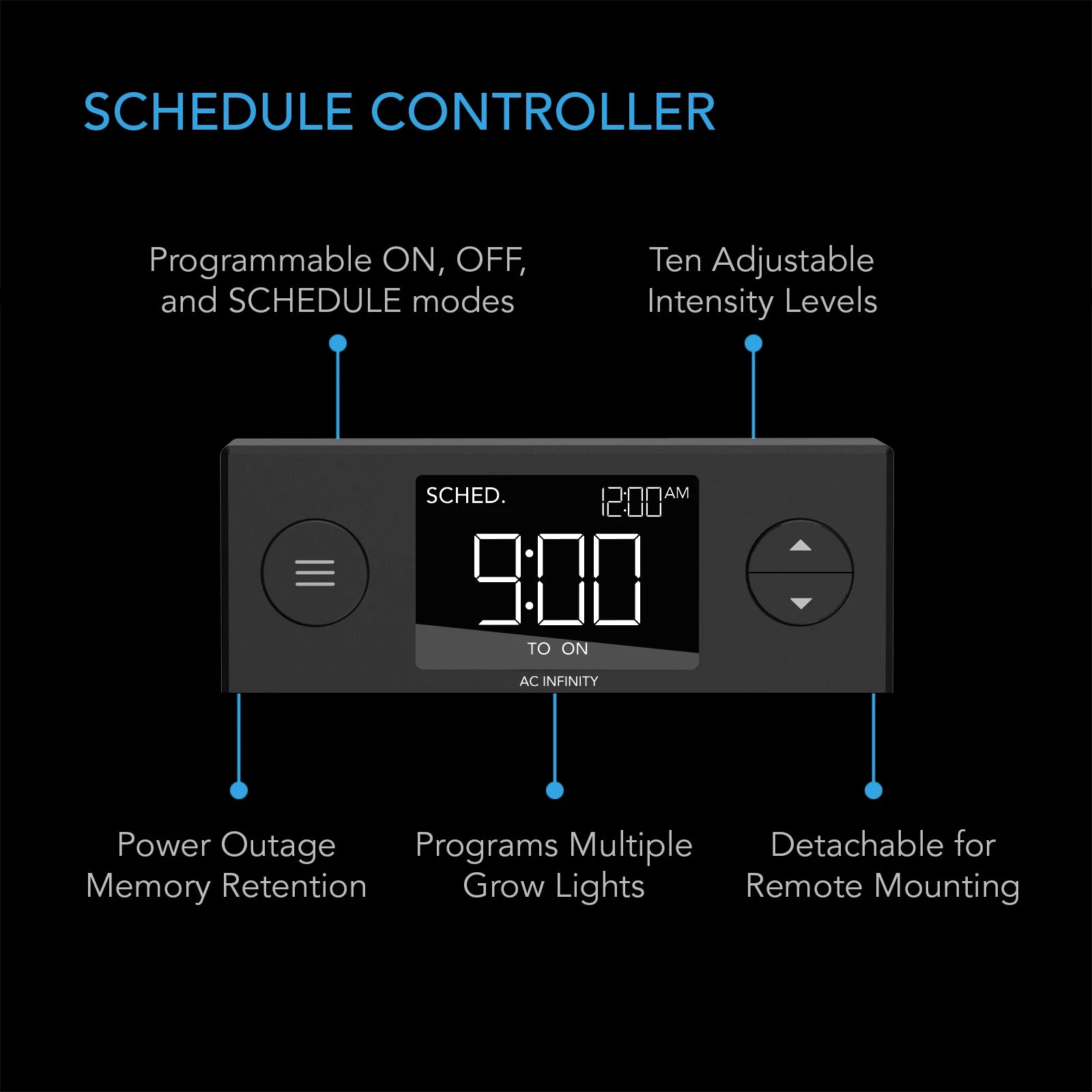

Includes two LED lighting bars that provide luminosity to help strengthen your seedlings’ stems and ensure their long-term health. The dome is specially shaped to fit these strip lighting to provide a platform to eliminate the need to purchase and mount external lighting. Features a timer controller with four dimming levels and timer settings that repeat daily to further maximize seedling growth.
Seedling Heat Mat

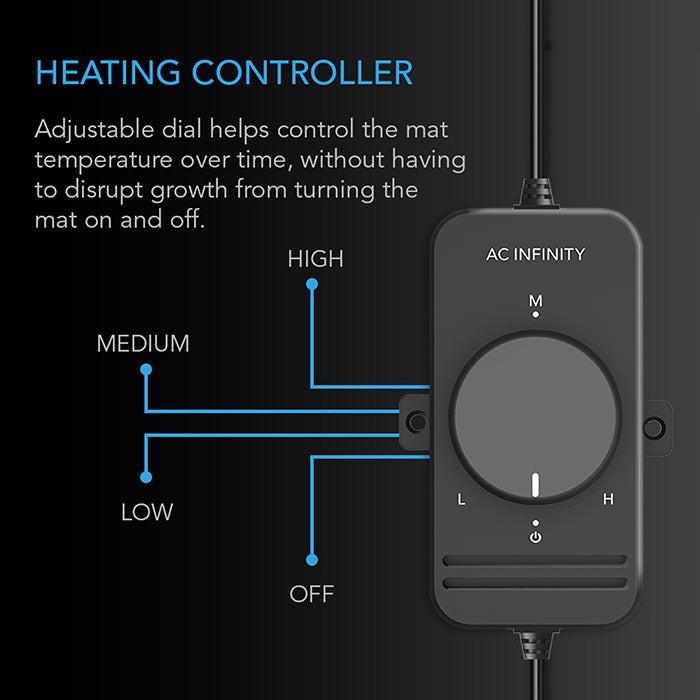

Also includes a seedling mat that supports the dome’s highly humidity environment by creating steady heat emission beneath the tray. Lined with far-infrared film that evenly distributes warmth to heat your seedlings from below and accelerate their germination rate. The heating pad’s adjustable dial offers even greater control without disrupting growth from turning the mat on and off.
Applications
This humidity dome serves as the ideal well-regulated environment for growing seedlings and cloning a wide variety of plants including spices and aromatics. Its compact and durable design can easily fit on balconies, window ledges, in your grow tent, or any room in your home. Quickly and easily transport the domed seedling tray as needed thanks to its practical size. When not starting seeds, you can use the seedling heat mat for other settings and applications like reptile terrariums and homebrewing beverages.

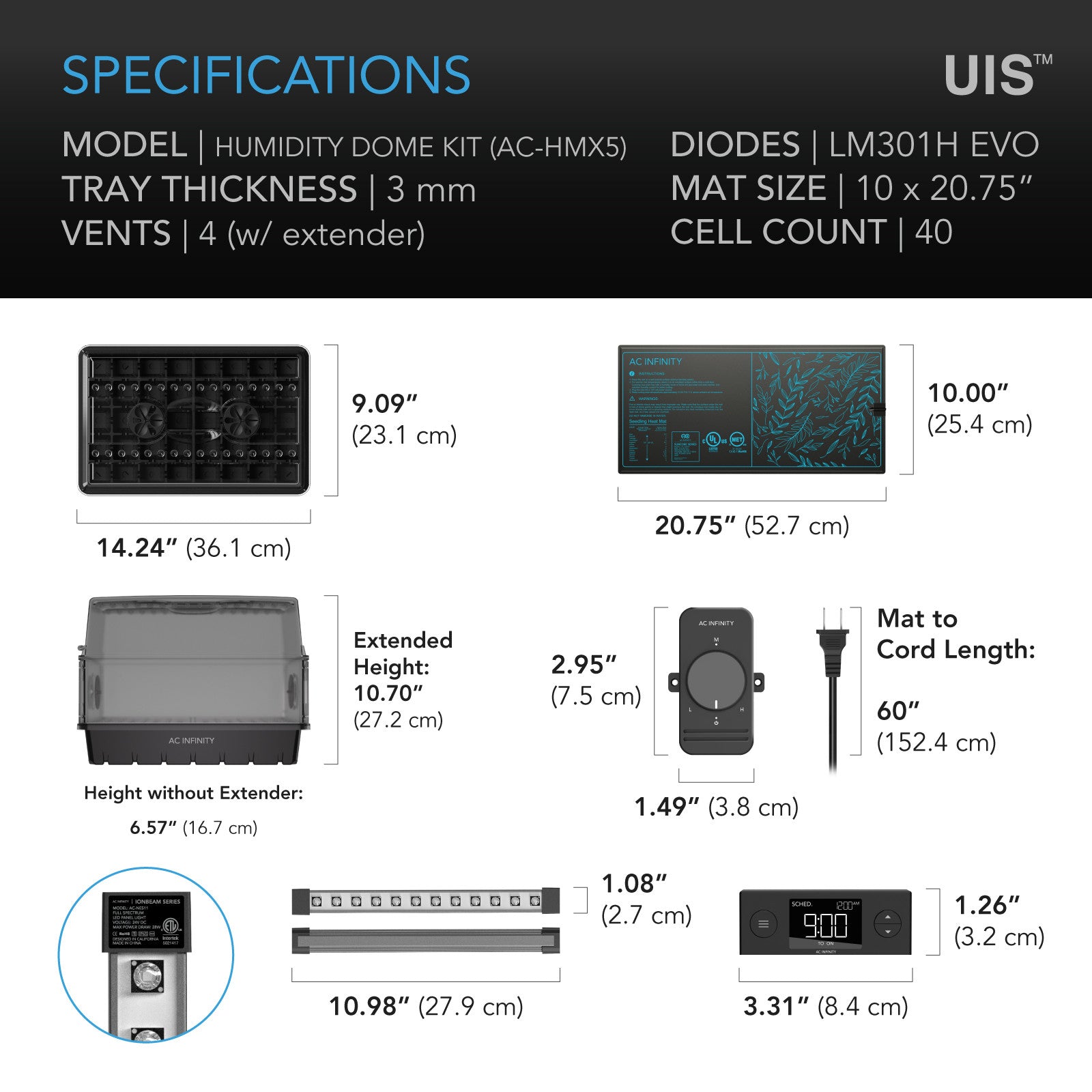

Specifications
Light Bar Specs
| Diodes | Samsung LM301H |
|---|---|
| LED Chip Count | 12 per bar |
| Spectrum | 3000K, 5000K |
| Wattage | 28 Watts |
| Voltage | 100-240V AC |
| Frequency | 50/60 Hz |
| Controller | Dimming Timer |
|---|---|
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Waterproof Rating | IP65 |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Life Expectancy | 50,000 Hours |
Humidity Dome Specs
| Material (Dome) | PS Plastic |
|---|---|
| Dome Finish | Gloss |
| Material (Base Tray) | PP Plastic |
| Tray Thickness | 1.5 mm |
| Material (Seed Tray | PET Plastic |
| Cell Count | 40 |
| Total Vents | 2 (4 with extender) |
Seedling Mat Specs
| Outer Material | Multilayer PVC |
|---|---|
| Heating Material | Far Infrared Film |
| Temperature Range | 80-87°F |
| Waterproof Rating | IP-67 |
| Operating Voltage | 115V |
| Max Power Draw | 20W |
| Power Source | Wall Outlet |
| Brand | AC Infinity |
|---|---|
| SKU | AC-HMX5 |
| Weight (lb.) | 6.8000 |
| Width (in.) | |
| Height (in.) | |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 819137023413 |
| Lead Time | 2-3 |
| ETL Listed | No |
| UL Listed | No |
| Prop 65 | false |
| Seedling Tray Parts | Starter Kits |
What does the AC Infinity Germination Kit provide for seed starting and cloning?
The AC Infinity Germination Kit provides a high-humidity environment for seedlings and clones. The kit combines a humidity dome, seedling heat mat, LED grow light bars, drip tray, and 40-cell seedling tray.
How does the AC Infinity Germination Kit control humidity for seedlings and clones?
The AC Infinity Germination Kit uses two adjustable dome vents for humidity control. A height extender adds two more vents and elevates the dome for cloning projects.
What lighting does the AC Infinity Germination Kit include?
The AC Infinity Germination Kit includes two LED grow light bars with uniform coverage, adjustable brightness, and a timer controller with daily repeat settings.
How does the AC Infinity Germination Kit warm seedlings?
The AC Infinity Germination Kit includes a seedling heat mat with far-infrared film and an adjustable dial. The heat mat provides even bottom warmth from 80 to 87°F.
How many seedlings or clones can the AC Infinity Germination Kit support?
The AC Infinity Germination Kit supports up to 40 seedlings or clones through a 40-cell seedling tray. The drip and seedling trays catch excess water and help prevent leaks.
Where can the AC Infinity Germination Kit be used?
The AC Infinity Germination Kit can be used on balconies, window ledges, inside grow tents, or in rooms around a home. The seedling heat mat can also be used for reptile terrariums and homebrewing beverages.
