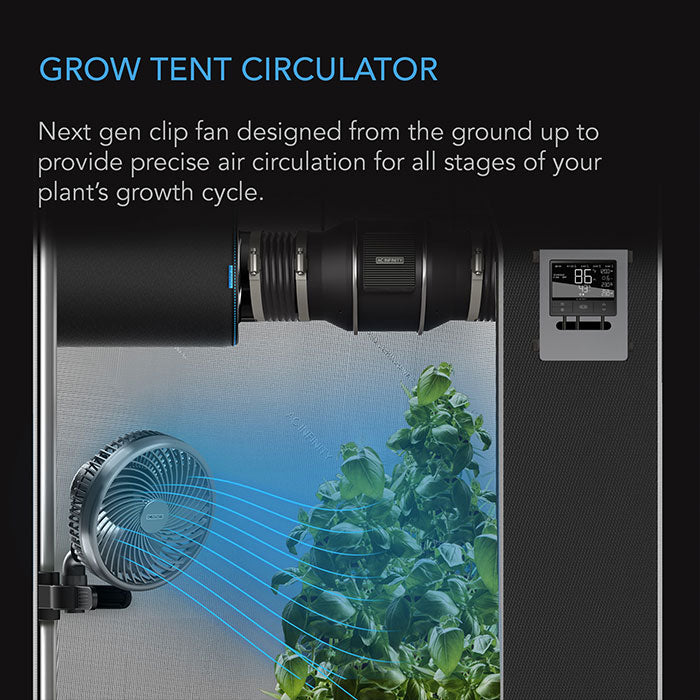

AC Infinity CLOUDRAY A Series Clip Fan ManualA next-gen clip fan designed from the ground up to provide precise air circulation for all stages of a plant’s growth.
The AC Infinity clip fans utilize a cutting-edge EC motor with PWM control to access a full range of fan speeds, from gentle breezes to a powerful airflow. The ten speed levels are shown with a circular LED display that dims after fan speed is set to leave your plant's light cycle undisturbed. Adjustable head tilt and swiveling arm provide flexible directional airflow options. Features a heavy-duty clamp that tightly grips onto grow tent poles of all sizes for a secure vertical hold. Each unit is IP-44 rated to be highly resistant against humidity and temperature. Can be powered through a standard outlet with its 8-foot power plug cord.
AC Infinity CLOUDRAY A Series Clip Fan Features
- Designed with an EC-motor to provide precise air circulation for all stages of growth.
- Digital 10 speeds, from gentle breezes to a powerful airflow.
- IP-44 rated for the grow environment to be resistant to high humidity and heat.
- Connects with smart controllers to access climate triggers, grow cycles, scheduling, and more.
AC Infinity CLOUDRAY A Series Clip Fan Included Items
- Circulation Fan
- Grip Clip
- Adapter Dongle
- Extension Cord
- Cable Tie
- Mable Mount

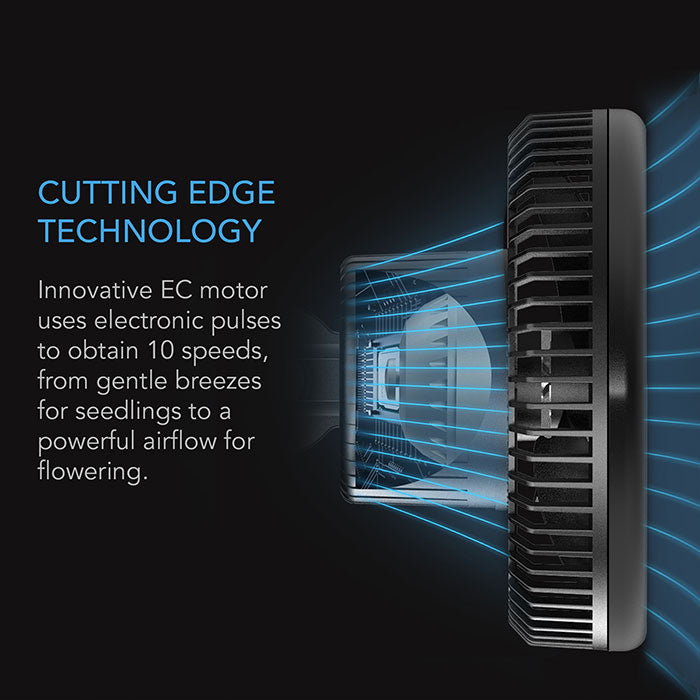

Smart Circulation Control

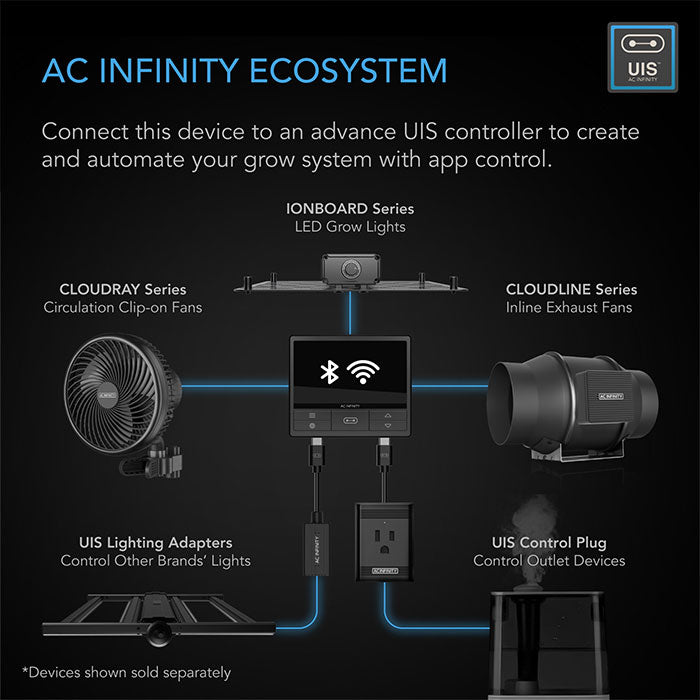

Features a cutting-edge Electronically Commutated (EC) motor, controlled digitally using precise electronic pulses. This PWM technology enables the fan to access the full range of its speed 0 to 100%. Set the optimal circulation for any plant growth stage, from ultra-gentle breezes for germination and seedlings, to a powerful airflow for vegetative and flowering. Includes a corded adapter that can be used to connect to AC Infinity smart controllers to access climate triggers, grow cycles, scheduling, and more. The Universal Infinity System is a series of controllers and devices that come together to create a fully automated system. UIS enables our controllers to simultaneously connect with various grow equipment such as inline fans, clip-on fans, and grow lights. Controllers sold separately.

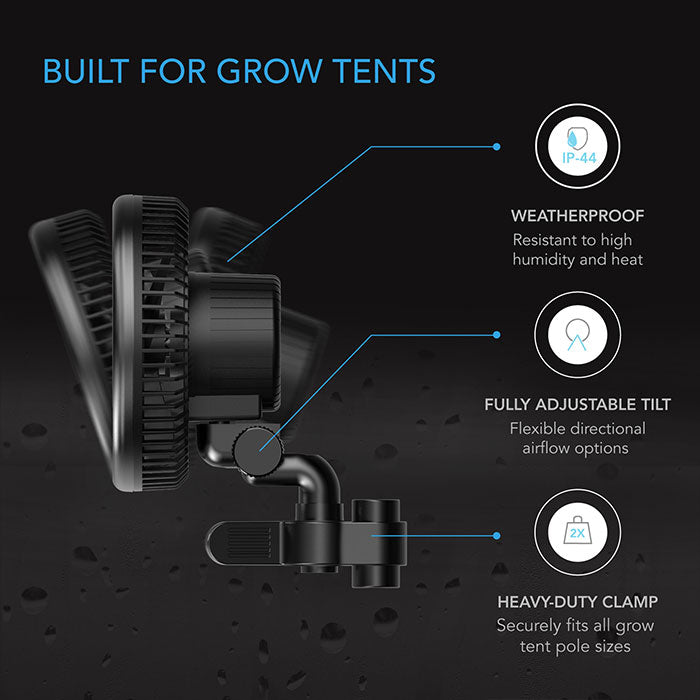

Rated for Grow Enviroments
This series was designed from the ground up for a grow space environment. All components are specially sealed to IP-44 standards to be highly resistant to liquids and dust. As a result, the system can maintain peak performance and a long lifespan even in harsher surroundings with high humidity and temperatures that can be found in a grow tent.

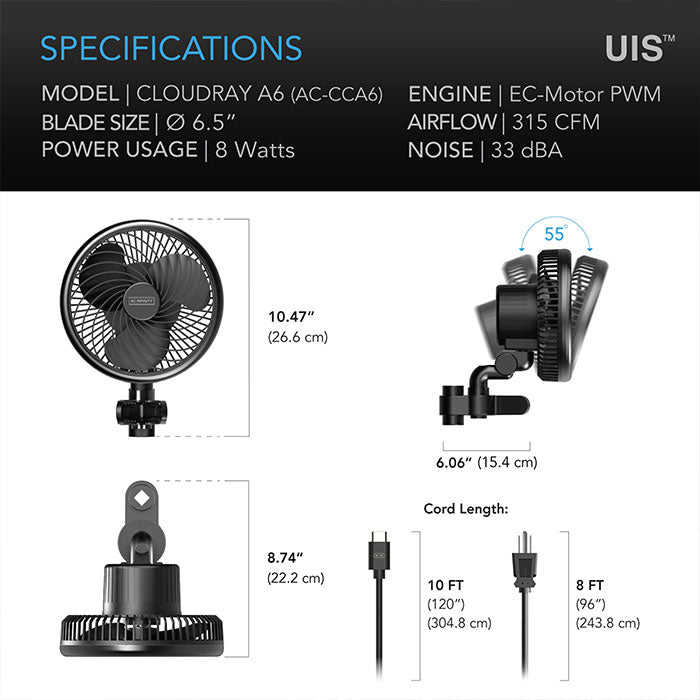

AC Infinity CLOUDRAY A Series Grow Tent Clip Fan Specs
| Impeller Size | 6" | 9" |
|---|---|---|
| Total Dimensions | 8.74"0 x 10.47" | 10.19" x 12.59" |
| Cord Length to Plug | 96 in. (8 feet) | |
| Maximum Airflow | 315 CFM | 450 CFM |
| Total Noise | 33 dBA | 36 dBA |
| Static Pressure | 25 Pa | |
| Operating Voltage | 100-240V AC | |
| Power | 8 Watts | |
| Current | 0.14 A | |
| Operating Humidity | 35 to 85% RH | |
| Operating Temperature | 32 to 140°F | |
| Waterproof Rating | IP-44 | |
| Rotation Range | 90° | |
| Tilt Angle | 55° | |
| Oscillation | Manual Adjustable Tilt | |
| Fan Bearings | Dual Ball Bearing | |
| Mounting Positions | Horizontal or Vertical | |
| Life Expectancy | 67,000 Hours | |
| Brand | AC Infinity |
|---|---|
| SKU | AC-CCA6 |
| Weight (lb.) | 2.0000 |
| Lead Time | This product ships in 1-2 business days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 819137022416 |
| Fan Type | Clip-On |
| Fan Size | 6" Diameter |
| Is Speed Controllable | Yes |
| Oscillation | No |
| CFM Rating | 315 CFM |
| Exact Watts | 8 Watts |
| Amps | 0.14A |
| Voltage | 120 Volts |
| Max. Decibals | 33 dBA |
| Power Cord(s) Included | Yes - 120 Volt (NEMA 1-15 Type-A) |
| Power Cord Length | 8 ft. |
| ETL Listed | No |
| UL Listed | No |
AC Infinity CLOUDRAY A6 Manual Swivel Grow Tent Clip Fan, 6" Videos
The AC Infinity Cloudray Series Platform
AC Infinity CLOUDRAY A6 Manual Swivel Grow Tent Clip Fan, 6" Questions & Answers
Q: Can I mount this clip fan upside down?
A: Yes. The CLOUDRAY can be mounted rightside up or upside down.
Q: Will I be able to hardwire this clip fan to my own controller or thermostat?
A: We do not recommend hardwiring or splicing our fan's power wires. Such modifications may compromise electrical safety and will void this product's warranty.
Q: Do I need to use a power converter if I'm outside the US?
A: This product's voltage range is 100-240V AC. You may need a simple travel adapter to plug it into a foreign socket, or a power converter if your country ses a different voltage.
Q: Will the clamp be able to hold onto my grow tent?
A: The heavy-duty clamp is capable of gripping onto the poles of any thickness in any grow tent.
Q: Will I be able to connect additional units to this clip fan?
A: The CLOUDRAY does not support daisychaining or interconnectivity between additional clip fans. However, multiple fans can be connected to a UIS™ controller to receive smart programming.
Q: How long can I keep this clip fan running?
A: The CLOUDRAY features the latest innovations in step motor technology, allowing it to run continuously for 24 hours a day.
