AC Infinity Product Documents
AC Infinity CLOUDFORGE Humidifier User ManualThe CLOUDFORGE series was designed from the ground up to optimize for grow space environments.

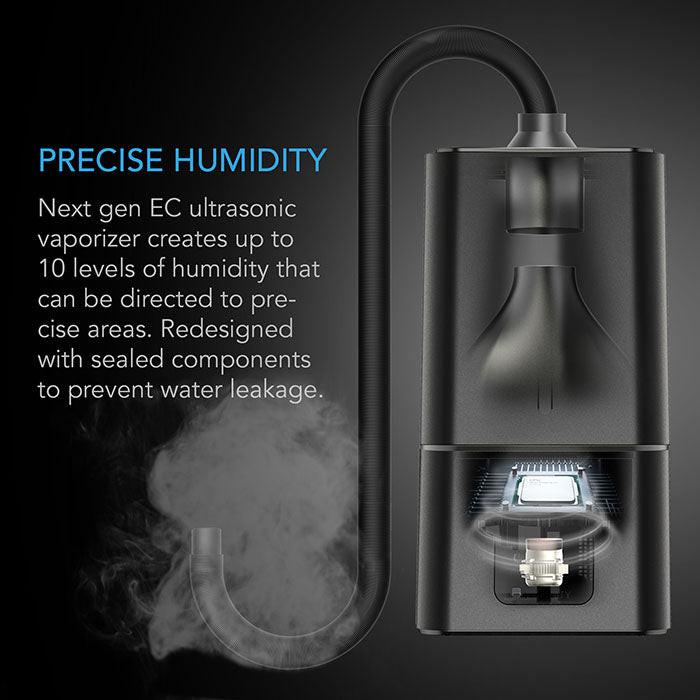

A next-gen humidifier designed with smart controls and precision vapors to obtain the optimal humidity levels for plant growth. Contains an innovative EC ultrasonic vaporizer that utilizes digital pulses to reach up to 10 levels of moisture output. This will allow you to finely tune your control of moisture levels in your grow space. The onboard controller features smart humidity and timer programming, which is supported by a corded precision humidity sensor. Its digital display provides active humidity readings and can be toggled to be hidden. Also features a built-in automatic shutoff that protects the system when the water reservoir is depleted.
- Designed with smart controls and precision vapors to obtain optimal humidity levels for plant growth.
- Next-gen EC ultrasonic vaporizer can reach up to 10 levels of humidity for fine-tuned moisture control.
- Features smart humidity and timer programming, hideable backlit display, and auto-start with backup memory.

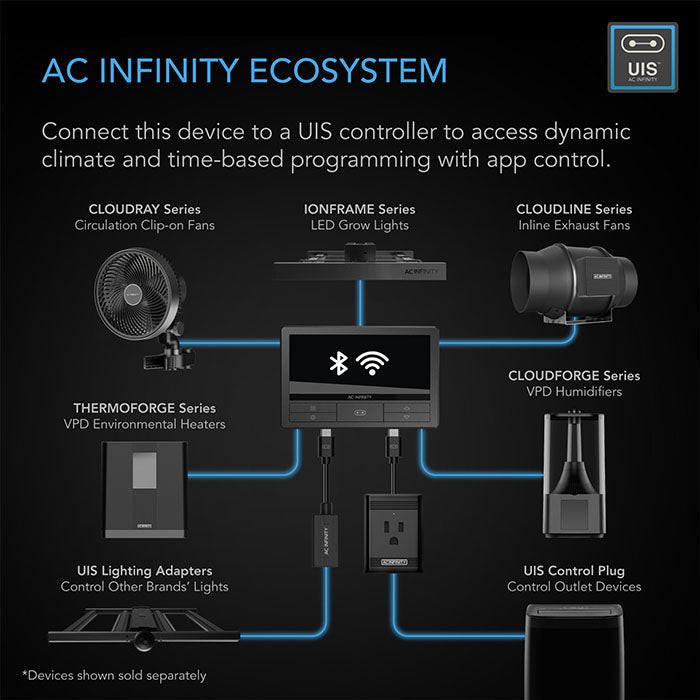

- Connects to UIS controllers for dynamic climate triggers, grow cycles, scheduling, alerts, and app control.
T3 Cloudforge
The T3 has a corded sensor probe that enables the humidifier to be positioned outside the grow tent. Includes a 4.5L water tank and an extendable tube that can reach over 4 feet in length. This product is part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
T7 Cloudforge
The T7 has interchangeable nozzle heads included for flexible moisture distribution in one direction or a wide area. Includes a 15L water tank, piping, and interchangeable nozzles that distribute moisture in one direction or a wide area. This product is part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment. It includes an elbow nozzle to distribute high-volume moisture to a unidirectional area, as well as a five-way nozzle that evenly directs moisture in all directions for wider coverage.

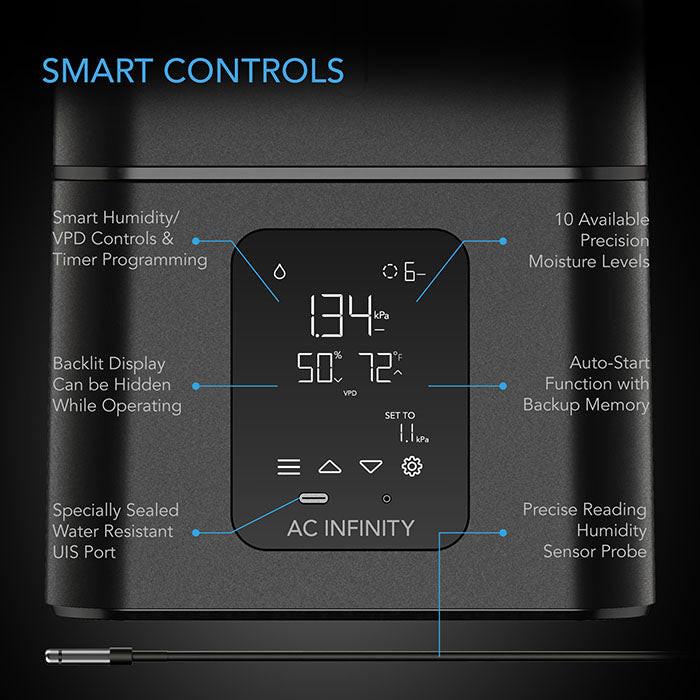

Smart Humidity Control
This environmental humidifier features an onboard controller that is equipped with smart humidity and timer programming. Digitally set four levels of moisture output which can be increased to 10 levels with a UIS controller. The included corded sensor probe provides quick readings to ensure swift responses to any changes in climate. Connect to UIS controllers to integrate with other grow equipment and access dynamic climate triggers, grow cycles, and schedules. Connect to the app to control your devices from anywhere, as well as unlock advanced automation, alerts, climate charts, CSV data export, and more!
The backlit display can also be toggled off while the humidifier is operating to prevent disrupting your plant's light cycle.
Specifications
T3 Cloudforge
| Capacity | 1.18 gal (4.5 l) |
|---|---|
| Max Runtime | 45 hrs |
| Output Rate | 8.11 fl oz/h |
| Noise | 38 dBA |
| Wattage | 24 W |
| Voltage | 100-240V AC |
| Frequency | 50/60 Hz |
| Operating Temperature | 41 to 122ºF |
| Operating Humidity | 30% to 85% RH |
T7 Cloudforge
| Capacity | 3.96 gal (15 l) |
|---|---|
| Max Runtime | 30 hrs |
| Output Rate | 43.95 fl oz/h |
| Noise | 46 dBA |
| Wattage | 100 W |
| Voltage | 100-240V AC |
| Frequency | 50/60 Hz |
| Operating Temperature | 41 to 122ºF |
| Operating Humidity | 30% to 85% RH |
| Brand | AC Infinity |
|---|---|
| SKU | AC-CFT7 |
| Weight (lb.) | 11.1000 |
| Length (in.) | |
| Lead Time | 2-3 |
| Width (in.) | |
| Height (in.) | |
| Warranty | 2 Year |
| Hazardous Material | false |
| UPC | 819137023628 |
| Prop 65 | false |
| Exact Moisture Output (Pints/Day) | 66 pints/day |
| UL Listed | No |
| ETL Listed | No |
How does the AC Infinity CLOUDFORGE T7 control humidity for plant growth?
The AC Infinity CLOUDFORGE T7 uses an EC ultrasonic vaporizer with adjustable moisture output for precise humidity control. The onboard controller provides smart humidity and timer programming, while a UIS controller can increase output control to 10 levels.
What moisture distribution options come with the AC Infinity CLOUDFORGE T7?
The AC Infinity CLOUDFORGE T7 includes piping, interchangeable nozzle heads, an elbow nozzle for unidirectional moisture, and a five-way nozzle for wider moisture distribution.
Can the AC Infinity CLOUDFORGE T7 connect with UIS grow controllers and app controls?
The AC Infinity CLOUDFORGE T7 connects to UIS controllers for climate triggers, grow cycles, schedules, alerts, and app control. UIS connectivity also supports advanced automation, climate charts, and CSV data export.
How much water does the AC Infinity CLOUDFORGE T7 hold, and how does the humidifier prevent dry operation?
The AC Infinity CLOUDFORGE T7 includes a 15-liter water tank and provides up to 30 hours of runtime. An automatic shutoff protects the humidifier when the water reservoir is depleted.
How much moisture can the AC Infinity CLOUDFORGE T7 add to a grow space?
The AC Infinity CLOUDFORGE T7 delivers up to 43.95 fluid ounces per hour, equivalent to 66 pints per day, for high-volume moisture control in grow spaces.
How can the AC Infinity CLOUDFORGE T7 operate without disrupting a plant light cycle?
The AC Infinity CLOUDFORGE T7 includes a backlit digital display with a hide option. The display can remain off while the humidifier operates, reducing potential light disruption.
