AC Infinity AIRLIFT Shutter Exhaust Ventilation Fan Manual- A high-airflow exhaust fan designed to ventilate out heat, moisture, odor, and dust from various spaces.
- Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed.
- Remotely connect via our WiFi app to access advance programs, alarms, notifications, and view climate data.
- Features steel shutters, aluminum blades, and IP-44 rated to be highly resistant to liquid and dust.

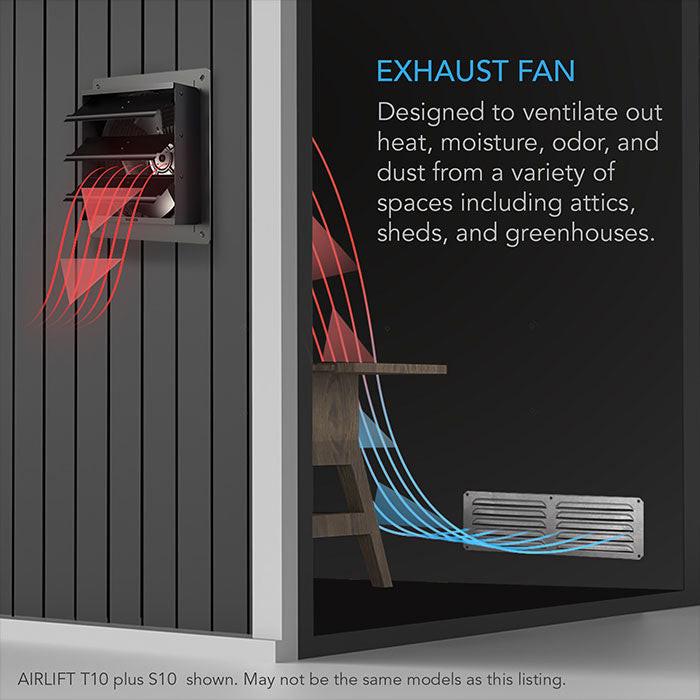

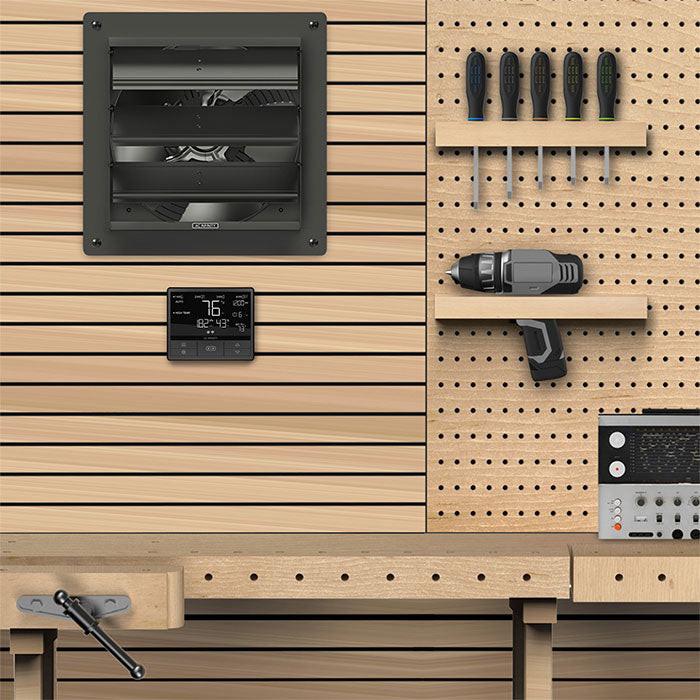

A high-airflow exhaust fan designed to cool and ventilate greenhouses, garages, attics, workshops, and sheds. The system can automatically eliminate heat, moisture, odor, and dust from enclosures, rooms and buildings. Features an inline speed controller utilizing PWM-technology. Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels. Heavy-duty build features aluminum blades, steel wire guards, and steel shutters. Includes everything needed to mount the fan unit and power it through an outlet. This product is a part of the UISâ„¢ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
Smart Controller

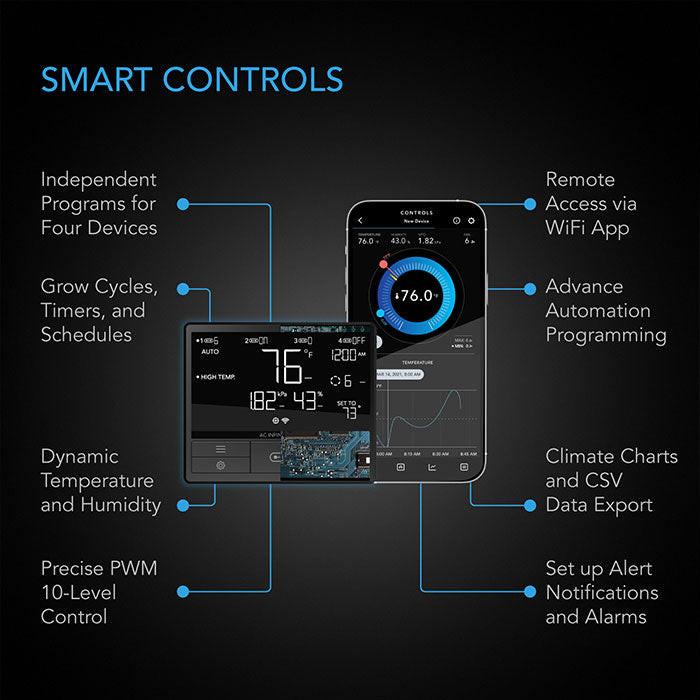

CONTROLLER 69 PRO features smart programming that not only has basic temperature, humidity, and VPD triggers but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for various uses. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can mix and match connectivity between AIRLIFT Series shutter fans, CLOUDLINE Series inline fans, and AIRTITAN Series crawlspace fans.
Heavy Duty Performance

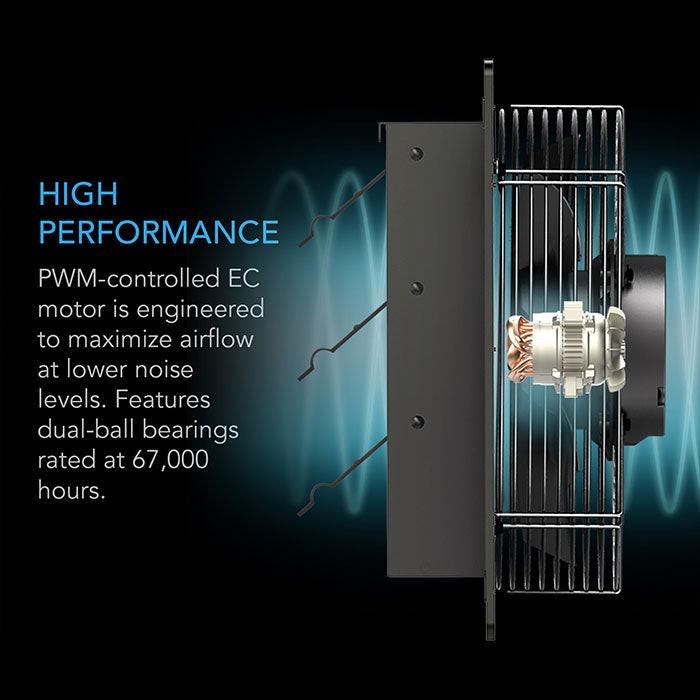

Features steel shutters that are weather and corrosion-resistant, and automatically close when not in use. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully enclosed motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.
AC Infinity Airlift T Series Shutter Fan Specs:
| 10" | 12" | 14" | 16" | |
|---|---|---|---|---|
| Dimensions: | 13.0" x 13.0" x 7.79" | 15.75" x 15.75" x 8.14" | 16.93" x 16.93" x 8.1" | 19.09" x 19.09" 7.72" |
| Total Airflow: | 631 CFM | 830 CFM | 1513 CFM | 2560 CFM |
| Total Noise: | 67 dBA | 62 dBA | 68 dBA | 70 dBA |
| Ingress Protection: | IP 44 | |||
| Voltage: | 100-240V AC | |||
| Max Power Draw: | 54 Watts | 54 Watts | 70 Watts | 100 Watts |
| Current: | 1.0A | 1.0A | 1.2A | 1.5A |
| Operating Humidity: | 35 to 85% RH | |||
| Static Pressure: | 96 Pa | 73 Pa | 70.46 Pa | 25.9mm-H2O |
| Operating Temperature: | 0 to 140°F | |||
| Fan Bearings: | Dual Ball | |||
| Mounting Positions | Horizontal or Vertical | |||
| L10 Life Expectancy | 67,000 Hours | |||
| Brand | AC Infinity |
|---|---|
| SKU | AC-ALT16 |
| Weight (lb.) | 18.0000 |
| Lead Time | 2-3 |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 2 Year |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 819137020948 |
| Fan Type | Shutter Fan |
| Fan Size | 16" Diameter |
| Is Speed Controllable | Yes |
| Oscillation | No |
| CFM Rating | 2560 CFM |
| Exact Watts | 100 Watts |
| Amps | 1.5A |
| Voltage | 120 Volts |
| Power Cord(s) Included | Yes - 120 Volt (NEMA 1-15 Type-A) |
| Power Cord Length | 8 ft. |
| ETL Listed | No |
| UL Listed | No |
Airlift Series by AC Infinity
The AC Infinity Airlift Series Shutter Fan
What spaces can AC Infinity AIRLIFT T16 ventilate?
AC Infinity AIRLIFT T16 ventilates greenhouses, garages, attics, workshops, sheds, enclosures, rooms, and buildings by exhausting heat, moisture, odor, and dust. AC Infinity AIRLIFT T16 delivers 2,560 CFM of airflow.
How does AC Infinity AIRLIFT T16 automate temperature and humidity ventilation?
AC Infinity AIRLIFT T16 uses the CONTROLLER 69 PRO for temperature, humidity, and VPD triggers, dynamic fan speeds, minimum-speed settings, timers, cycles, and schedules. The AC Infinity app provides WiFi access, alarms, notifications, historical climate charts, and CSV data export.
Which AC Infinity devices can connect with the AC Infinity AIRLIFT T16 controller?

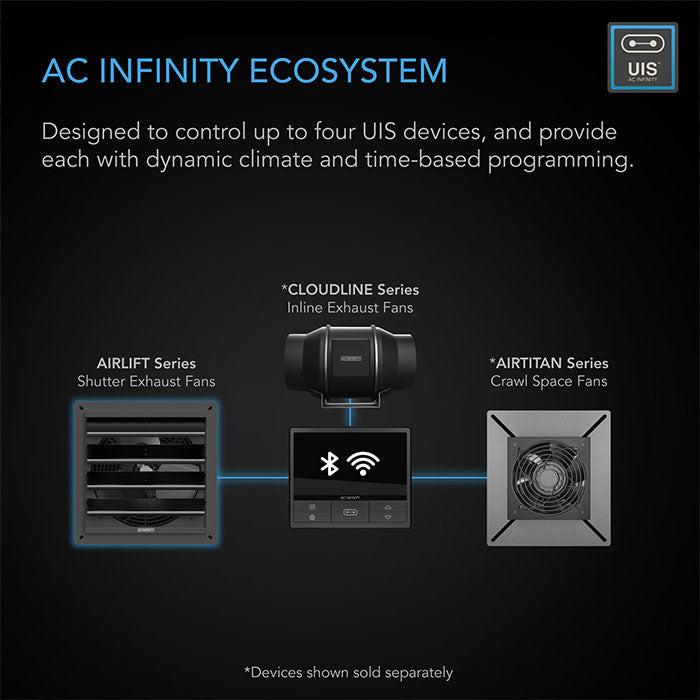

The AC Infinity AIRLIFT T16 controller can mix and match connectivity with AIRLIFT Series shutter fans, CLOUDLINE Series inline fans, and AIRTITAN Series crawlspace fans.
How does AC Infinity AIRLIFT T16 support durable ventilation in demanding spaces?
AC Infinity AIRLIFT T16 features steel shutters, aluminum blades, steel wire guards, a fully enclosed motor, dual-ball bearings, and IP-44 resistance to dust and liquids. AC Infinity AIRLIFT T16 supports horizontal or vertical mounting and operates from 0 to 140°F.
What is included with AC Infinity AIRLIFT T16 for mounting and power?
AC Infinity AIRLIFT T16 includes everything needed to mount the fan unit and power the fan through an outlet. The included power cord is 8 feet long, uses a 120-volt NEMA 1-15 Type-A plug, and the fan operates at 100 to 240V AC.
