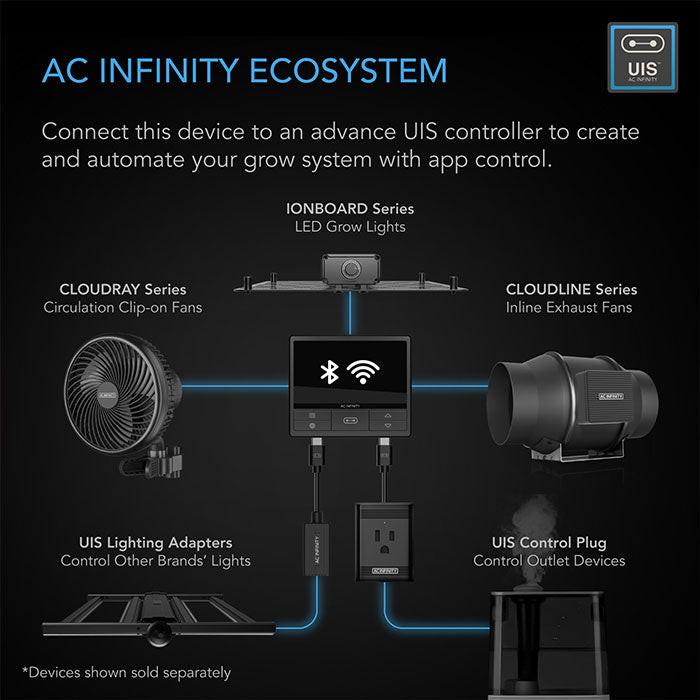

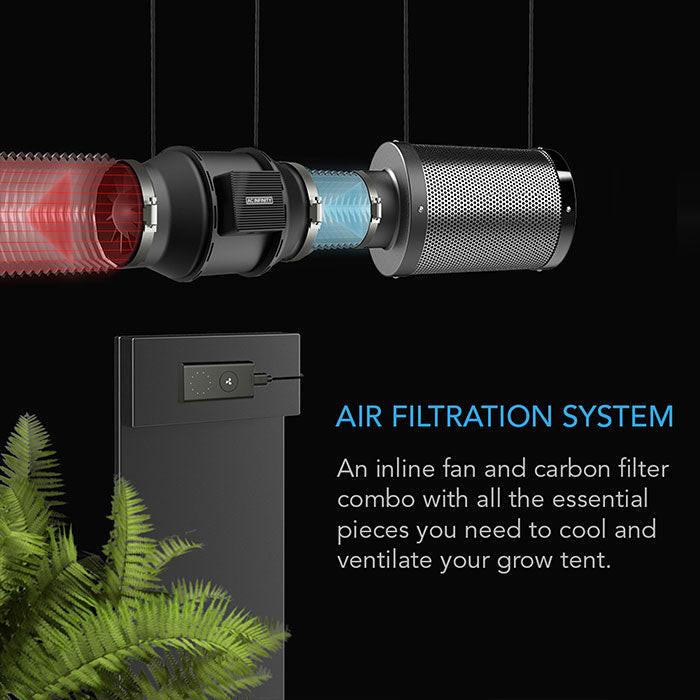

A grow tent air filtration system with all the necessary inline components you need to ventilate your grow space. By assembling these essential pieces, this package will help you quickly get your grow build started and eliminate the guesswork of purchasing them individually. This inline fan kit features the CLOUDLINE Series fan with 10-speed controller, capable of delivering powerful yet quieter performance. Paired with a carbon filter using Australian virgin charcoal to block odors from seeping out of your grow tent. These two pieces are connected by a set of flexible ducting with four layers of protection to properly direct airflow away. Accessories include duct clamps, prefilter cloth, rope clip hangers, and hanging straps to complete the installation. This product is a part of the UIS platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
Inline Fan

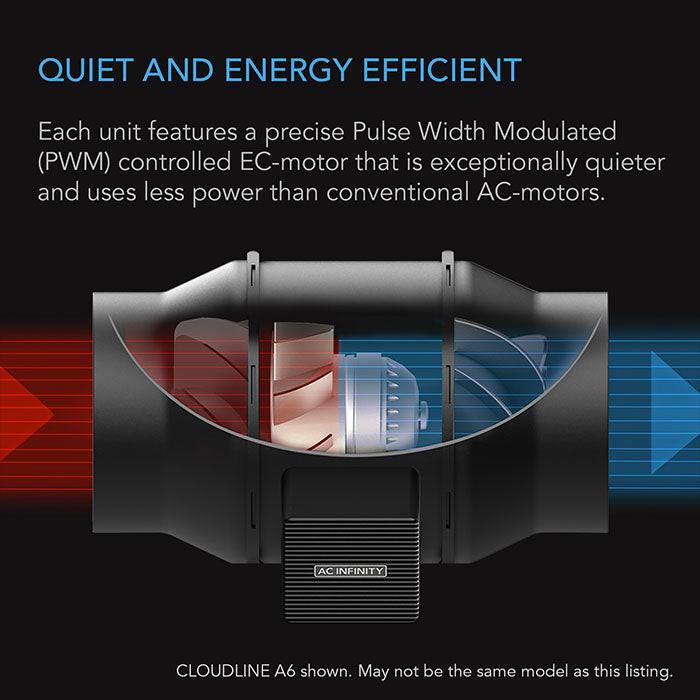

The grow tent ventilation kit is headlined by the CLOUDLINE Series of inline duct fans, featuring a 10-speed fan controller. Using stator blades and dual hydrodynamic wind circles, the CLOUDLINE achieves high-performance airflow in most restrictive applications thanks to its mixed-flow design. The motor box containing the fan's impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. This frame is crafted with a plastic mounting base to diminish noise due to fan vibration and can be mounted in any direction. Dual ball bearings give this inline fan a 67,000-hour lifespan which is backed by its IP-44 rating, resisting dust and splashing liquids.

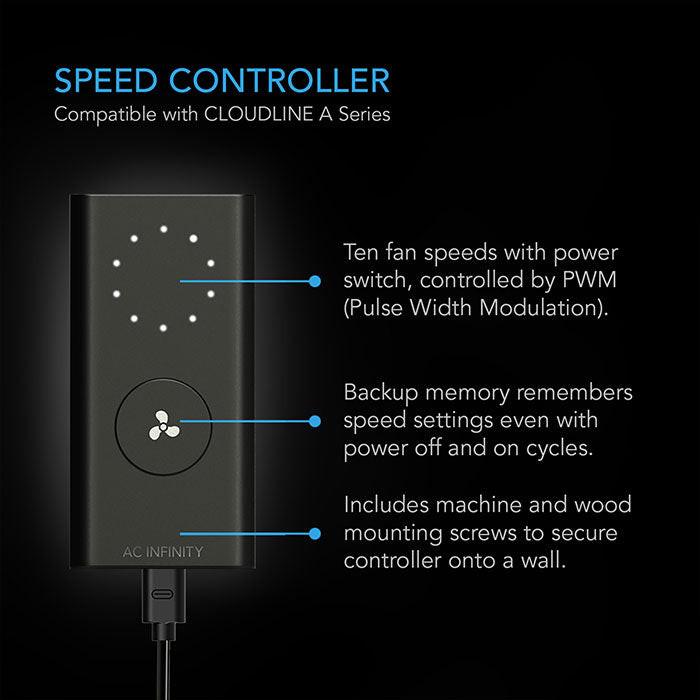

A 10-speed fan controller is paired with this inline fan to optimize airflow levels and noise in many applications. The fan's PWM controls enable it to smoothly set fan speeds and operate at extremely low RPMs with no motor noise. Along with this wired speed controller, the CLOUDLINE is also compatible with the following controllers:
Carbon Filter

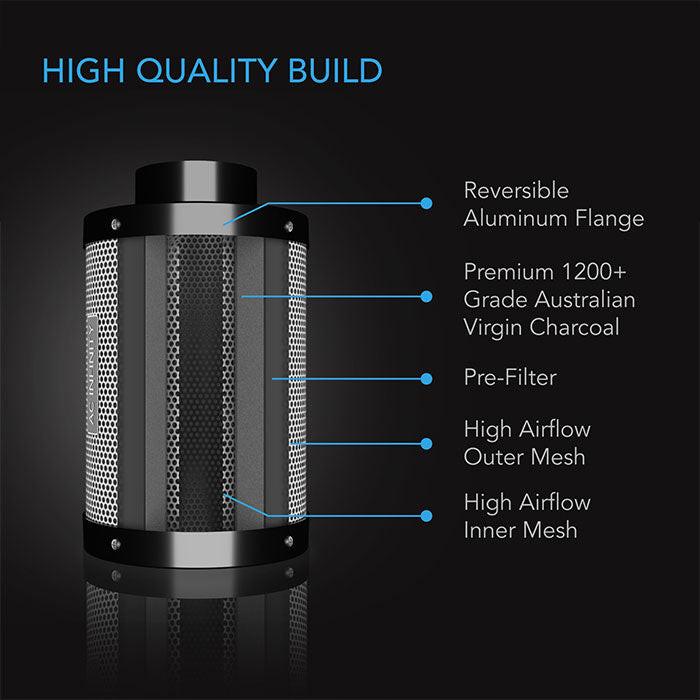

Pair the CLOUDLINE inline fan with a carbon filter to effectively block odors from seeping out of your grow tent. Its 38mm thick carbon bed is made up of premium Australian activated charcoal with a 1200+ IAV rating and RC412 microporosity. This enables the carbon filter to adsorb the most odor molecules for up to 33% longer than other inline filters. Use with the included prefilter and reversible flanges (to flip the carbon bed) can further extend its lifespan. The heavy-duty build consists of aluminum flanges and a galvanized steel mesh to allow 100% air passthrough.
Ducting

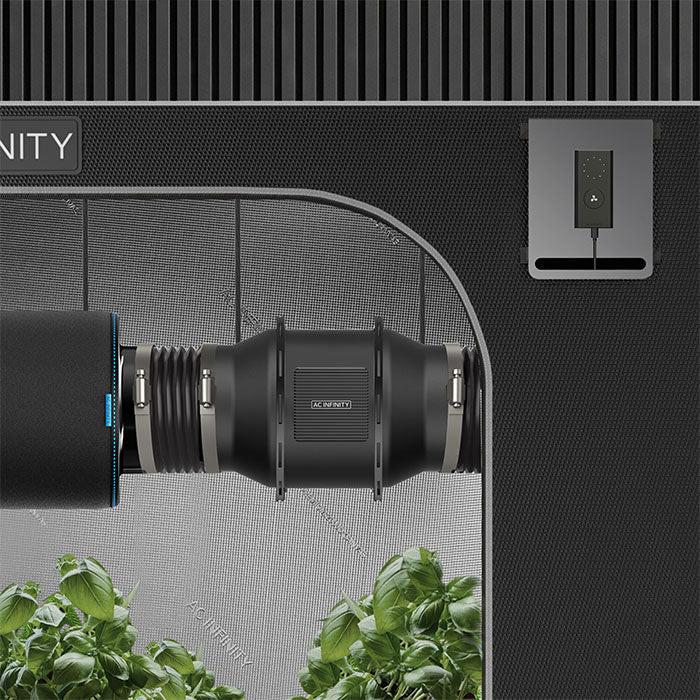

Install flexible ducting to connect your inline fan and carbon filter with your grow tent and route stale and odorous air away. Each included set features four layers of protection that resist tears and leaks, bound by internal steel wires to retain its shape. The outer layers are composed of dual PVC thermoplastic to protect the inner layers from cuts and tears and prevent air leakage. These inner layers are made up of flame-resistant aluminum to protect against wear and tear due to warmer airflow. 25 feet of ducting gives you the flexibility to customize the length of your ductwork to fit your application.
| Size: | AC Infinity 4" x 12" |
|---|---|
| Flange: | 4 in. |
| CFM: | 165 CFM |
| Dimensions: (LxWxH) | 6.97" x 6.97" x 13.35" |
| Grow Tent Sizes: | 2' x 2' 2' x 4' 3' x 3' |
| AC Infinity 6" x 16" | AC Infinity 8" x 20" |
|---|---|
| 6 in. | 8 in. |
| 352 CFM | 724 CFM |
| 8.93" x 8.93" x 15.94" | 10.94" x 10.94" x 19.8" |
| 4' x 4' 4' x 8' 5' x 5 |
8' x 8' 10' x 10' |
| Brand | AC Infinity |
|---|---|
| SKU | AC-FKS6 |
| Weight (lb.) | 6.0000 |
| Lead Time | This Product Ships in 2-3 Business Days |
| Width (in.) | |
| Height (in.) | |
| Warranty | 2 Year |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 819137021891 |
| Prop 65 | false |
| CFM Rating | 352 CFM |
| Flange Size | 6" Diameter |
| Flange Included | Yes |
| Power Cord Length | 6 ft. |
| Amps | 0.95A |
| Exact Watts | 65 Watts |
| Voltage | 120 Volts |
The AC Infinity Grow Tent Ventilation
What problem does the AC Infinity Air Filtration Kit solve in a grow room?
The AC Infinity Air Filtration Kit cools and ventilates a grow room while blocking odors with a carbon filter containing 1200+ IAV activated charcoal.
What components and accessories are included with the AC Infinity Air Filtration Kit?
The AC Infinity Air Filtration Kit includes a CLOUDLINE inline fan, 10-speed controller, carbon filter, prefilter cloth, 25 feet of four-layer flexible ducting, duct clamps, rope clip hangers, and hanging straps.
How does the AC Infinity Air Filtration Kit control grow room airflow?
The AC Infinity Air Filtration Kit uses a 10-speed controller with PWM controls for smooth airflow and low-RPM operation. The CLOUDLINE fan also works with B-Series Temperature Controller, Controller UNC529, Controller 69, Controller 67, and Controller 63.
How does the AC Infinity Air Filtration Kit connect a grow tent to ventilation equipment?
The AC Infinity Air Filtration Kit uses included four-layer flexible ducting to connect the inline fan and carbon filter to a grow tent and route stale, odorous air away. The kit includes 25 feet of ducting for customizable ductwork length.
Which grow tent sizes suit the 6-inch AC Infinity Air Filtration Kit?
The 6-inch AC Infinity Air Filtration Kit suits 4-foot by 4-foot, 4-foot by 8-foot, and 5-foot by 5-foot grow tents. The 6-inch configuration provides 352 CFM.
