The AC Infinity Cloudline Inline Fan smart inline duct fan designed to effecientaly and quietly ventilate.
- Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.
- Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed.
- Remotely connect to our WiFi app to access advance programs, view climate data, and set automation.
- Mixed flow design combined with a PWM-controlled EC-motor for a truly quiet and energy efficient performance.

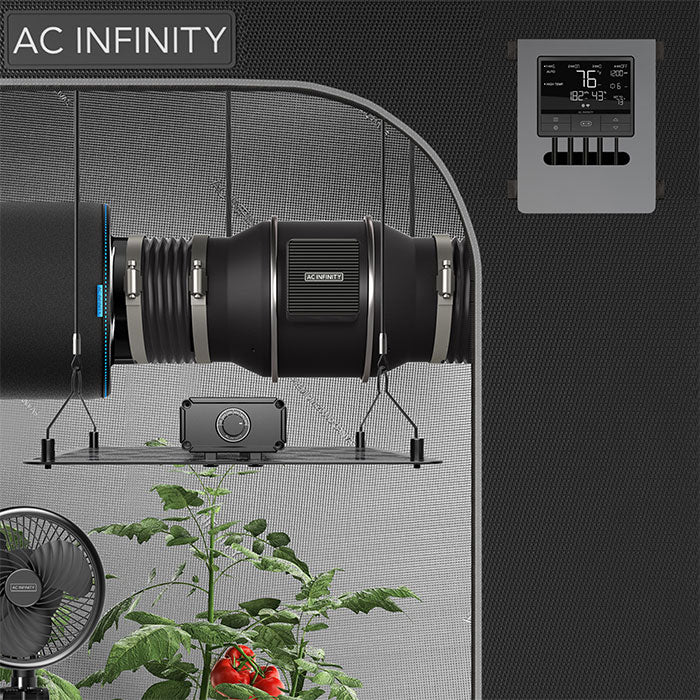

A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. It is built with a PWM-controlled EC motor for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes a smart controller with dynamic climate and time-based programming and can connect to multiple UIS devices. This product is a part of the UIS platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
Smart Controller

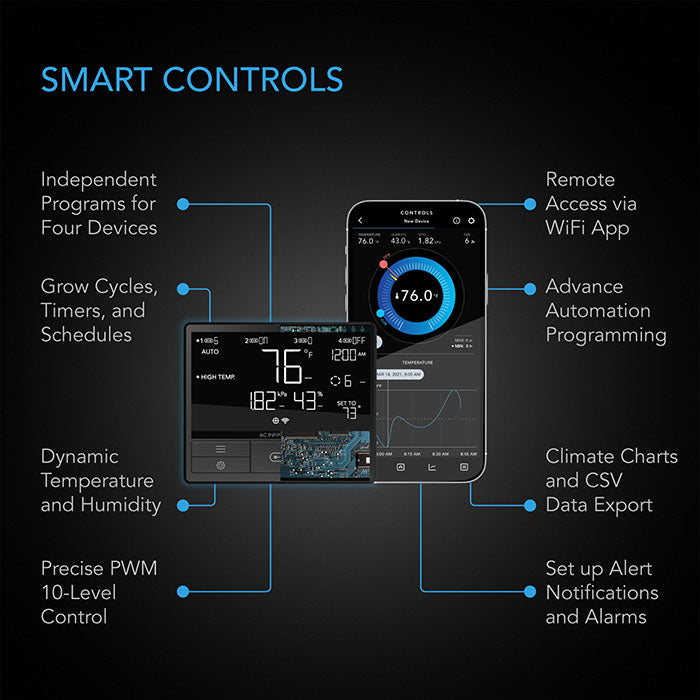

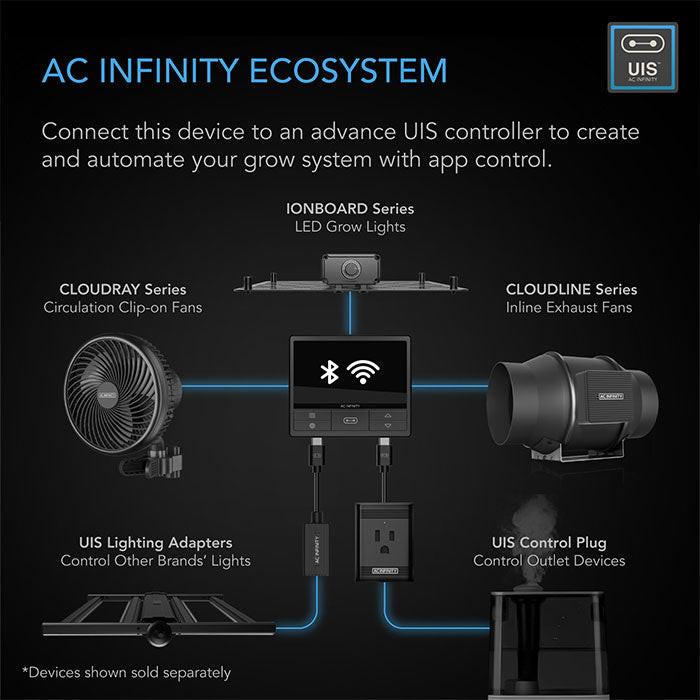

CONTROLLER 69 PRO features smart programming that not only has basic temperature, humidity, and VPD triggers but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for various uses. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can connect to up to four UIS devices which includes products like the CLOUDLINE, CLOUDRAY, and IONFRAME Series. It can also connect to your favorite grow light and outlet device from outside the UIS platform using select adapters.
Quiet and Energy Efficent Design

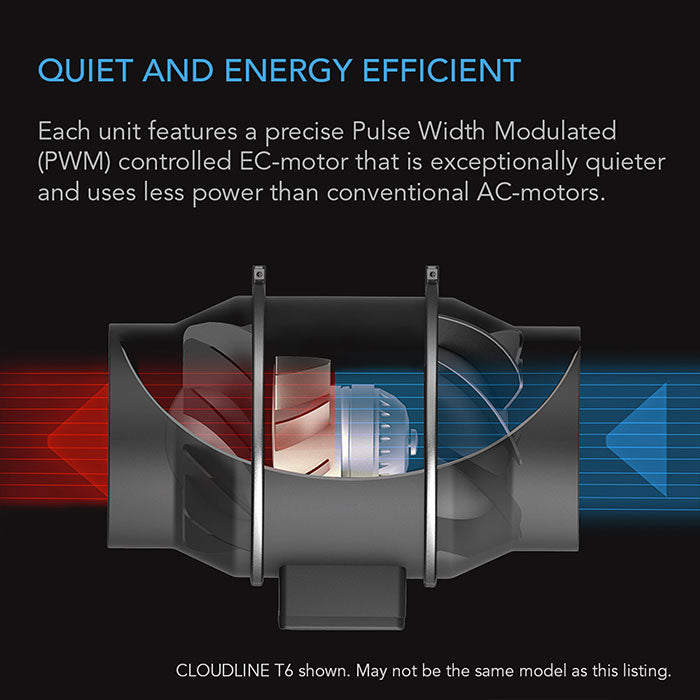

Unlike common duct fans that use an AC motor which is loud and unmanageable, this duct fan features an EC motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.
Applications

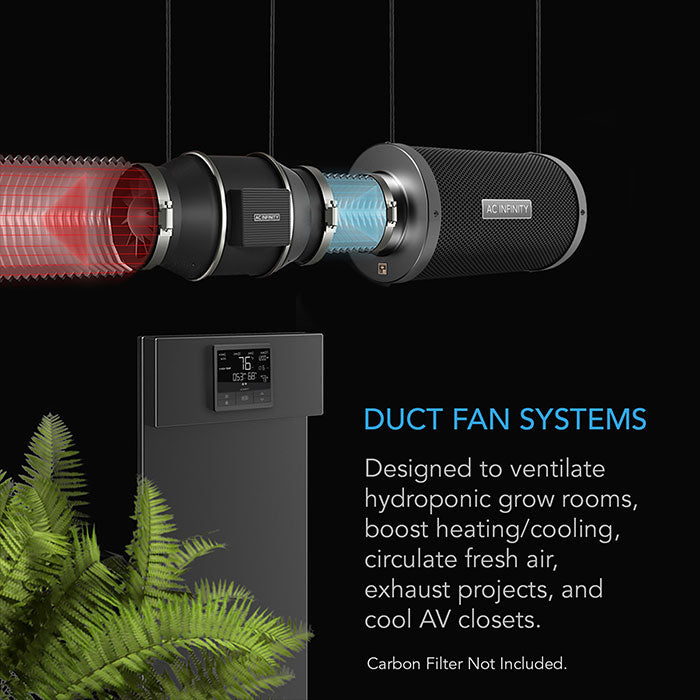

This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

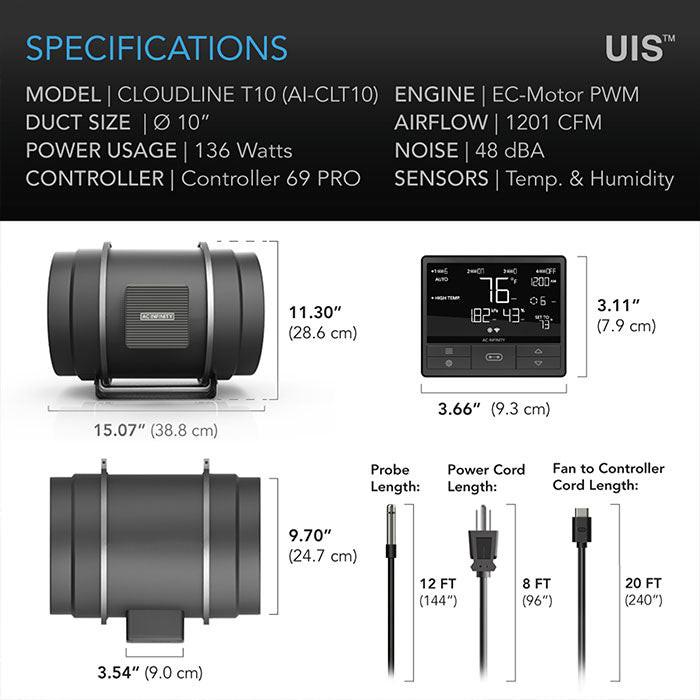

AC Infinity Cloudline PRO T Series Inline Fan Specs:
| 4" | 6" | 8" | 10" | 12" | |
|---|---|---|---|---|---|
| Dimensions: | 6.9" x 11.9" x 7.4" | 7.8" x 12.6" x 8.3" | 8.5" x 11.9" x 9.2" | 11.3" x 15.1" x 12.2" | 12.7" x 17.7" x 14.0" |
| Total Airflow: | 205 CFM | 402 CFM | 807 CFM | 1201 CFM | 1604 CFM |
| Total Noise: | 28 dBA | 32 dBA | 39 dBA | 48 dBA | 62 dBA |
| Voltage: | 100-240V AC | ||||
| Frequency: | 50/60Hz | ||||
| Max Power Draw: | 28 W | 64 W | 110 W | 255 Watt | 250 Watt |
| Current: | 1.2A | 1.67A | 2.27A | 2.7A | 2.5A |
| Operating Humidity: | 35 to 85% RH | ||||
| Operating Temperature: | 0 to 140°F | ||||
| Ingress Protection: | IP 44 | ||||
| Fan Bearings: | Dual Ball | ||||
| Mounting Positions | Horizontal or Vertical | ||||
| L10 Life Expectancy | 67,000 Hours | ||||
| Brand | AC Infinity |
|---|---|
| SKU | AI-CLT6 |
| Weight (lb.) | 10.0000 |
| Lead Time | Ships in 2-3 Business Days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 854759004792 |
| Fan Type | Inline |
| Fan Size | 6" Diameter |
| Is Speed Controllable | Yes |
| Inline Fan Features | Built-In Speed Controller |
| Oscillation | No |
| CFM Rating | 402 CFM |
| Exact Watts | 64 Watts |
| Amps | 1.67A |
| Frequency | 50/60 Hz |
| Voltage | 120 Volts |
| Max. Decibals | 32 dBA |
| Power Cord(s) Included | Yes - 120 Volt (NEMA 1-15 Type-A) |
| Power Cord Length | 8 ft. |
| ETL Listed | Yes |
| UL Listed | No |
AC Infinity 6" Cloudline PRO T6 Inline Fan with Temperature & Humidity Controller, 402 CFM Videos
The AC Infinity Cloudline T Series
AC Infinity 6" Cloudline PRO T6 Inline Fan with Temperature & Humidity Controller, 402 CFM Questions & Answers
Q: I am missing my controller. It wasn't included in my package!
A: Please refer to page 9 for an image of what your controller should look like. Your controller should be neatly slotted in the box by this product manual.
Q: Where is the best place to position the sensor probe?
A: Place the sensor probe as close as possible to the hottest or most humid spot in your space.
Q: Do I need to remove the plastic cap from the probe?
A: Yes. You will need to remove the plastic cap so the probe can accurately read climate conditions.
Q: Can I mount this inline duct fan vertically?
A: Yes. The CLOUDLINE can be mounted in any orientation, including vertically.
Q: Will I be able to hardwire this fan to my own controller or thermostat?
A: We do not recommend hardwiring or splicing our fan's power wires. Such modifications may compromise electrical safety and will void this product's warranty.
Q: Do I need to use a power converter if I'm outside the US?
A: This product's voltage range is 100-240V AC. You may need a simple travel adapter to plug it into a foreign socket, or a power converter if your country uses a different voltage.
Q: Does the controller retain its settings after power is shut off?
A: Yes. If the controller's power is cut off and is powered on afterwards, your settings will remain.
Q: I'm not getting enough airflow even after setting the fan speed to 10. What can I do?
A: Bends in ducting will reduce your fan's CFM performance. To retain airflow, you may straighten
the ducting and eliminate as many bends as possible.
Q: Should I use this inline duct fan as an intake or an exhaust fan?
A: The CLOUDLINE is primarily used as an exhaust fan, but can be used as an intake fan as well.
You may use this fan as an intake fan if you need fresh air into your space.
Q: Can I connect different sized fans to the same controller?
A: Please refer to pages 27-29 for details on connecting fans together.
Q: I'm hanging my fan upside down in my grow tent, can I rotate its motor box plate?
A: Yes. Use a screw driver to unscrew the motor cap. Rotate it to your desired orientation and
reapply the screws.
