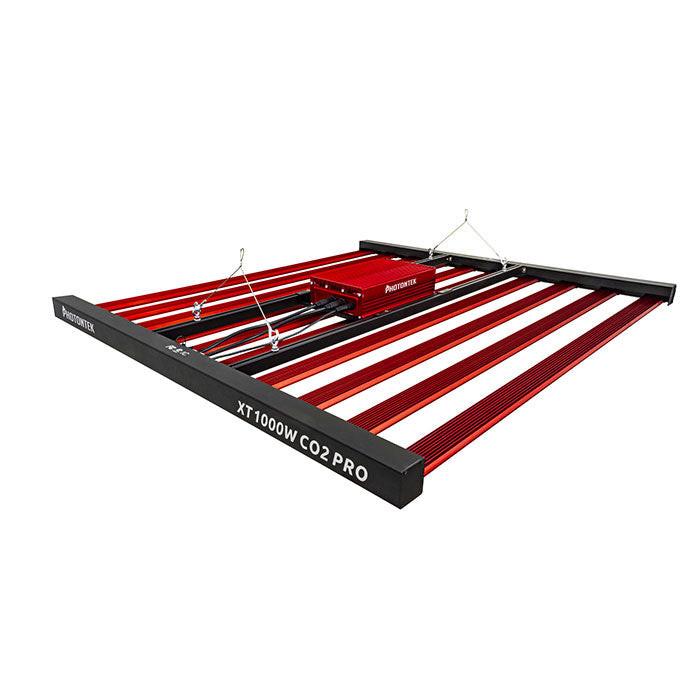

Photontek XT 1000 Watt CO2 Pro LED Grow Light

PHOTONTEK, creating better light for growers.

PHOTONTEK is ready to bring you our most powerful grow light to date. With the perfect balance of quality and quantity, the XT 1000 Watt will deliver the best light spectra on the market combined with ultra-high PPFD levels. Designed for a 5' x 5' space with the use of CO2 supplement for maximum performance, the XT 1000 Watt LED gives growers the opportunity to massively boost yields without the need to increase space.

Only the highest-grade materials and components are used in P-TEK’s LED fixtures. Delivering safe, dependable light P-TEK fixtures have industry-leading performance. By perfectly balancing high quality, full-spectrum light with highest intensity PPFD delivered through a multi-bar, Linear design. PHOTONTEK Creates the ultimate ceiling of light for the entire plant growth cycle, making these LEDs the smartest option for a higher and faster return on investment.

What's Included:

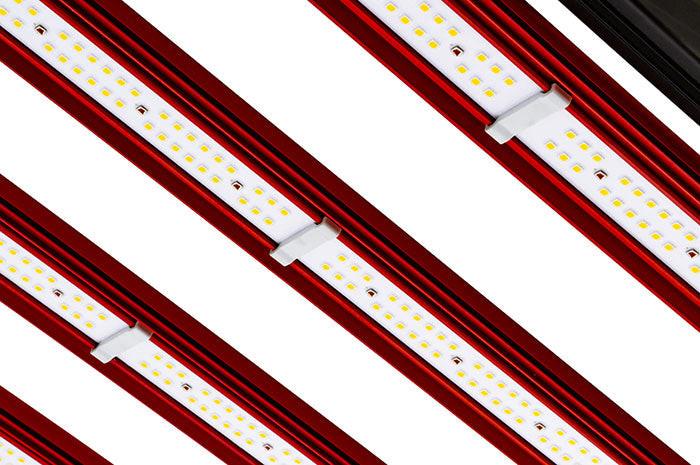

• 10 x 100 Watt 2.9 Full-Spectrum Magnet LED Bars

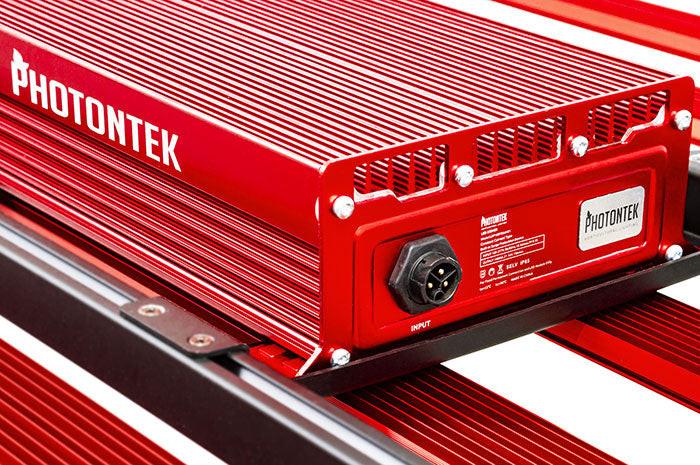

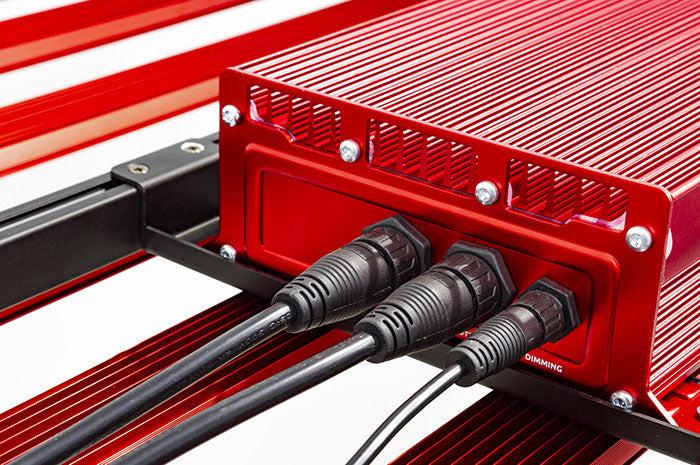

• 1 x 1000 Watt Driver with Connecting Cables
• 1 x LED Structure with Connecting Cables
• 1 x Power Cable with NEMA 5-15P 120V Plug (NEMA 6-15P 240V also available)
• 1 x 0-10V Light Dimmer + Velcro
• 2 x Metal Cable Hangers
• 1 x Manual

Stunning features with high quality components

Producing extremely high levels of PPF output of 2925 µmol/s and a Photon Efficacy (fixture efficiency) of 2.9 µmol/J, XT 1000W CO2 Pro LED creates a homogeneous light spread at close distance from the crop canopy, resulting in outstanding results when used in 5’x5’ coverage indoor grow areas with Supplemental CO2 use.

• Highest Market Fixture Efficacy 2.9 µmol/J
• High PPF output for high intensity 2925 µmol/s
• World Class Diodes & Drivers
• Designed to produce utra-high PPFD for CO2 supplemented Grow Areas
• CO2 Supplemental: A ratio of 1:1 CO2 PPM should be added once a PPFD of 1000 µmol/s/m2 is exceeded
• New Clear Glue Technology on the LED Bars Protection Cover
• Optimized Full-Spectrum
• Detachable Driver
• Fully Dimmable
• External Control with Optional Digital Controller - Not Included
• Interchangeable Magnet LED Bars
• User Friendly & Easy Set-Up
• 5 Year Warranty

CO2 Supplementation

The use of CO2 with this unit is not imperative, but if you choose to run it without it, then we recommend a longer canopy distance to the fixture, ensuring the optimal PPFD levels recommended to the grow stage. Utilizing this last method the expected coverage area gets to 6’x6’ but with lower levels of PPFD intensity concentration.

Supplementation use of Carbon Dioxide (CO2) in your controlled environment can significantly improve the yield of your crop if used correctly. A good rule is that once you exceed 1000 µmol/s/m2 PPFD levels, you should be 1:1 with CO2 PPM – up to 1500. So at max PPFD = 1500 µmol/s/m2, CO2 would be 1500 PPM (a little lower, 1400 PPM may be the safest to start).

Efficient & Adjustable

When compared to regular similar wattage High Pressure Sodium solutions, this 1000 Watt LED Grow Light product can achieve 30-40% less HVAC capacity and increased yields of up to 30-60%.

Optional Upgrade: Photontek Digital Lighting Controller

The PhotonTek Digital Lighting Controller is a full-control LED fixture master panel, that allows you to harness the full power of our entire LED lighting range.

Using the newest tech available, this smart-feature accessory will quickly become your best grow mate as it constantly monitors and helps to maintain your environmental temperatures, lighting schedules & intensity automation. Smart, but still incredibly user-friendly, this unit is a twin channel controller. Giving growers the ability to control individual ‘zones’, capable of operating up to 50 LED fixtures each!

Using an analogue 0-10V signal, each channel (Zone) can either control the same powered LED drivers; Zone A can control the same powered drivers as Zone B OR Zone B can be set to control different powered LED drivers. Eg: Zone A can be set to control 465W LED fixtures and Zone B set to control 600W, with the same accuracy and safety protections across your entire set-up.

Universal Control Systems Compatibility

P-Tek Pro LED Fixtures can be fully controlled with either the PhotonTek Digital Controller or with any other Control System that utilizes 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.

Choose to run anything from a single light bar to the full 10 line-ups at any intensity you need by simply adding or removing the desired amount using the fixtures’ innovative smart and easy, click-magnet design. The driver can also be detached from the fixture and used away from the fixture for your convenience

Speicifcations for the XT 1000
