Growers Choice Product Documents

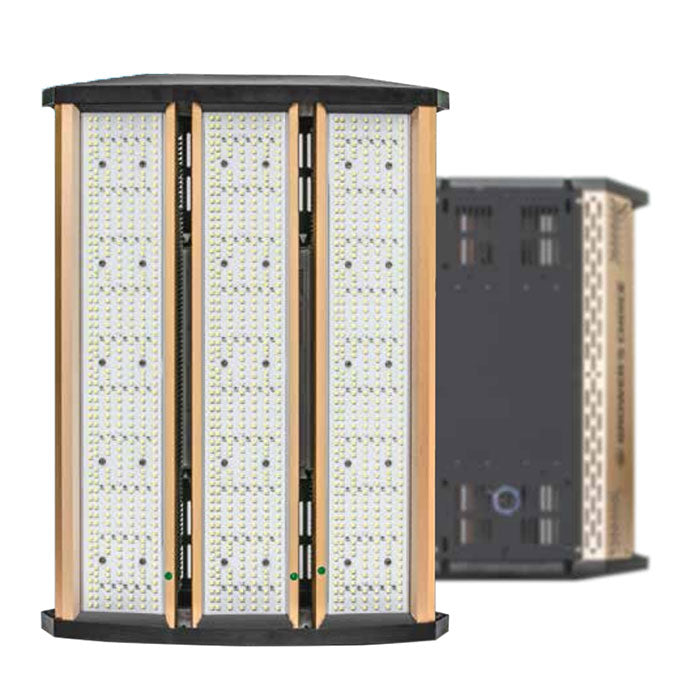

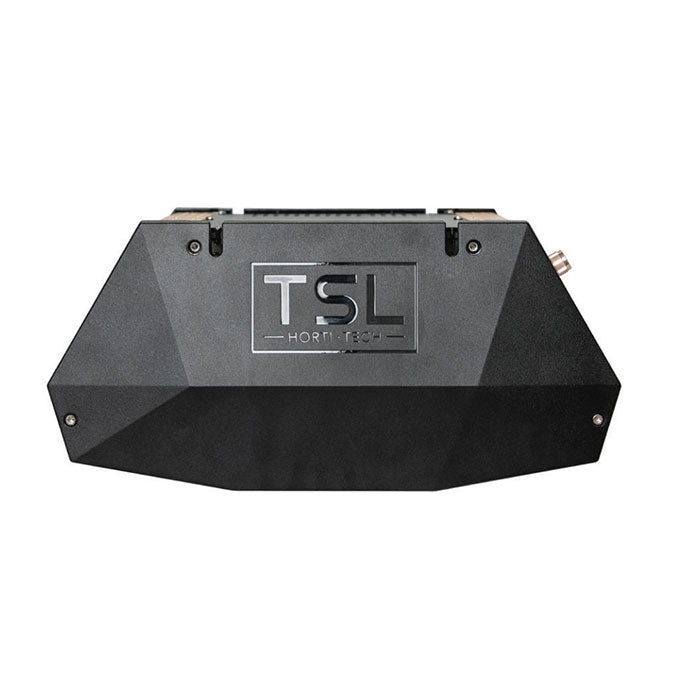

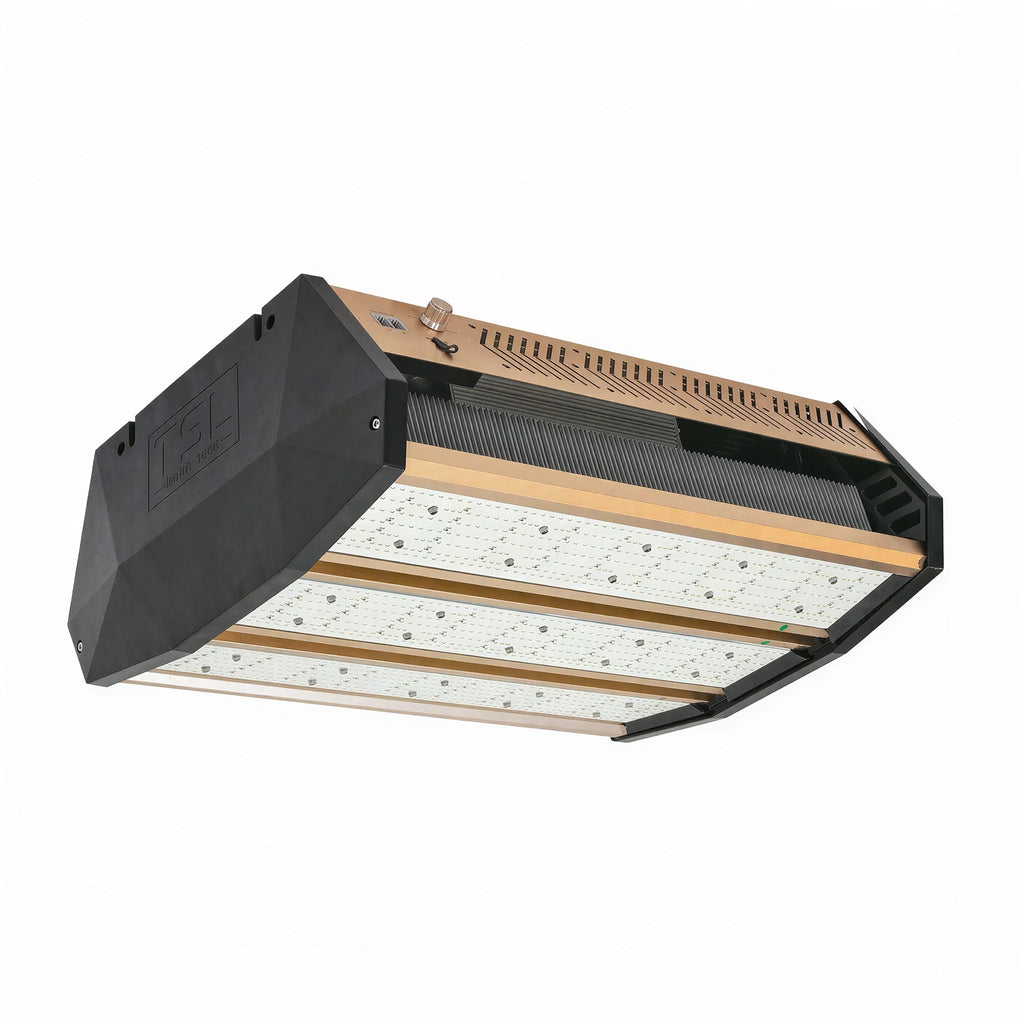

Growers Choice TSL 800 Spec Sheet Growers Choice TSL 800 User ManualIntroducing the TSL-800 Growers Choice direct 1:1 replacement for traditional 1000 watt HPS fixtures. Featuring our new patented passive thermal management design upping cooling capabilites by up to 40%. Utilizing our patented diode depolotment allows us to ahieve the desired angles of light distribution and an upgrade PAR output resulting in up to a 30% increase using our new GC 3FK Bloom Spectrum.
Compatible with the Growers Choice Master Controller or CPS System, this revolutionary new LED fixture can be operated by almost any level grower and is scalable for al cultivations, with the greatest yield potential in the industry.
Whats in the box?
- TSL-800 LED Fixture
- Metal Hanging Chain
- Metal Side Hangers
- Power Cord
- RJ Data Cord
- 240V/120V Adapter
External Control with the Grower's Choice Master Lighting Controller
The TSL-800 is controllable with Grower’s Choice Master Controller and is compatible with all quality master controllers. Cultivators can set the fixture to turn off and on at desired times, program sunrise/sunset settings, program dimming options and set protective fail safes to dim or turn off fixtures in the event of excessive room temperatures, such as in the event of HVAC failure, potential saving gardens from heat damage.
This dual-channel controller allows daisy chaining up to 100 fixtures per zone. En-abling complete control of your growing environment with timed on/off switching, sunrise/sunset, and precise temperature readings with dual thermal probes and thermal-threshold auto dim-shutdown for additional protection.
Specifications
| Voltage | 120/277 Volts |
|---|---|
| Power | 800 Watts |
| PPF | 1900-2080 µmol/s |
| PAR | 2.6 µmol/J |
| Dimensions | 21.2" L x 16.1" W x 11" H |
| Mounting Height | 6"-24" Above Canopy |
|---|---|
| Dimming | 0-10V & Step Dimming |
| Dimming Range | 10%-100% |
| Certifications | UL,CE,DLC |
| Warranty | 5 Years |
Amperage & Voltage
| Voltage | 120 Volt | 208 Volt | 240 Volt | 277 Volt |
|---|---|---|---|---|
| Amperage | 6.7 Amps | 3.8 Amps | 3.3 Amps | 2.9 Amps |
*PPF Calculations compiled using our in-house integrating sphere measurements and typical spectrodiometric data for each LED to determine the fixture performance. Actual photometric results may vary within the LED's manufacturers bun tolerance
*Wattage values are typical expected values. TSL HortiTech maintains a tolerance of +/- 10% range on flux and power consumption. Target light level can vary from projected levels depending on ambient temperature, room reflection values, and other conditions.
| Brand | Growers Choice |
|---|---|
| SKU | TSL800W |
| Weight (lb.) | 32.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This Product Ships in 2-3 Business Days |
| Hazardous Material | false |
| UPC | 713440682261 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Panel |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $34.56 |
| Exact Watts | 800 Watts |
| Suggested Hanging Height | 6"-24" Above Canopy |
| PAR Efficiency | 2.6 umol/J |
| Total PPF Output | 2080 umol/s |
| Power Factor | > 0.9 |
| Voltage | 120 Volts, 208 Volts, 240 Volts, 277 Volts |
| Amps | 6.7 Amps @ 120 Volts, 3.8 Amps @ 208 Volts, 3.3 Amps @ 240 Volts, 2.9 Amps @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes |
| Power Cord Length | 8 Feet (1 foot power cord + 7 foot whip) |
| Grow Light Certifications | IP65 Rated, DLC Listed, UL Listed |
| ETL Listed | No |
| UL Listed | Yes |
Can Growers Choice TSL-800 replace a traditional 1000-watt HPS fixture?
Growers Choice TSL-800 provides a direct 1:1 replacement for traditional 1000-watt HPS fixtures. Growers Choice TSL-800 uses 800 watts.
Which spectrum and PAR performance does Growers Choice TSL-800 provide for cultivation?
Growers Choice TSL-800 features the GC 3FK Bloom Spectrum and full-spectrum LED lighting. The GC 3FK Bloom Spectrum provides up to a 30% increase in PAR output, with 1900 to 2080 µmol/s PPF and 2.6 µmol/J PAR efficiency.
Which controllers are compatible with Growers Choice TSL-800?
Growers Choice TSL-800 is compatible with the Growers Choice Master Controller, the CPS System, and quality master controllers. The Growers Choice Master Controller supports timed operation, sunrise and sunset settings, dimming, and protective fail safes.
How can growers adjust Growers Choice TSL-800 light intensity?
Growers can adjust Growers Choice TSL-800 through 0 to 10V dimming and step dimming from 10% to 100%. Growers Choice TSL-800 also includes a manual dimming knob and supports controller-based dimming.
What accessories come with Growers Choice TSL-800 for installation?
Growers Choice TSL-800 includes a metal hanging chain, metal side hangers, power cord, RJ data cord, and 240V/120V adapter.
How high should growers mount Growers Choice TSL-800 above the plant canopy?
Growers should mount Growers Choice TSL-800 6 to 24 inches above the plant canopy.
