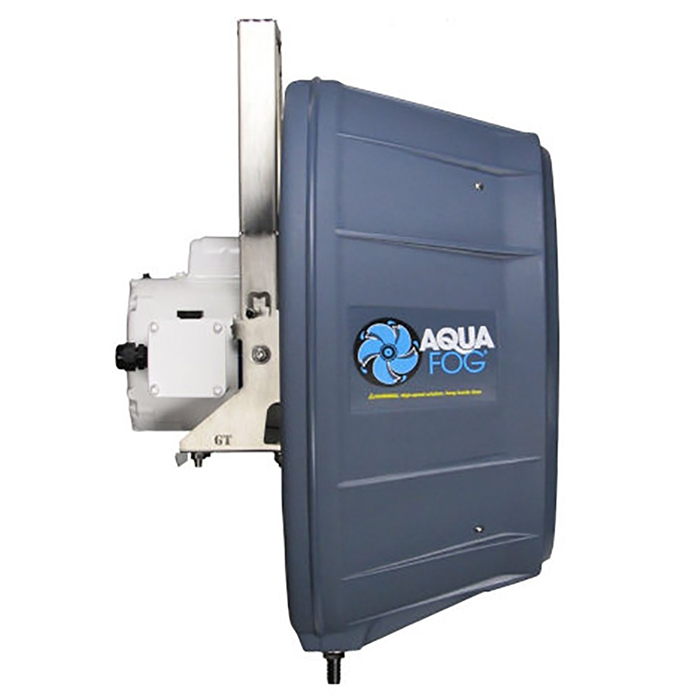

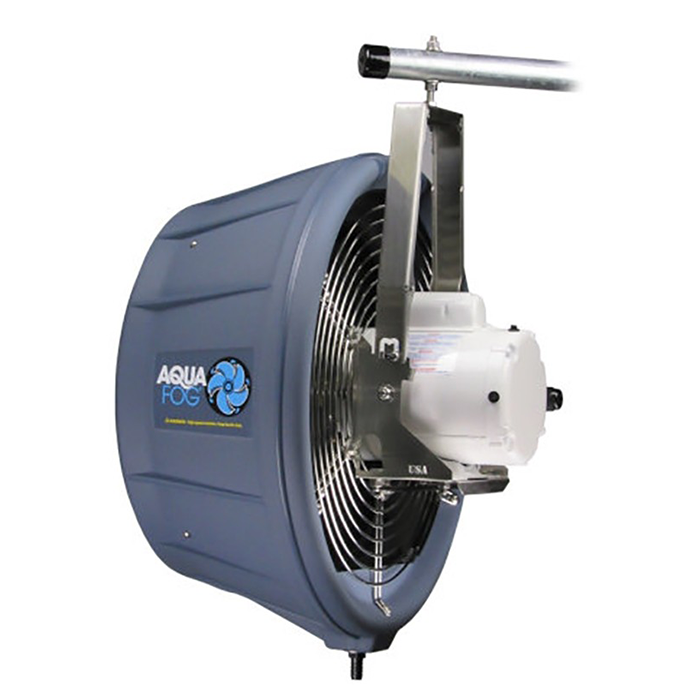

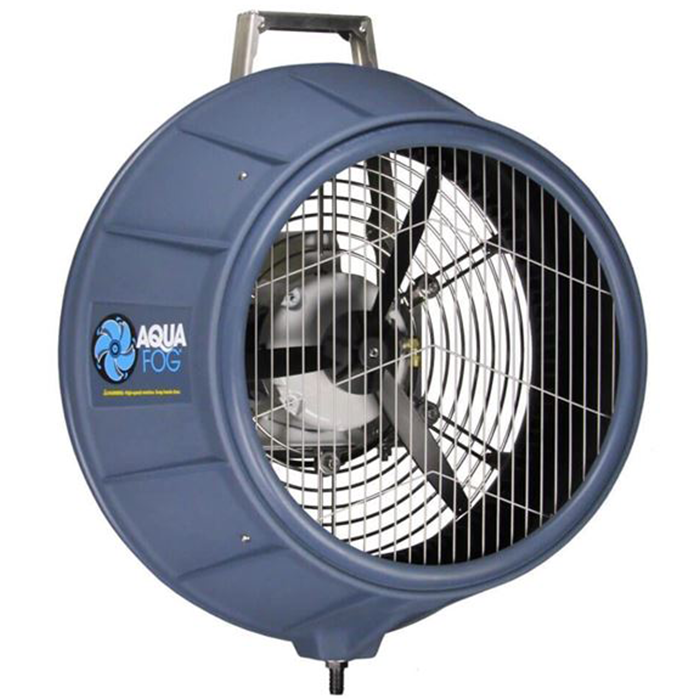

AquaFog GT 500 Direct Feed Fog Fan ManuakThe GT 500 Direct Feed is an easy-to-install hanging fan ideal for interior humidification, evaporative cooling, and chemical fogging. Components are UV stabilized and suitable for outdoor use.
This centrifugal atomizer has a rear-feed blade system that produces billions of tiny, fog-like particles that evaporate quickly. A hydrophilic front guard helps keep floors dry. The fogging output is adjustable and controlled by a flowmeter. Units can also be fed using a metering pump or gravity feed system.

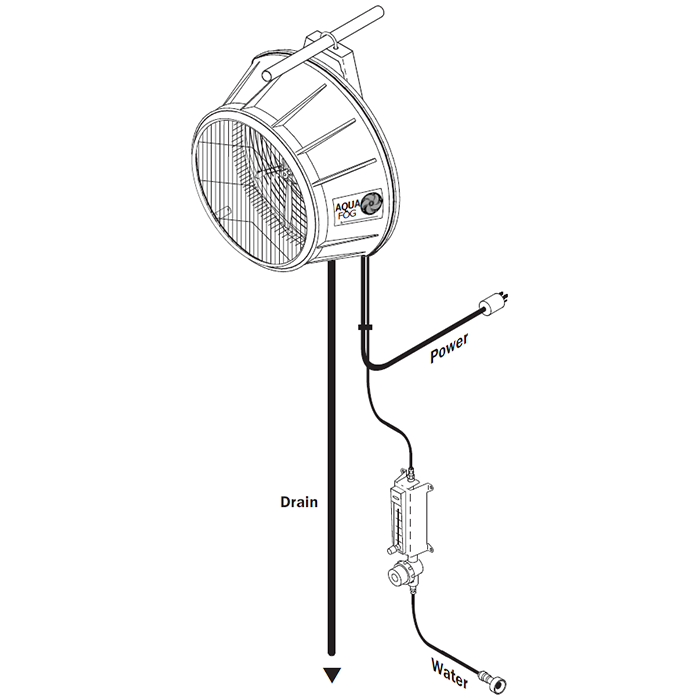

The GT 500 Direct Feed comes equipped with 30' of water line, a garden hose connector, 16' of drainage line, and the flowmeter panel of your choice. Units hang by either a single U-bolt or a universal mounting bolt.
AquaFog GT 500 Direct Feed Fog Fan Features
- Energy-Efficient
- Up to 6 GPH Fogging Output
- 46,500 Btu/h (Evap. Cooling)
- Pivot Fogging Head
- 15' Power cord with plug
- 30' Water Supply Tubing with Garden Hose Connector
- Flow Meter Panel
- 16' Drain Tubing
- OSHA Safety Guards
- Arrives Fully Assembled
Specifications for AquaFog GT 500 Direct Feed Fog Fan
| Overall Dimensions: | Diameter 22 in / 55.9 cm Depth 17.5 in / 44.5 cm Height 25 in / 63.5 cm |
|---|---|
| Propulsion Distance: | 25-30 ft / 7.6-9.1 m |
| Noise @ 10 ft: | 70 dB(A) |
| Average Particle Size: | 5-10 microns @ low volume 30 microns @ high volume |
| Max. Fogging Output: | 5.8 GPH - 60Hz 18 LPH - 50Hz |
| Fogging Trajectory Angles | 5 Degrees Upward Horizontal 5 Degrees Down 14 Degrees Down |
| CFM: | 1,800 - 60Hz 1,440 - 50Hz |
| Cooling Capability: | 46,500 Btu/h @ 60Hz 37,000 Btu/h @ 50Hz |
| Operation: | Continuous duty capability |
| Energy Consumption: | 1/4 HP - 3.4 amps @ 115V 1/4 HP - 1.8 amps @ 230V 1/5 HP - 2.0 amps @ 240V 50Hz |
| Environment: | Endures temperatures from 31° to 160° F Indoors / outdoors Humidity to 100% RH UV stabilized & impact resistant |
| Box Dimensions: | 21" x 21" x 17" 53cm x 53cm x 42cm |
| Shipping Weight: | 42 lbs / 18.6 kg |
| Brand | AquaFog |
|---|---|
| SKU | MS-SYJB-FGT500 |
| Weight (lb.) | 42.0000 |
| Length (in.) | |
| Width (in.) | |
| Prop 65 | false |
| Height (in.) | |
| Lead Time | Ships in 2-3 Business days |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Number of Atomizers | 1 |
| Voltage | 120 Volts |
| Amps | 3.4A |
| Power Cord(s) Included | 120 Volt |
| Power Cord Length | 15 ft. |
