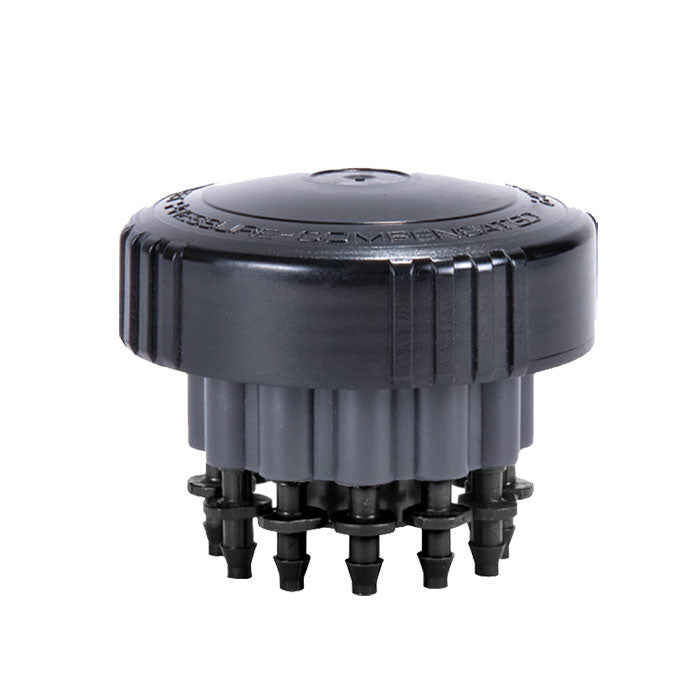

DIG T.O.P. 12-Outlet Pressure Compensating Drip Manifold Kit Assembly - Pack of 5

SKU: TOP-300-PCK
No reviews
DIG Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 3-5 business days


Choose Your Flow Rate: 3.3 GPH
Price:
Sale price$108.70
$21.74 / each

Designed to retrofit a 1/2″ sprinkler riser, DIG’s TOP 12-outlet drip manifold utilizes extremely accurate, pressure compensating individual and interchangeable drip emitters to ensure equal flow from each outlet over a wide range of operating pressures from 10 to 80 PSI. Available with 1, 2.2 and 3.3 GPH per outlet, the TOP can deliver water directly to up to 12 plants with less water evaporation and wind-drift than the overhead sprinkler heads it replaces. Using the TOP can save a significant amount of water by improving irrigation efficiency and lowering water runoff. For additional savings, check with your city for drip irrigation rebate program eligibility.

Utilizes individual and interchangeable pressure compensating drip emitters to ensure an equal flow over a wide range of operating pressures from 10 to 80 PSI

What's Included?

  • (x5) 100’ of 1/8" distribution tubing
  • (x5) 8 Caps
  • (x5) 12 Bug Plugs
  • (x5) 12 Stakes
  • (x5) 12 1/4" Coverter Barbs

Features

  • Constructed with 12 built-in individually pressure compensating drip emitters
  • Self-flushing emitters allow passage of water and minimize clogging
  • Interchangeable drip emitters for variable flow rates in a single head
  • Color-coded drip emitters and barbs easily identify flow rate at each zone
  • Each drip emitter individually filtered (approx. 80 mesh)
  • Backup mini disk filter
  • Rugged materials to withstand the most adverse conditions
  • Install above grade or place below grade in a 6” emitter box
  • Inlet plugs provide the option to cap off up to eight drip emitters

Specifications

  • Recommended operating pressure: 15-50 PSI (1 -3.4 BAR)
  • Pressure compensating range: 8-80 PSI (.5-5.6 BAR)
  • Flow rates:
    • 1 GPH
    • 2.2 GPH
    • 3.3 GPH
  • Inlet size: 1/2ʺ FNPT
  • Used with: 1/8ʺ (.187ʺ OD) or 1/4ʺ (.150ʺ-.160ʺ ID) distribution tubing
  • Filter requirement: minimun of 120 mesh/130 microns, depending on water quality and concentration of dirt particles
  • Materials:
    • Body and cover: high-impact plastic
    • Filter: nylon
    • Diaphragm: silicon
  • Dimensions: 3ʺ W x 2ʺ H (7.6 cm W x 5 cm H)
Brand DIG
SKU DIG-TOPKIT
Hazardous Material false
