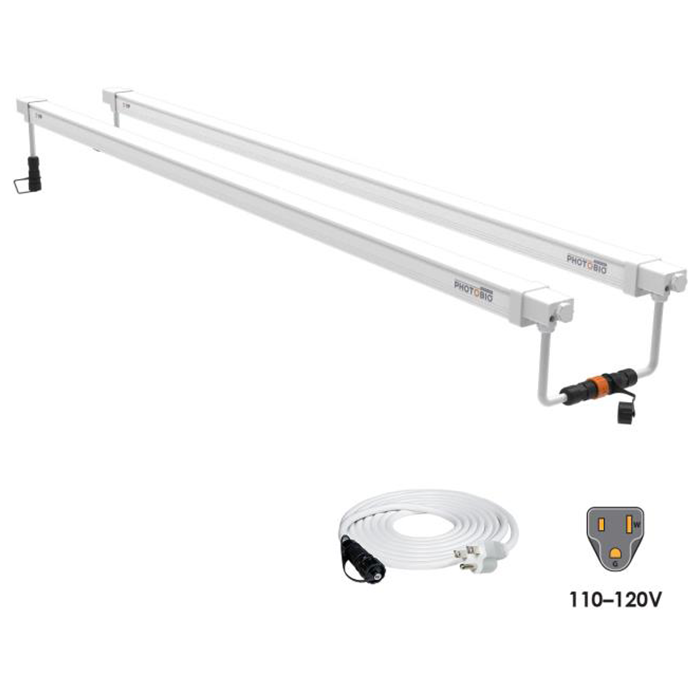

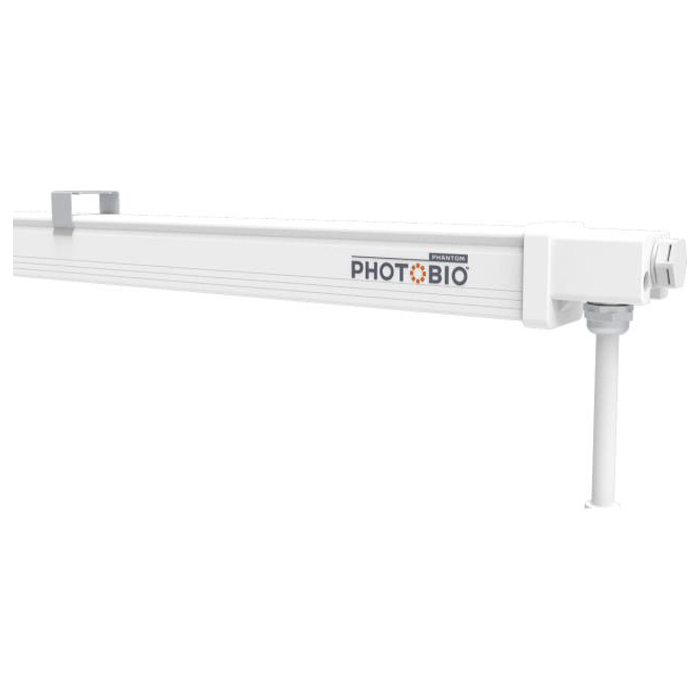

PHOTOBIO VP is a modular, high-efficiency LED system designed for vertical farming. PHOTOBIO•VP’s slim vertical profile maximizes vertical real estate allowing greater production space, and its modular design lets you link and power multiple 100–277V fixtures from a single input power. PHOTOBIO•VP features a tailored spectrum for vegetative and propagation growth stages, ideal for vertical farming and propagation. IP65 ingress protection rating from dust and liquids. IP65 power connection allows quick attachment at the fixture for easy installation and maintenance. Sold in pairs.
The Photobio VP use a Vegetative Centric Spectrum focused on ideal proportions of blue to red and far red light. Perfect for vertical farms and vegetative stage of plant cycle.
Features & Benefits of the Photobio VP
- 32W horticultural LED solution with slim vertical profile 47.3" length x 1.3" width x 1.3" height and 1.5 lbs
- 73.6 umol/s Photon Flux @ 277V
- 67.2 umol/s PPF
- 2.3 umol/J efficacy @ 277V
- Lumiled diodes produce the VE Spectrum

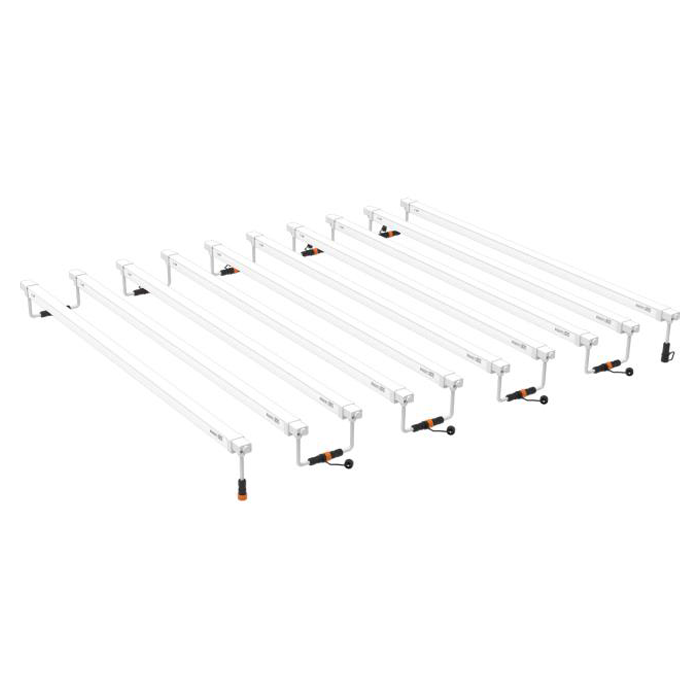

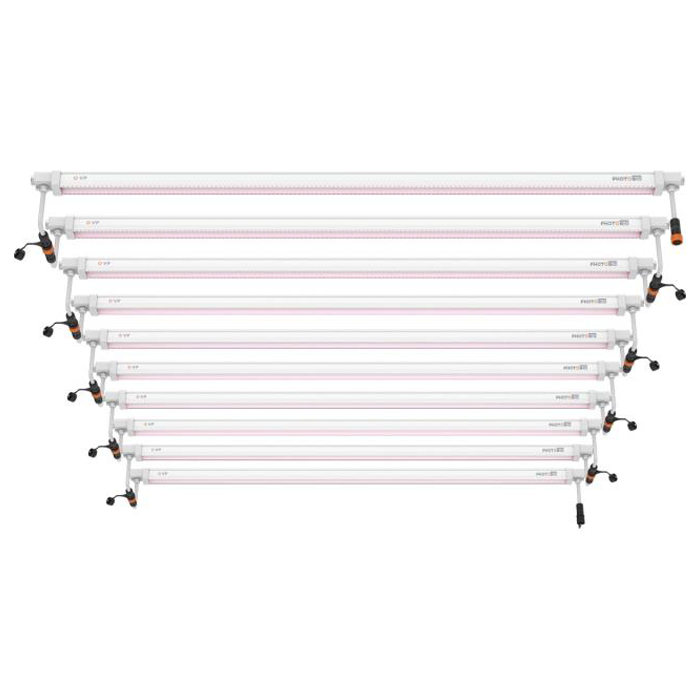

- Daisy chain 10-23 fixtures together from a single power source depending on the voltage
- Passive heat cooling
- Liquid tight push lock connectors compatible with existing PHOTOBIO cable environment
- Power cords sold separately
- Voltage: 120-277V
- 5 year warranty
- IP65 rated
- CE, ETL, FCC, DLC Certified
- Includes 4 mounting clips, screws, and zip-ties for installation
- Not Dimmable
Photon Flux for the Photobio VP
Photosynthetic Photon Flux Density (PPFD) data is produced by using professional lighting simulation software and third party laboratory photometric files. All PPFD data are measured in µmol/m2/s.
The result is showing a 20"x44" calculation grid assuming two fixtures mounted 9" apart in a 2'x4' grow shelf with 85% wall reflectance. Actual measurement may vary depending on actual use conditions, input voltages, and measuring instruments.
Specifications for the Photobio VP
| Voltage | 100/277 Volts |
|---|---|
| Power | 43 Watts per bar |
| Spectrum | VE Vegetative Spectrum |
| PAR | 2.3 µmol/J |
| PPF | 73.6 µmol/s |
| Warranty | 5 Years |
| Frequency | 50/60 Hz |
|---|---|
| Dimensions | 47.3" x 1.3" x 1.3" |
| Weight | 1.5 lb / 0.7 kg |
| Thermal Management | Passive |
| Included Power Cord | Choose Desired Voltage |
| Power Cord Length | 10 ft. (Open Leads 2 ft.) |
Voltage & Amperage
| Voltage | 120 Volt | 208 Volt | 240 Volt | 277 Volt |
|---|---|---|---|---|
| Amperage | 0.26 Amps | 0.15 Amps | 0.13 Amps | 0.11 Amps |
| Brand | PHOTOBIO |
|---|---|
| SKU | PTB1130VEP1 |
| Weight (lb.) | 2.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | 2-3 |
| Hazardous Material | false |
| Case/Pack/Pallet Amount | 2 |
| Lighting Type | LED |
| LED Light Spectrum | Veg Spectrum |
| LED Fixture Type | Clone Light, Bar/Strip |
| Exact Watts | 32 Watts |
| Suggested Hanging Height | 9" |
| LED Driver Type | Internal driver |
| Power Factor | 0.95 |
| Voltage | 120 Volts, 208 Volts, 240 Volts, 277 Volts |
| Amps | 0.26A |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | 120 Volt |
| Power Cord Length | 10 ft. |
| Grow Light Certifications | IP65 Rated, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
Which growth stages suit the PHOTOBIO VP LED Grow Light Bar?
The PHOTOBIO VP LED Grow Light Bar uses a VE Vegetative Centric Spectrum for vegetative growth and propagation. The spectrum balances blue, red, and far-red light for vertical farming and propagation.
How can growers expand a PHOTOBIO VP LED Grow Light Bar system?
The PHOTOBIO VP LED Grow Light Bar supports daisy chaining 10 to 23 fixtures from one power source, depending on voltage. The modular design supports vertical farming installations with multiple fixtures.
Can the PHOTOBIO VP LED Grow Light Bar be used around dust and liquids?
The PHOTOBIO VP LED Grow Light Bar has an IP65 rating for protection from dust and liquids. The fixture also uses liquid-tight push-lock connectors.
What installation hardware comes with the PHOTOBIO VP LED Grow Light Bar?
The PHOTOBIO VP LED Grow Light Bar includes four mounting clips, screws, and zip ties for installation. The PHOTOBIO VP LED Grow Light Bar is sold in pairs.
Can growers dim the PHOTOBIO VP LED Grow Light Bar?
The PHOTOBIO VP LED Grow Light Bar is not dimmable.
What warranty covers the PHOTOBIO VP LED Grow Light Bar?
The PHOTOBIO VP LED Grow Light Bar includes a 5-year warranty.
