PHOTOBIO VP is a modular, high-efficiency LED system designed for vertical farming. PHOTOBIO•VP’s slim vertical profile maximizes vertical real estate allowing greater production space, and its modular design lets you link and power multiple 100–277V fixtures from a single input power. PHOTOBIO•VP features a tailored spectrum for vegetative and propagation growth stages, ideal for vertical farming and propagation. IP65 ingress protection rating from dust and liquids. IP65 power connection allows quick attachment at the fixture for easy installation and maintenance. Sold in pairs.
The Photobio VP use a Vegetative Centric Spectrum focused on ideal proportions of blue to red and far red light. Perfect for vertical farms and vegetative stage of plant cycle.
Features & Benefits of the Photobio VP
- 32W horticultural LED solution with slim vertical profile 47.3" length x 1.3" width x 1.3" height and 1.5 lbs
- 73.6 umol/s Photon Flux @ 277V
- 67.2 umol/s PPF
- 2.3 umol/J efficacy @ 277V
- Lumiled diodes produce the VE Spectrum

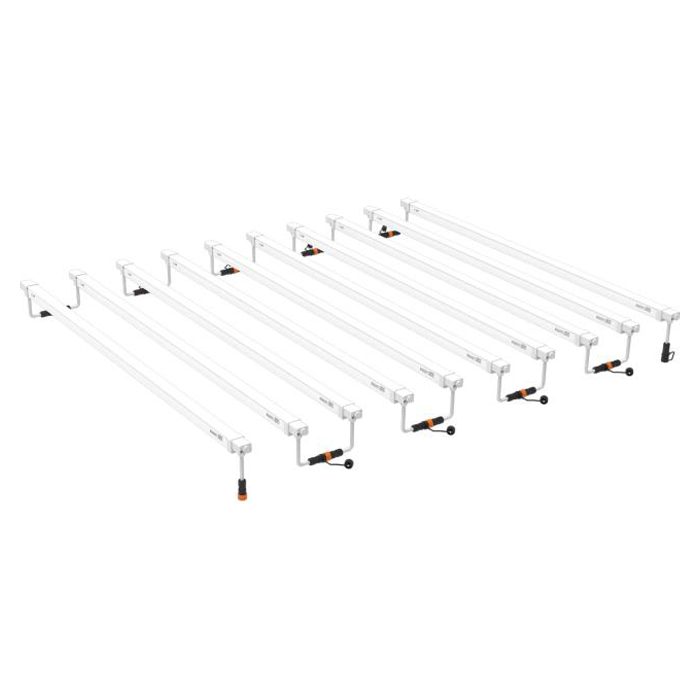

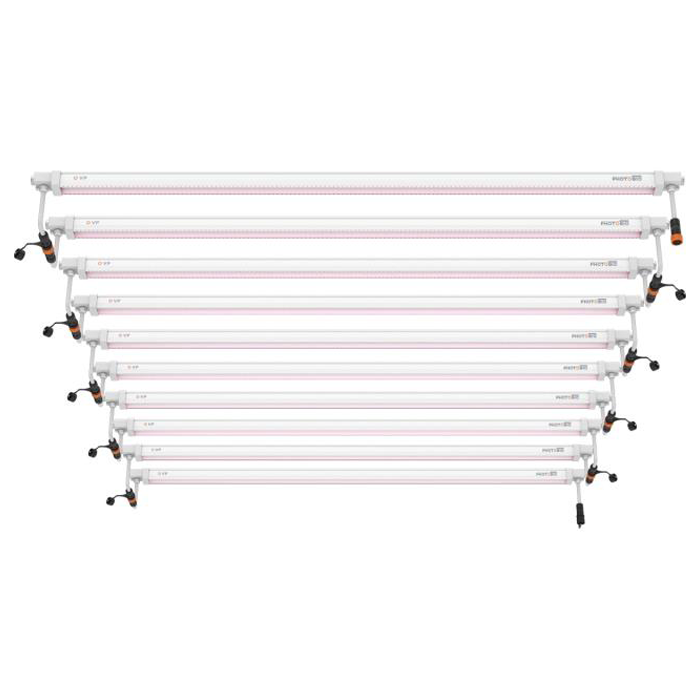

- Daisy chain 10-23 fixtures together from a single power source depending on the voltage
- Passive heat cooling
- Liquid tight push lock connectors compatible with existing PHOTOBIO cable environment

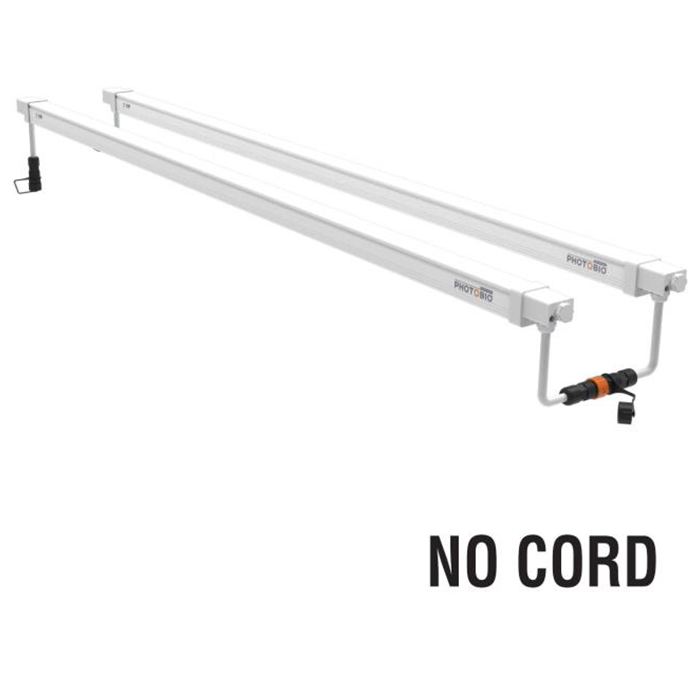

- Power cords sold separately
- Voltage: 120-277V
- 5 year warranty
- IP65 rated
- CE, ETL, FCC, DLC Certified
- Includes 4 mounting clips, screws, and zip-ties for installation
- Not Dimmable
Photon Flux for the Photobio VP
Photosynthetic Photon Flux Density (PPFD) data is produced by using professional lighting simulation software and third party laboratory photometric files. All PPFD data are measured in µmol/m2/s.
The result is showing a 20"x44" calculation grid assuming two fixtures mounted 9" apart in a 2'x4' grow shelf with 85% wall reflectance. Actual measurement may vary depending on actual use conditions, input voltages, and measuring instruments.
Specifications for the Photobio VP
| Voltage | 100/277 Volts |
|---|---|
| Power | 43 Watts per bar |
| Spectrum | VE Vegetative Spectrum |
| PAR | 2.3 µmol/J |
| PPF | 73.6 µmol/s |
| Warranty | 5 Years |
| Frequency | 50/60 Hz |
|---|---|
| Dimensions | 47.3" x 1.3" x 1.3" |
| Weight | 1.5 lb / 0.7 kg |
| Thermal Management | Passive |
| Included Power Cord | Choose Desired Voltage |
| Power Cord Length | 10 ft. (Open Leads 2 ft.) |
Voltage & Amperage
| Voltage | 120 Volt | 208 Volt | 240 Volt | 277 Volt |
|---|---|---|---|---|
| Amperage | 0.26 Amps | 0.15 Amps | 0.13 Amps | 0.11 Amps |
| Brand | PHOTOBIO |
|---|---|
| SKU | PTB1130VEPX |
| Weight (lb.) | 4.4000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This Product Ships in 2-3 Business Days |
| Hazardous Material | false |
| UPC | 638104027984 |
| Case/Pack/Pallet Amount | 2 |
| Lighting Type | LED |
| LED Light Spectrum | Veg Spectrum |
| LED Fixture Type | Clone Light, Bar/Strip |
| Exact Watts | 32 Watts |
| Suggested Hanging Height | 9" |
| LED Driver Type | Internal driver |
| Power Factor | 0.95 |
| Daisy Chain | 10-23 |
| Voltage | 120 Volts, 208 Volts, 240 Volts, 277 Volts |
| Amps | .26A - 0.11A |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | None |
| Grow Light Certifications | IP65 Rated, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
Which growth stages and growing setups suit the PHOTOBIO VP?
The PHOTOBIO VP uses a VE Vegetative Centric Spectrum for vegetative and propagation growth stages. The slim vertical profile suits vertical farms and propagation setups.
Can PHOTOBIO VP fixtures be linked for vertical farming installations?
PHOTOBIO VP fixtures support daisy chaining 10 to 23 fixtures from one power source, depending on voltage. The modular design helps maximize vertical growing space.
What input voltage and dimming control does the PHOTOBIO VP support?
The PHOTOBIO VP supports 100 to 277 volt input power and is not dimmable.
Can the PHOTOBIO VP handle dust and liquid exposure in growing environments?
The PHOTOBIO VP has an IP65 ingress protection rating for protection from dust and liquids. The PHOTOBIO VP also includes liquid-tight push-lock connectors.
What comes with the PHOTOBIO VP two-light pack?
The PHOTOBIO VP pack includes two LED light bars, four mounting clips, screws, and zip ties. A power cord is not included and must be purchased separately.
What light output and efficiency does the PHOTOBIO VP provide?
The PHOTOBIO VP provides 73.6 µmol/s PPF and 2.3 µmol/J efficacy at 277 volts.
What warranty covers the PHOTOBIO VP?
The PHOTOBIO VP includes a five-year warranty.
