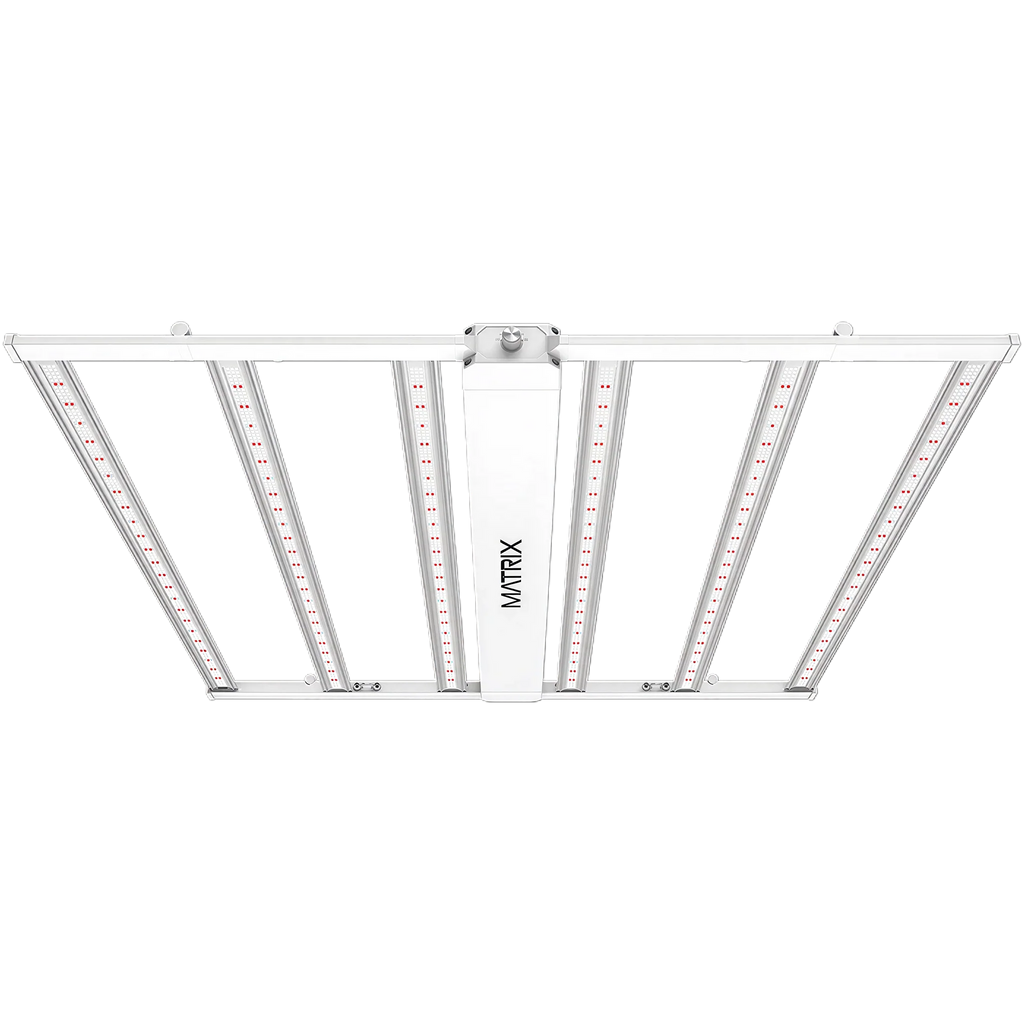

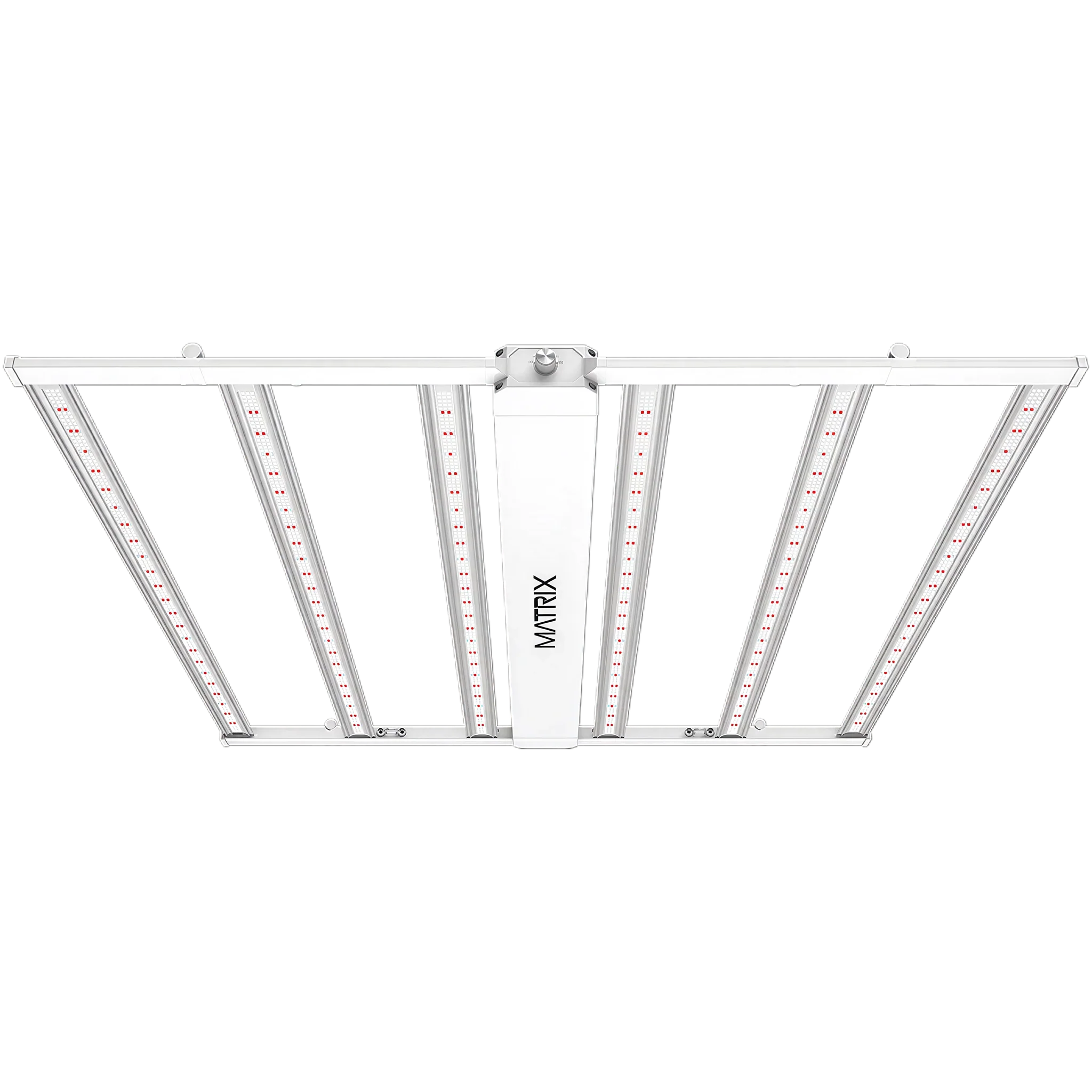

Matrix M6 User ManualThe Matrix M Series grow lights are designed for maximum efficiency and crop performance. Powered by Samsung 301H EVO diodes, these lights deliver optimized, uniform light intensity, ensuring superior yield and plant quality.
With flexible dimming control (25%-100%) and easy-to-install built-in drivers, the Matrix M Series adapts to any growing environment, from single-layer to multi-layered systems. Plus, with a 5-year warranty, you can grow with confidence knowing your investment is protected.
Up 80 lights can be daisy chained, making the Matrix M Series 645 Watt LED perfect for commercial grows too!

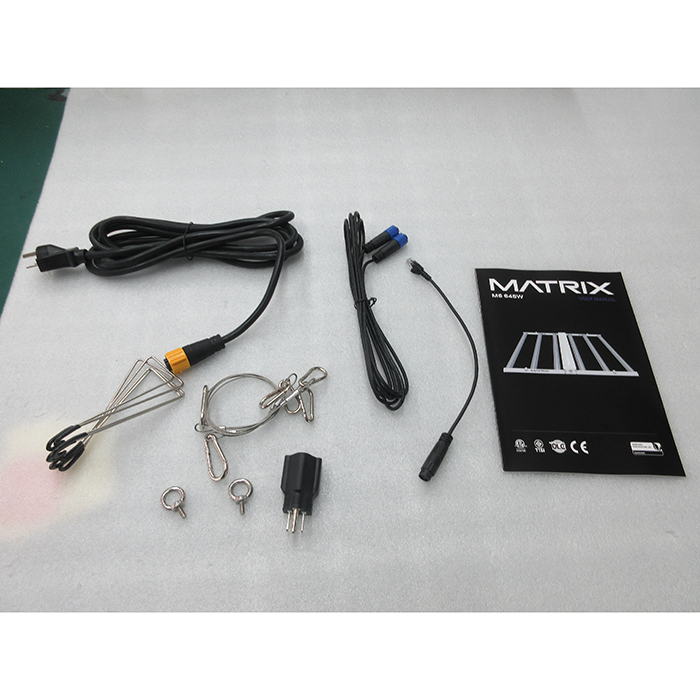

In The Box:

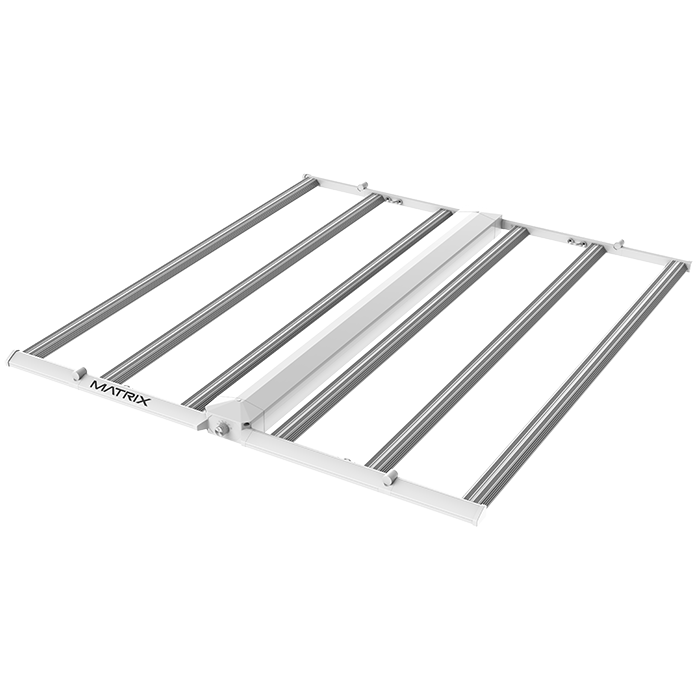

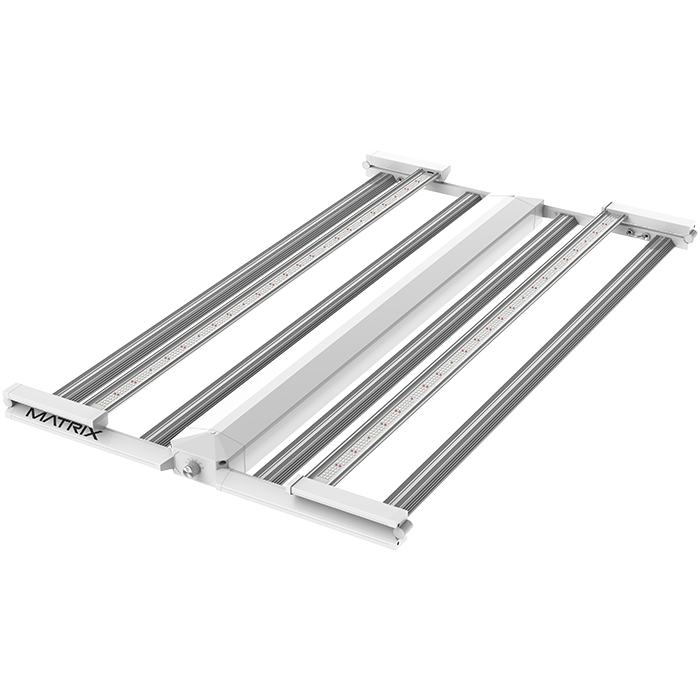

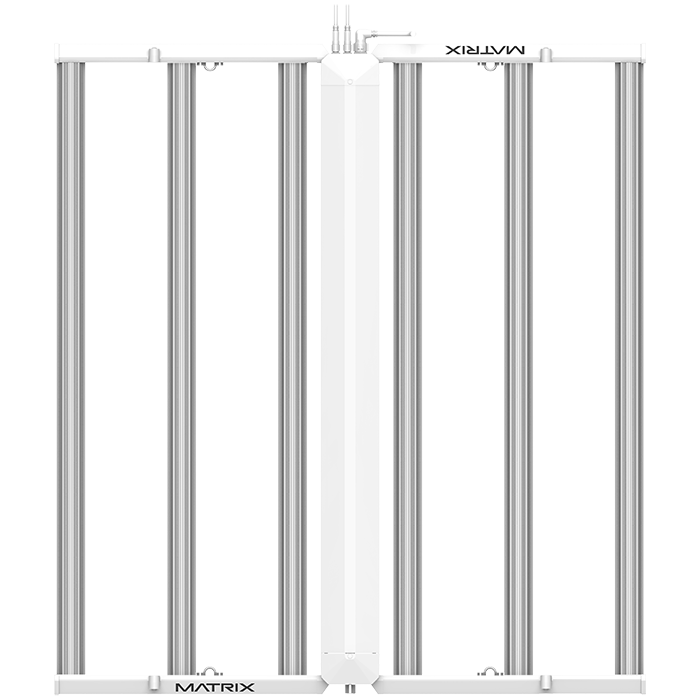

- 1x) Matrix M6 645 Watt LED Light
- 4x) Solid Decking Mounts
- 2x) Lance Hangers

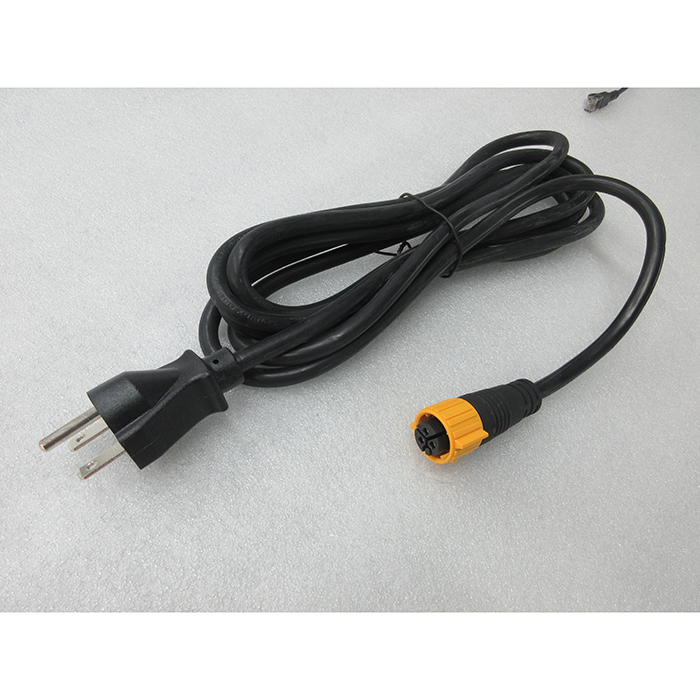

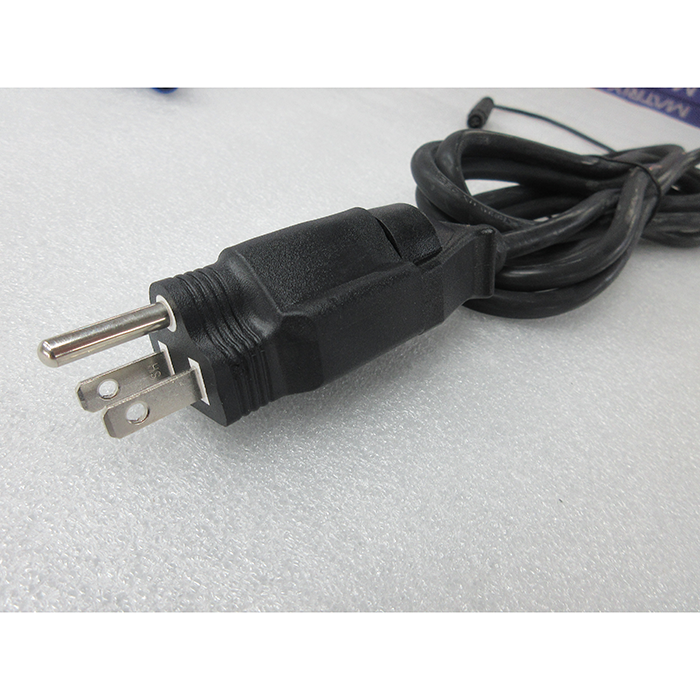

- 1x) Input Power Cord

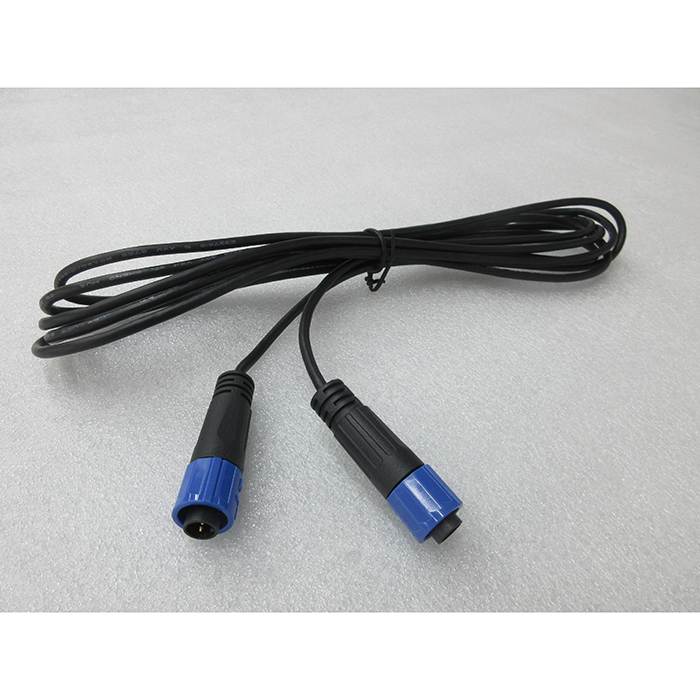

- 1x) M12 Cable

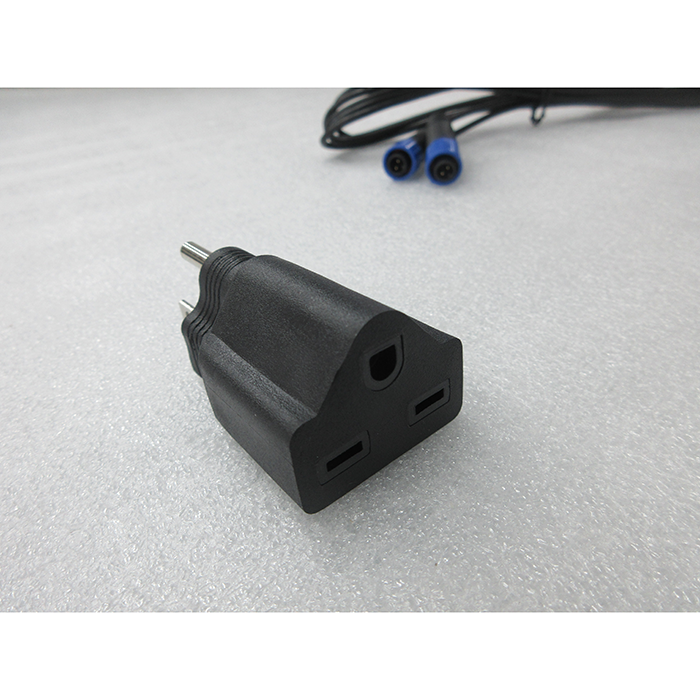

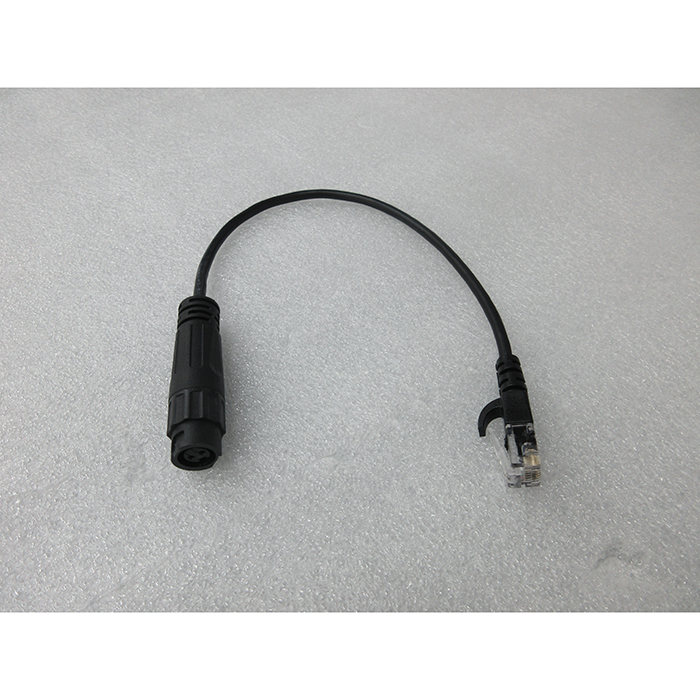

- 1x) RJ14 Adapter
Features
- Optimized Light Intensity The Matrix M series provides an exceptionally high and uniform light intensity, ensuring maximum crop yield and quality.

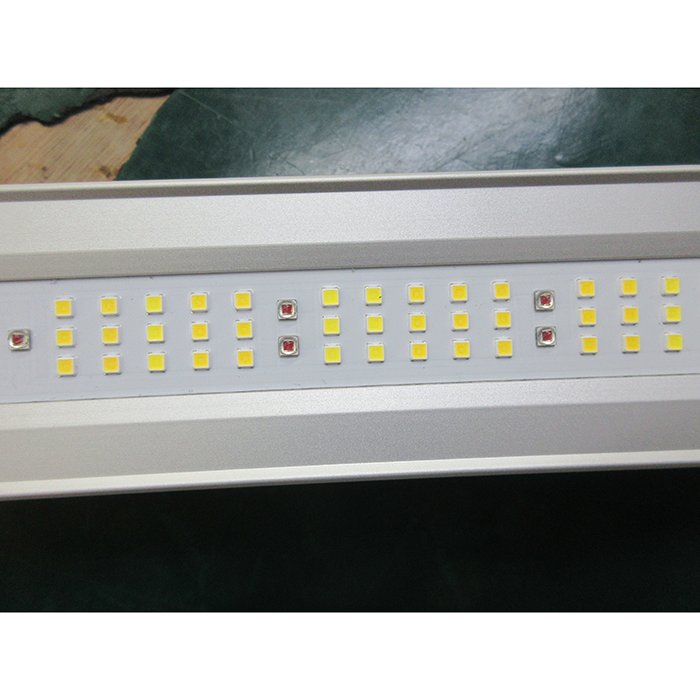

- Supercharged by Samsung EVO Equipped with Samsung 301H EVO diodes, Matrix M series offers the ability to finely adjust light intensity, allowing growers to tune brightness to meet the specific requirements of plants throughout their entire growth cycle.
- Flexible Dimming Capability With the Matrix controller, lights can be dimmed from 25% to 100%, allowing growers precise control over their lighting conditions.
- Streamlined Installation Matrix M series lights are equipped with built-in drivers, reducing complexity and installation time.
- Versatile Applications Suitable for a wide range of facilities, whether operated on a single or multi-layered system.
- Long-Term Guarantee We stand behind our products with a 5-year warranty, offering our customers peace of mind.
Technical Specifications
Input Power | 645 Watts |
---|---|
Input Voltage | 120V - 208V - 240V - 277V |
Input Current | 5.38A - 3.1A - 2.69A - 2.33A |
Frequency | 50/60Hz |
Power Factor | >95% |
Thermal Management | Passive |

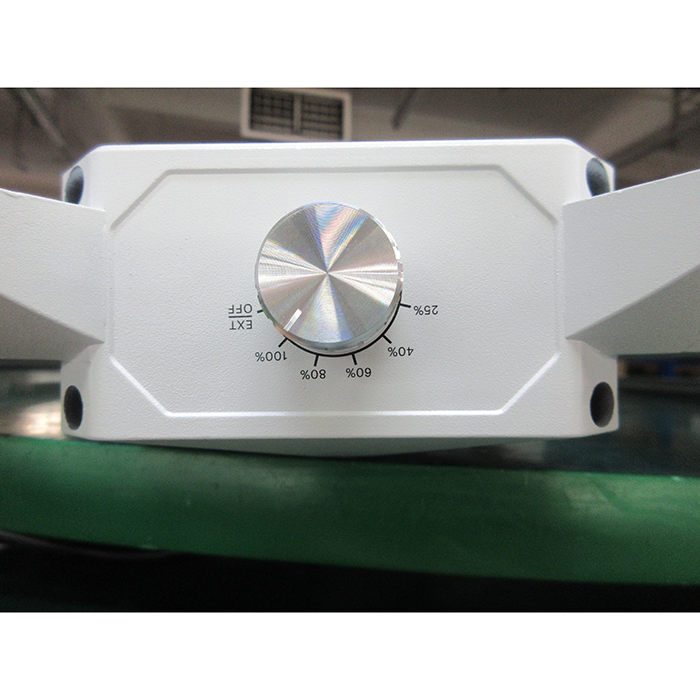

Dimming | 25% - 40% - 60% - 80% - 100%EXT/OFF |
---|---|
Warranty | 5 Years |
Certification | ETL/TISI/CE/UL8800/IP66 |
Size | 43.8" x 48" x 2.5" |
Weight | 34.2 |
Brand | Matrix |
---|---|
SKU | 307000 |
Weight (lb.) | 15.8000 |
Prop 65 | false |
Length (in.) | |
Width (in.) | |
Height (in.) | |
Warranty | 5 Years |
Lead Time | This product ships in 2-3 business days |
Hazardous Material | false |
Lighting Type | LED |
LED Light Spectrum | Full Spectrum |
LED Fixture Type | Multi-Bar |
LED Features | Manual Dimming Knob, Dimmable *with Controller |
Est. Electricity Cost /mo | $27.91 |
Exact Watts | 645 Watts |
Suggested Hanging Height | >=6" |
LED Diode Type | Samsung 301B/301H & OSRAM |
Power Factor | >95% |
Daisy Chain | Up to 80 lights |
Voltage | 277 Volts |
Amps | 5.38 A @ 120 Volts - 3.10A @ 208 Volts - 2.69A @ 240 Volts - 2.33A @ 277 Volts |
Frequency | 50/6Hz |
Power Cord(s) Included | Yes - 277 Volt with 120 Volt Adapter |
Coverage Area | Veg: 6' x 6'; Flower: 5' x 5' |
Grow Light Certifications | DLC Listed, ETL Listed |
ETL Listed | Yes |
UL Listed | No |
