J&D Manufacturing JDMV1 Spec Sheet J&D Manufacturing JDMV1 Installation GuideManual variable fan speed controllers

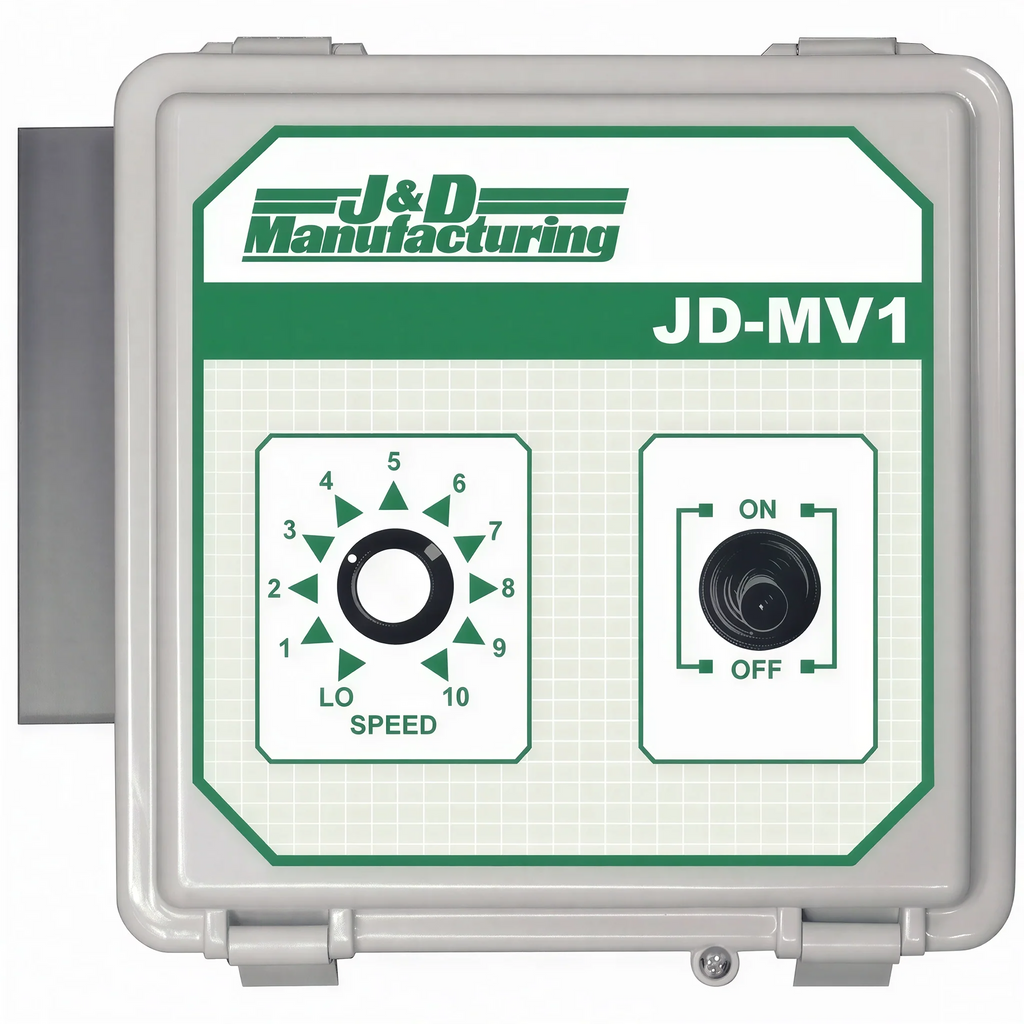

The JDMV1 and JDMV1-C are manual, variable speed controls. It has (1) variable speed output (12 FLA) and a 15 amp overload protection fuse. Use this simple control to ramp up or down the speed of your circulation fans.
Manual speed control for fans that have variable speed-capable motors. Designed for greater heat dissipation. Rubber gasket sealed enclosure. Separate on/off toggle switch and manual variable output knob. Internal adjustable low output setting. 115/230 Volts and 12 amps capacity with a 15 amp overload protection fuse.
This fan speed controller comes with or without a cord. The model with no cord can be wired for 115 or 230 Volts. The -C model comes with an 8 ft. power cord that is ready to be plugged in.
Features of the JDMV1
- (1) Variable speed output (12 FLA)
- 15 amp overload protection fuse
- Rugged and sealed enclosure (6" x 6" x 3-3/4")
- ON/OFF switch and manual variable output knob
- RFI noise suppression filter (provides RFI and EMI suppression)
- Internal adjustable “LO” output setting
- This model comes with no cord can be wired for 115 or 230 Volts.
| Brand | J&D Manufacturing |
|---|---|
| SKU | JDMV1 |
| Weight (lb.) | 3.0000 |
| Lead Time | Ships within 2 weeks |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 2 Year |
| Hazardous Material | false |
| UPC | 737623768603 |
| Prop 65 | false |
| Controller Functions | Ventilation Control |
| Amps | 12 Amps |
| Voltage | |
| Frequency | 50/60 Hz |
| ETL Listed | No |
| UL Listed | No |
