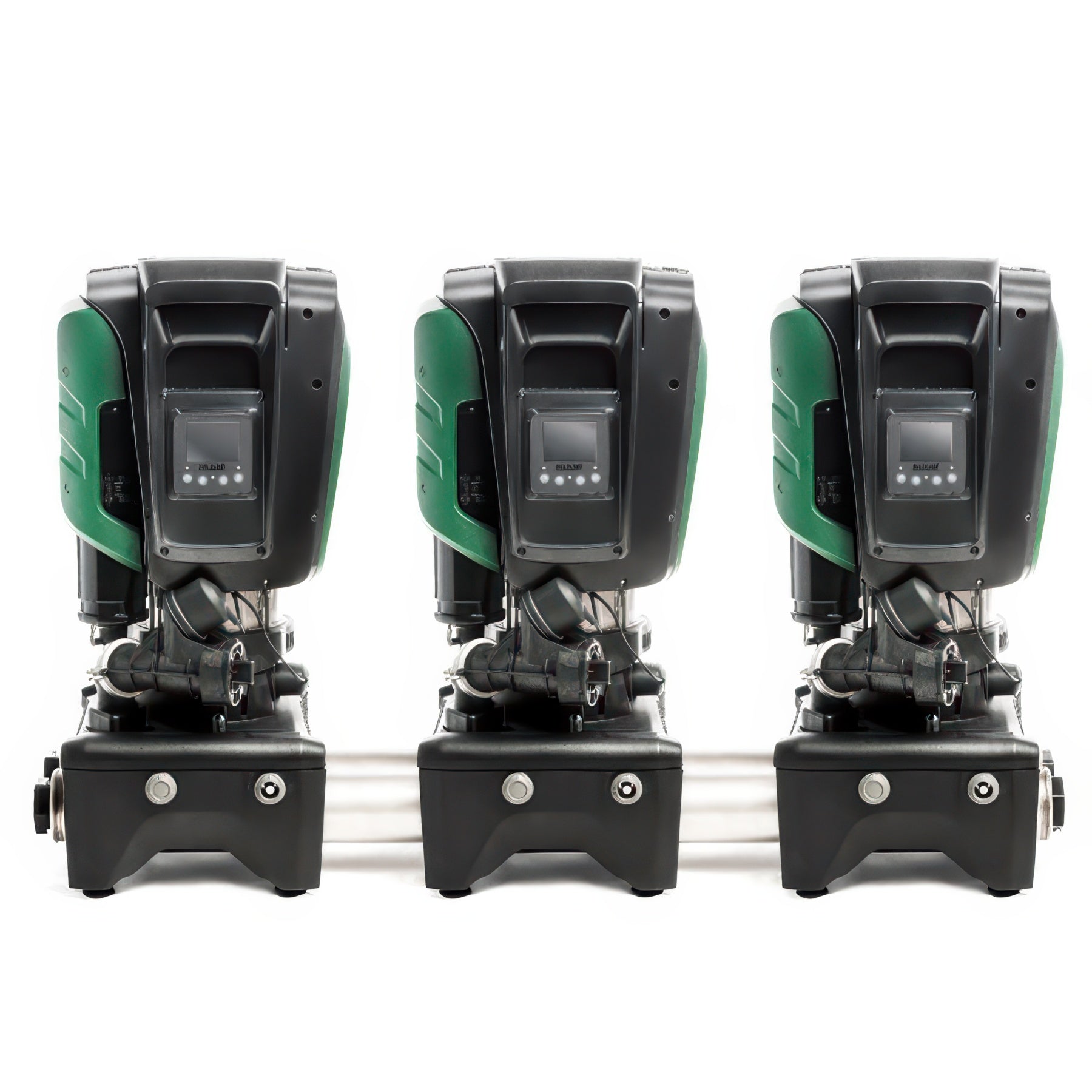

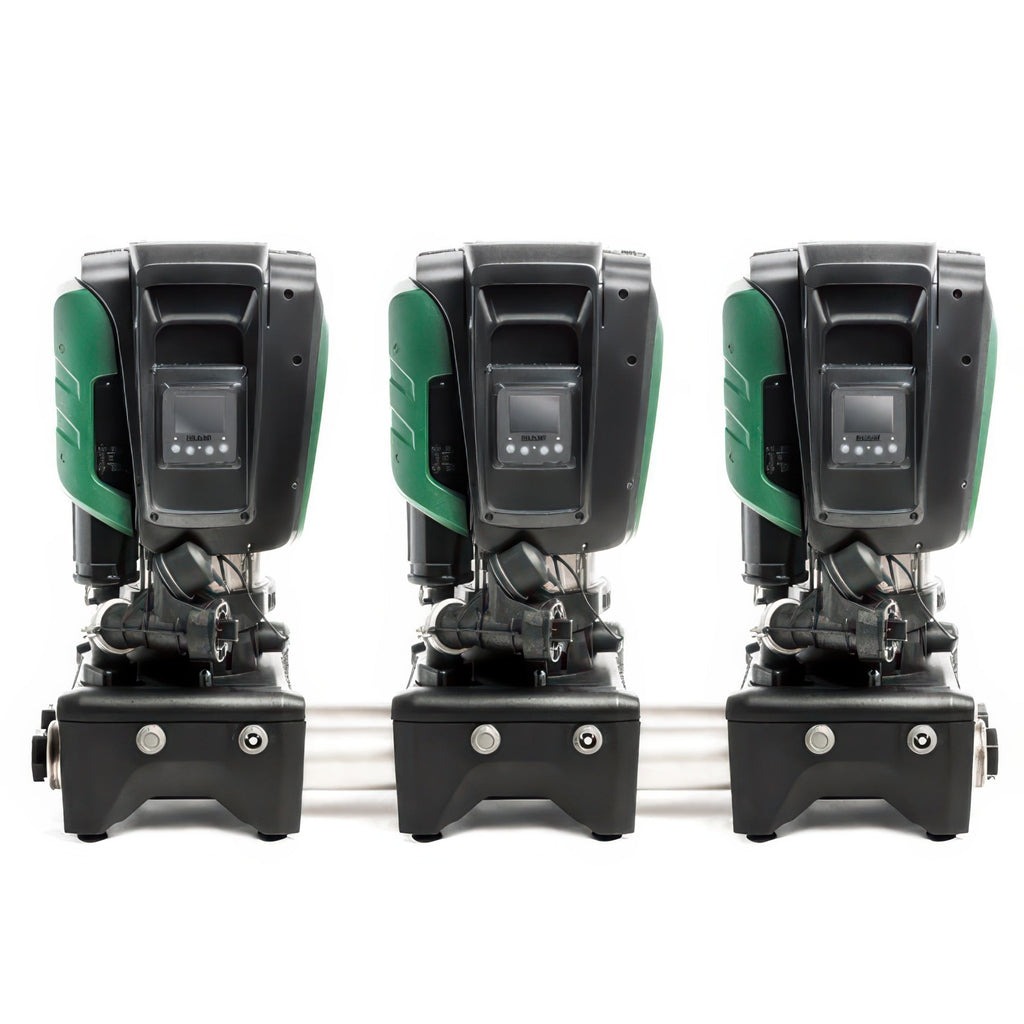

Esybox Max by Dab Pumps is an integrated water booster pumping system for water pressurization in Commercial Irrigation applications. Available in two power sizes, the Esybox Max consists of modular elements that allow different configurations to cover the needs of the application. Use the DAB ESYDOCK double and triple, to combine multiple pumps into a single pump system. Esybox Max is the most compact and integrated booster set available on the market compared with any traditional solution.
Easy Selection
Understanding a new range has never been easier. Now you only need to select from two different hydraulic models depending on the height of the building. Then you can create your booster set, with up to four pumps, depending on the demand.
Here comes the COMFORT
Energy-saving, thanks to the integrated inverter it optimizes performance; comfort, thanks to the DConnect app which allows you to manage the pressure required at any given moment to enjoy, for example, a nice warm boosted shower in total relaxation
Easy to move & install
Keeping it flexible, we have the On-Site Assembly concept. So if you have difficulties getting to the pumps location, due to narrow stairways and corridors etc, you can choose to assemble your booster on-site which will only require moving smaller lighter boxes into the location, by means of practical handles.
Installation can be completed with a quick "click"
Install Esydock into your pipework system and simply "plug your pumps in. A final quick setup via the digital DConnect app completes your installation project.
For DAB, the research and application of new technologies mean finding the best possible solution to users’ needs, while fully respecting the environment. Technological innovation is never an end in itself but it's functional to perfecting the quality of work and maximizing product reliability.
Easy to maintain with the affordable web based remote control
Why waste your time stuck in a traffic jam getting to your customers pumps? Now you can connect to them from anywhere.
From the coffee shop, car or the comfort of your own home, just log on through your PC or smartphone to the DConnect app. All you need to do is check the stored data and change any setting with just one click. Based on state-of-the-art technology, DConnect builtin offers many more advantages than typical BMS systems. Performance data storage and remote monitoring support you to control, from anywhere, that the running parameters of the pumps follow exactly to your project specification avoiding any possible site issues for complete peace of mind.
Thanks to 'Internet of Pumps' technology, you will be able to monitor and control your installations receiving alarms and notifications on any possible malfunctions or issues and keeping the main operating data under control, such as energy and water consumption. You'll experience a reduction in costs associated with on-site visits and duration of interventions, guaranteeing at the same time greater reliability of the systems. With DConnect you can offer your customers a more effective and economical service, such as the new Silver and Gold packages, these allow basic and advanced assistance and are linked to the setup of the Esybox Max, allowing continual monitoring and remote control of the systems, connecting you in real-time to receive specific and settable alarms or reports on the performance of the systems.
Integrated pumping system for pressurization in commercial building service. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of medium/large condominiums and high buildings (even over 14 floors). Each unit consists of the single, double or triple connection base and the pumping units; a four-pumps system is available with the additional kit to connect two double bases. The modular construction allows to assemble the pumping groups directly at the installation site (O.S.A. concept). The silence and compactness of dimensions allow installation in all rooms, even inhabited. Another important feature of this pump is the possibility to operate in booster mode with a maximum intake pressure of 5.0 bar.
NOTE: The building type/Esybox Max number combinations proposed here are simply examples. Product configurations can be modulated in different ways according to the specifications of each project.
Indicated for booster sets for water systems of small, medium and large users. They can be used in the most varied fields, such as:
NOTE: The system cannot be used to pump salt water, sewage, inflammable, corrosive or explosive liquids (e.g. petroleum, petrol, thinners), greases, oils or food products.
DAB ESYBOX MAX Certifications:
| Flow Rate Maximum | Up to 17,4 m3/h (For single unit) |
| Head Up To | 311 ft (95 m) |
| Liquid Temperature | 122°F (+50°C) |
| Max Ambient Temperature | 131°F (+55°C) |
| Max Inlet Pressure | 5 bar |
| Operation Pressure | 12 bar / 1200 kPa |
| Max Differential Pressure | 9,4 bar (85/120); 6,7 bar (60/120) |
| Constant Pressure Range | 1-12 bar (3 bar by default) |
| Motor Protection Class | IP X5 |
| Certification | WRAS, ACS, NSF61 ( are pending approval ) |
| Impeller Material | Technopolymer |
| Motor Insulation Class | F |
| 1 Phase Power | 208-240 Volt 50/60Hz |
| 3 Phase Power | 380-480 Volt 50/60Hz |
| Installation | Fixed in vertical position |
| Type of Pumped Liquid | Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral |
| Brand | DAB Pumps |
|---|---|
| SKU | ESYBOX-MAX-85/120T-TRIPLE |
| Weight (lb.) | 252.0000 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 2 Year |
| Hazardous Material | false |
| Lead Time | Please call 888-815-9763 for regional availability & lead time. Lead time generally 3-5 weeks |
| Shipping Restrictions | AK, HI |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Water Pump Type | Inline Pump |
| Gallons Per Hour | 13,788 GPH |
Q: Is there an expansion tank on the Esybox Max?
A: The integrated expansion tank is used to manage small leaks in the system, not to provide a water reserve for user requests. We advise to add an expansion tank of the desired capacity to the system by connecting it to the delivery pipe (and not on the suction). We always recommend consulting the product manual for all information.
Q: Can Esybox Max be used for Drinking water?
A: Yes, Esybox Max is certified to NSF61 & NSF372 for drinking water use. We always recommend consulting the product manual for all information.
Q: What do I need to install Esybox Max on the site?
A: Esybox Max is an OSA (On Site Assembly) product, therefore the final assembly process of a product is done directly in the place where it will be placed, instead of in the factory. Esybox Max is conceived from the design stage with all possible uses in mind. The box contains everything necessary for assembly, like a multi-purpose tool, which can be used for example to join the pump to Esydock or to unscrew the pump caps. We always recommend consulting the product manual for all information.
Q: What hydraulic connections are possible?
A: Single pump set 2” NPT Female or can be reduced to 1 ¼” NPT Female with supplied threaded bush Twin and triple sets 2” NPT Female. Four types of hydraulic connections are possible. We always recommend consulting the product manual for all information.
Q: How should I proceed for the first water filling of Esybox Max?
A: It depends on whether the installation is under head or over head. In the above head installation, access the technical compartment and using the multi-purpose tool (or a screwdriver) remove the filler cap and slowly fill Esybox Max with clean water (11 liters), slowly to allow the air to escape. In the under head installation it is not necessary to manually fill the system but it is necessary to partially unscrew the filling cap during the first start-up to let the air out. Once filled it is necessary to screw the cap back on completely. We always recommend consulting the product manual for all information
Q: How do I start Esybox Max for the first time?
A: For the first start-up follow this procedure:
Q: How should I prime the Esybox Max?
A: It depends on if installation has flooded suction or not.
In the installation has a suction lift, access the technical compartment and using the multi-purpose tool (or a screwdriver) remove the filler cap and slowly fill Esybox Max with clean water 3 gal (11 liters), slowly to allow the air to escape.
In the installation has a flooded suction, it is not necessary to manually fill the system, but it is necessary to partially unscrew the filling cap during the first start-up to let the air out. Once filled it is necessary to screw the cap back on completely.
