Grow Light Hangers & Rope Ratchets
Grow light hangers -- primarily rope ratchets and adjustable cable hangers -- are the standard method for suspending grow lights, carbon filters, fans, and other equipment from the overhead structure of a grow tent or grow room. The adjustable design allows precise hanging height control without tools: pull the release tab on a rope ratchet to lower the fixture, lock it to hold position. For grow lights in particular, the ability to quickly and precisely adjust hanging height -- raising the fixture as plants grow taller, lowering it to increase PPFD intensity at a specific stage -- makes adjustable rope ratchets far more practical than fixed-length chains or wire.
Rope Ratchets: Load Ratings & Sizing

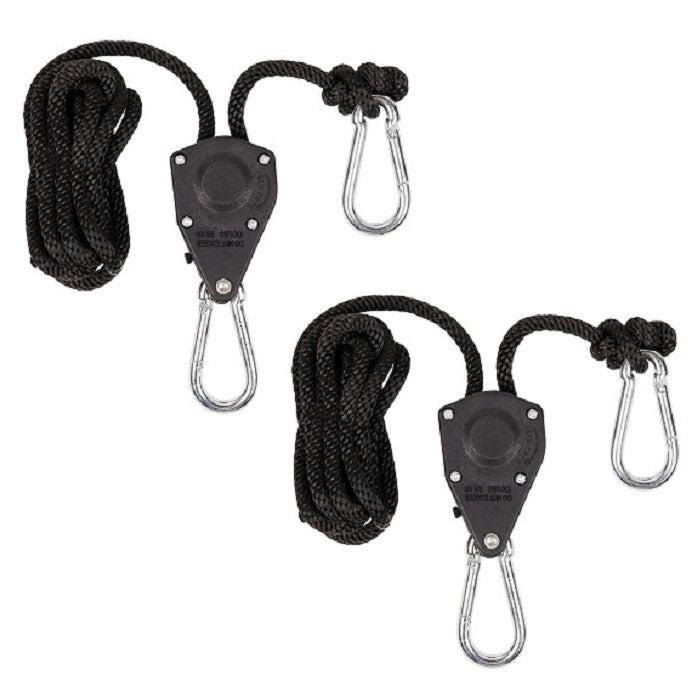

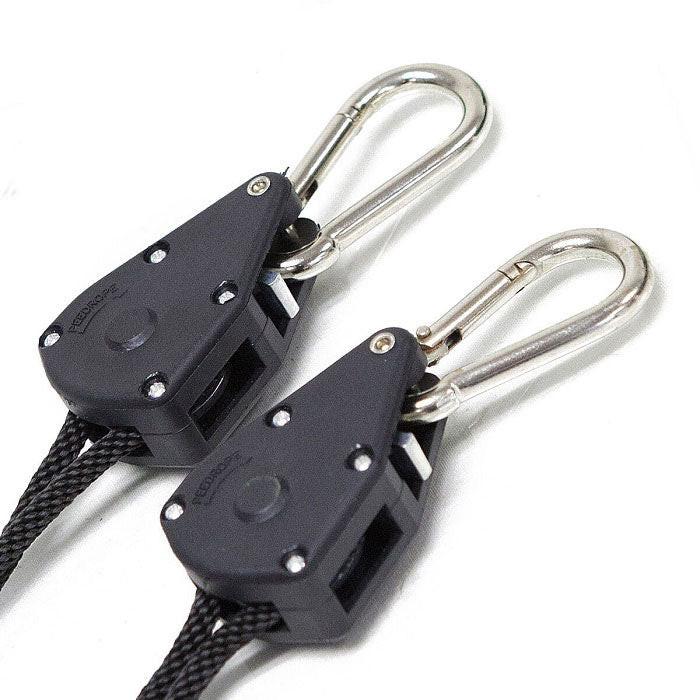

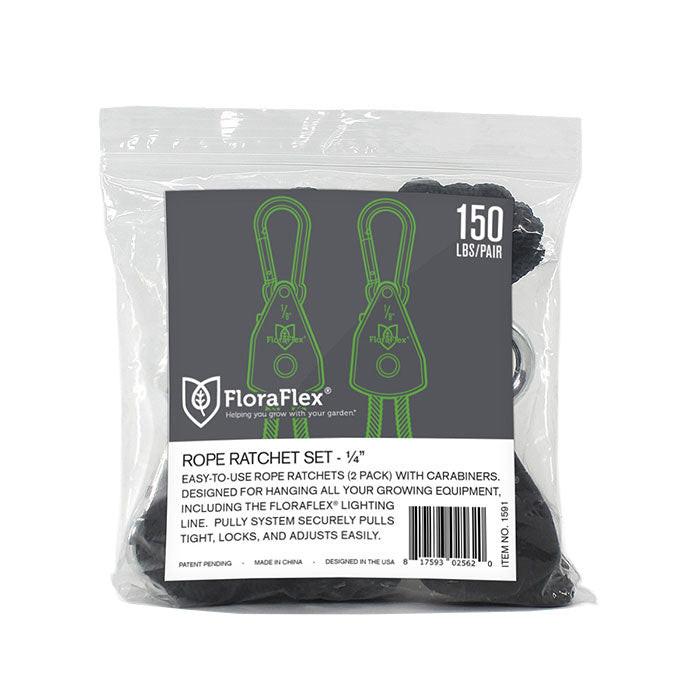

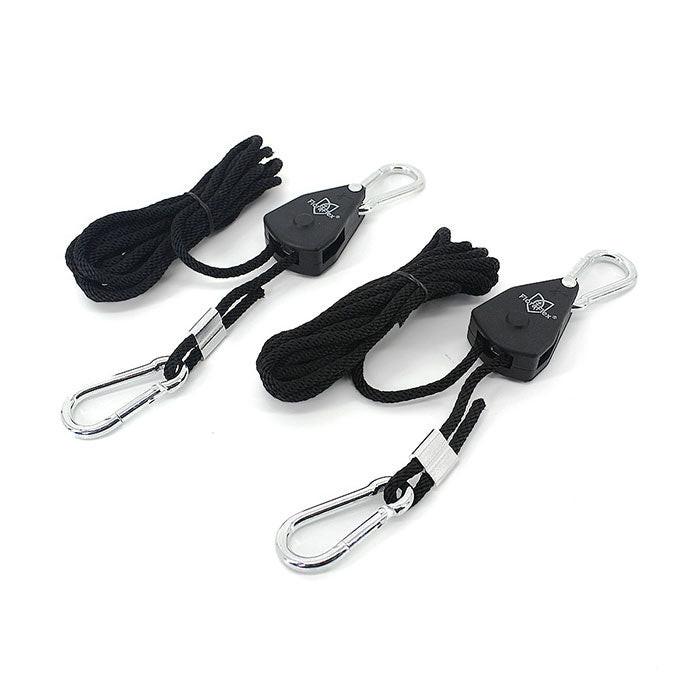

Rope ratchets are rated by maximum load capacity per pair. The two most common sizes are 1/8-inch diameter (rated 75-150 lbs per pair, depending on brand) and 1/4-inch diameter (rated 150-300 lbs per pair). For most LED grow lights in the 400-1000W range (typical fixture weight 10-30 lbs), a pair of 1/8-inch rope ratchets provides adequate capacity with significant safety margin. For heavy commercial LED fixtures, overhead carbon filters, or any combination of equipment sharing the same support point, step up to 1/4-inch rope ratchets or verify the load capacity against the combined weight of all hanging equipment. Always use both ratchets in a pair to distribute load evenly -- hanging a fixture from a single ratchet concentrates the full load on one mounting point. For mounting to tent poles, confirm the tent's pole weight rating before hanging heavy equipment.
Grow Light Hangers for Carbon Filters & Fans
Carbon filters and inline fans inside grow tents also require hanging support -- most growers hang the carbon filter from rope ratchets on the overhead cross bars and connect the inline fan via short ducting. Carbon filters for 4-6 inch duct fans weigh 5-20 lbs depending on size; large 8-10 inch commercial filters can weigh 30-50 lbs. Use 1/4-inch rope ratchets for anything above 20 lbs of combined equipment weight at a single mounting point. Browse our full carbon filter collection and fan and filter kits for matched components. Fast shipping.
Grow Light Hangers FAQ
What size rope ratchets do I need for my grow light?
Most LED grow lights in the 400-1000W range weigh 15-35 lbs. A pair of standard 1/8-inch rope ratchets (rated 75-150 lbs per pair) handles this load with significant safety margin. For heavier fixtures (commercial LED arrays weighing 40+ lbs), overhead carbon filters in the 10-20 lb range, or any setup where you are hanging multiple components from the same tent cross bar, step up to 1/4-inch rope ratchets rated 150-300 lbs per pair. When in doubt, use the heavier-duty option -- the cost difference is minimal and the safety margin is meaningful.
How do I use a rope ratchet to hang a grow light?
Thread one end of the rope ratchet over the tent's overhead cross bar or ceiling hook. Attach the lower hook to the grow light's hanging point (most fixtures include built-in hanging points at each end or a center hanging loop). Pull the free end of the rope through the ratchet mechanism to raise the fixture to the desired height -- the ratchet locks automatically at any position. To lower the fixture, press and hold the release tab on the ratchet body while guiding the fixture down. Use both ratchets in the pair simultaneously to keep the fixture level throughout height adjustments. Confirm the fixture is level and at the correct height with a tape measure before powering on.
