TrolMaster Product Documents

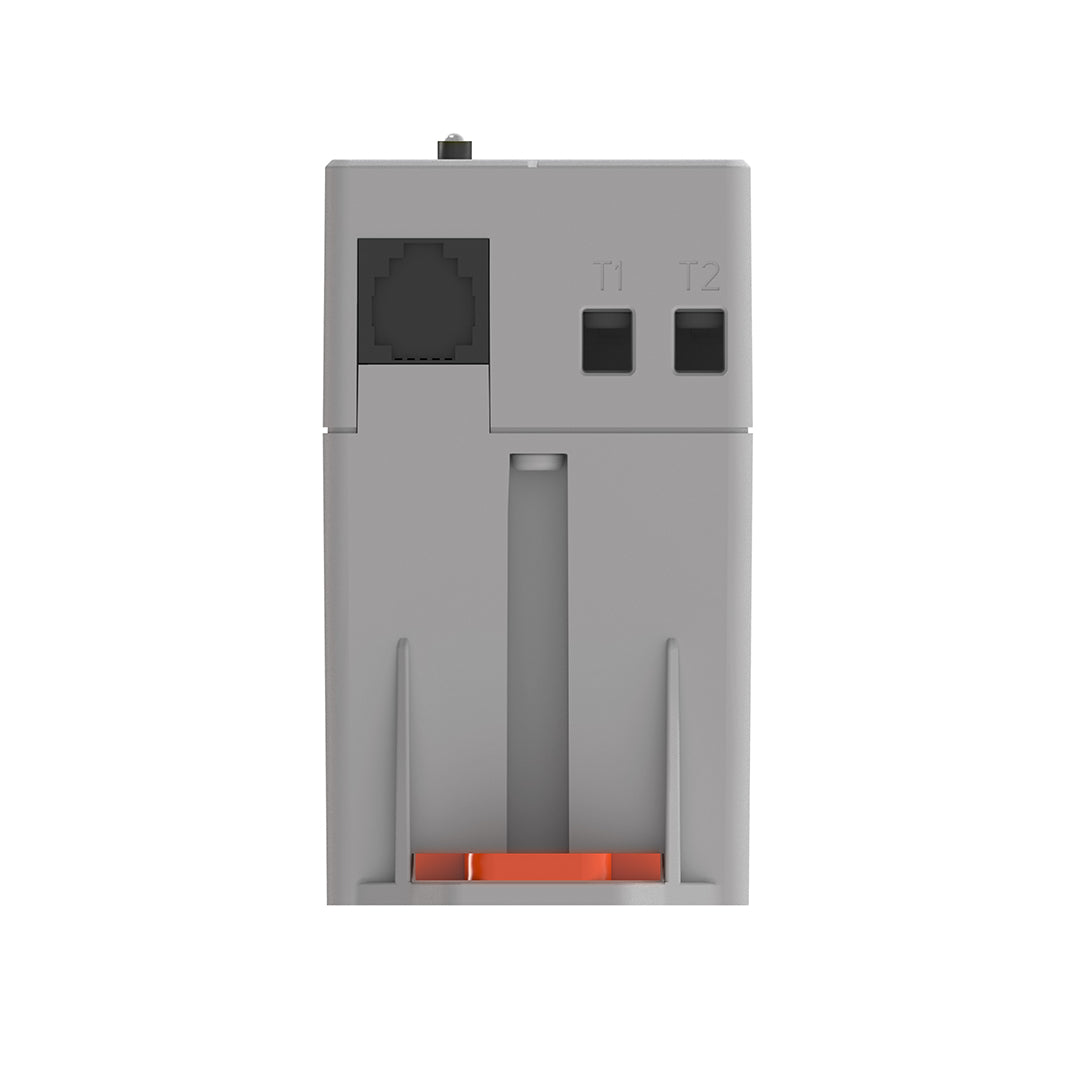

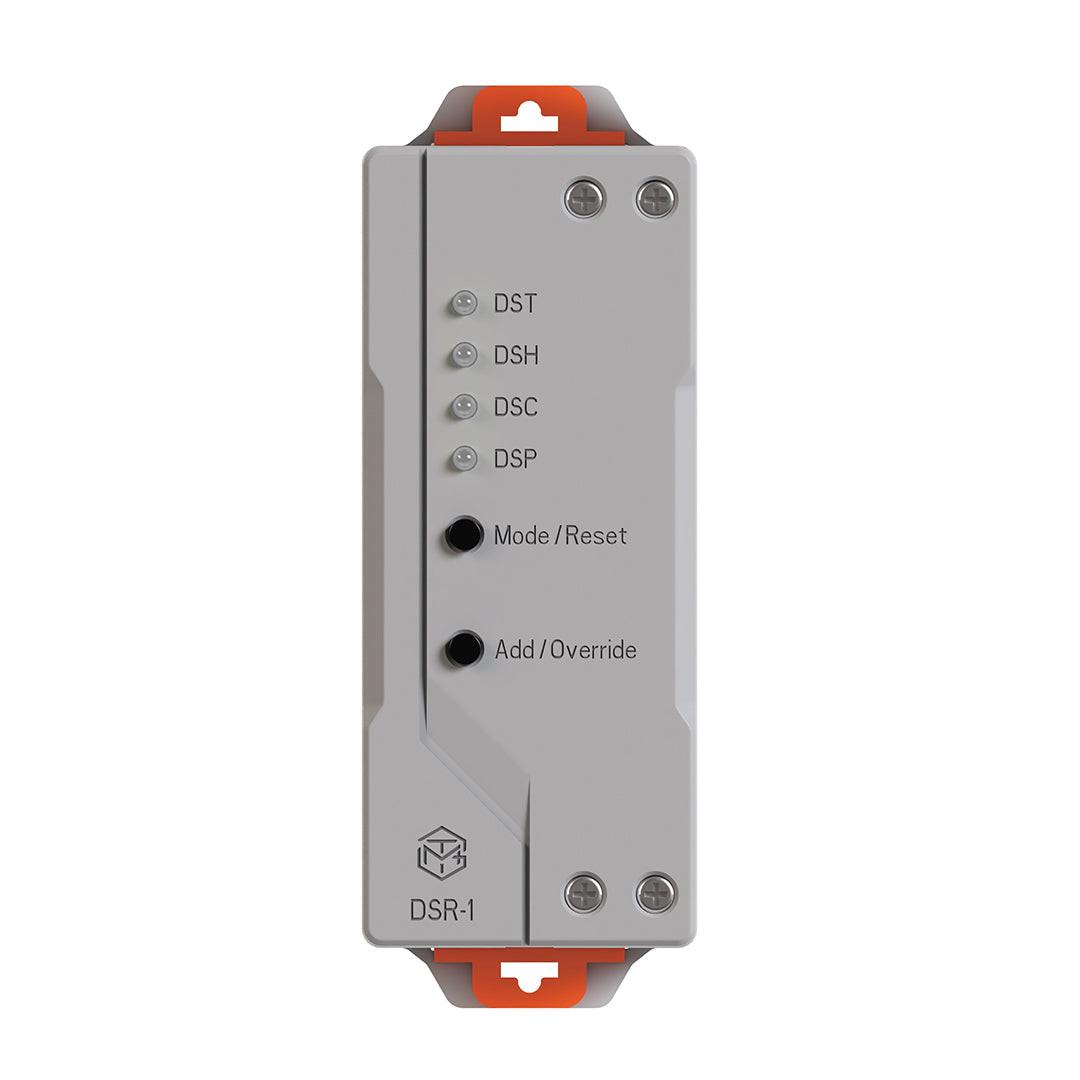

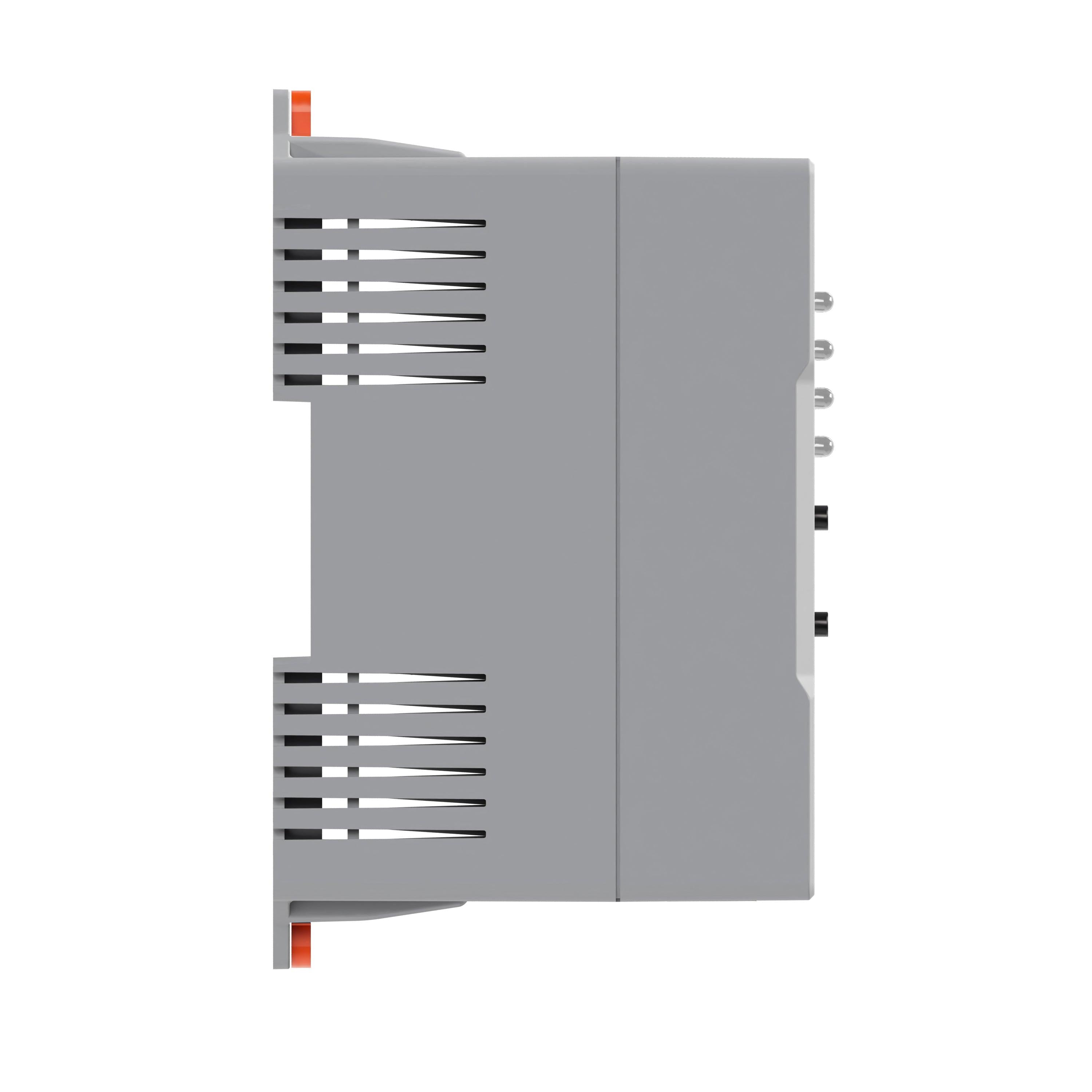

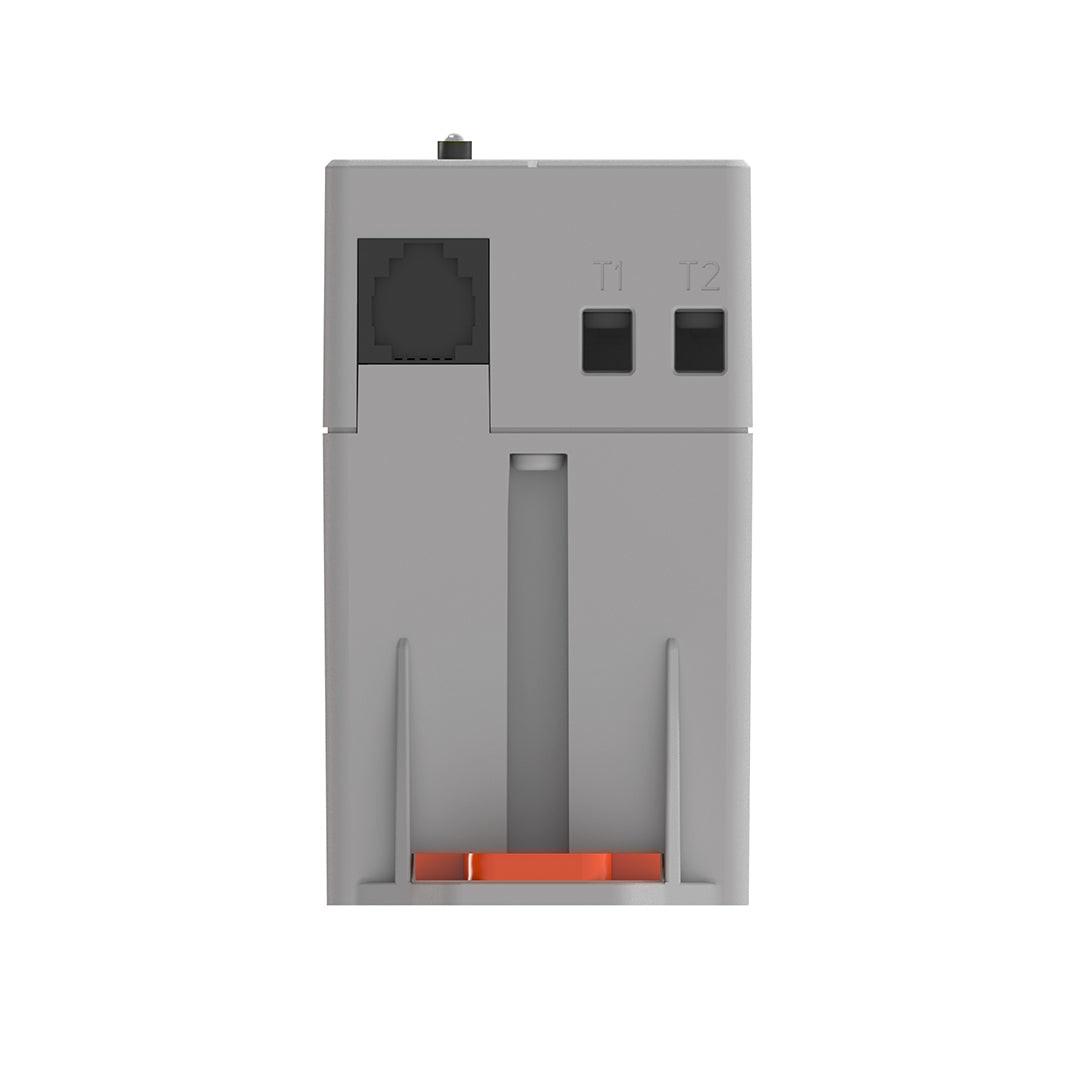

TrolMaster 25 Amp Relay Device Station Tech SheetThe TrolMaster DSR-1 Relay Device Station is a high-current output module(up to 25-Amp) compatible with Hydro-X, Aqua-X, Carbon-X, and Green-X control systems. The DSR-1 can be configured as a temperature (DST), humidity (DSH), CO2 (DSC), or timer (DSP) device module. It is designed with overload protection. The DSR-1 supports up to 25 amps, ensuring reliable operation of connected equipment.
What's Included
- 1x 25Amps Relay Device Station
- 1x 0.5ft RJ12 Cable
- 1x 4ft RJ 12 Cable
Features & Benefits
- Up to 25-amp high current load
- Multiple purposes assignment
- Plug & Play
Specifications
- Input Voltage: 100-277V~, 50/60Hz
- Output Current: 25A
- Output Voltage: 100-277V~, 50/60Hz
- Working Environments: Temperature 32-104°F (0-40°C), Humidity ≤90%
Which TrolMaster control systems are compatible with the TrolMaster DSR-1 Relay Device Station?
The TrolMaster DSR-1 Relay Device Station is compatible with Hydro-X, Aqua-X, Carbon-X, and Green-X control systems.
What can the TrolMaster DSR-1 Relay Device Station control?
The TrolMaster DSR-1 Relay Device Station can be configured as a temperature, humidity, CO2, or timer device module.
What connected equipment load can the TrolMaster DSR-1 Relay Device Station support?
The TrolMaster DSR-1 Relay Device Station supports high-current connected equipment loads up to 25 amps. The relay device station includes overload protection.
What comes with the TrolMaster DSR-1 Relay Device Station?
The TrolMaster DSR-1 Relay Device Station package includes one 25-amp relay device station, one 0.5-foot RJ12 cable, and one 4-foot RJ12 cable.
Does the TrolMaster DSR-1 Relay Device Station support plug-and-play setup?
The TrolMaster DSR-1 Relay Device Station supports plug-and-play setup and includes two RJ12 cables for system connection.
