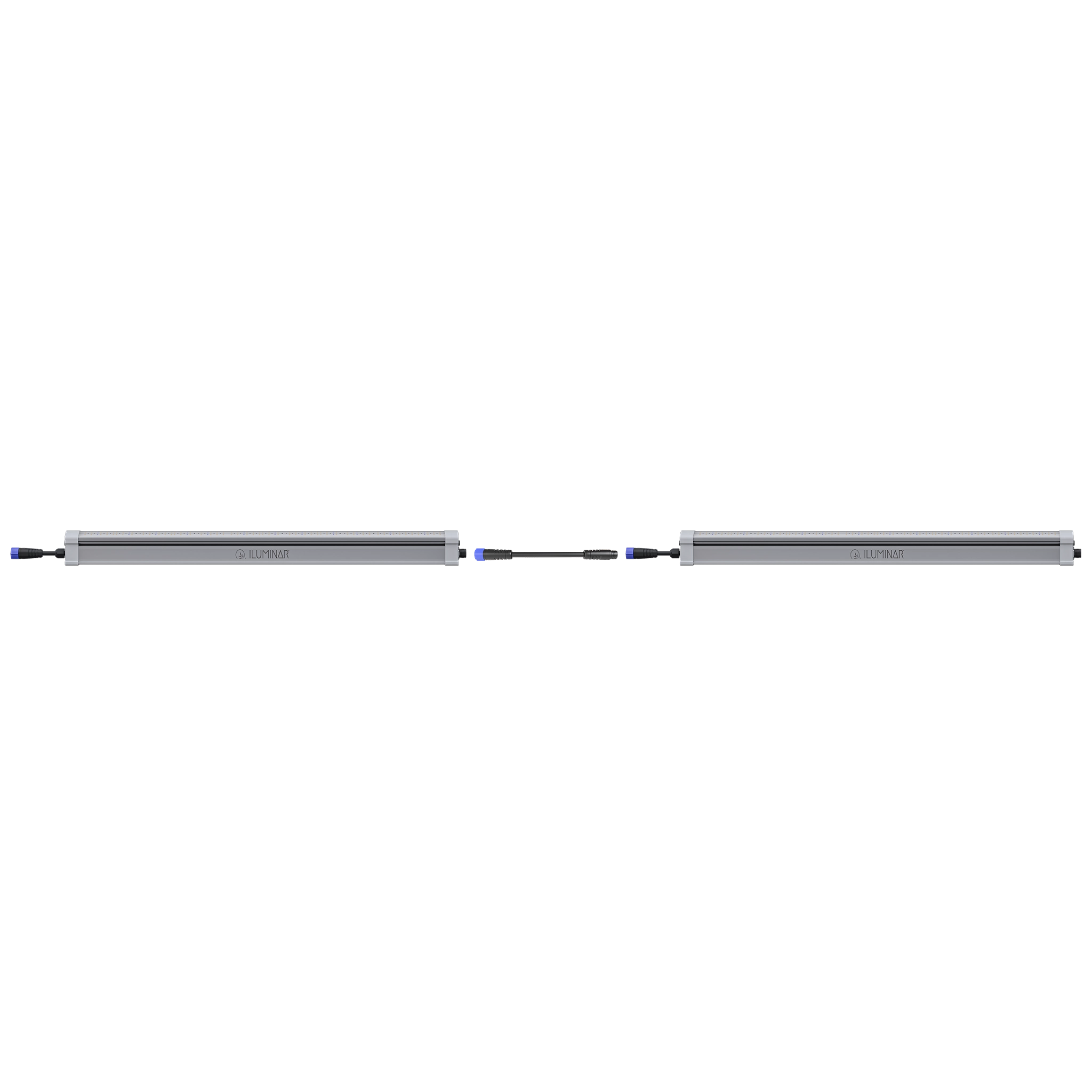

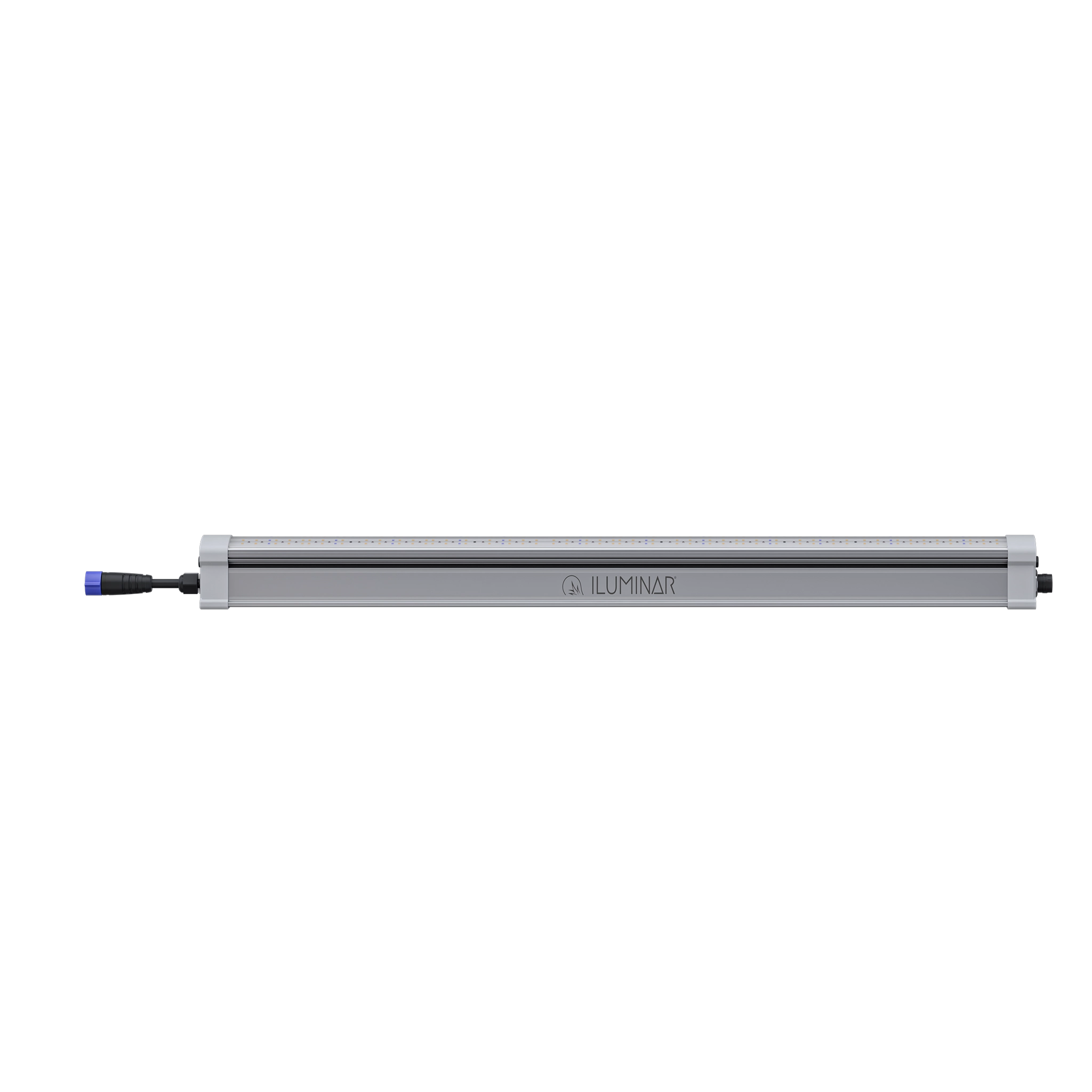

Iluminar Under Canopy WX-R 160 Watt LED Grow Light Bar
Iluminar Under Canopy WX-R 160 Watt LED Grow Light Bar
Iluminar Under Canopy WX-R 160 Watt LED Grow Light Bar
Iluminar Under Canopy WX-R 160 Watt LED Grow Light Bar
Iluminar Under Canopy WX-R 160 Watt LED Grow Light Bar
Roll over image to zoom in Click on image to zoom
Iluminar Under Canopy WX-R 160 Watt LED Grow Light BarIluminar Under Canopy WX-R 160 Watt LED Grow Light BarIluminar Under Canopy WX-R 160 Watt LED Grow Light BarIluminar Under Canopy WX-R 160 Watt LED Grow Light BarIluminar Under Canopy WX-R 160 Watt LED Grow Light Bar

Iluminar Under Canopy WX-R 160 Watt LED Grow Light Bar

SKU: IL-UC160WX-R
No reviews
Iluminar Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This Product Ships in 2-3 Business Days

Price:
$214.92

Iluminar Product Documents

Iluminar Under Canopy WX-R User Manual Iluminar Under Canopy WX-R Spec Sheet

Specialized Under Canopy Light for Dense Flowering Canopies. Stop leaving your crop’s potential in the shade! Now you can transform the untapped potential beneath your canopy into tangible results with Iluminar’s superior subcanopy lighting technology.

The Under Canopy Light is our purpose-built, super-efficient under canopy lighting solution, specifically targeting lower leaves and buds to boost plant health, harvestable biomass, and crop quality.

Power & Extension Cords SOLD SEPARATELY

Higher Yields, Lower Labor Overheads:

Illuminate lower flowers and foliage to boost photosynthesis, improve B-bud quality, and reduce the need for time-consuming under canopy defoliation.

Healthier Plants:

Lower foliage and flowers receive crucial additional light without overheating or stressing your plants, thanks to 0-10V dimming and high-efficiency diodes.

Maximize Efficiency:

Achieve unmatched performance with our energy-efficient design, maximizing efficiency to the fullest.

Specifications

  • Efficacy: 3.09 µmol/J
  • PPF: 495 µmol/s
  • Input Power: 160W
  • Input Voltage: 120 - 277V AC
  • Input Current: 0.58 - 1.33A
  • Frequency: 50/60Hz
  • Thermal Management: Passive
  • Ambient Temperature: 0-40°C / 32-104°F
  • Light Distribution: 120°
  • Control: 0 - 10V Dimming
  • Lifespan: 50,000 hrs

What is the Iluminar Under Canopy WX-R and how does it compare to lower-wattage options?

The WX-R is a 160W under-canopy fixture. Iluminar moved up from an earlier 120W design after facility trials showed the higher-wattage unit produced better yield outcomes — similar to the difference between a 600W and 1000W HPS lamp — while still being priced competitively against 110-120W competitor units.

Is a spectrum-tunable version available?

Yes. In addition to the standard fixed-spectrum 160W version, Iluminar offers an AB2 FR spectrum-tunable option with an independent far red channel, allowing growers to adjust spectral output rather than running a single fixed spectrum.

What benefit does the independent far red channel provide?

Early results with independent far red have shown growers finishing crops roughly a week faster — pushing from about 5.5 harvest cycles per year to 6 — by triggering an earlier, more complete finish.

Why does under-canopy installation typically cost more than expected?

Most facilities weren't originally wired for under-canopy power drops. A single power drop can cost $1,500-$4,000 to install. Iluminar's Cable Logic daisy-chain cabling reduces the number of drops needed — supporting roughly 27-28 fixtures per drop at 277V versus 15-20 on lower voltage — which can save $1,500-$4,000 per drop eliminated on a new build.
