NEW "Mint White" Series Utilizing Samsung’s Newest Plant-Centric Chip
After years of testing, Mammoth Lighting has put together a proprietary blend of Samsung "Mint White" LM301h EVO diodes + LM301b diodes (Samsung EVO +3000k+5000k+660nm+730nm) to produce a light spectrum to optimize plant growth, increase yields and produce faster flowering times .... all while consuming less energy and reducing operating costs compared with traditional horticulture technologies.
Moreover, this newly engineered spectrum effectively inhibits the growth of microorganisms like bacteria and fungi, leading to longer-lasting storability. Lastly, its industry-leading PPE consumes minimal energy, contributing to long term energy-savings and reduced operational costs for indoor farms.

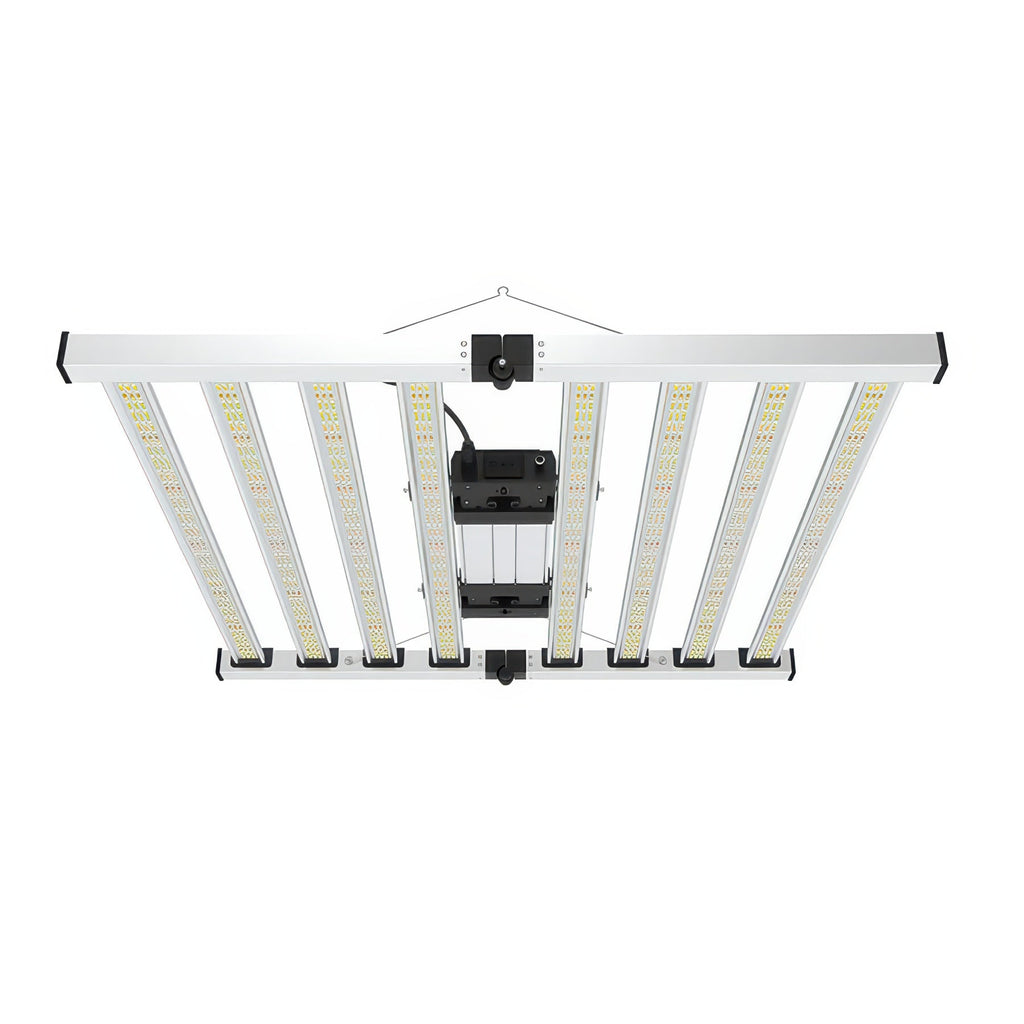

Features of the Mint White 8 Bar
- Plug and Play (fold) out of the box.
- 469 diodes per bar delivers the industry's Highest PPFD and Yield. The #1 diode in Horticulture
- Full"er" spectrum: With a proprietary blend of Samsung EVO + 3000k + 5000k + 660nm + 730nm, for full cycle growth. 730nm speeds up flower (~5 days) and adds up to 5% more yield
- Up to 5x5 flower coverage, 7x7 veg coverage
- Standard Knob Dimming + RJ port to connect multiple lights to an external controller.
- Higher Quality parts then the competition using both Samsung diodes and Inventronics drivers
- Strategically designed bars/spacing delivering more even lighting coverage (and growth) over a 5'x5'
- Removable bars + Driver for quick field and warranty service
- Remote mountable driver leaves more room in vertical settings and less heat in tents
- Future proof with replaceable bars and driver as technology advances.....
Samsung’s newest EVO chip has landed with Mammoth and a revolution in plant lighting has arrived. Using a differentiated spectrum, trials show larger and heavier growth….even under the same ppfd conditions.
Samsung’s innovative plant-centric spectrum LED dramatically boosts photosynthesis over existing horticulture lighting solutions and results in better, more holistic plant growth. Its 437 nm spectral peak, a shorter wavelength than that of conventional horticultural white LEDs, also stimulates secondary metabolites, such as phenolics and flavonols, to improve plant’s nutritional quality.
Mammoth Lighting is designed to work with Trolmaster
Both Hydro-X & Hydro-X Pro provide the following functions:
- Separate Day - Night Settings
- Controls commercial dehumidifiers
- Controls 2 separate lighting channels
- Remote monitoring using free app
- Can control lights using PPFD / PAR meter
- Control HVAC and mini-split
- Controls commercial humidifiers
- Controls supplemental CO2
- Controls timed devices
- Sava data on microSD card
The Hydro-X Environmental controller from TrolMaster is one of the most sophisticated light controllers on the market. By combing this controller with your Mammoth LED, you bring in an entire suite of professional tools to to maximise your light and yields.
A single LMA-14 Adapter is all that is need with the controller and you are ready to start controlling your Mammoth LEDs with TrolMaster
Optional Upgrade: UV Upgrade Kit
UV Upgrade kit for Mint White Series.
Includes: 2 UV bars (UVA + UVB) + 100w driver to clip onto the Fold Series. Does not include the full Mint White Series Light (purchase separately)
Can also be used as a stand alone option. UV bars + driver and plug. UVA (395nm) + UVB (310nm). Recommendation is to hang between existing bars or lights and plug in for the last 2-3 weeks of flowering.
Why UV?
UV wavelengths can change the color, flavor, and smell of a plant. These changes in color, flavor, and smell often make plants more appealing to humans, but more toxic to some insects. Plants with increased levels of these flavor/smell compounds are less likely to get eaten by insects! Lastly, there is strong evidence that UV wavelengths light prevents the spread and severity of fungal spores.
Specifications for the Mint White 8 Bar
| PPF | 2,713 µmol/s vs Fluence SPYDR 2i @1675 |
|---|---|
| Power | 8 bar 880W, Inventronics |
| Voltage | AC100-277V 50-60Hz |
| LEDs | Samsung EVO LM301h + LM301B |
| Spectrum | EVO + 3000K + 5000k + 660nm + 730nm |
|---|---|
| LED lifespan | 50000 Hours |
| Dimension | 44" x 44" x 3" | 40 lbs. |
| Warranty | 5 years |
| Brand | Mammoth Lighting |
|---|---|
| SKU | MW08 |
| Weight (lb.) | 45.0000 |
| Prop 65 | false |
| Warranty | 5 Years |
| Lead Time | This product ships in 45 days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $38.01 |
| Exact Watts | 880 Watts |
| LED Diode Type | LM301h EVO diodes + LM301b diodes |
| LED Driver Type | Inventronics Driver |
| PAR Efficiency | 3.08 μmol/J |
| Total PPF Output | 2,713 µmol/s |
| Voltage | 120 Volts, 240 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt & 240 Volt |
| Coverage Area | Veg: 7' x 7'; Flower: 6' x 6' |
| ETL Listed | No |
| UL Listed | No |
