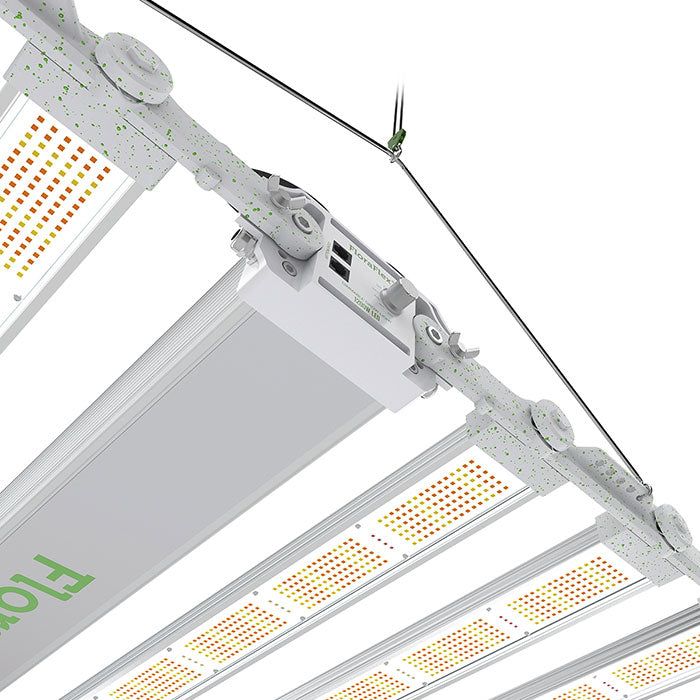

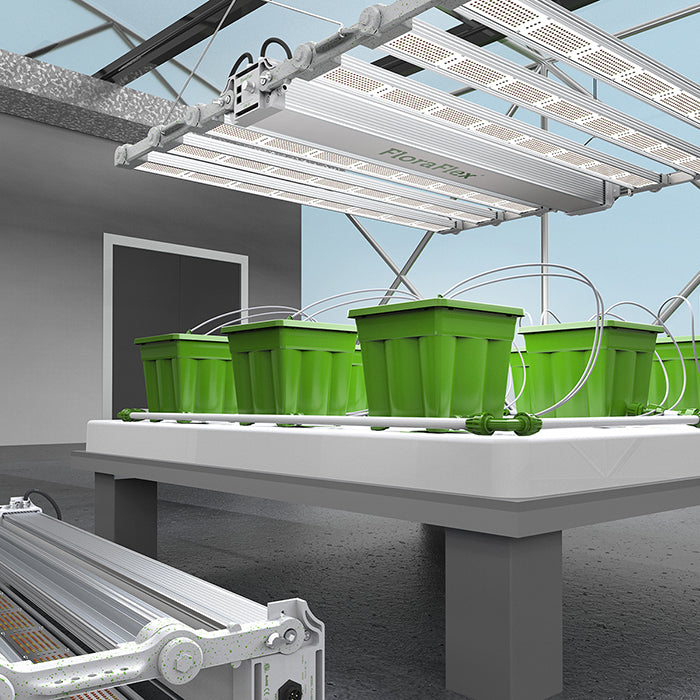

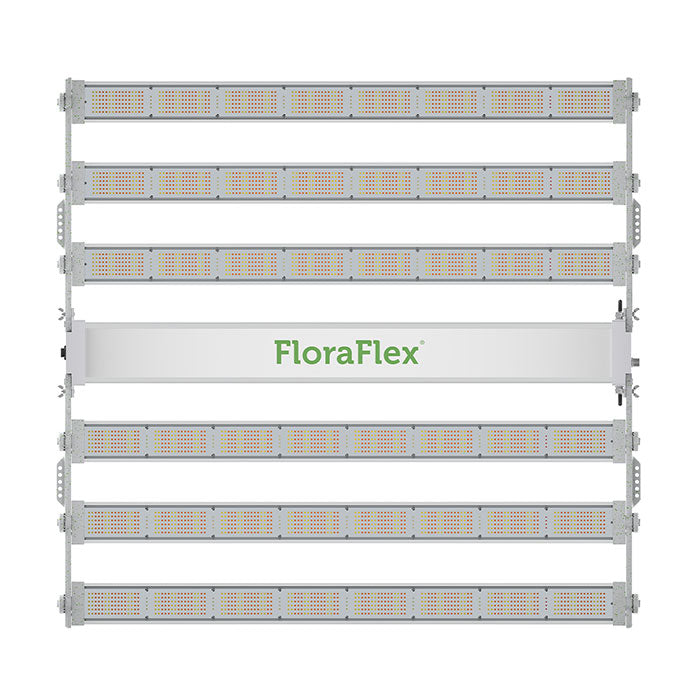

The 6-Bar Series from FloraFlex is one of the most powerful LEDs available today. With a whopping 3480 µmol/s PPF giving it a 2.9 µmol/J efficiency, there are few lights that will deliver more power than this. Built with Samsung 301B Diodes and an energy saving design, this light stays cooler in hot grow environments while staying efficient and powerful.
Choice of power cord included:
- 120 Volt
- 240 Volt
- 277 Volt

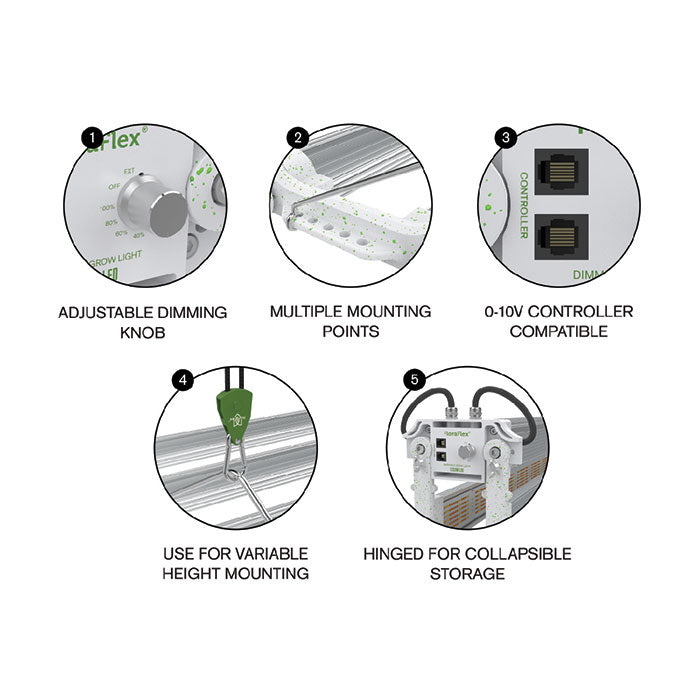

Features & Benefits of the FloraFlex 6-Bar Series
- External Controller Ready

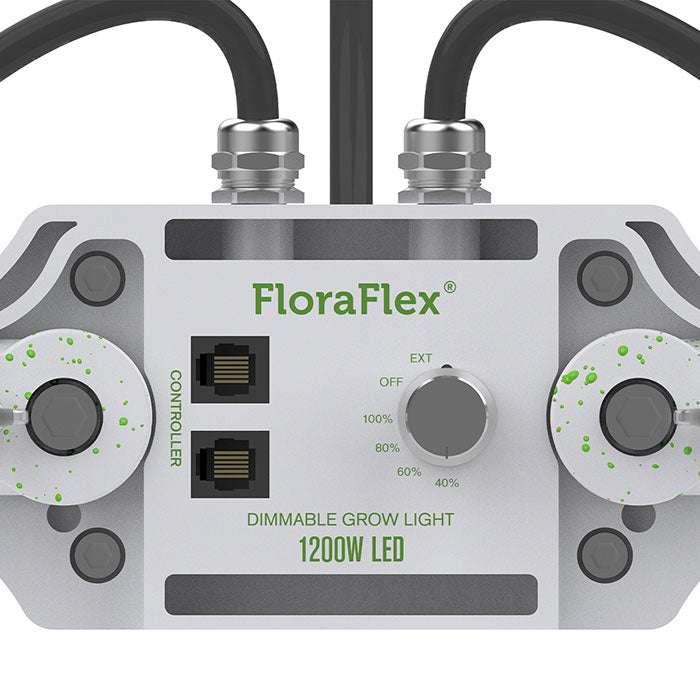

- Built In Dimmer
- Energy Saving Design
- Smart Temp Protection
- Silent Operation
- Active Cooling Structure

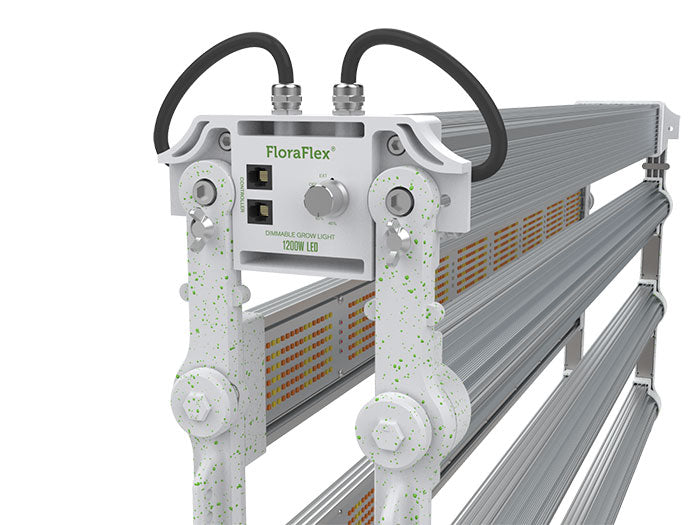

- Foldable Design
Optional Upgrade: FloraFlex Master Lighting Controller
The FloraFlex Master Lighting Controller is compatible with all FloraFlex LED lights as well as many others, it allows you to control 100 fixtures per zone, so with both zones you can control up to 200 lights. The FloraFlex Controller is the ultimate add-on for all your LED lights.
- Output Range: 10%-115%
- Over heat protection: Yes
- Sunrise/sunset period: Yes
- Control voltage outputs: 2 Groups, A/ B
- Temperature sensor: 2 Groups, A/ B
- Warranty: 3 Year

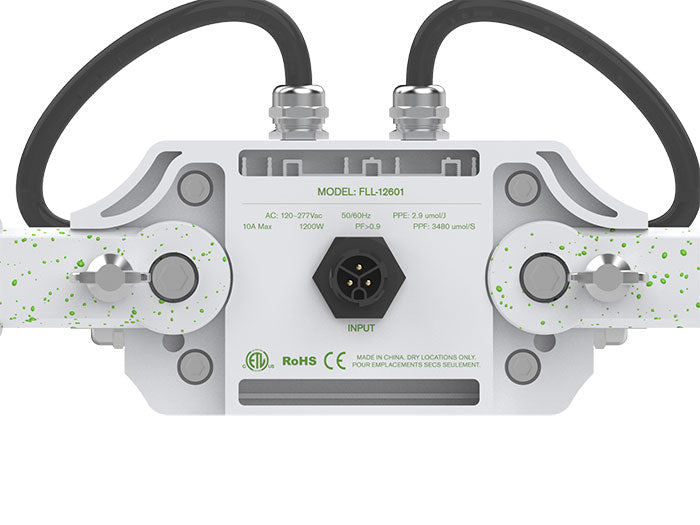

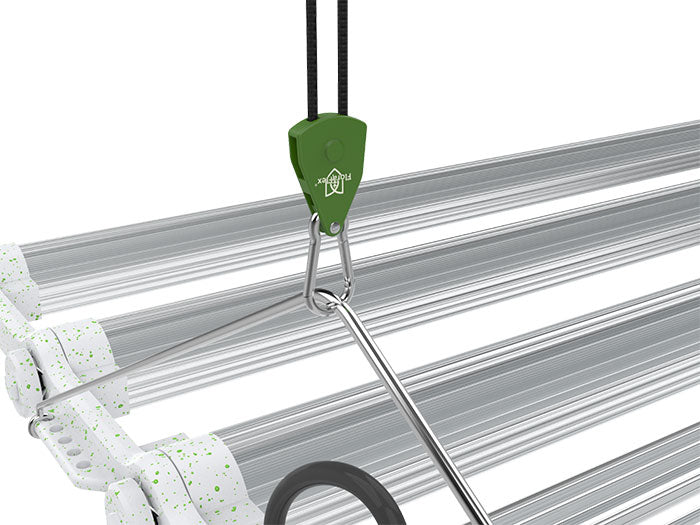

Specifications for the 6-Bar 1200 Watt FloraFlex LED
| Light Output PPF | 3480 µmol/s |
|---|---|
| PAR | 2.9 µmol/J |
| Power | 1200 Watts |
| Input Voltage | 100-277 AC, 50/60 Hz |
| Light Distribution | 120° |
| Mounting Height | 6"-12" Above Canopy |
| Diodes | Samsung 301B |
| Thermal Management | Passive |
|---|---|
| Max Ambient Temp | 113°F / 45°C |
| Dimming | 0-10V |
| THD | <15% |
| Lifetime | L90:" > 50,000 hrs |
| Certifications | UL 8800, UL 1598 Wet Location |
| Warranty | 5 Year |
Voltage & Amperage
| Voltage | 120 Volt | 240 Volt | 277 Volt |
|---|---|---|---|
| Amperage | 10.3 Amps | 5 Amps | 4.3 Amps |
| Brand | FloraFlex |
|---|---|
| SKU | FLL-12601-240 |
| Weight (lb.) | 77.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ships in 3-5 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $51.84 |
| Exact Watts | 1200 Watts |
| Suggested Hanging Height | 6"-12" Above Canopy |
| LED Diode Type | Samsung 301B |
| PAR Efficiency | 2.9 μmol/J |
| Total PPF Output | 3480 μmol/s |
| Voltage | 240 Volts |
| Amps | 10.3 Amps @ 120 Volts, 5 Amps @ 240 Volts, 4.3 Amps @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 240 Volt |
| Coverage Area | Veg: 5' x 5'; Flower: 4' x 4' |
| Grow Light Certifications | UL Listed |
| ETL Listed | No |
| UL Listed | Yes |
