Bifarm AeroXPS PRO is simple and reliable. It unlocks the benefits of aeroponics for all growers, producing high yields even while being away.
Bifarm AeroXPS Pro is a 4 square feet. computer-managed high-pressure aeroponics grow system that provides unified climate and irrigation control. Its built-in algorithm and control automation simplifies user operations, while precise control over the root zone area provides stability for plants to thrive in an aeroponic environment. The built-in reservoir can hold up to 1 gallon.
It is perfect for growers planning to start an aeroponics grow or looking to modernize their current set up
The grow system features sensors for continuous measurement of pH, EC, climate temperature & humidity, a built-in nutrient chiller/heater, precision aeroponics regulator, and hardware interfaces to climate control equipment. It manages the growing environment based on real-time data. The advanced system powered by GrowOS provides functions such as autopilot plant care attendance, calendar-based grow environment setting plans, remote system control & access to growth information including image and history charts, and 24/7 monitoring with alerts through mobile apps and emails. Apps are available for iOS, Android, and the web.
Use cases show that Bifarm High-Pressure Aeroponics dramatically increases the yields up to 2X compared to the indoor hydroponics setup, reduces 70% of the workload, and significantly saves over 70% to 95% nutrient and water consumption.
Each unit includes one wire harness, which can control up to 5 auxiliary control switches. This unit ships with 2 auxiliary control power switches.
AreoXPS Pro Features & Benefits:
- Out-of-box complete system
- 24/7 monitoring and alerts
- Programmable GrowPlan with flexible night/day shifting
- Comprehensive datalog & analysis
- Live view and time-lapse image of plants
- High Pressure Aeroponics with precision delivery
- Thermo-insulated root chamber
- Chilling & heating nutrient temperature components & controlling modes
- Nutrient quality monitoring (TDS, pH, temperature, volume)
- .98 Gallon Capacity
- Automated intake and drain support
- Climate environment monitoring (temperature, humidity)
- Custom auxiliary devices management (lights, fans, air quality, and more
- Multiple unit batch management
- Expandable to 32 sq. ft. grow space with Bifarm Commercial systems
Included Items
- Five 3" plastic net grow cups
- Five neoprene grow collars
- Four wheels & wheel assembly
- Two auxiliary control switches
- Two nylon grow bags
- One grow bag assembly
- One climate sensor
- One pH sensor
- One EC sensor
- One power cord
Grow Up To Five Plants At Once
The AeroXPS Pro includes 5 grow cups which allow you to take plants from seed to harvest! Plants can be grown more densely because roots are not fighting for the same nutrients, saving you space and giving you peace of mind.
Orchestrate Your Entire Operation
The AreoXPS Pro allows you to keep your current equipment, helping you automate your grow. The AreoXPS allow the coordination between your grow lights, exhaust fans, thermostats and more! It is the perfect drop-in upgrade to improve your set up.
Modernize Your Grow With GrowOS
The GrowOS Pro allows you to automate, monitor, collect data, and simplify your overall workload. Your grow data can easily be viewed and exported. You can track your temperatures, pH & EC Changes, and even water usage over time!
A Closer Look Inside
Crafted from food safe High Density Polyethylene, the AeroXPS Pro is an all-in-one aeroponics system that combines state of the art technology and state of the are growing techniques. With built-in temperature regulation, the insulated chamber maintains the perfect nutrient temperature. Proper temperature control also helps prevent root disease and the incubation of harmful pathogens.
High-Pressure Aeroponics
There are two main types of aeroponics used by hobby growers, low-pressure & high-pressure. Low-pressure aeroponics is the most commonly used for it's general ease of use set up. High-pressure aeroponics is generally a more advanced technique, utilizing harder to use equipment. The AreoXPS Pro levels the playing field, offering a top of the line grow system in an easy to use, all in one set up.
High-pressure aeroponics emit a much finer mist than it's low-pressure counterpart. The benefits of a finer mist include more efficient nutrient and water coverage while allowing your roots maximum oxygen access. This gives the plant bigger, stronger, healthier roots. Healthy roots lead to a happy plant!
Aerated Roots
Roots suspended in the air are exposed to more oxygen. More oxygen allows root development to flourish, and in turn, allows plants to grow faster than plants in soil or soiless medias.
Stable Pressure
Equipped with an air tank and sensors, the built-in pressure regulator maintains stable misting power and ensures consistent nutrient delivery.
Roots Sprayed by Fine Mists
Bifarm nozzles provide an advanced method for water and nutrient delivery. Roots take in nutrients more efficiently when solution droplets reach a certain size, contributing to the accelerated growth many have seen in aeroponics.
Accurate Where It Matters Most
The nozzle tip is made of ceramic, guaranteeing mist accuracy through durability, ensuring that the nozzles won’t wear out. Withstanding time and mist pressure, Bifarm's high-pressure aeroponics pace the ideal growth.
Built For Precision
Nozzle Accuracy
With the sub-second nozzle control, you gain the accuracy needed to pace the ideal growth. The nozzle tip is made of ceramic, a hard material that will guarantee the misting accuracy over time.
Stable Pressure
Equipped with an air tank and sensors, the built-in pressure regulator maintains stable misting power and ensures consistent nutrient delivery.
Filtration Systems
The 3 layers of specialty filtration keep the inner workings running smooth and free of clog: a built-in filters in nozzles, a stainless steel mesh reservoir cover, and lint-free nylon grow bags.
Sensors
The system monitors environmental conditions such as climate temperature, humidity; as well as nutrient temperature, EC, pH and reservoir capacity, and flow rate.
Environment Regulators
The system regulates nutrient temperature via built-in Temperature Control, manages reservoir volume via Nutrient Inlet/Outlet, controls misting schedule via solenoids, schedules light intensity and spectrum, and functions such as a thermostat. Via provided auxiliary switches, the system can also manage CO2 tank release, vents and other equipment.
Smart Controller
The automation of the sensing and actuation is implemented by Bifarm's smart controller powered by GrowOS. The smart controller runs autonomously and can be managed by groups in commercial facilities.
Temperature Regulation
The built-in temperature control actively regulates root chamber temperature.
The managed root temperature prevents unwanted pathogens and the depletion of dissolved oxygen.
In addition, the difference of ambient temperatures between the roots and leaves promotes healthy transpiration and increases nutrient intake.
Insulated Chamber
Bifarm’s insulated root chamber provides two important functions:
- Premium insulation properties that keep outside heat from reaching the chamber, saving energy used for temperature regulation.
- Stabilized temperatures within the root chamber to maintain consistent root environments.
GrowOS, The Comprehensive software and service platform for precision agriculture
GrowOS was designed with growers in mind so they can focus on what they do best without worrying about repetitive tasks.
Bifarm's GrowOS Pro software captures all the little details about your cultivation operation. Your grow data can easily be viewed and exported. Tracking temperature changes? Check. Changes in pH or EC? Double-check. Your operation’s water usage over time? We think you can guess this one but yes, check!
Automate your grow, from nutrient settings to your overall plant environment. Remote Access & and real time reporting and alerts ensure you never miss anything!
Self-diagnostics
The self-diagnostics module monitors nutrient temperature, volume level, water quality, flow congestion, and air temperature & humidity.
Customizable Alerts
When alerts are triggered, you will get mobile notifications. Together with GrowOS cloud, AeroXPS lets you be free to roam while you grow.
Camera Support
Automatic time-lapse photos during the day; an effortless documentation of visual grow history. Live images of your plants are reported remotely 24/7 and anywhere you have internet connection.
Effortless Data Collection
Staying on top of all the data can be tough work in real time, but GrowOS helps you collect every important data point. Capture time-lapse images, notification events, status and charts.
Create customized grow plans for different facilities and grow rooms.
Your grow plans are saved for future use and can be applied to multiple units at once, saving time and effort.
GrowOS Cloud and GrowOS Server
GrowOS Cloud service allows for remote connectivity and management whether you’re on or offsite. GrowOS Server ensures that you can always access your facility onsite regardless of internet availability.
| Sensors | |
|---|---|
| Nutrient pH | |
| Measuring Range | 0-14 pH |
| Measuring Temperature | 0 - 60 °C |
| Accuracy | +/- 0.1 pH (25 °C |
| Response Time | <= 1 Minute |
| Nutrient EC | |
| TDS Measurement Range | 0 ~ 2000ppm |
| TDS Measurement Accuracy | +/- 10% F.S (25 °C) |
| Climate Temp & Humidity | |
| Temperature Range | -40 °C to 80 °C |
| Humidity Range | 0% to 100% |
| Accuracy | +/- 0.5 °C & +/-1% |
| Power Consumption & Technical Specs | |
|---|---|
| Controller | 2 Watts |
| Preassure Pump | 20 Watts (when activated) |
| Temperature Control | 135 Watts (when activated) |
| Power Supply | 120 Volts |
| Frequency | 60 Hz |
| Warranty Length | 12 Months |
| Cord Length | 17 Feet |
| Brand | Bifarm Tech Inc |
|---|---|
| SKU | XPS-PRO-1A |
| Weight (lb.) | 55.0000 |
| Width (in.) | |
| Height (in.) | |
| Length (in.) | |
| Warranty | 12 Months |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 860001957709 |
| Lead Time | This product ships in 1-3 Business Days |
| ETL Listed | No |
| Plant Count | 5 |
| Plant Spacing | 30 cm between edges, 24 cm from outside cup to inside cup |
| Growth Module Size | 1 Gallon |

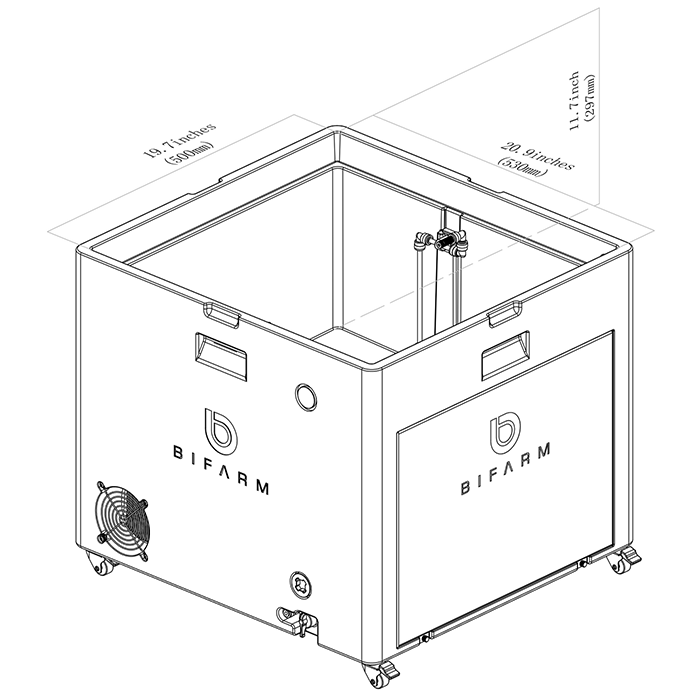

| System Footprint | 2 Feet x 2 Feet |
| Estimated Amount of Grow Media Required | None |
| Exact Watts | 157 Watts |
| Power Cord Length | 17 Feet |
