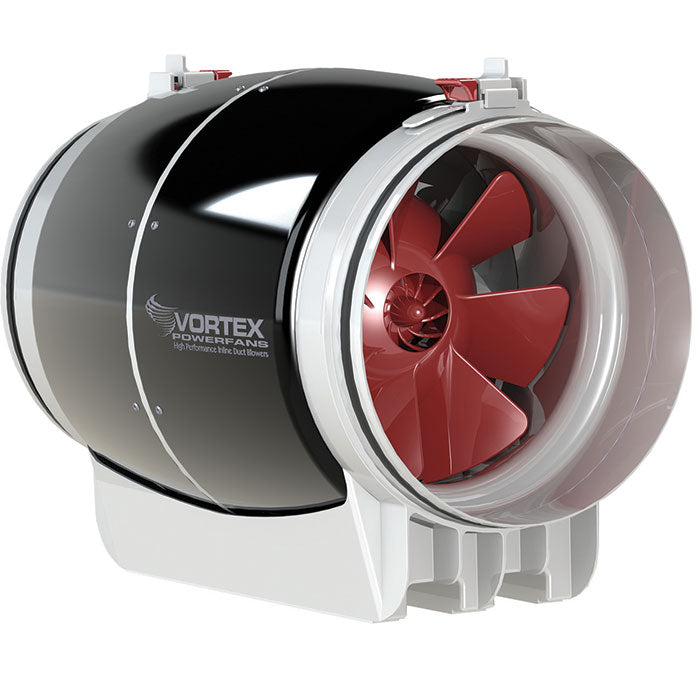

The S-line is a revolutionary series of fans that combine energy efficiency, ultra-quiet operations and a collection of advanced technologies that deliver unparalleled performances.
An extremely energy efficient AC brush-less motor powers the patented mixed-flow dual impellers. Built with double insulated walls, noise is reduced to levels that were previously thought to be unattainable.
All S-Line models are assembled with high impact resistant polycarbonate casings, an integrated back draft damper and a mounting bracket designed for quick and easy installation.
The S-Line models feature a 10-year warranty!
Model Specifications:
Vortex S-Line Fan | 6"
| CFM: | 347 |
| RPM: | 2720 |
| Power Supply: | 120V / 60Hz |
| Power: | 72 Watts |
| Current: | 0.68 Amps |
Vortex S-Line Fan | 8"
| CFM: | 728 |
| RPM: | 3150 |
| Power Supply: | 120V / 60Hz |
| Power: | 232 Watts |
| Current: | 1.99 Amps |
Vortex S-Line Fan | 10"
| CFM: | 1081 |
| RPM: | 2970 |
| Power Supply: | 120V / 60Hz |
| Power: | 232 Watts |
| Current: | 2.12 Amps |
| Brand | Vortex |
|---|---|
| SKU | VTX1000S |
| Weight (lb.) | 19.6000 |
| Lead Time | This item ships in 1-2 Business Days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 628507105037 |
| Shipping Restrictions | AK, HI |
| Fan Type | Inline |
| Is Speed Controllable | Yes |
| Inline Fan Features | Sound Insulated Walls |
| Oscillation | No |
| CFM Rating | 1,081 CFM |
| Exact Watts | 232 |
| Amps | 2.12 |
| Frequency | 60 Hz |
| Voltage | 120 Volts |
| Max. RPM | 2970 |
| ETL Listed | No |
| UL Listed | No |
