Basic Compact Driver for AC motors speed controls

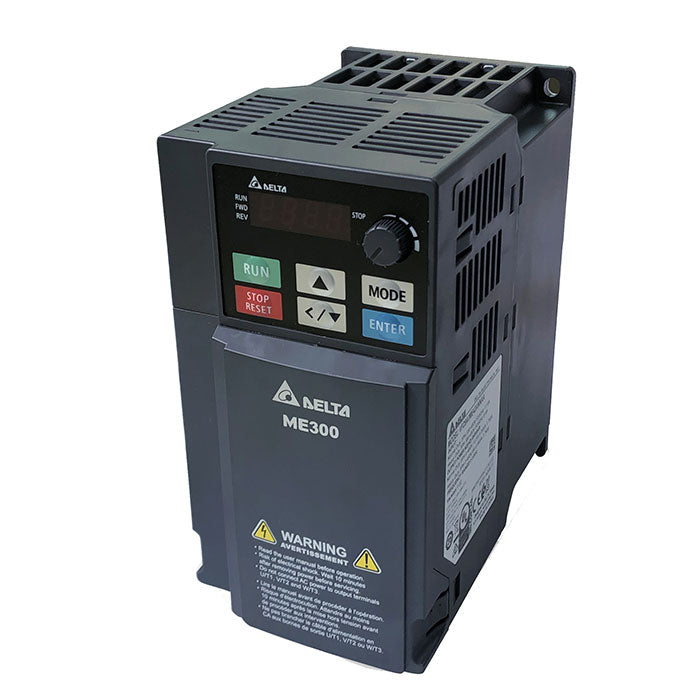

The Delta-1 is a customized made variable-frequency drive (VFD) by Delta company. It can be used in the TrolMaster Hydro-X Pro system to control the speed of AC motors (industrial fans etc.)
An RJ45 cable is included for connecting with the TrolMaster VFD-1 module.
This customized version has had all the parameters preset and ready to be operated with VFD-1 module straight out of the box.
Specifications
- Normal Duty: 3PH 380-480V 50/60Hz 11.6A
- Heavy Duty: 3PH 380-480V 50/60Hz 9.9A
- Normal Duty: 3PH 0-460V 10.5A 8.0KVA 3.7KW
- Heavy Duty: 3PH 0-460V 9A 6.9KVA 3.7KW
- Frequency Range: 0-599 Hz
Input
Output: Power ND(HD) 5HP(5HP)
IP20/UL Open-Type (rated-20°C to 50°C Ambient)
NEMA 1/UL Type1 when installed with conduit box kit (rated-20°C to 40°C Ambient)
| Brand | TrolMaster |
|---|---|
| SKU | DELTA-1 |
| Weight (lb.) | 20.0000 |
| Lead Time | Ships in 2-3 Business days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Hazardous Material | false |
| UPC | 6970207971837 |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Amps | 11.6 Amps |
| Voltage | 480 Volts |
| Frequency | 50/60 Hz |
