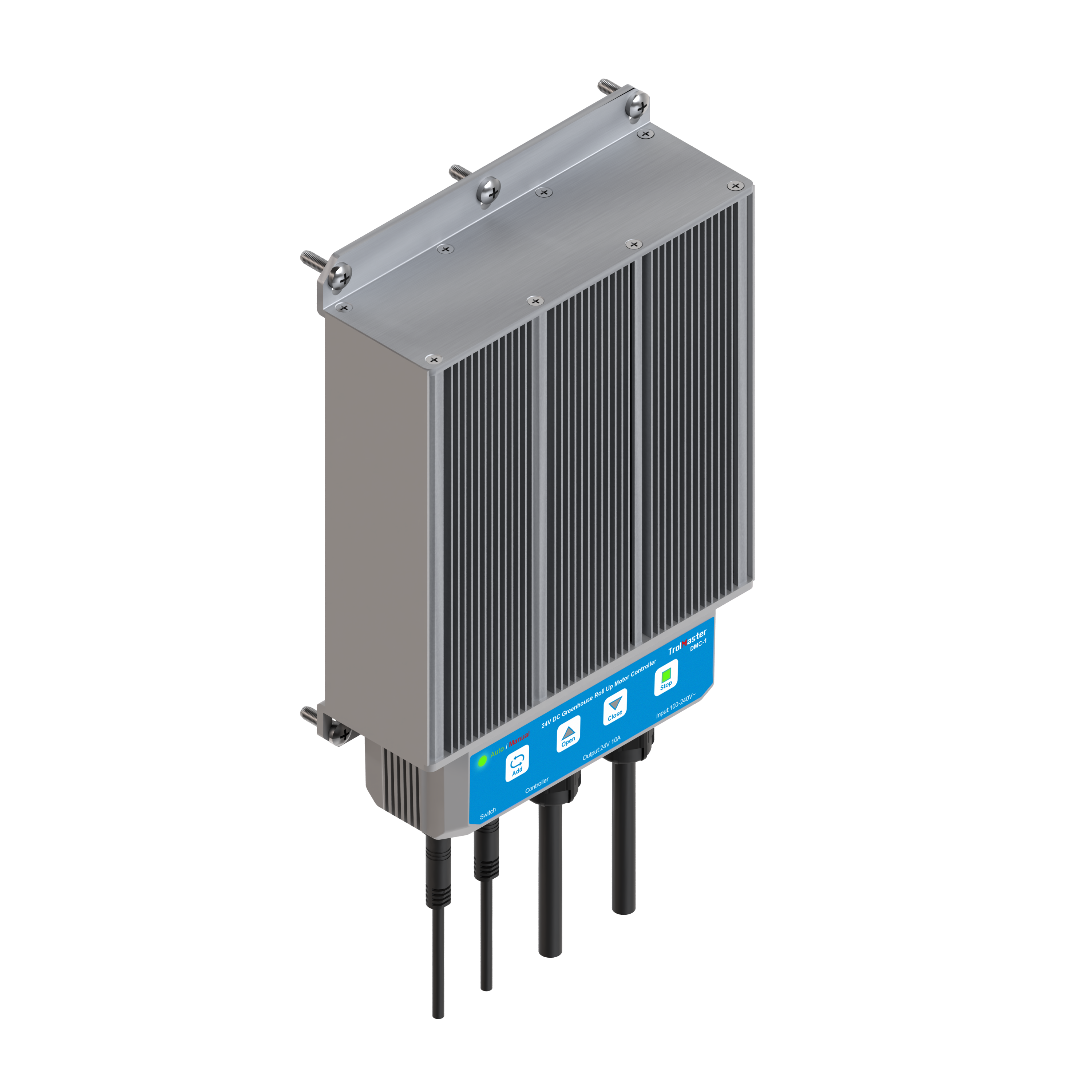

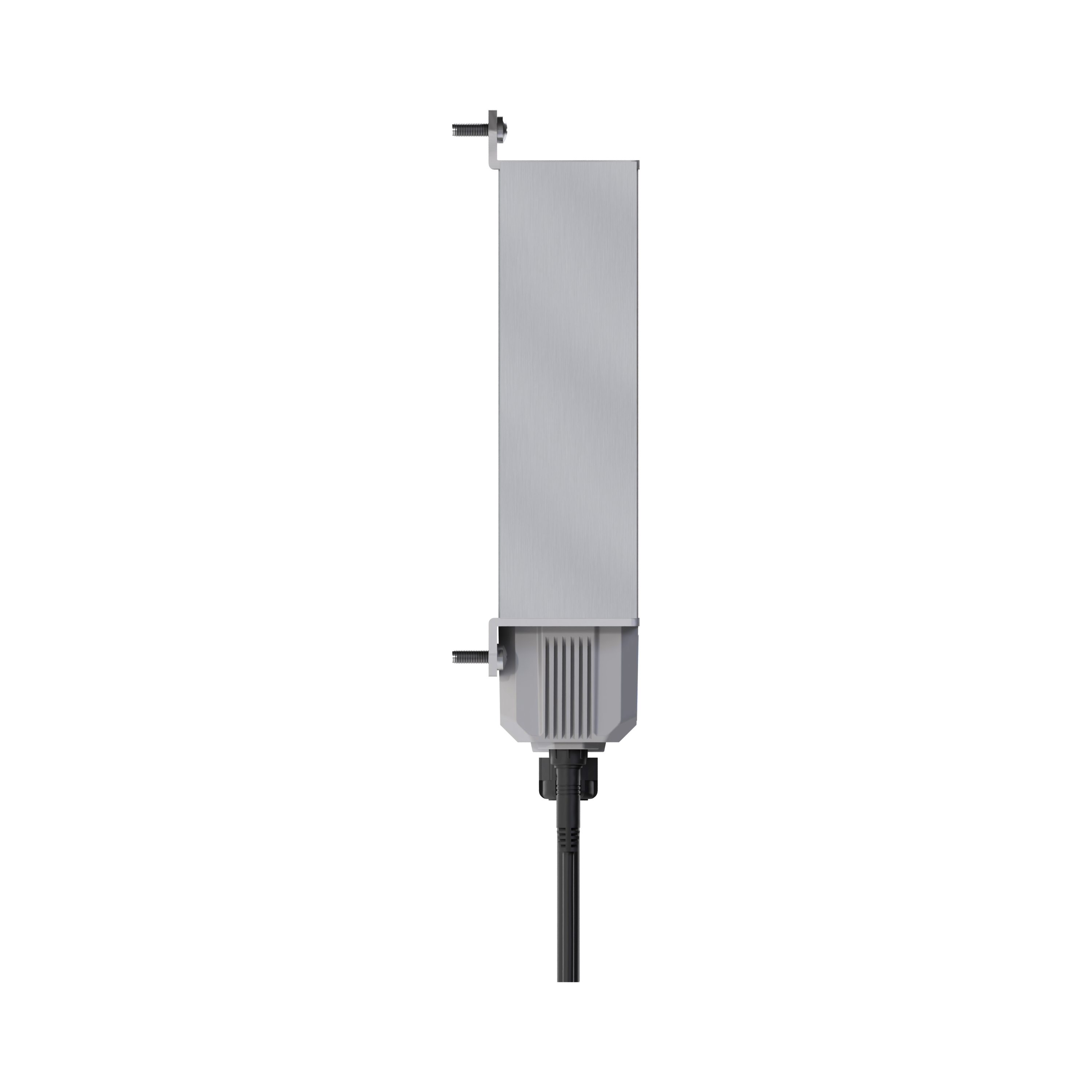

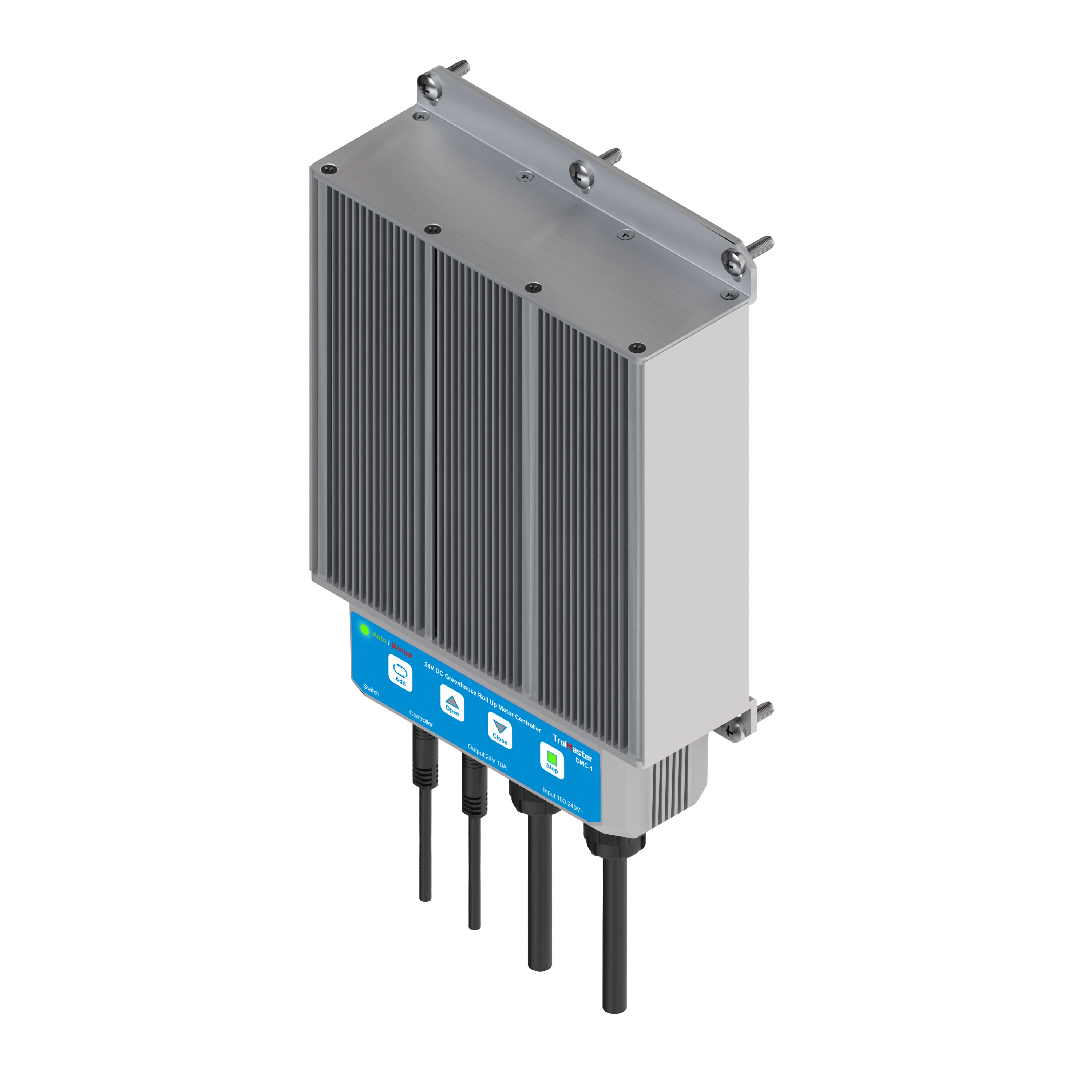

The DMC-1 is an advanced motor driver for agricultural greenhouse curtains that enables both manual and automated control of curtain motors. It is designed for seamless integration with the GCS (Green-X Greenhouse System) and provides precise motor control, including forward and reverse operation, stopping functions, timeout shutoff, and overcurrent protection. This integration enhances greenhouse management by allowing centralized monitoring and control, optimizing environmental conditions for plant growth and improving operational efficiency.
What's Included
- 1x DMC-1
- 1x Power Cord
- 1x Cross Screw driver
- 1x 12ft RJ12 to 4pin IP65 Connector Cable
Features & Benefits
- Seamless Connection with GCS-1
- Assignable control of 24V motors and curtain control
- Plug-and-play
Specifications
- Input Voltage: 100-240VAC, 50/60Hz
-
Working Environments:
- Temperature: 32-104°F (0-40°C)
- Humidity: ≤90% RH
- Waterproof Rating: IP44
-
American Wire Gauge (AWG):
- Output: Cannot be less than 16 AWG
- Communication Method: RS-485 (4-pin waterproof connector)
- No-load Power Consumption: <2W (at 240V input)
-
Package Dimensions:
- Size: 10.83 inches / 275 mm (L) x 6.69 inches / 170 mm (W) x 3.74 inches / 95 mm (H)
- Gross Weight: 4.63 lbs / 2.1 kg
What greenhouse system is compatible with the TrolMaster DMC-1?
The TrolMaster DMC-1 integrates with the GCS, also called the Green-X Greenhouse System, including the GCS-1.
What does the TrolMaster DMC-1 control in a greenhouse?
The TrolMaster DMC-1 provides manual and automated control of 24V greenhouse curtain motors, including forward, reverse, and stop functions.
What motor protection features does the TrolMaster DMC-1 provide?
The TrolMaster DMC-1 provides timeout shutoff and overcurrent protection for controlled curtain motors.
What is included with the TrolMaster DMC-1 greenhouse motor controller?
The TrolMaster DMC-1 package includes one DMC-1 controller, one power cord, one cross screwdriver, and one 12-foot RJ12 to 4-pin IP65 connector cable.
How does the TrolMaster DMC-1 connect to a greenhouse control system?
The TrolMaster DMC-1 connects through RS-485 communication using a 4-pin waterproof connector and supports plug-and-play connection with GCS-1.
