Photontek Lighting Product Documents

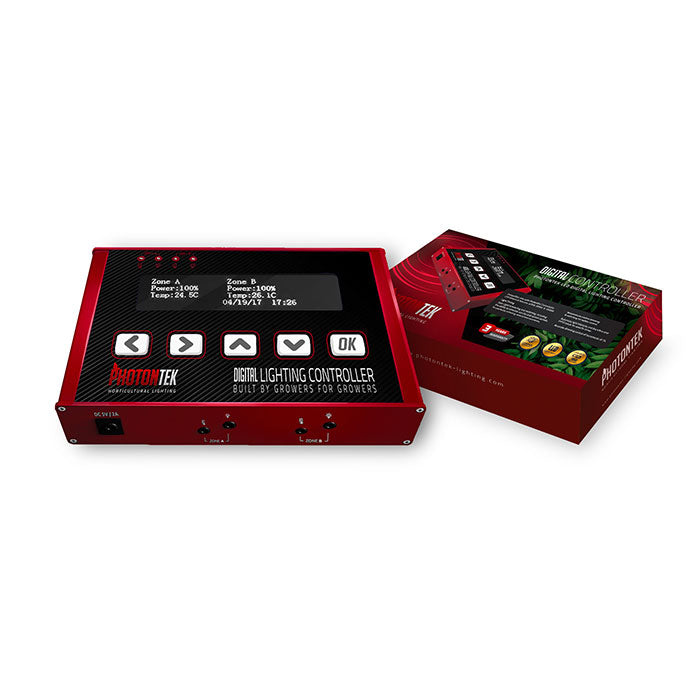

Photontek Digital Lighting Controller ManualThe PhotonTek Digital Lighting Controller is a full-control LED fixture master panel, that allows you to harness the full power of our entire LED lighting range.
Using the newest tech available, this smart-feature accessory will quickly become your best grow mate as it constantly monitors and helps to maintain your environmental temperatures, lighting schedules & intensity automation. Smart, but still incredibly user-friendly, this unit is a twin channel controller. Giving growers the ability to control individual ‘zones’, capable of operating up to 50 LED fixtures each!
Features & Beenfits
- Control panel for up to 100 LED drivers
- Compatible only with PhotonTek Controllable LED drivers & fixtures; 465W, 600W & 1000W
- Light Timing
- 24hr Light scheduling and switching, including the ability to simulate sunrise and sunset periods, for perfectly imitating natural environments
- Temperature-control dimming & switching for safety control
- Automate light intensity and therefore your PPFD totals for specific times.
- Accurate dimming control of increments of 1%
Whats Included?
- 1 x PhotonTek Digital Controller
- 1 x Power adaptor and cable
- 2 x Temperature sensor 5m cable
- 2 x LED control link cable
Using an analogue 0-10V signal, each channel (Zone) can either control the same powered LED drivers; Zone A can control the same powered drivers as Zone B OR Zone B can be set to control different powered LED drivers. Eg: Zone A can be set to control 465W LED fixtures and Zone B set to control 600W, with the same accuracy and safety protections across your entire set-up.
Specifications for the Photontek Digital Lighting Controller
| Power: | 100 – 277V AC 50/60Hz – DC 5V/2A |
|---|---|
| Match LED Driver | All PhotonTek Controlled LED Drivers |
| Power Dimming Range: | 0%, 10% – 100% |
| Power Regulation Accuracy | 1% |
| Temp-controlled Dimming range | 0°C-40°C |
|---|---|
| Temp-controlled Switching range | 10°C-50°C |
| Sunrise and Sunset Duration | 0-30 min |
| Dimensions | 125 x 80 x 25mm |
| Brand | Photontek Lighting |
|---|---|
| SKU | PTEKM0017 |
| Weight (lb.) | 3.6300 |
| Length (in.) | |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Lead Time | This product ships in 3-5 business days |
| Hazardous Material | false |
| UPC | 5060560031000 |
| UL Listed | No |
| ETL Listed | No |
| Number of Lights Controlled | 1-100 |
| Voltage | 120 Volts |
| Amps | 2 Amps |
