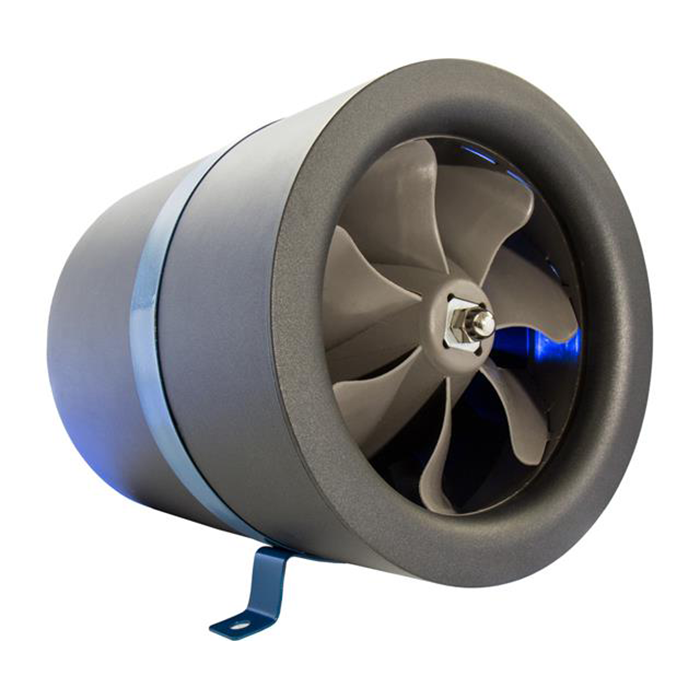

Phat Mixed Flow Inline Fan

Tough, Cool, & Efficient Inline Mixed Flow Fans Capable of Medium To High Static Pressure

The ultra-powerful Phat Fans use advanced mix-flow technology and have a specially engineered aerodynamic design, which allows them to achieve an unheard-of level of performance and efficiency. These fans maintain high CFM ratings, have powerful internal drive motors, are aerodynamically designed, and feature UL-recognized components, an attached 8 ft power cord, and mounting brackets.

Available in 6", 8", 10", and 12" sizes, the innovative design allows Phat fans to operate in high moisture, lint, and dust-laden air. The 6" and 8" models are constructed of extruded molded plastic making them extremely lightweight. The 10" and 12" versions are housed in a heavy-duty, commercial-grade metal casing that"s highly durable. Phat Fans offer smart design, excellent heat dissipation, and vibration-free operation, ensuring a long maintenance-free life.

What's inside a Phat Fan?

***NOTE***: The 6", 8", and 10" sizes are speed controllable. The 12" model is not compatible with speed controllers due to it’s motor type. We do not recommend using any speed control device with this fan

Features:

• Airtight housing offers streamlined performance while the sleek design offers quiet operation
• Mixed flow impeller designed for high-flow operation
• Extreme motor cooling for improved life performance
• Super-efficient speed controllable motor to better adapt to individual needs
• Motor safeguarded with thermal overheat protection
• Stable mounting bracket offers easy installation
• Energy efficient
• Thermal overload protection
• UL recognized components

CFM Specifications:

• 6" CFM: 390
• 8" CFM: 667
• 10" CFM: 1019
• 12" CFM: 1708
